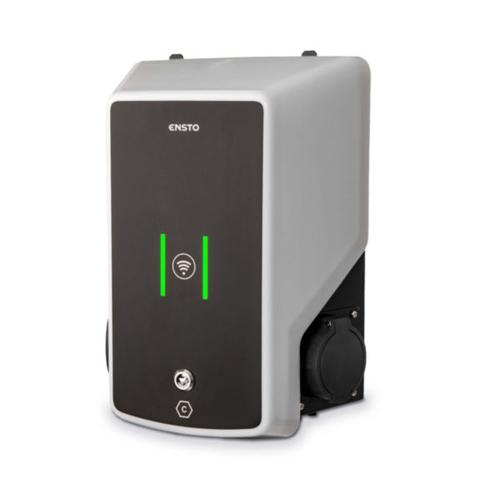

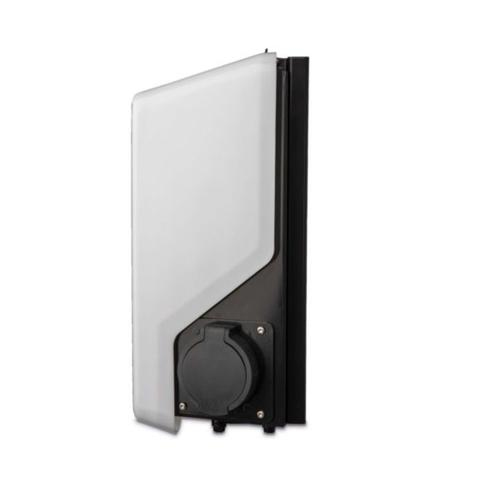

Ensto Wallbox
Model Ensto WallboxPart no. EVB200B-A4BCEAN 6430064497227
24 specifications
- Weight13 kg
- ColourBlack, White
- Near Field Communication (NFC)Yes
- Number of phases3
- Operating temperature (T-T)-25 - 50 °C
- Width362 mm
Overview
- Weight
- 13 kg
- Colour
- Black, White
- Near Field Communication (NFC)
- Yes
- Number of phases
- 3
- Operating temperature (T-T)
- -25 - 50 °C
- Width
- 362 mm
- Brand
- Legrand
- Model
- Ensto Wallbox
- Part number
- EVB200B-A4BC
- EAN / UPC
- 6430064497227
- Also known as
- Legrand Ensto Wallbox Black, White Stainless steel Wall 3
Specifications
24 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Mounting type | Wall |
| Housing material | Stainless steel |
| Built-in display | No |
| Integrated energy meter | Yes |
Features
| Specification | Value |
|---|---|
| Near Field Communication (NFC) | Yes |
| Socket type | Type 2 |
| Sockets quantity | 2 |
| RFID reader | Yes |
| Mechanical impact protection code | IK10 |
| International Protection (IP) code | IP54 |
| Quantity per pack | 1 pc(s) |
Power
| Specification | Value |
|---|---|
| Number of phases | 3 |
| Power source type | AC |
| Maximum charging power | 22000 W |
| Nominal frequency | 50 Hz |
| Maximum operating current per phase | 32 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 362 mm |
| Depth | 212 mm |
| Height | 477 mm |
| Weight | 13 kg |
