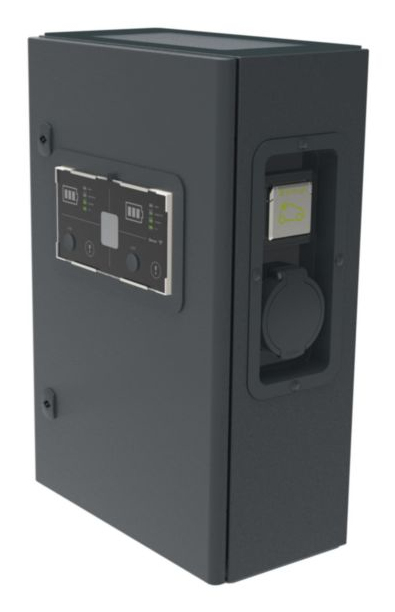

058049 electric vehicle charging station Black Steel 3
Model 058049EAN 3414972345255
29 specifications
- ColourBlack
- Open Charge Point Protocol (OCPP) version1.6J
- Number of phases3
- Compliance certificatesCE
- Operating temperature (T-T)-25 - 50 °C
- Width430 mm
Overview
- Colour
- Black
- Open Charge Point Protocol (OCPP) version
- 1.6J
- Number of phases
- 3
- Compliance certificates
- CE
- Operating temperature (T-T)
- -25 - 50 °C
- Width
- 430 mm
- Brand
- Legrand
- Model
- 058049
- Part number
- 058049
- EAN / UPC
- 3414972345255
- Also known as
- Legrand 058049 electric vehicle charging station Black Steel 3
Specifications
29 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Built-in display | No |
| Integrated energy meter | No |
Features
| Specification | Value |
|---|---|
| Open Charge Point Protocol (OCPP) version | 1.6J |
| Integrated miniature circuit breaker (MCB) | Yes |
| Bluetooth | Yes |
| Socket type | Type 2 |
| Sockets quantity | 2 |
| SIM card support | No |
| RFID reader | Yes |
| Programmable | Yes |
| Communication protocol | Bluetooth / OCCP 1.6J |
| Mechanical impact protection code | IK10 |
| International Protection (IP) code | IP55 |
| Quantity per pack | 1 pc(s) |
Power
| Specification | Value |
|---|---|
| Number of phases | 3 |
| Power source type | AC |
| Nominal voltage | 380 V |
| Nominal frequency | 50 Hz |
| Maximum operating power (three-phase) | 22 kW |
| Maximum operating current (three-phase) | 32 A |
| Adjustable power | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 243 mm |
| Height | 740 mm |
