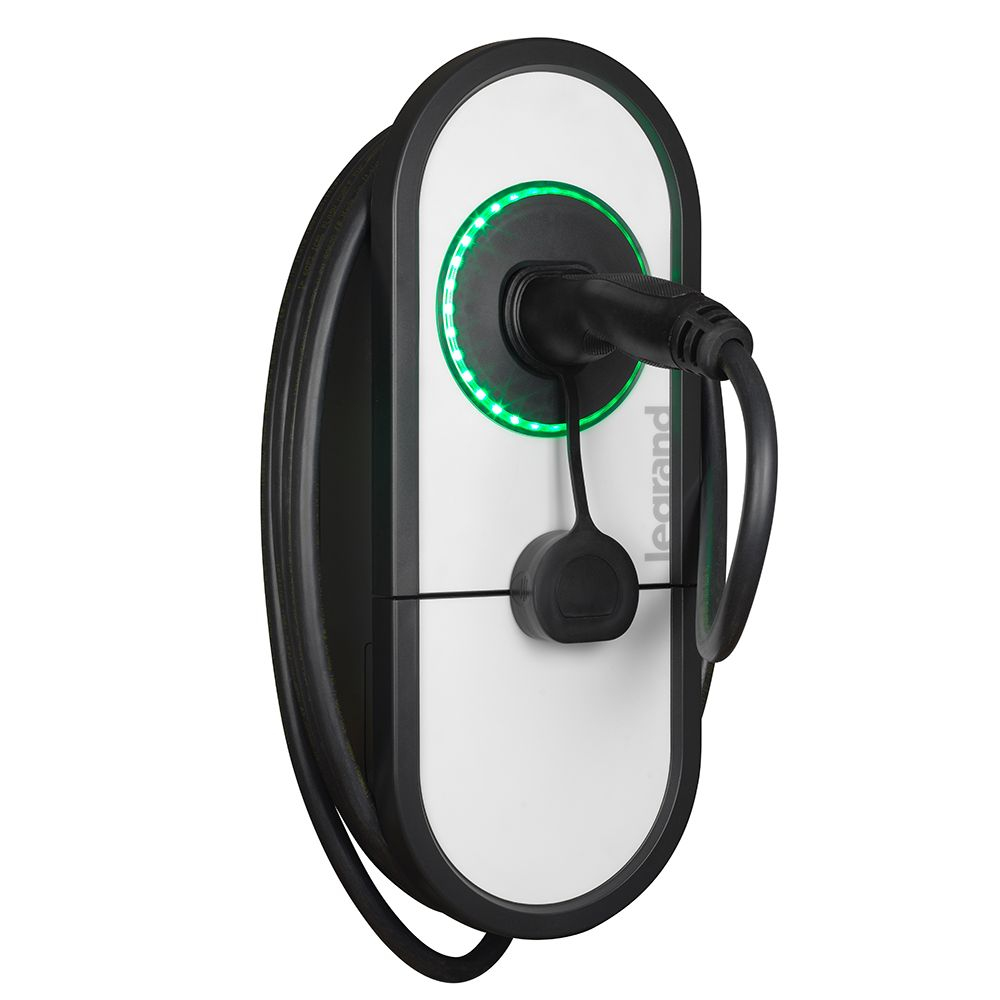

Green Up One
Model Green Up OnePart no. 057012EAN 3414972485272
22 specifications
- Weight7 kg
- ColourBlack, Silver
- Sockets quantity1
- Operating temperature (T-T)-40 - 50 °C
- Charging cable length5 m
Overview
- Weight
- 7 kg
- Colour
- Black, Silver
- Sockets quantity
- 1
- Operating temperature (T-T)
- -40 - 50 °C
- Charging cable length
- 5 m
- Brand
- Legrand
- Model
- Green Up One
- Part number
- 057012
- EAN / UPC
- 3414972485272
- Also known as
- Legrand Green Up One Black, Silver Polycarbonate (PC) Floor 1
Specifications
22 specifications in 5 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Mounting type | Floor |
| Housing material | Polycarbonate (PC) |
| Built-in display | No |
| Integrated charging cable | Yes |
| Cable colour | Black |
Features
| Specification | Value |
|---|---|
| Sockets quantity | 1 |
| Mechanical impact protection code | IK10 |
| International Protection (IP) code | IP54 |
| Quantity per pack | 1 pc(s) |
Power
| Specification | Value |
|---|---|
| Number of phases | 1 |
| Power source type | AC |
| Maximum charging power | 7400 W |
| Single-phase output voltage supported | 230 V |
| Nominal frequency | 50 Hz |
| Maximum operating current per phase | 32 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Charging cable length | 5 m |
| Width | 135 mm |
| Depth | 208 mm |
| Height | 513 mm |
| Weight | 7 kg |
