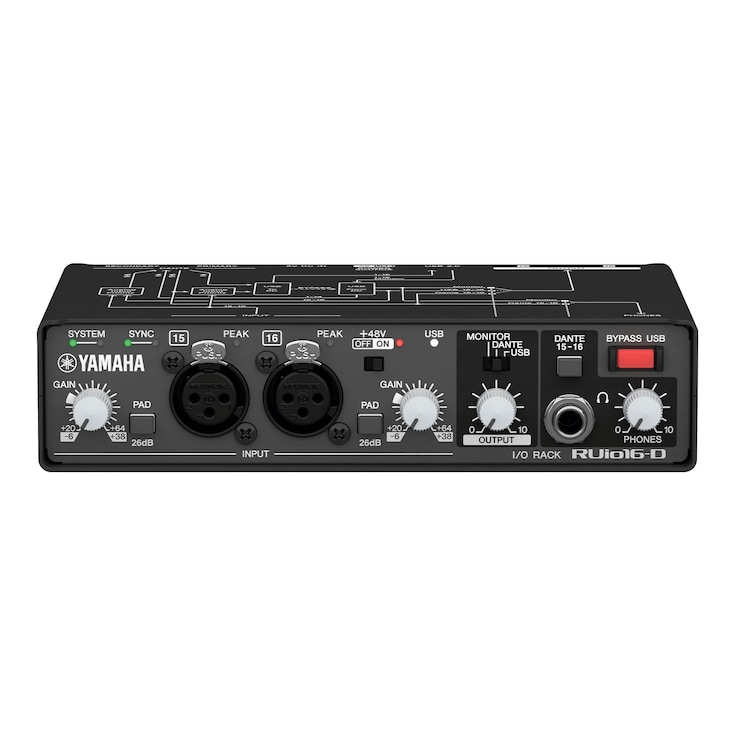

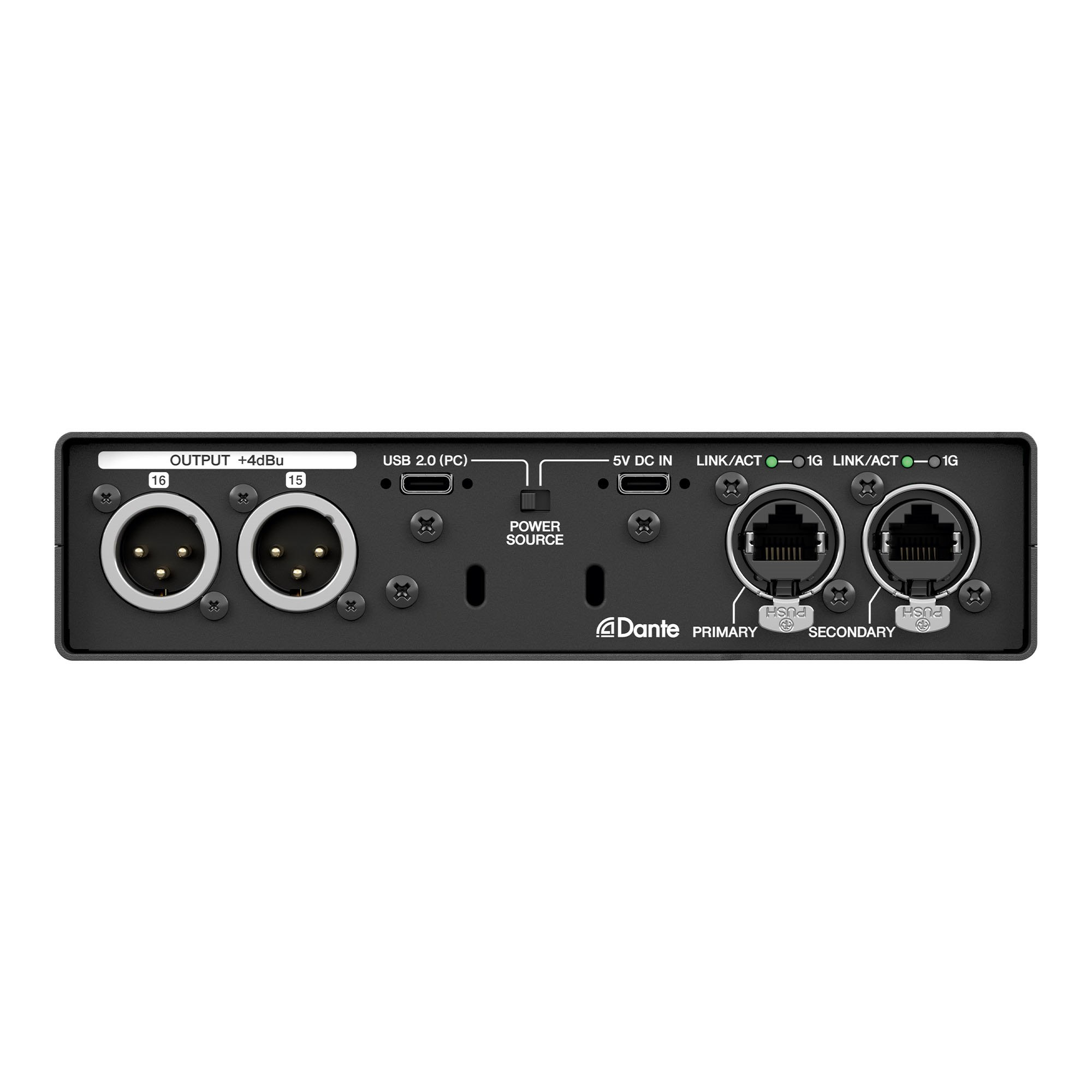

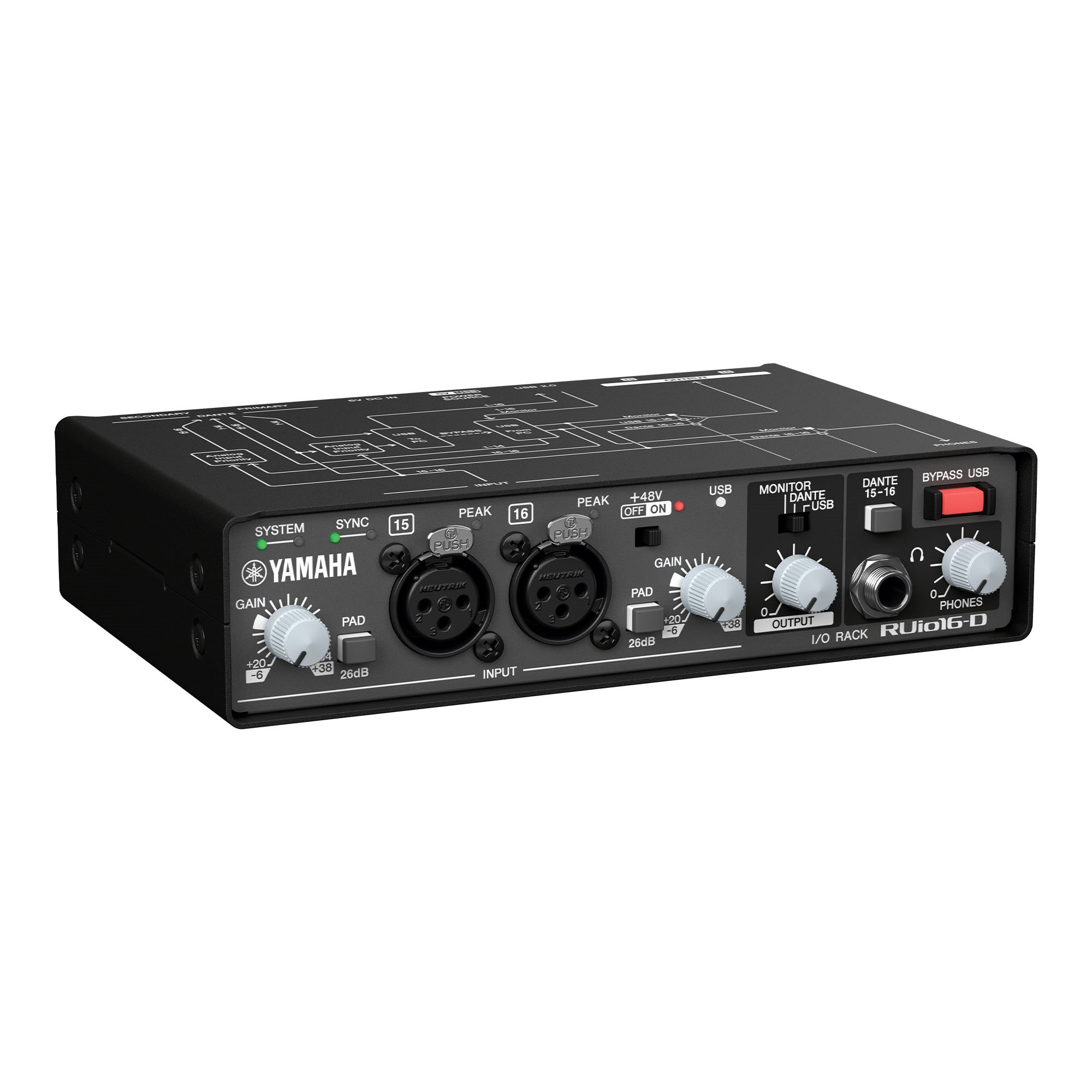

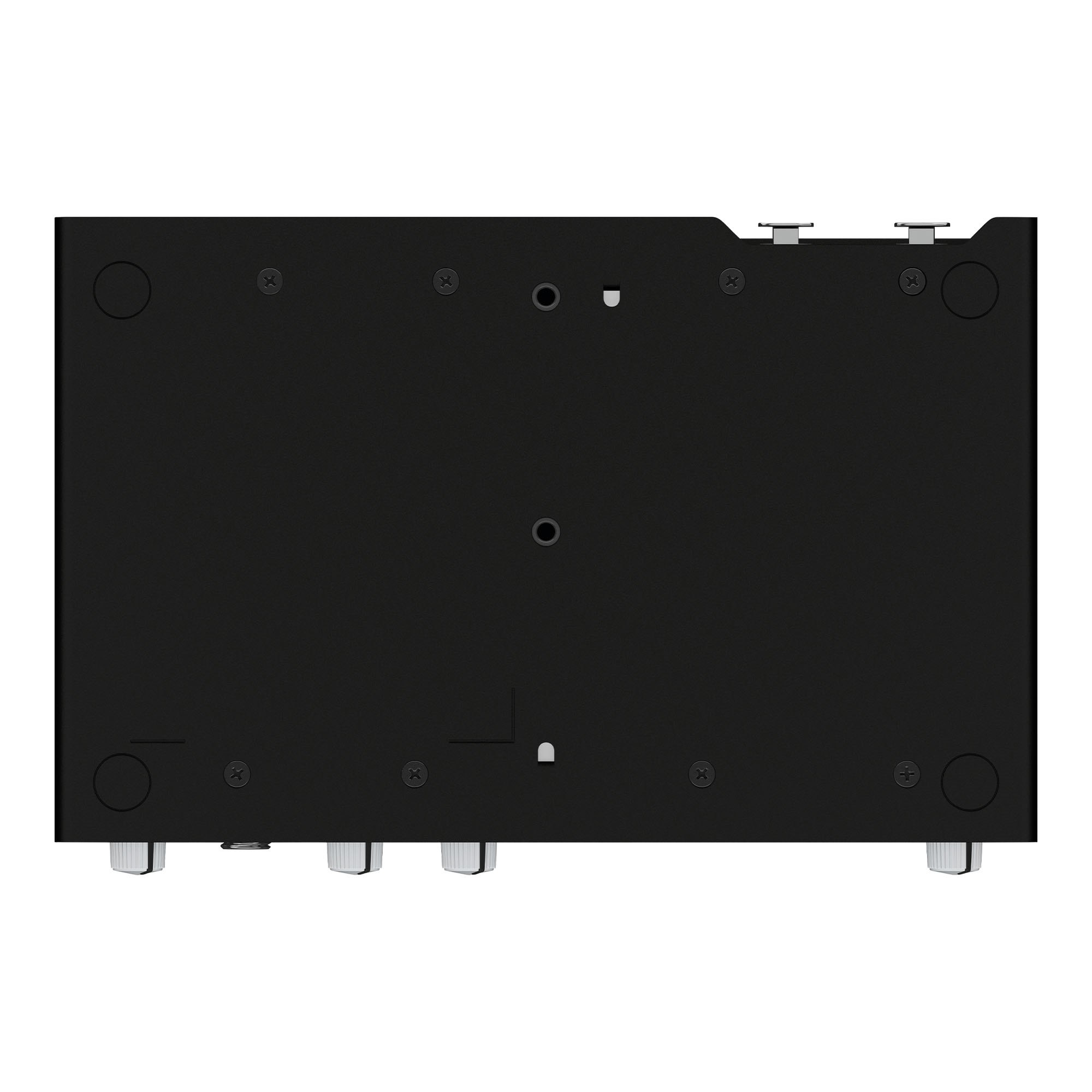

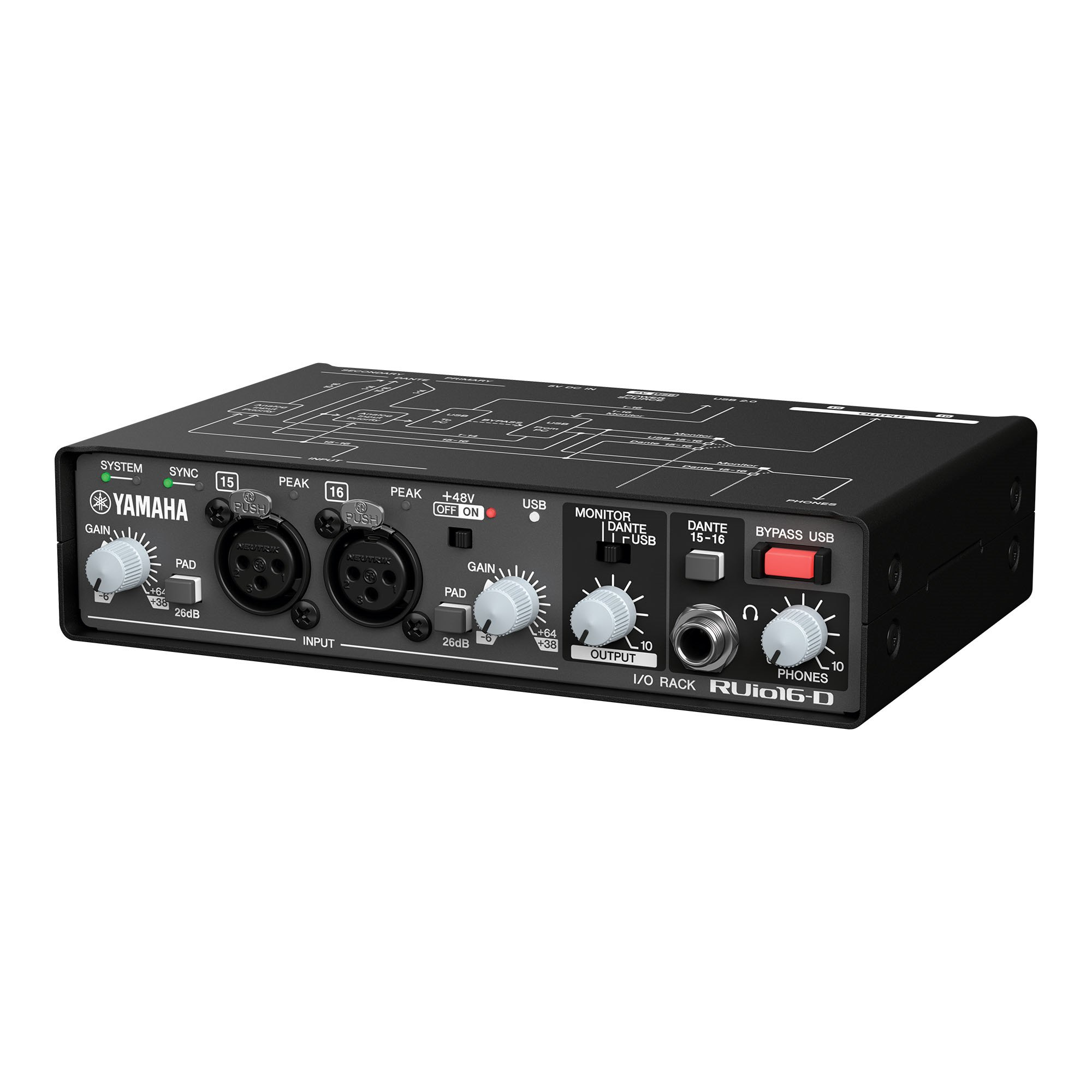

RUIO16-D digital/analogue I/O module Analog
Model RUIO16-DEAN 4957812670746
13 specifications
- Weight1 kg
- ColourBlack
- Module typeAnalog
- DC input voltage5 V
- Operating temperature (T-T)0 - 40 °C
- Width180 mm
Overview
- Weight
- 1 kg
- Colour
- Black
- Module type
- Analog
- DC input voltage
- 5 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 180 mm
- Brand
- Yamaha
- Category
- Digital & Analog I/O Modules
- Model
- RUIO16-D
- Part number
- RUIO16-D
- EAN / UPC
- 4957812670746
- Also known as
- Yamaha RUIO16-D digital/analogue I/O module Analog
Specifications
13 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Module type | Analog |
| Signal direction | Input/output |
| Channels quantity | 16 channels |
| Windows operating systems supported | Windows 11, Windows 10 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| DC input voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 121 mm |
| Height | 42 mm |
| Weight | 1 kg |
