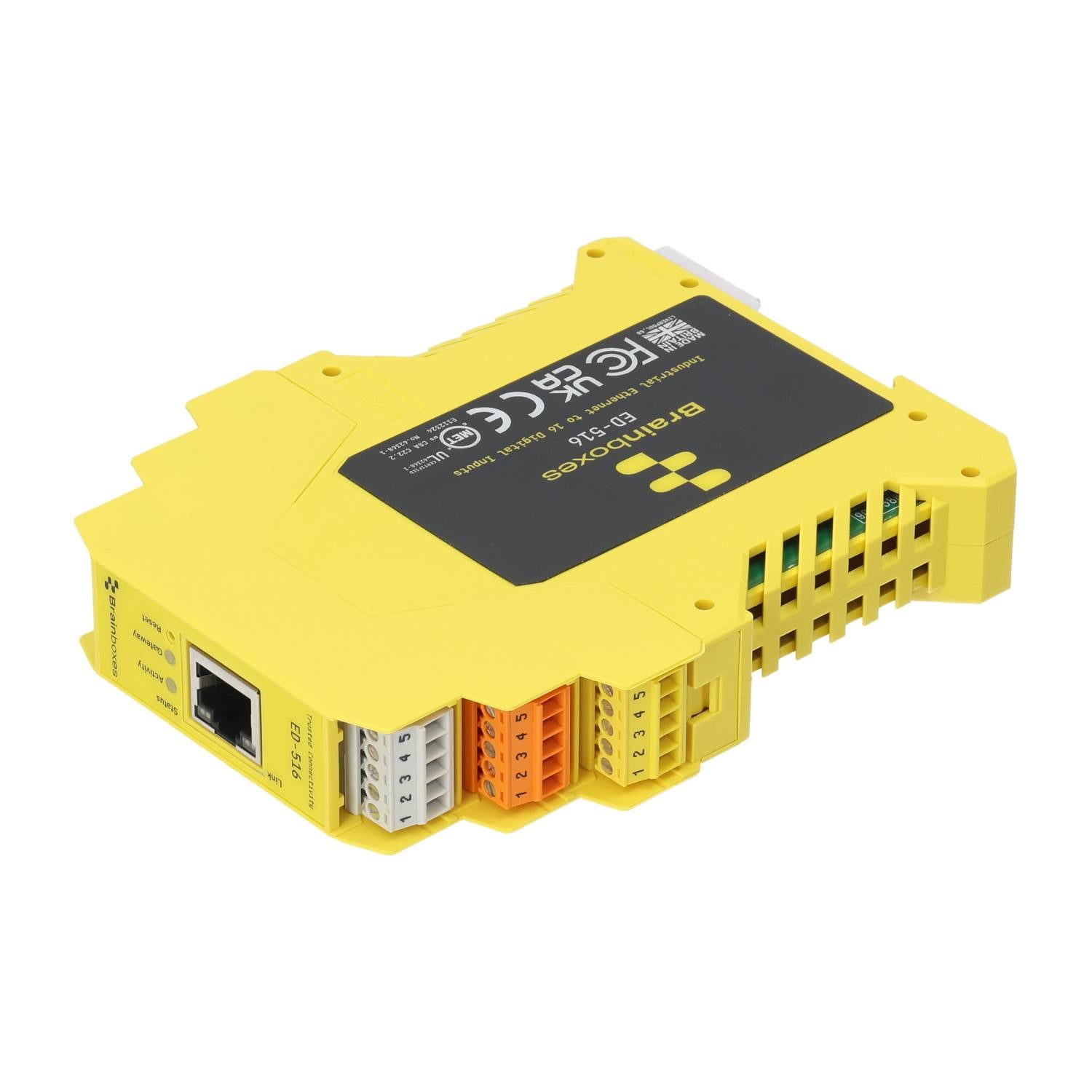

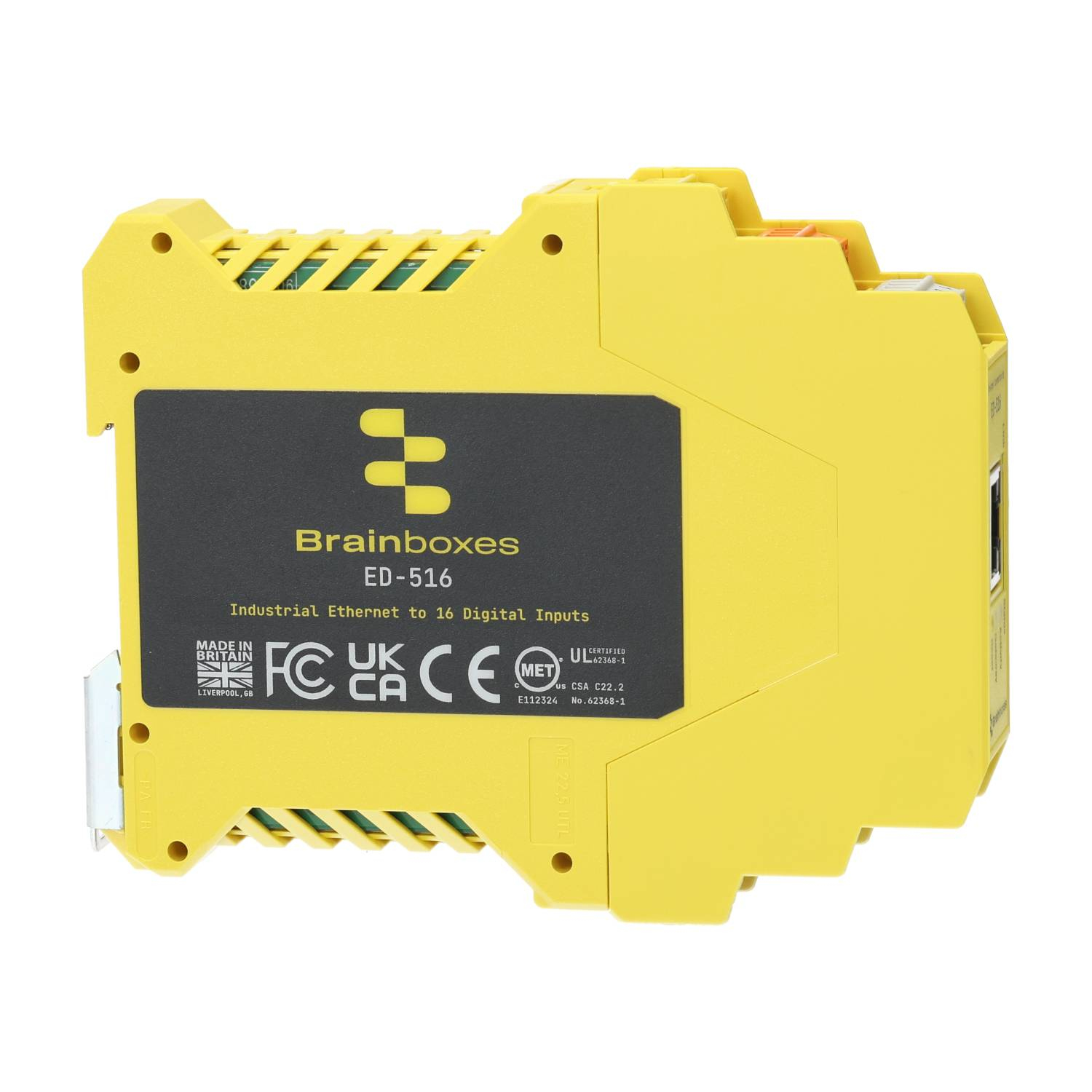

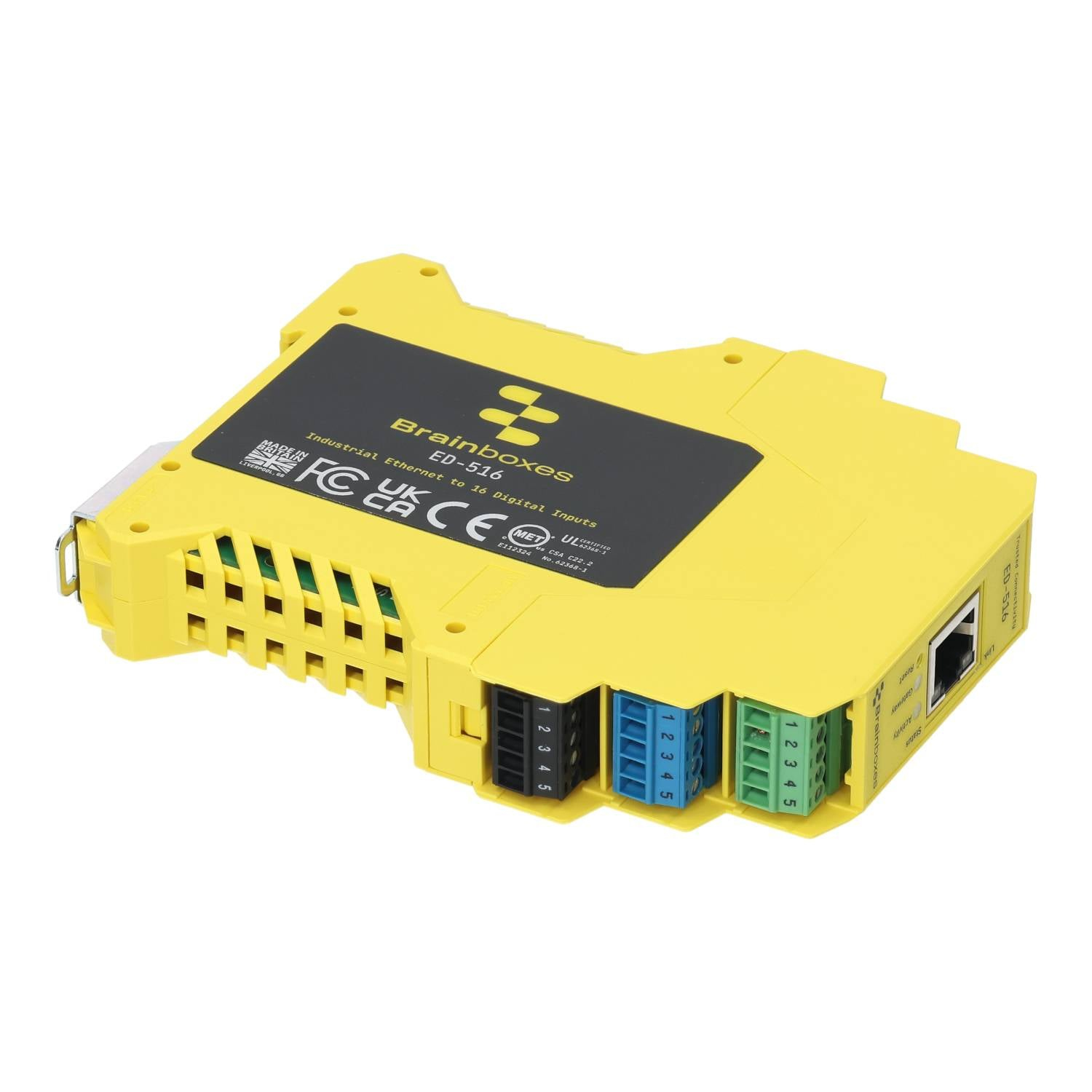

ED-516 Ethernet to 16 Digital Inputs + Serial Gateway
Model ED-516 Ethernet to 16 Digital Inputs + Serial GatewayPart no. ED-516EAN 837324003185
32 specifications
- Weight230 g
- ColourYellow
- Module typeDigital
- Power consumption100 mA
- Operating temperature (T-T)-40 - 80 °C
- Width135 mm
Overview
- Weight
- 230 g
- Colour
- Yellow
- Module type
- Digital
- Power consumption
- 100 mA
- Operating temperature (T-T)
- -40 - 80 °C
- Width
- 135 mm
- Brand
- Brainboxes
- Category
- Digital & Analog I/O Modules
- Model
- ED-516 Ethernet to 16 Digital Inputs + Serial Gateway
- Part number
- ED-516
- EAN / UPC
- 837324003185
- Also known as
- Brainboxes ED-516 Ethernet to 16 Digital Inputs + Serial Gateway
Specifications
32 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Module type | Digital |
| Signal direction | Input |
| Digital input channels quantity | 16 channels |
| Digital output channels quantity | 0 channels |
| Serial interface type | RS-485 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O protocols | Modbus TCP or DCON ASCII (over TCP or Virtual COM port) |
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |

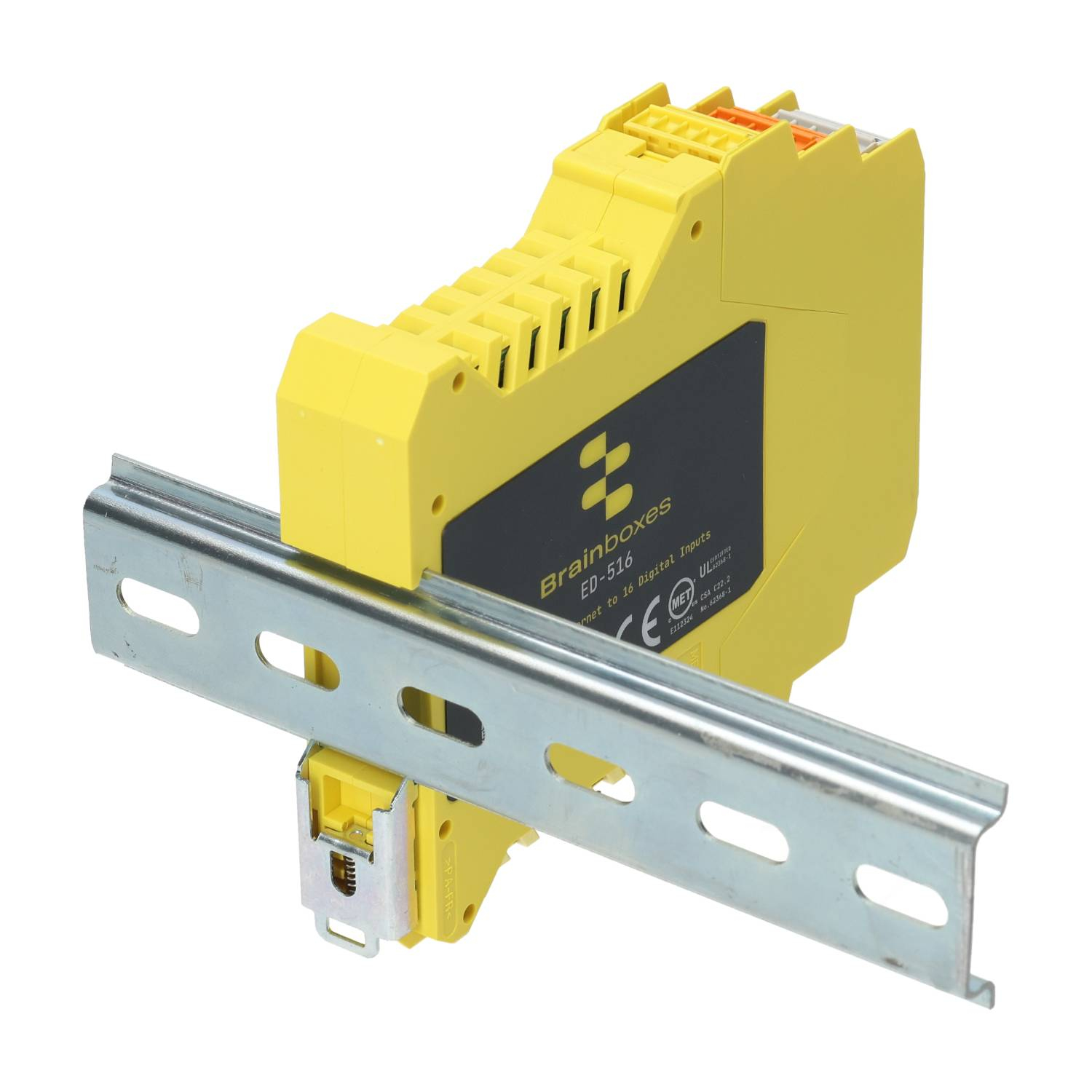

| DIN rail mounting | Yes |
| Maximum output current per channel | 0.85 A |
| Maximum combined load | 6.8 A |
| Isolation | 1.5 kV |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP, Windows XP x64, Windows Vista x64, Windows 8 x64, Windows 7 x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
| Product colour | Yellow |
Power
| Specification | Value |
|---|---|
| Power consumption | 100 mA |
| DC input voltage | 5 - 30 V |
| Maximum input voltage | 35 V |
| Power supply type | PW-600/PW-650 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 160 mm |
| Height | 49 mm |
| Weight | 230 g |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 230 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), KCC, UKCA |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
