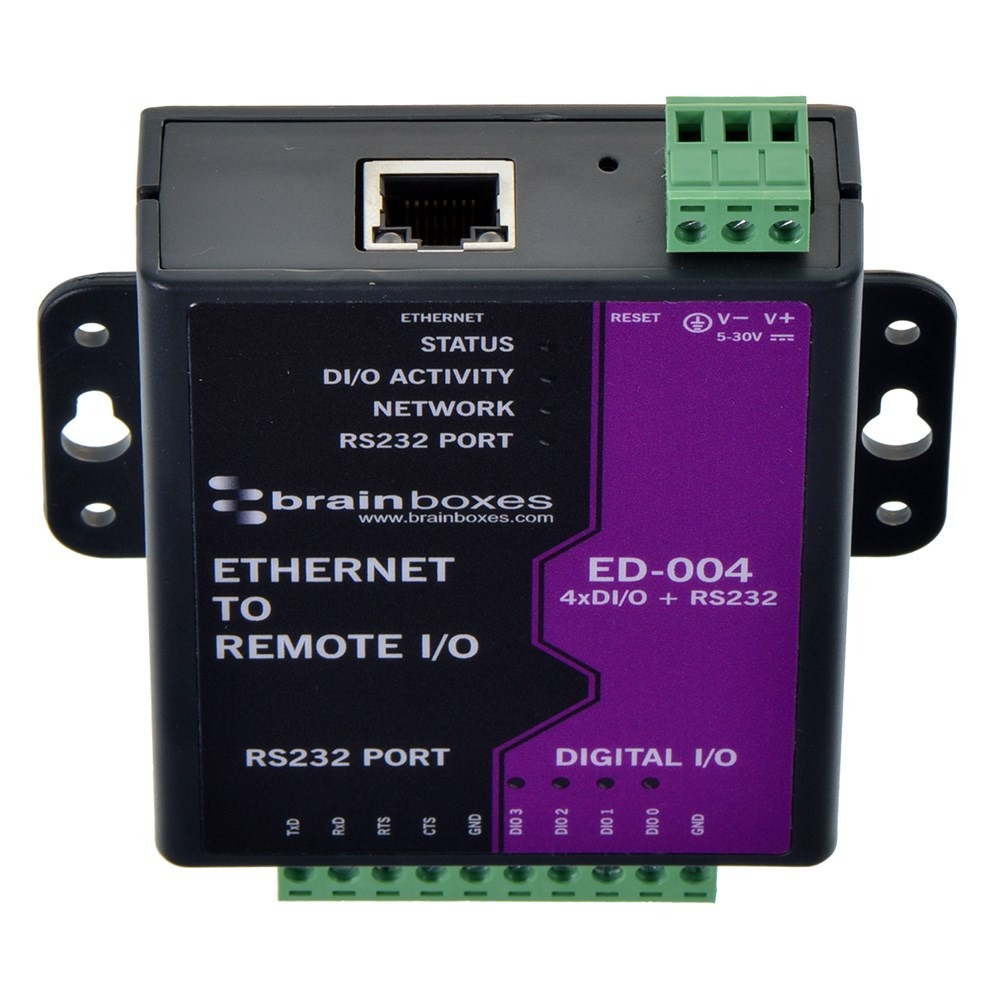

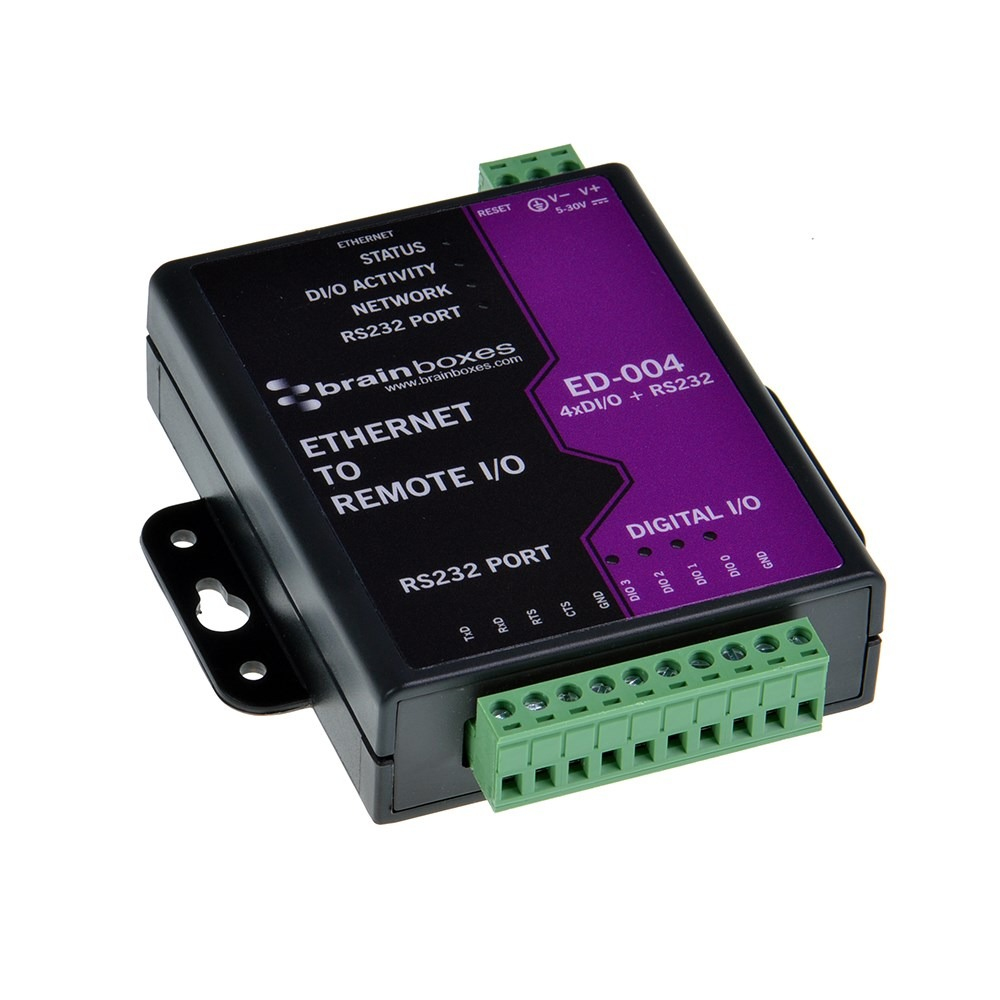

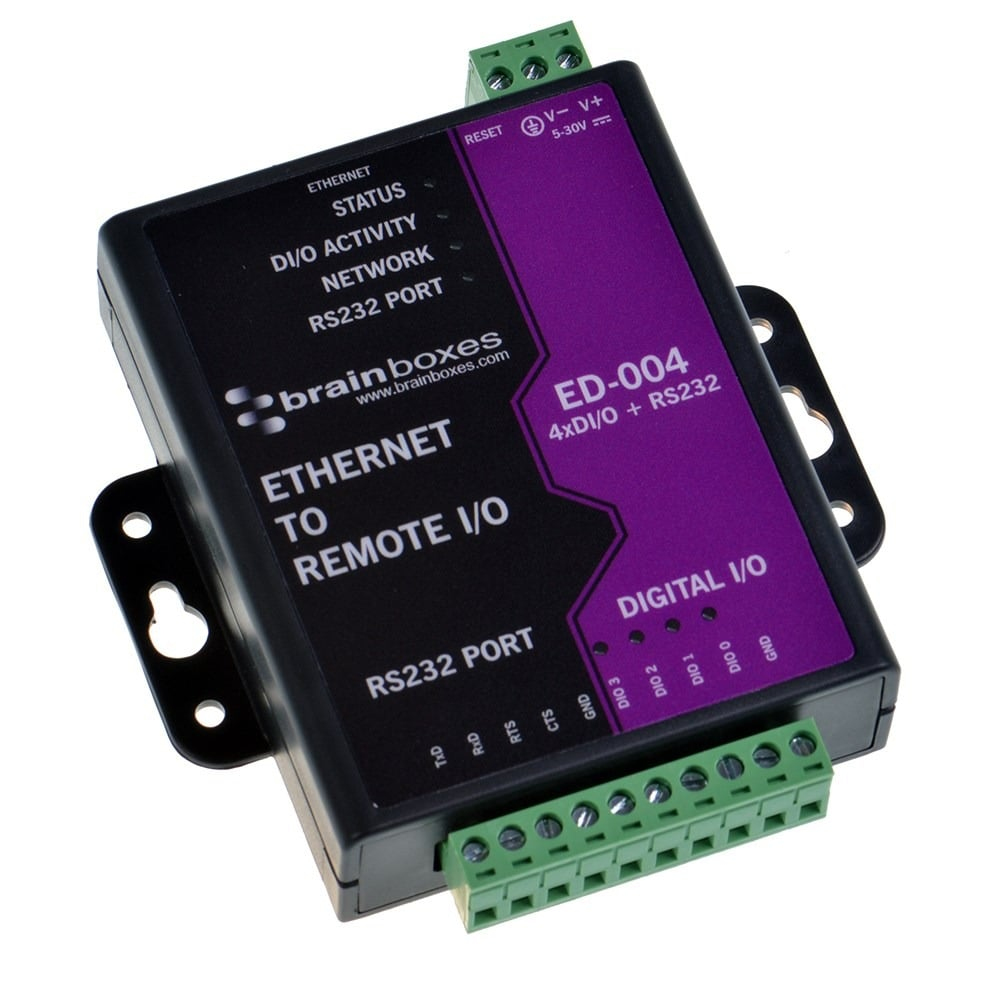

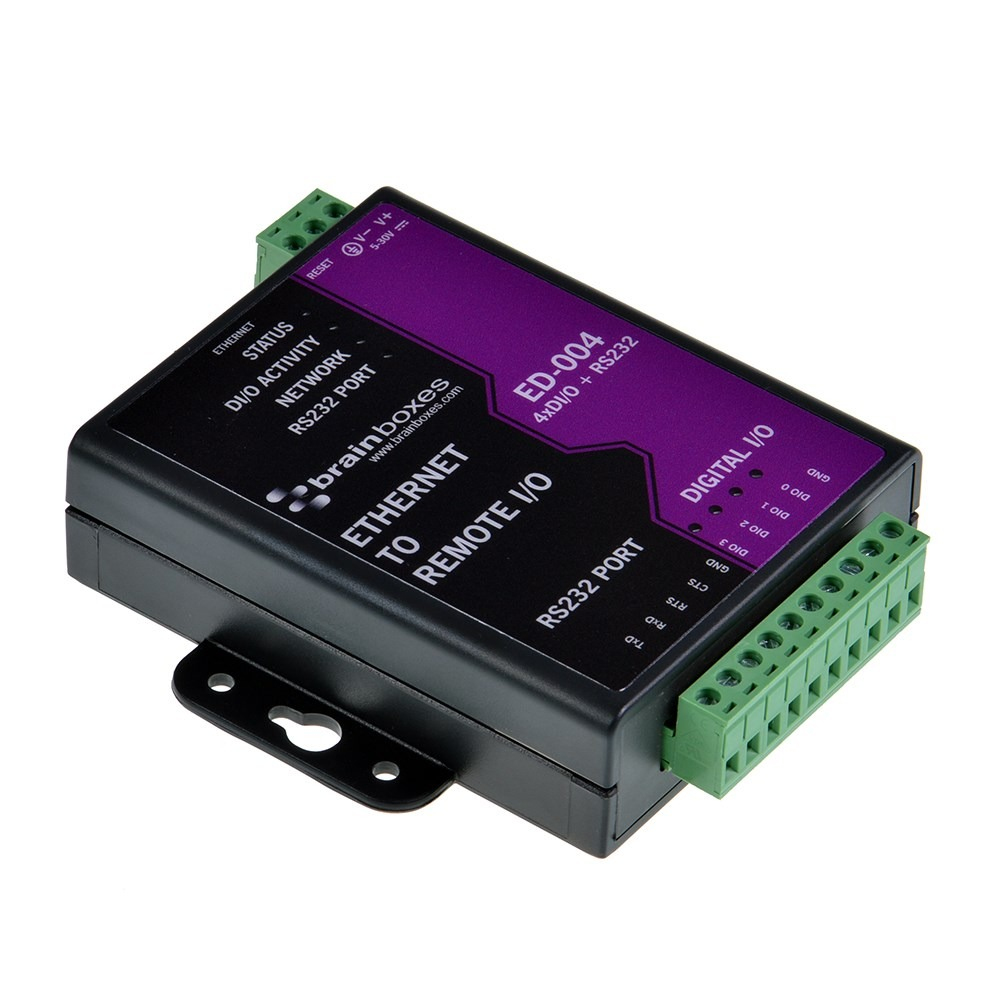

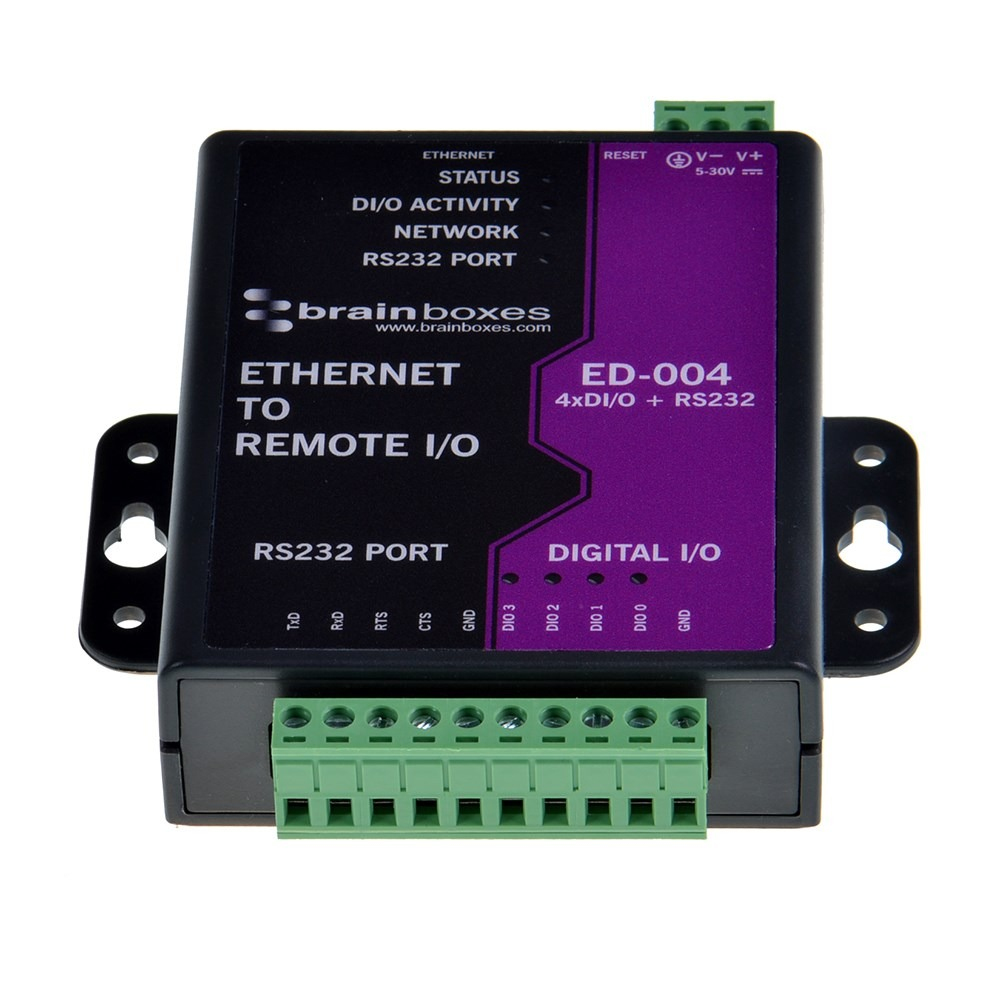

ED-004 Ethernet to 4 Digital IO and RS232 Serial Port

Model ED-004 Ethernet to 4 Digital IO and RS232 Serial PortPart no. ED-004EAN 837324009859

44 specifications

Overview

Brand: Brainboxes
Category: Digital & Analog I/O Modules
Model: ED-004 Ethernet to 4 Digital IO and RS232 Serial Port
Part number: ED-004
EAN / UPC: 837324009859, 8373240098598, 8716065310238
Also known as: Brainboxes ED-004 Ethernet to 4 Digital IO and RS232 Serial Port

44 specifications in 6 groups

Specification	Value
Module type	Digital
Signal direction	Input/output
Channels quantity	4 channels
Digital input channels quantity	4 channels
Digital output channels quantity	4 channels
Serial interface type	RS-232
Ethernet LAN (RJ-45) ports	1
I/O protocols	Modbus TCP or DCON ASCII (over TCP or Virtual COM port)
Supported network protocols	ICMP, IP, TCP, DHCP, HTTP
Maximum output voltage	30 V
Maximum output current per channel	0.85 A
Maximum combined load	3.4 A
Electrostatic Discharge (ESD) protection	16 kV
Isolation	1.5 kV
Overheat protection	Yes
Overheat shutdown (typical)	175 °C
Overheat shutdown (min)	150 °C
Short circuit protection	Yes
Short circuit protection up to	36 V
Quick-Stop function	Yes
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Ma
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012
Mobile operating systems supported	Android, iOS
Product colour	Black, Purple

Specification	Value
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	0 - 70 °C

Specification	Value
Compliance certificates	CE, Federal Communications Commission (FCC), UKCA

Specification	Value
Country of origin	United Kingdom
Export Control Classification Number (ECCN)	5A991.b
