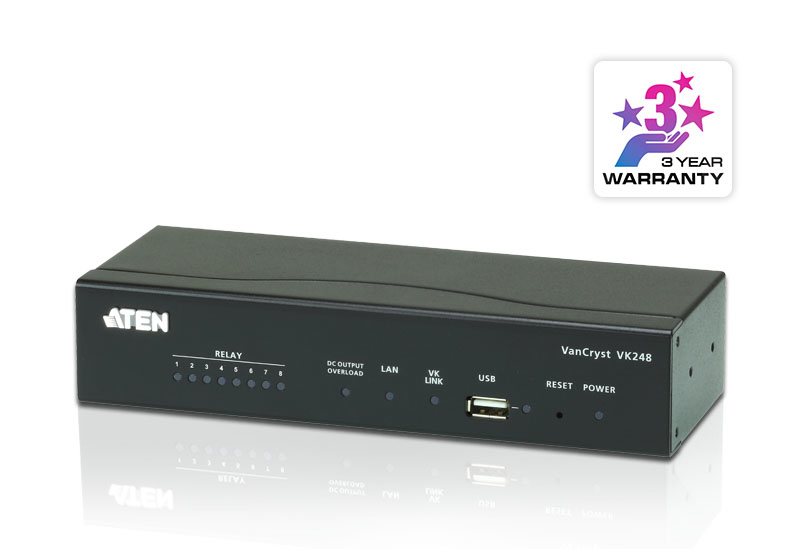

8-Channel Relay Expansion Box
Model VK248-ATEAN 672792006890
23 specifications
- Weight740 g
- ColourBlack
- Channels quantity8 channels
- Power consumption300 mA
- Operating temperature (T-T)0 - 50 °C
- Width75.8 mm
Overview
- Weight
- 740 g
- Colour
- Black
- Channels quantity
- 8 channels
- Power consumption
- 300 mA
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 75.8 mm
- Brand
- ATEN
- Category
- Digital & Analog I/O Modules
- Model
- VK248-AT
- Part number
- VK248-AT
- EAN / UPC
- 672792006890, 4719264644757
- Also known as
- ATEN 8-Channel Relay Expansion Box
Specifications
23 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Channels quantity | 8 channels |
| Channel type | Relay channel |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption | 300 mA |
| Power consumption note | DC5V:2.82W:24BTU, DC48V:3.53W:27BTU |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75.8 mm |
| Depth | 200 mm |
| Height | 42 mm |
| Weight | 740 g |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 900 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 4.85 kg |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case net weight | 3.7 kg |
| Master (outer) case width | 250 mm |
| Products per master (outer) case | 5 pc(s) |
