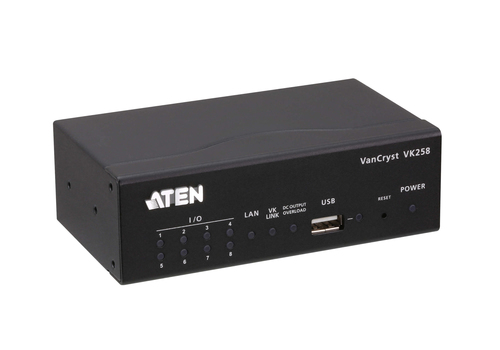

VK258 control processor
Model VK258
28 specifications
- Weight460 g
- ColourBlack
- Ethernet LANYes
- Operating temperature (T-T)0 - 50 °C
- Power consumption (max)2.75 W
- Width75.8 mm
Overview
- Weight
- 460 g
- Colour
- Black
- Ethernet LAN
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Power consumption (max)
- 2.75 W
- Width
- 75.8 mm
- Brand
- ATEN
- Category
- Control Processor
- Model
- VK258
- Part number
- VK258
- Also known as
- ATEN VK258 control processor
Specifications
28 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| Built-in display | No |
| Number of relay pins | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Supported network protocols | ICMP, TCP/IP, DHCP, HTTPS, SSH |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB ports quantity | 1 |
| USB port type | USB Type-A |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 2.75 W |
| Power consumption (typical) | 2.2 W |
| Power supply location | External |
| DC output voltage | 12 |
Packaging content
| Specification | Value |
|---|---|
| Terminal block included | Yes |
| Manual | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75.8 mm |
| Depth | 130 mm |
| Height | 42 mm |
| Weight | 460 g |
