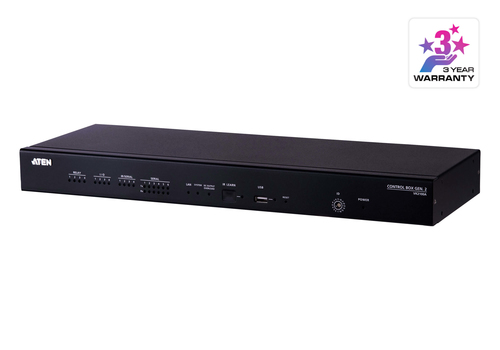

Control System - Control Box Gen. 2
Model VK2100APart no. VK2100A-AT-GEAN 4710469341618
48 specifications
- Memory1 GB
- Storage8 GB
- Weight2.59 kg
- ColourBlack
- Processor cores4
- Ethernet LAN (RJ-45) ports1
Overview
- Memory
- 1 GB
- Storage
- 8 GB
- Weight
- 2.59 kg
- Colour
- Black
- Processor cores
- 4
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- ATEN
- Category
- Control Processor
- Model
- VK2100A
- Part numbers
- VK2100A-AT-G, VK2100A-AT-U
- EAN / UPC
- 4710469341618
- Also known as
- ATEN Control System - Control Box Gen. 2
Specifications
48 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Processor cores | 4 |
| Product colour | Black |
| Housing material | Metal |
| On/off switch | Yes |
| LED indicators | Yes |
| Reset button | Yes |
| Built-in display | No |
| Heat dissipation | 143 BTU/h |
| Number of relay pins | 8 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | SDRAM |
| Internal storage capacity | 8 GB |
| Storage media type | Flash |
Network
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Supported network protocols | ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB ports quantity | 1 |
| USB port type | USB Type-A |
| Number of analog I/O pins | 5 |
| IR connectivity | Yes |
| DC-in jack | Yes |
| Serial interface type | RS-232/422/485, RS-232 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 6.5 W |
| Power consumption (typical) | 5.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply location | Internal |
Packaging content
| Specification | Value |
|---|---|
| Terminal block included | Yes |
| License quantity | 2 license(s) |
| Manual | Yes |
| Power cord included | Yes |
Technical details
| Specification | Value |
|---|---|
| Master (outer) case volume | 20954.47 cm³ |
| Package volume | 16423.77 cm³ |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163.2 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 2.59 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 3.51 kg |
| Package type | Box |
