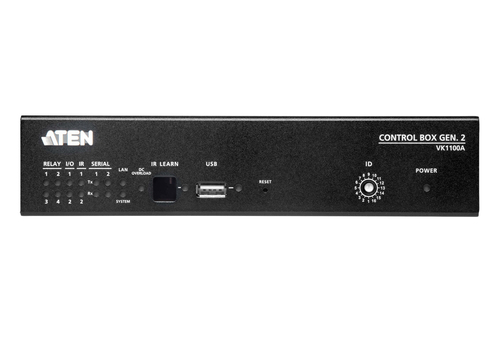

VK1100A-AT-E control processor
Model VK1100A-AT-E
51 specifications
- Memory0.512 GB
- Storage8 GB
- Weight1.19 kg
- ColourBlack
- Processor cores4
- Ethernet LANYes
Overview
- Memory
- 0.512 GB
- Storage
- 8 GB
- Weight
- 1.19 kg
- Colour
- Black
- Processor cores
- 4
- Ethernet LAN
- Yes
- Brand
- ATEN
- Category
- Control Processor
- Model
- VK1100A-AT-E
- Part number
- VK1100A-AT-E
- Also known as
- ATEN VK1100A-AT-E control processor
Specifications
51 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Processor cores | 4 |
| Product colour | Black |
| Housing material | Metal |
| On/off switch | Yes |
| LED indicators | Yes |
| Reset button | Yes |
| Built-in display | No |
| Heat dissipation | 83 BTU/h |
| Number of relay pins | 8 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.512 GB |
| Internal memory type | SDRAM |
| Internal storage capacity | 8 GB |
| Storage media type | Flash |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Supported network protocols | ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |

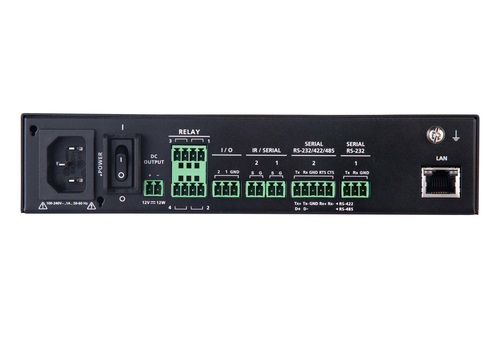

Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB ports quantity | 1 |
| USB port type | USB Type-A |
| RS-232 ports | 2 |
| RS-422 ports | 1 |
| RS-485 ports | 1 |
| Number of analog I/O pins | 3 |
| IR connectivity | Yes |
| DC-in jack | Yes |
| Serial interface type | RS-232, RS-232/422/485 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 4.5 W |
| Power consumption (typical) | 4.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50;/60 Hz |
| Power supply location | Internal |
Packaging content
| Specification | Value |
|---|---|
| Terminal block included | Yes |
| License quantity | 2 license(s) |
| Manual | Yes |
| Power cord included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 164.1 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 1.19 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 414 mm |
| Package height | 117 mm |
| Package weight | 1.8 kg |
| Package type | Box |
