ProductionVIEW HD
Model ProductionVIEW HDPart no. 999-5600-001EAN 840077501174
27 specifications
- Weight4.32 kg
- ColourBlack
- HD typeFull HD
- Number of camera presets12
- Built-in displayYes
- Ethernet LANNo
Overview
- Weight
- 4.32 kg
- Colour
- Black
- HD type
- Full HD
- Number of camera presets
- 12
- Built-in display
- Yes
- Ethernet LAN
- No
- Brand
- Vaddio
- Category
- Conference Camera Controller
- Model
- ProductionVIEW HD
- Part number
- 999-5600-001
- EAN / UPC
- 840077501174
- Also known as
- Vaddio ProductionVIEW HD
Specifications
27 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Video resolutions | 640 x 480,720 x 576,800 x 600,1024 x 768,1280 x 1024,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1200 |
| Supported video modes | 480i, 576i, 720p, 1080i, 1080p |
| Maximum frame rate | 59.94 fps |
| Analog signal format system | NTSC, PAL |
Performance
| Specification | Value |
|---|---|
| Number of camera presets | 12 |
| Brand compatibility | Vaddio |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Display number of lines | 8 lines |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |

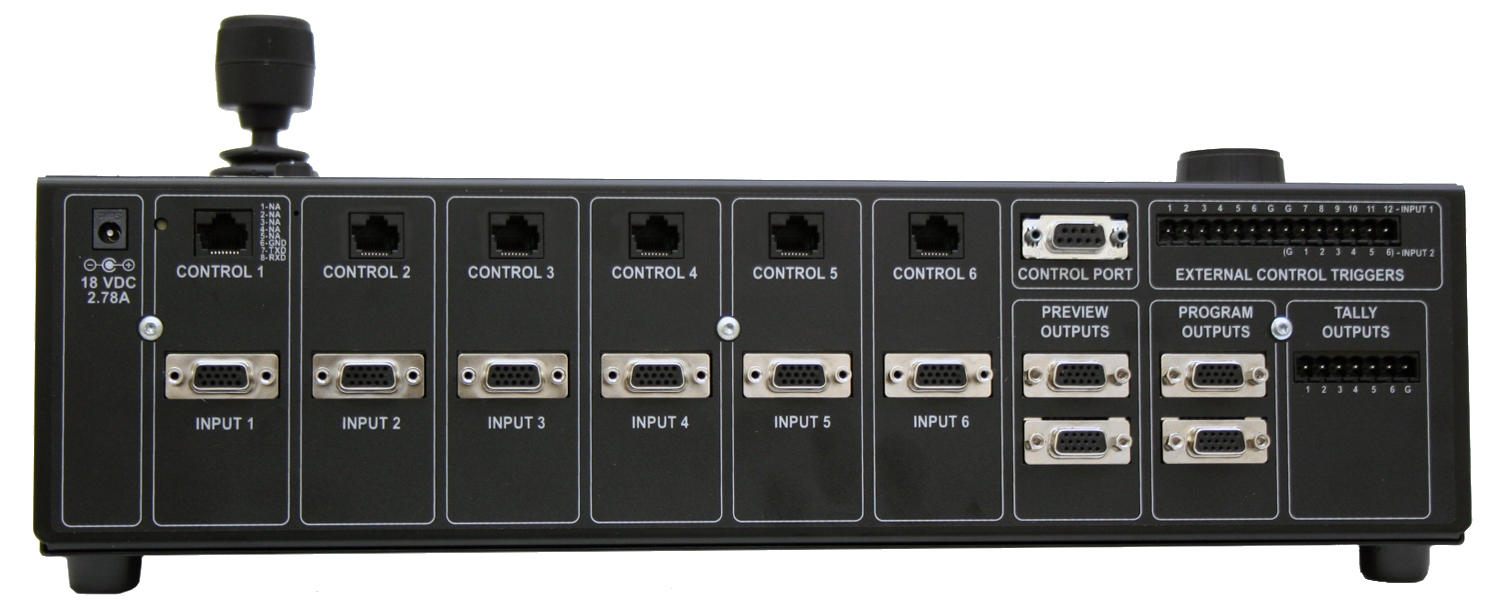

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) input ports | 6 |
| VGA (D-Sub) output ports | 4 |
| RJ-45 ports quantity | 6 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC input voltage | 18 V |
| Input current (max) | 2.78 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 254 mm |
| Depth | 101.6 mm |
| Height | 406.4 mm |
| Weight | 4.32 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| AC adapter included | Yes |
| Manual | Yes |
