CL01
Model CL01Part no. 60S3300000ABEAN 4719552125753
31 specifications
- Weight2.45 kg
- ColourBlack, Silver
- Maximum number of cameras supported7
- Built-in displayYes
- Baud rates384000 Bd
- RJ-45 ports quantity1
Overview
- Weight
- 2.45 kg
- Colour
- Black, Silver
- Maximum number of cameras supported
- 7
- Built-in display
- Yes
- Baud rates
- 384000 Bd
- RJ-45 ports quantity
- 1
- Brand
- AVer
- Category
- Conference Camera Controller
- Model
- CL01
- Part number
- 60S3300000AB
- EAN / UPC
- 4719552125753
- Also known as
- AVer CL01
Specifications
31 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Maximum number of cameras supported | 7 |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | OLED |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Control type | Buttons, Joystick, Rotary |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Baud rates | 384000 Bd |
| Firmware upgradeable | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Products per master (outer) case | 1 pc(s) |

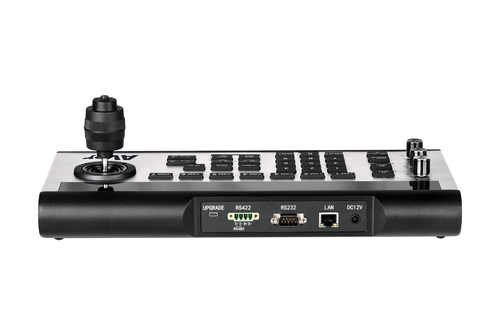

Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 ports quantity | 1 |
| RS-232 ports | 1 |
| Micro-USB ports quantity | 1 |
| DC-in jack | Yes |
| RS-422/485 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 24 W |
| DC input voltage | 12 V |
| Input current (max) | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 350 mm |
| Depth | 180 mm |
| Height | 130 mm |
| Weight | 2.45 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 210 mm |
| Package depth | 175 mm |
| Package height | 385 mm |
| Package weight | 2.82 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
| Specification | Value |
|---|---|
| Cables included | RS-485 |
| AC adapter included | Yes |
| Manual | Yes |
