MT300N
Model MT300NPart no. 61B31A0001ACEAN 4719552127795
45 specifications
- Weight880 g
- ColourBlack
- HD type4K Ultra HD
- Video formats supportedH.264, H.265, MJPG, YUY2
- Ethernet LANYes
- HDMI in3
Overview
- Weight
- 880 g
- Colour
- Black
- HD type
- 4K Ultra HD
- Video formats supported
- H.264, H.265, MJPG, YUY2
- Ethernet LAN
- Yes
- HDMI in
- 3
- Brand
- AVer
- Category
- Conference Camera Controller
- Model
- MT300N
- Part number
- 61B31A0001AC
- EAN / UPC
- 4719552127795
- Also known as
- AVer MT300N
Specifications
45 specifications in 12 groups
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Video resolutions | 640 x 360,640 x 480,960 x 540,1280 x 768,1920 x 1080,3840 x 2160 |
| Supported video modes | 720p, 1080i, 1080p, 2160p |
| Maximum frame rate | 60 fps |
Performance
| Specification | Value |
|---|---|
| Video formats supported | H.264, H.265, MJPG, YUY2 |

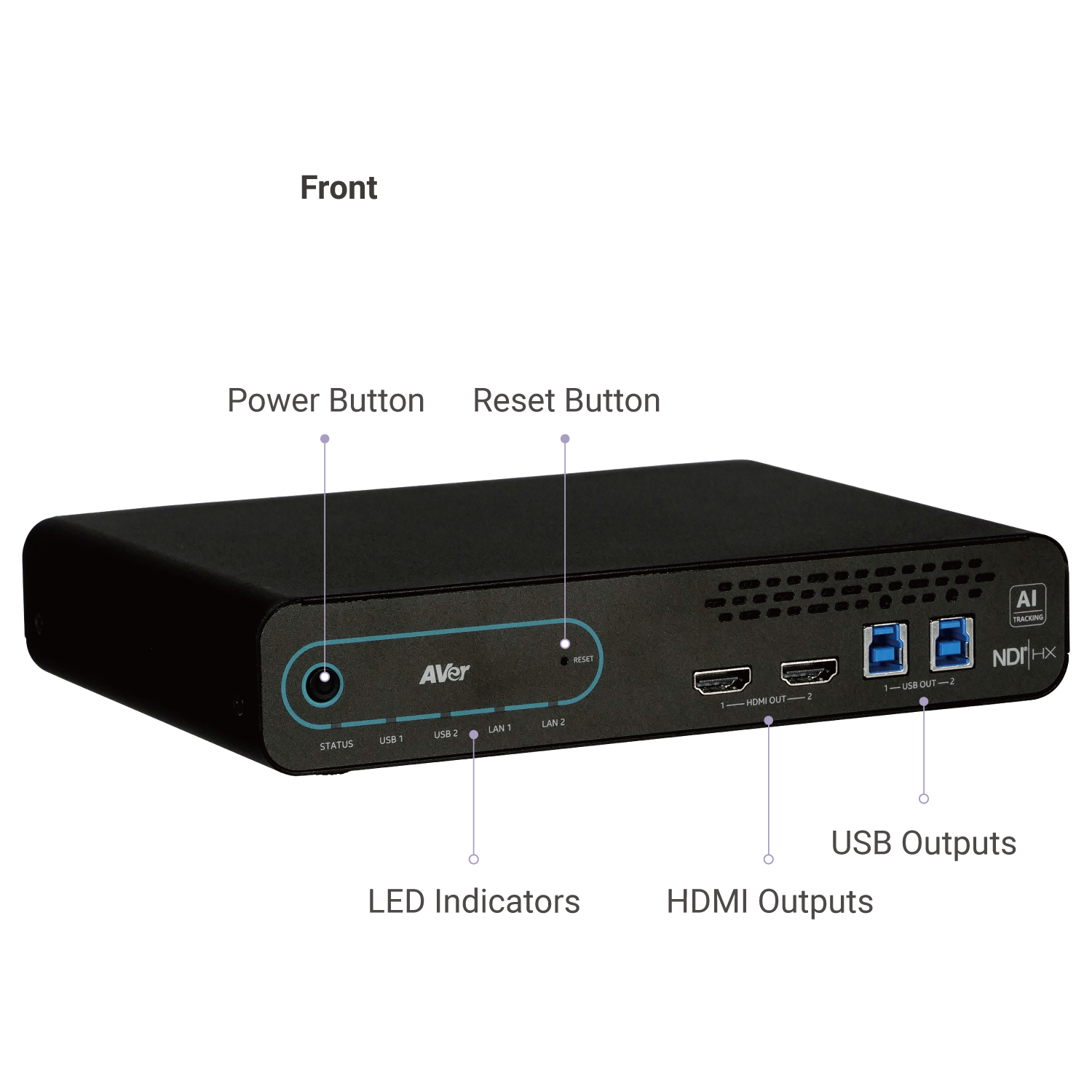

Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
| Control type | Buttons |
| Certification | NCC, IC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 110 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CE, EAC, Federal Communications Commission (FCC), UKCA |
| Sustainability compliance | Yes |

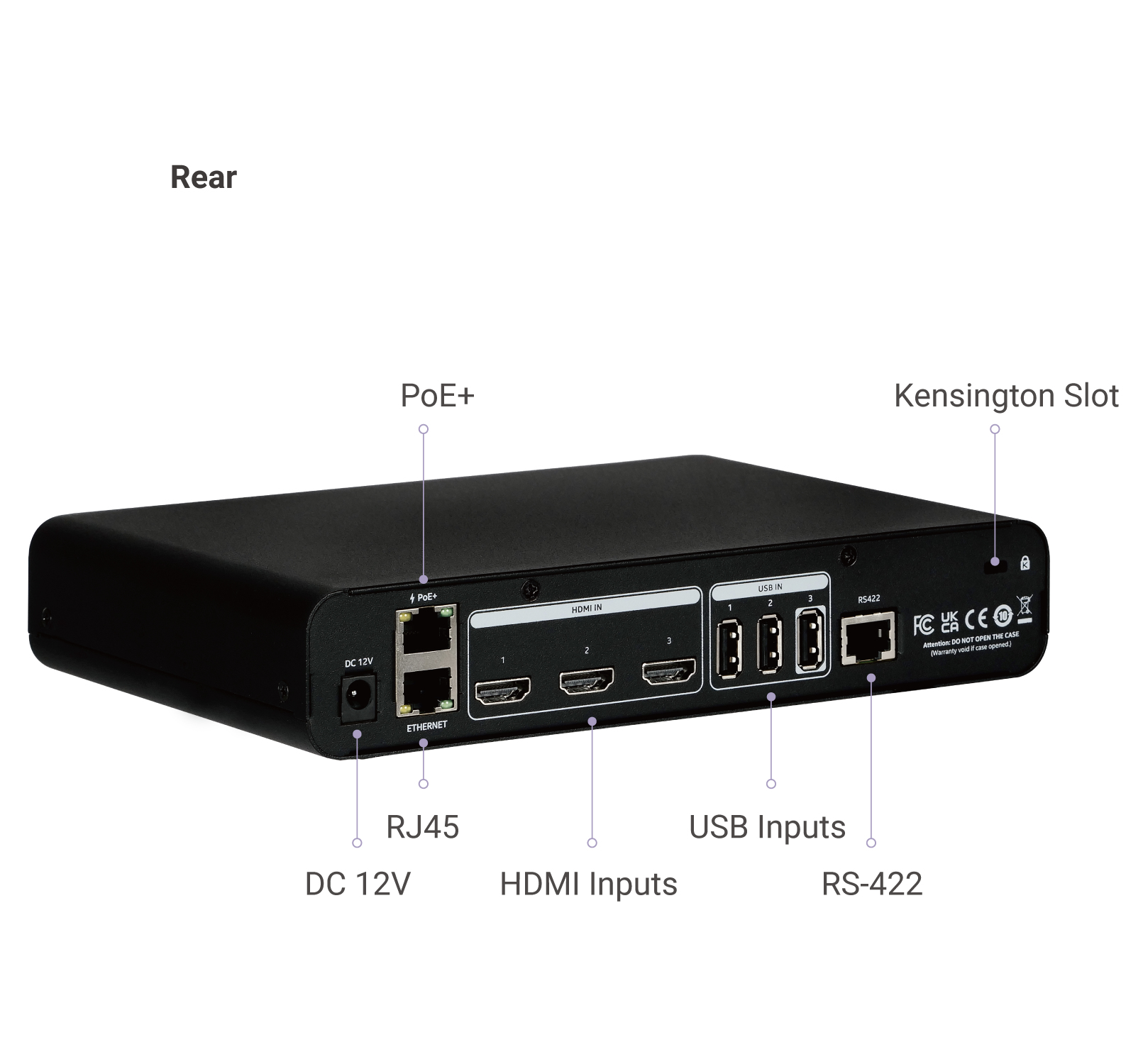

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 3 |
| Number of HDMI outputs | 2 |
| RJ-45 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 18 W |
| DC input voltage | 12 V |
| Input current (max) | 1.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 150 mm |
| Height | 41 mm |
| Weight | 880 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 471 mm |
| Package depth | 326 mm |
| Package height | 173 mm |
| Package weight | 6.24 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Cables included | RS-422, AC, USB |
| AC adapter included | Yes |
| User guide | Yes |
