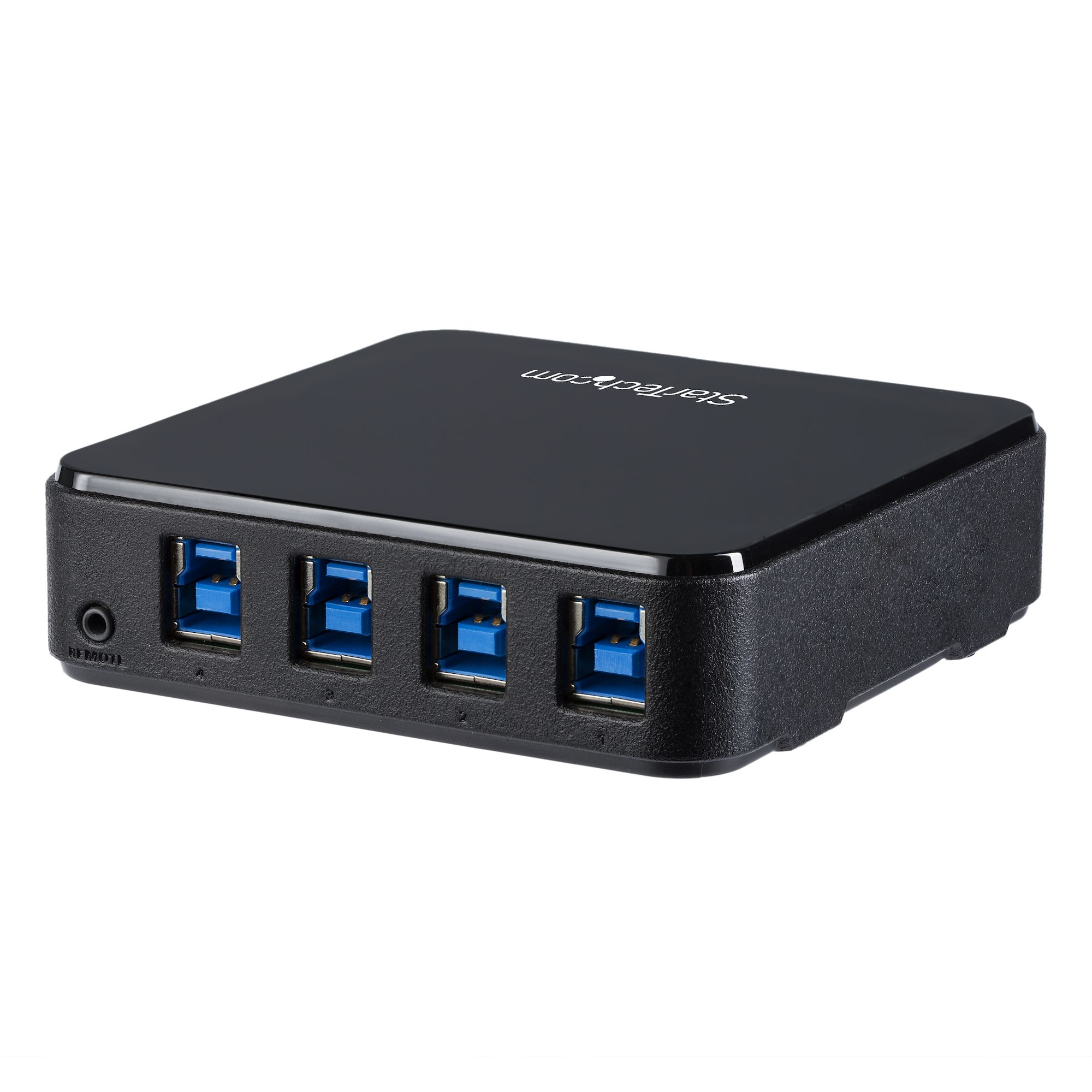

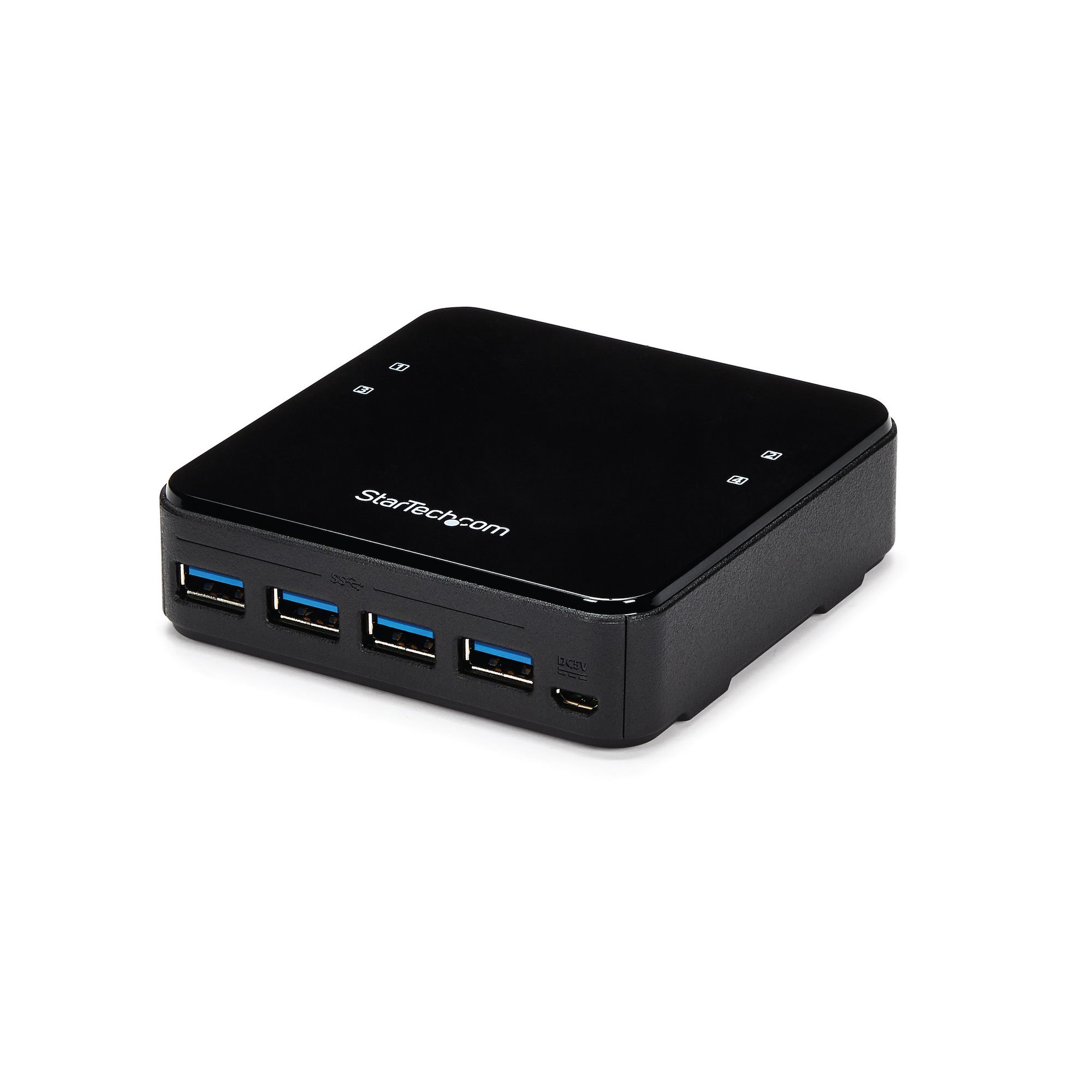

4 to 4 USB 3.0 Peripheral Sharing Switch
Model HBS304A24AEAN 065030879156
32 specifications
- Speed5 Gbit/s
- Weight124 g
- ColourBlack
- USB 2.0 ports quantity0
- Compliance certificatesRoHS
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 5 Gbit/s
- Weight
- 124 g
- Colour
- Black
- USB 2.0 ports quantity
- 0
- Compliance certificates
- RoHS
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Computer Data Switch
- Model
- HBS304A24A
- Part number
- HBS304A24A
- EAN / UPC
- 065030879156
- Also known as
- StarTech.com 4 to 4 USB 3.0 Peripheral Sharing Switch
Specifications
32 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |

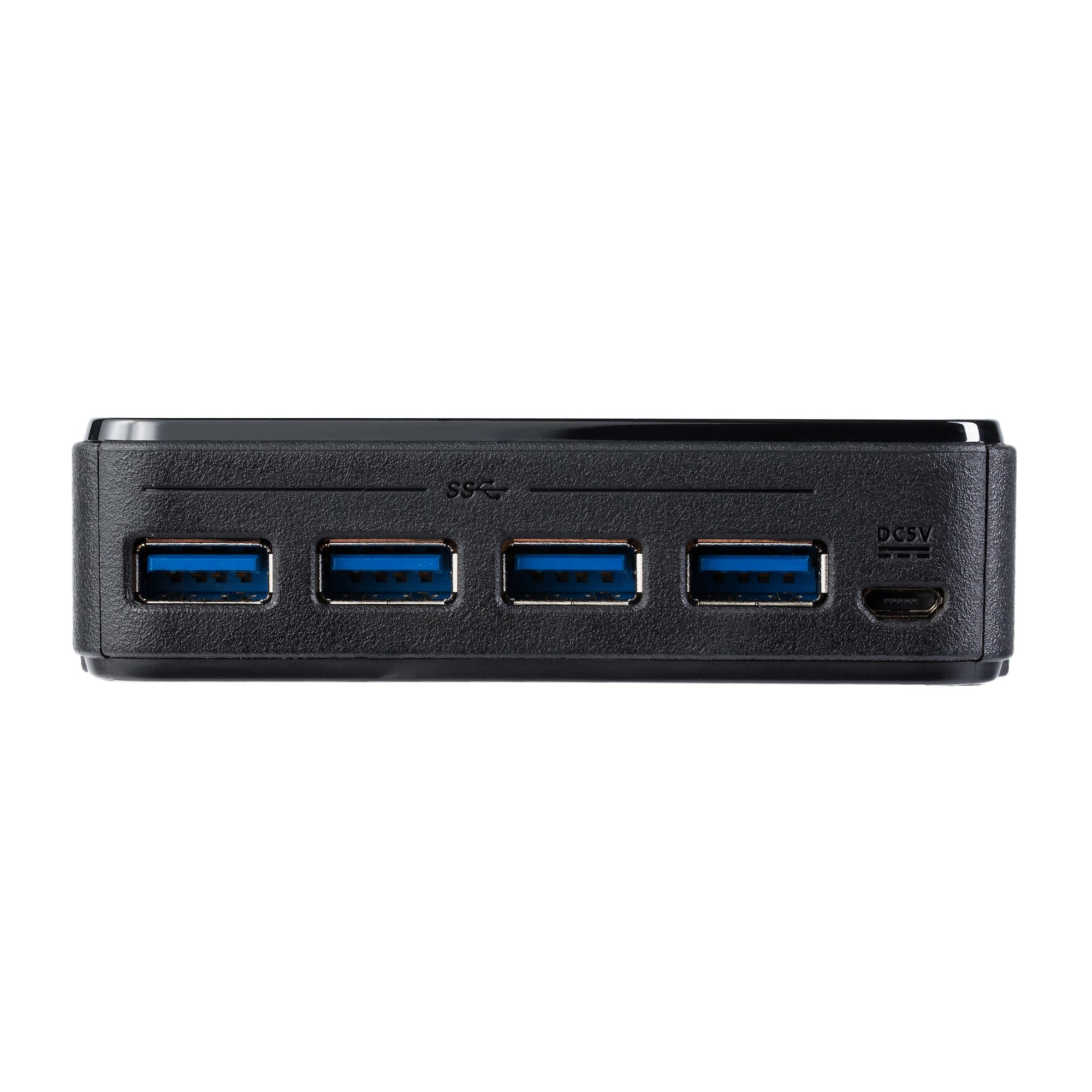

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |

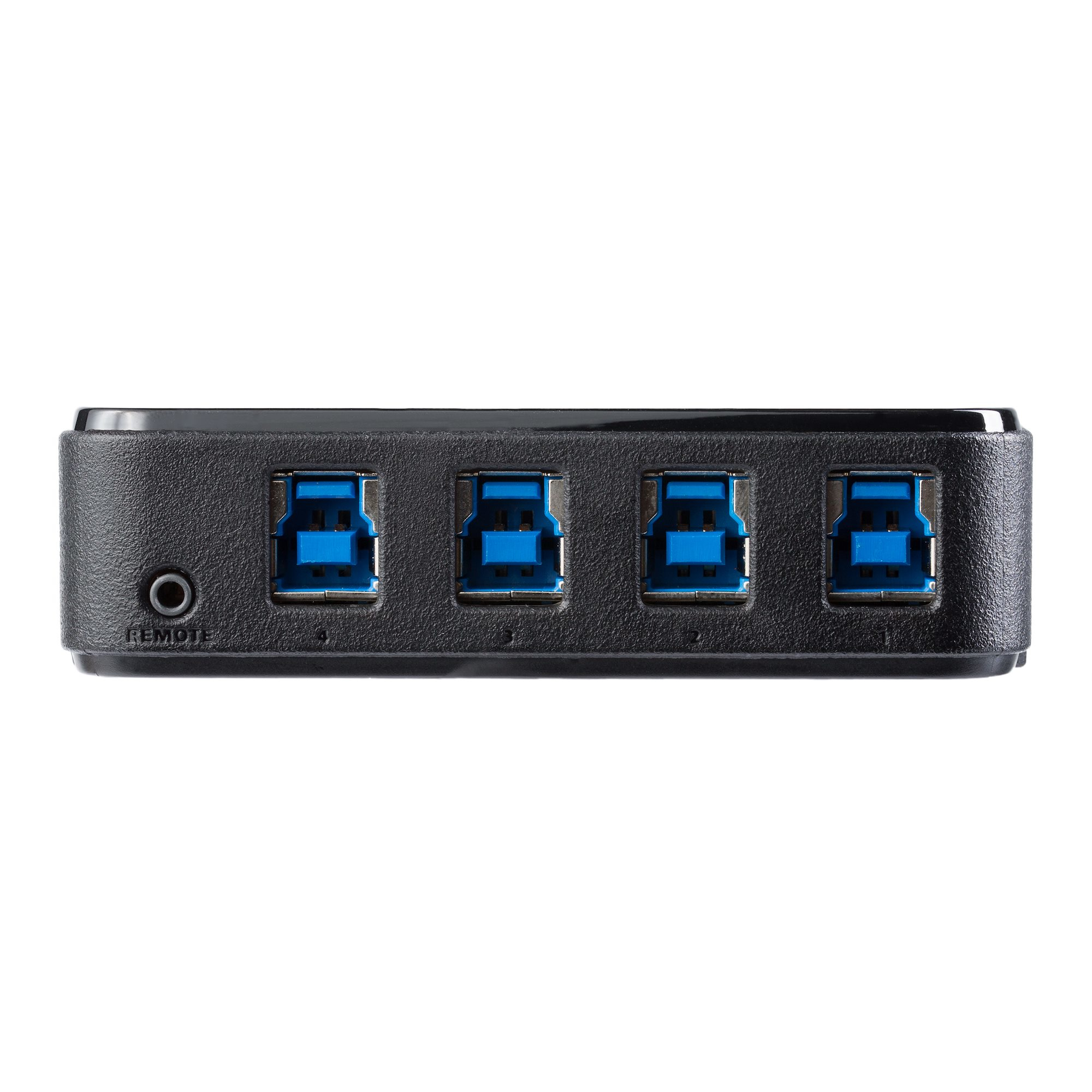

| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Remote control in | 1 |
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 5 Gbit/s |
| Remote control function | Yes |

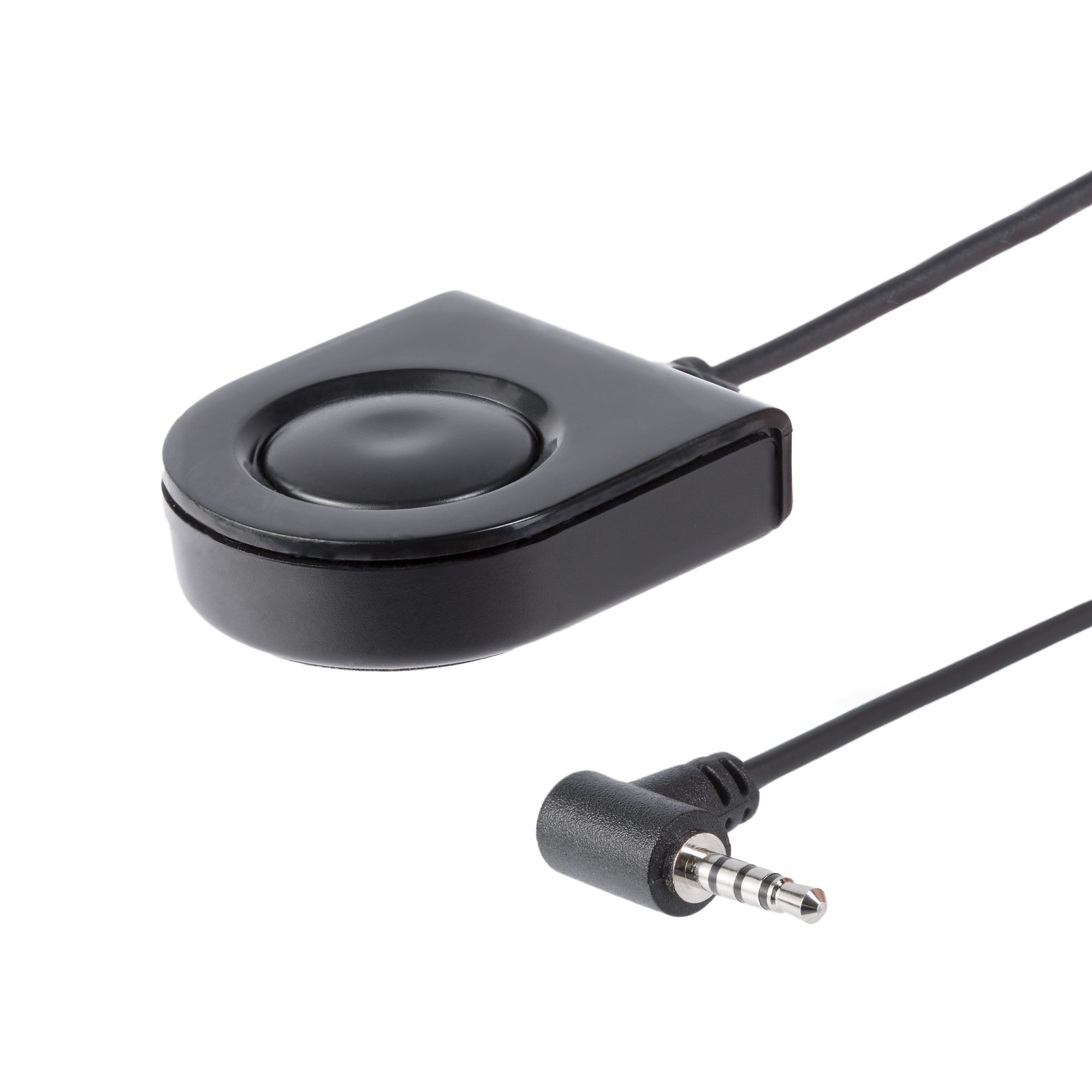

| Remote control included | Yes |
| LED indicators | Yes |
| Over current protection | Yes |
| Hot-Plug support | Yes |
| Power connector | Micro-USB Type-B |
| Product colour | Black |
| Housing material | Plastic |
| Certification | CE, FCC, REACH |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 94 mm |
| Height | 26 mm |
| Weight | 124 g |

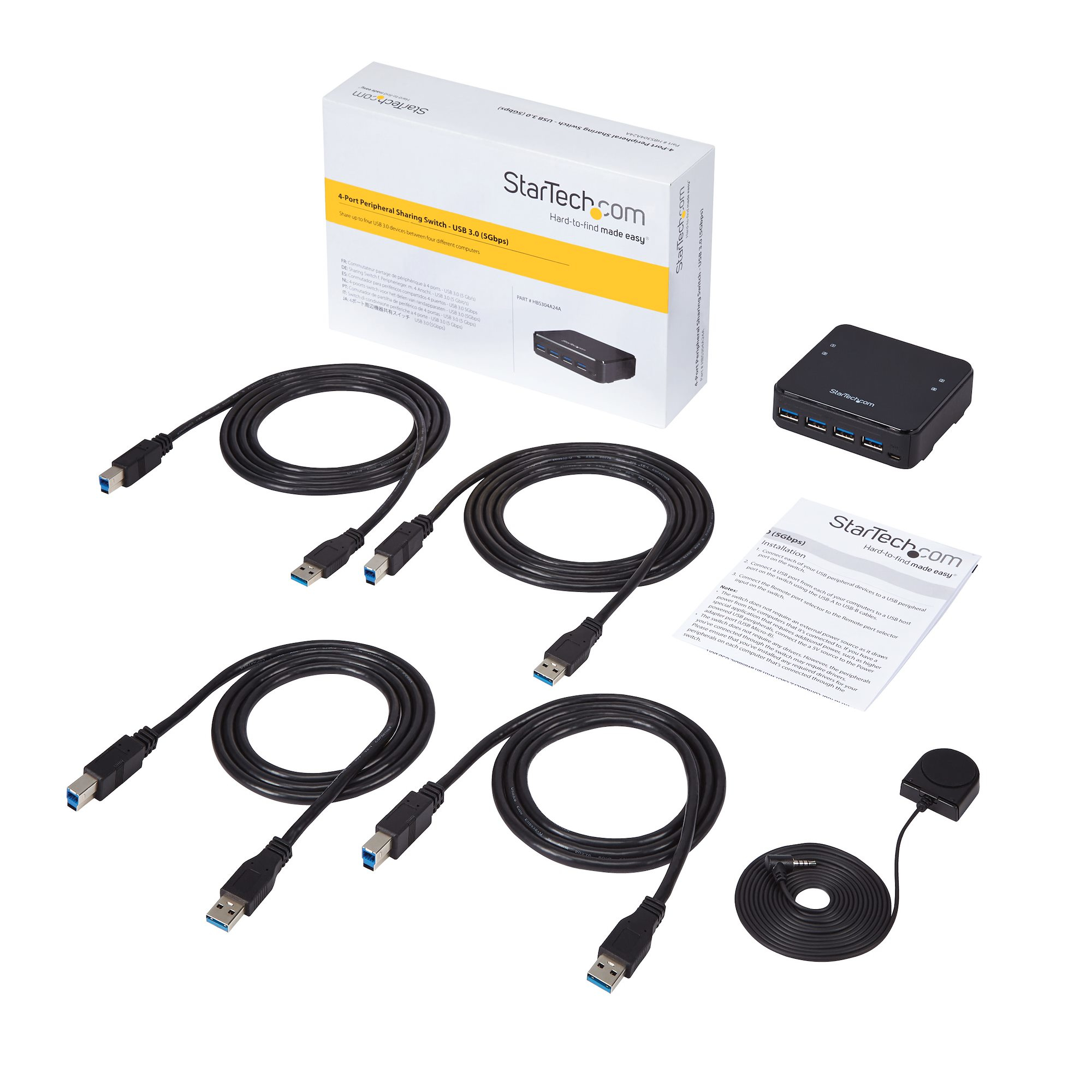

Packaging content
| Specification | Value |
|---|---|

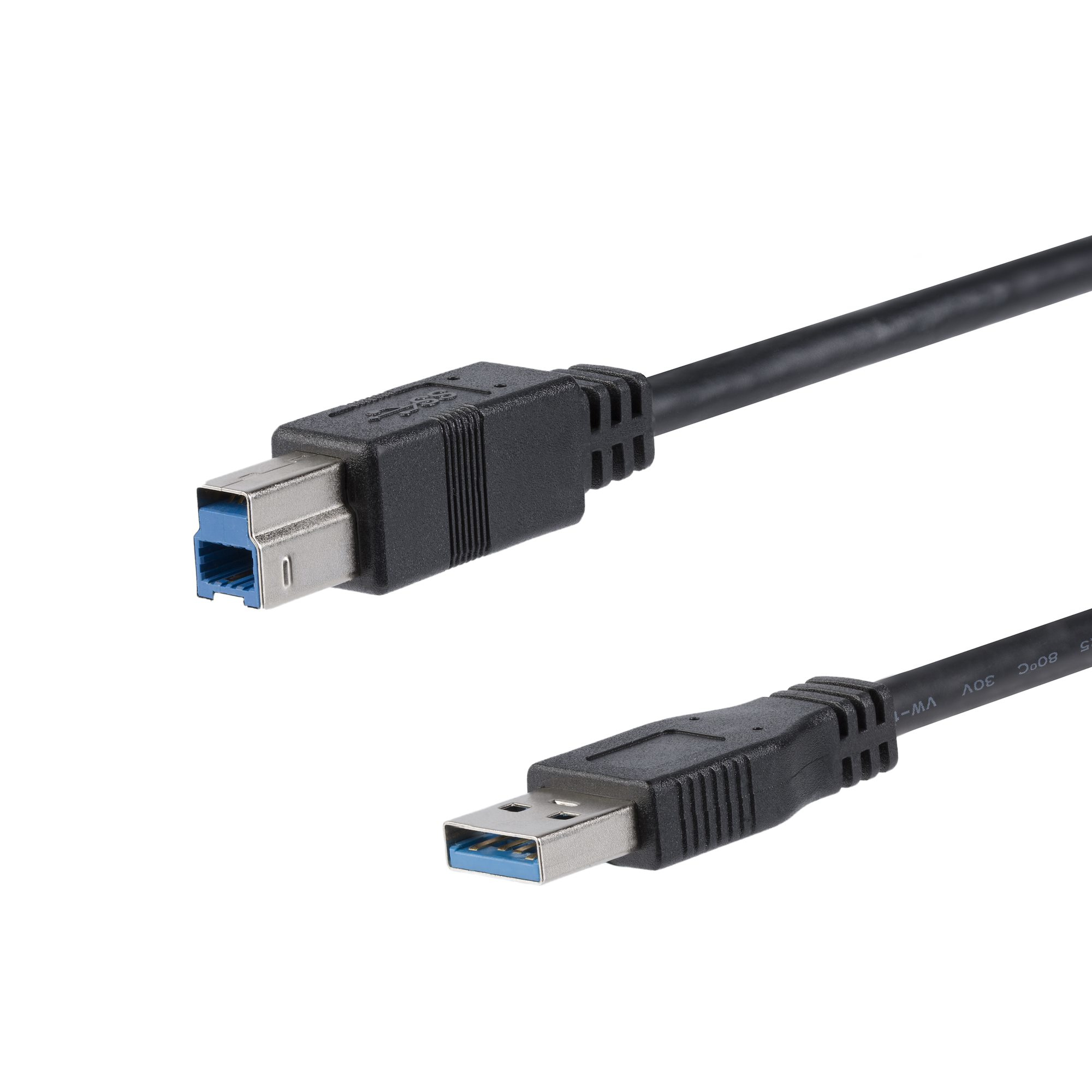

| Cables included | USB Type-A - USB Type-B |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 240 mm |
| Package width | 161 mm |
| Package height | 63 mm |
| Package weight | 570 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 346 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case width | 104 mm |
| Products per master (outer) case | 20 pc(s) |
