2 x 4 USB 3.2 Gen 1 Sharing Switch
Model US4324EAN 672792017780
28 specifications
- Speed5 Gbit/s
- Weight77 g
- ColourBlack
- Host interfaceUSB Type-A
- Push buttonYes
- Power sourceUSB
Overview
- Speed
- 5 Gbit/s
- Weight
- 77 g
- Colour
- Black
- Host interface
- USB Type-A
- Push button
- Yes
- Power source
- USB
- Brand
- ATEN
- Category
- Computer Data Switch
- Model
- US4324
- Part number
- US4324
- EAN / UPC
- 672792017780
- Also known as
- ATEN 2 x 4 USB 3.2 Gen 1 Sharing Switch
Specifications
28 specifications in 8 groups

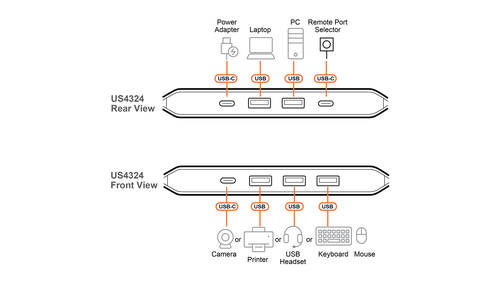

Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB Type-A |
| Output interface | USB Type-A/USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host ports quantity | 2 |
| Output ports quantity | 4 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Remote control port type | USB Type-C |
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 5 Gbit/s |
| Remote control function | Yes |
| Remote control included | Yes |

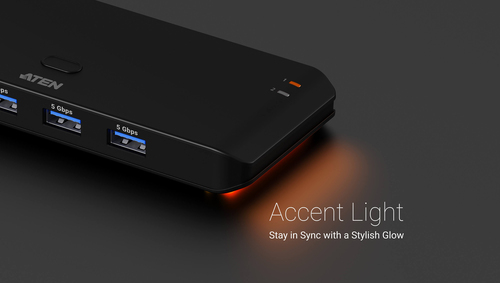

| LED indicators | Power, Selected |
| Hot-Plug support | Yes |
| Power connector | USB Type-C |
| Product colour | Black |
| Housing material | Plastic |
| Plug and Play | Yes |
Technical details
| Specification | Value |
|---|---|
| Push button | Yes |
Power
| Specification | Value |
|---|---|
| Power source | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56.5 mm |
| Depth | 145 mm |
| Height | 15.2 mm |
| Weight | 77 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A - USB Type-A |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 20 pc(s) |
