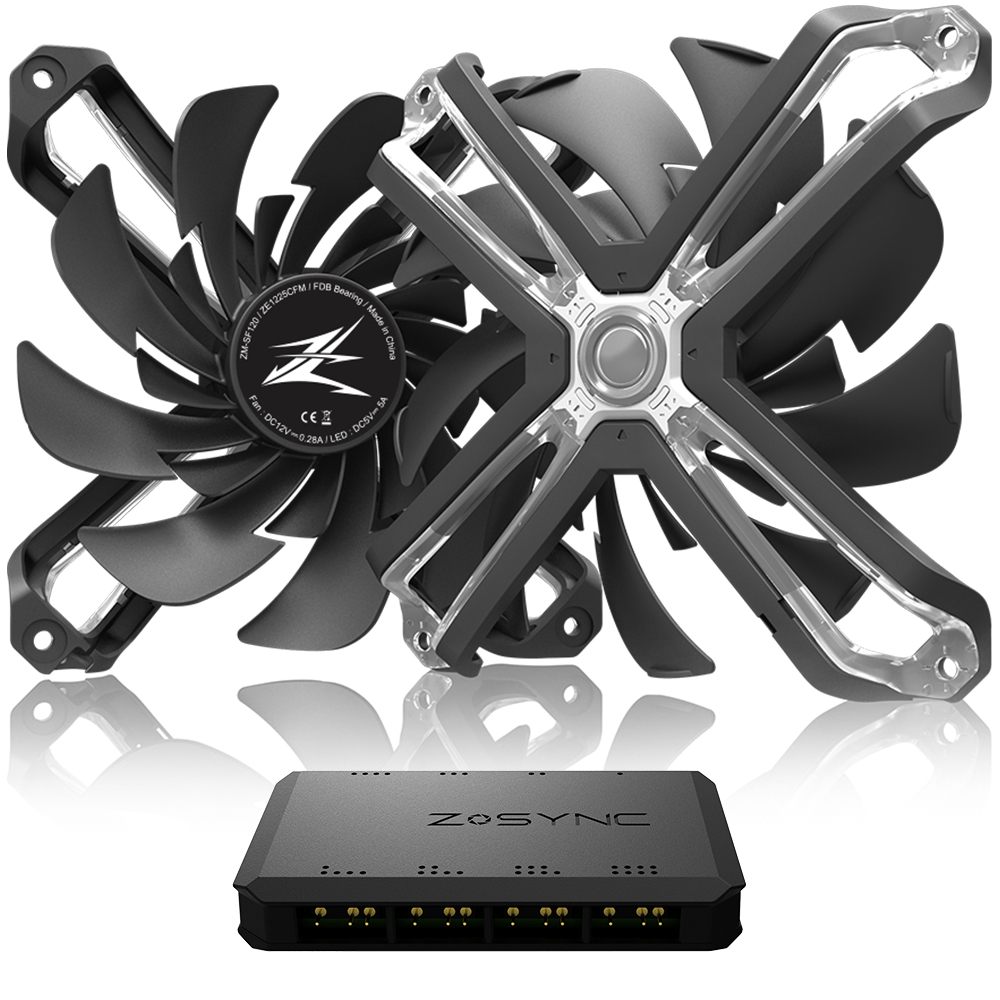

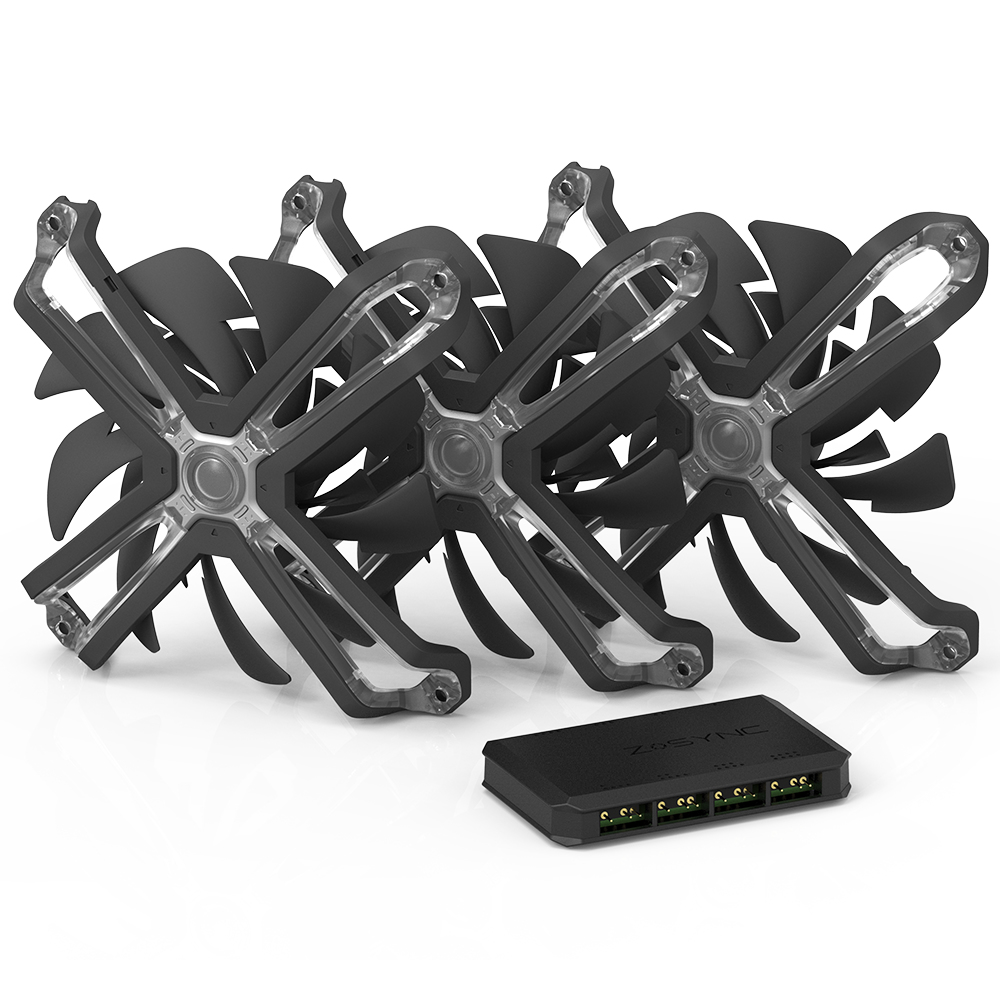

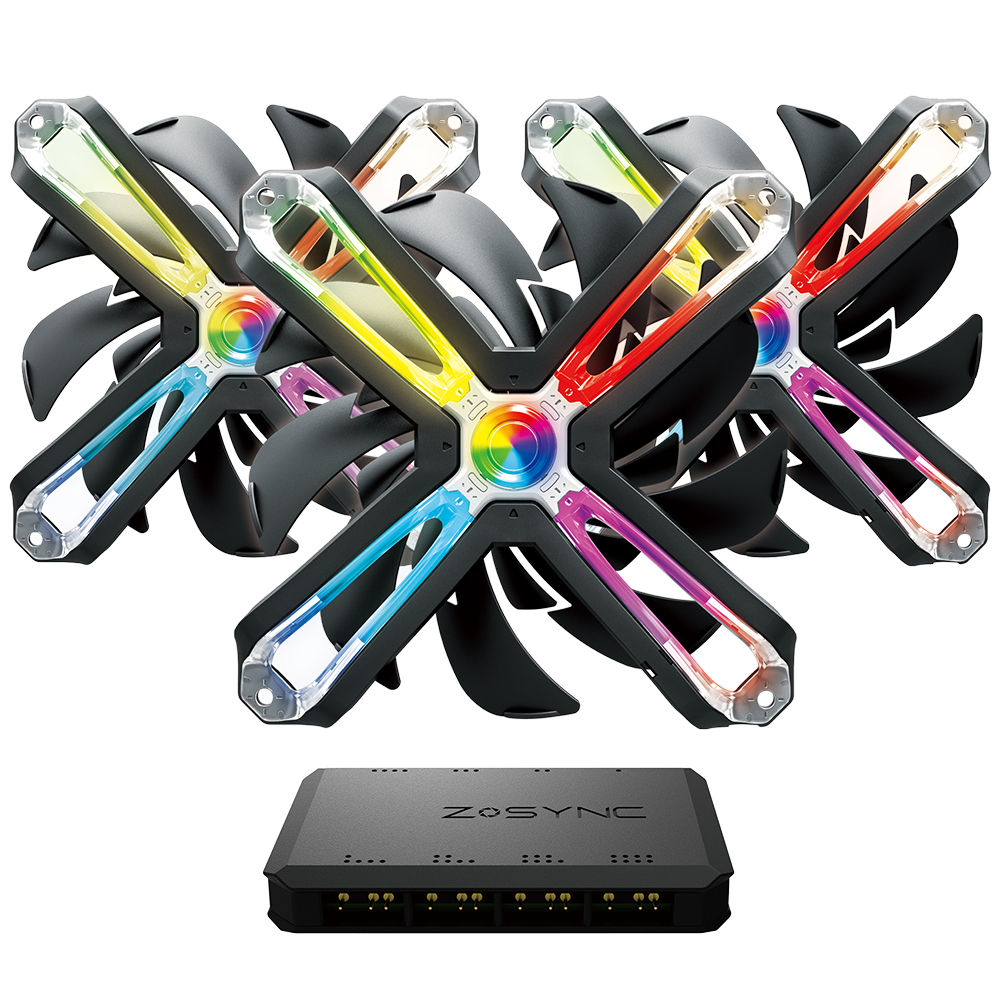

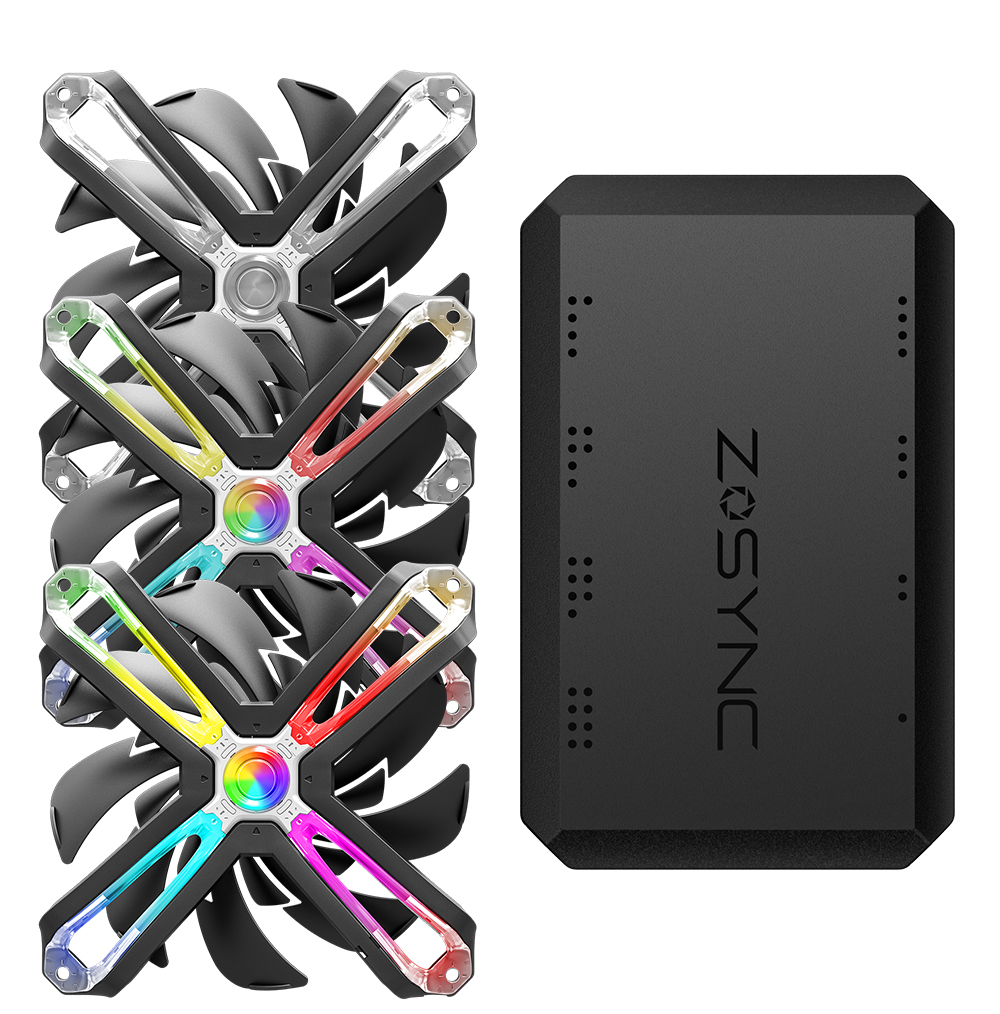

ZM-SF120A3 computer cooling system Computer case Fan
12 cm Black
Model ZM-SF120A3EAN 823884209556
36 specifications
- Noise28 dB
- TypeFan
- Weight100 g
- ColourBlack
- Suitable locationComputer case
- Voltage5-12 V
Overview
- Noise
- 28 dB
- Type
- Fan
- Weight
- 100 g
- Colour
- Black
- Suitable location
- Computer case
- Voltage
- 5-12 V
- Brand
- Zalman
- Category
- Computer Cooling System
- Model
- ZM-SF120A3
- Part number
- ZM-SF120A3
- EAN / UPC
- 823884209556, 8809213769887
- Also known as
- Zalman ZM-SF120A3 computer cooling system Computer case Fan 12 cm Black
Specifications
36 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 1500 RPM |
| Noise level (high speed) | 28 dB |
| Maximum airflow | 54 cfm |
| Maximum air pressure | 1.1 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Acrylic, Polybutylene terephthalate (PBT), Polycarbonate |
| Number of fans | 1 fan(s) |
| Number of fan blades | 9 |
| Illumination colour | Blue, Green, Red |
| Fan connector | 3-pin + 4-pin |
| Certification | CE, FCC |
Power
| Specification | Value |
|---|---|
| Voltage | 5-12 V |
| Rated voltage | 12 V |
| Starting voltage | 5 V |
| Maximum current | 0.03 A |
| Rated current | 0.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 26 mm |
| Weight | 100 g |
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Package width | 150 mm |
| Package depth | 145 mm |
| Package height | 185 mm |
| Package weight | 880 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
