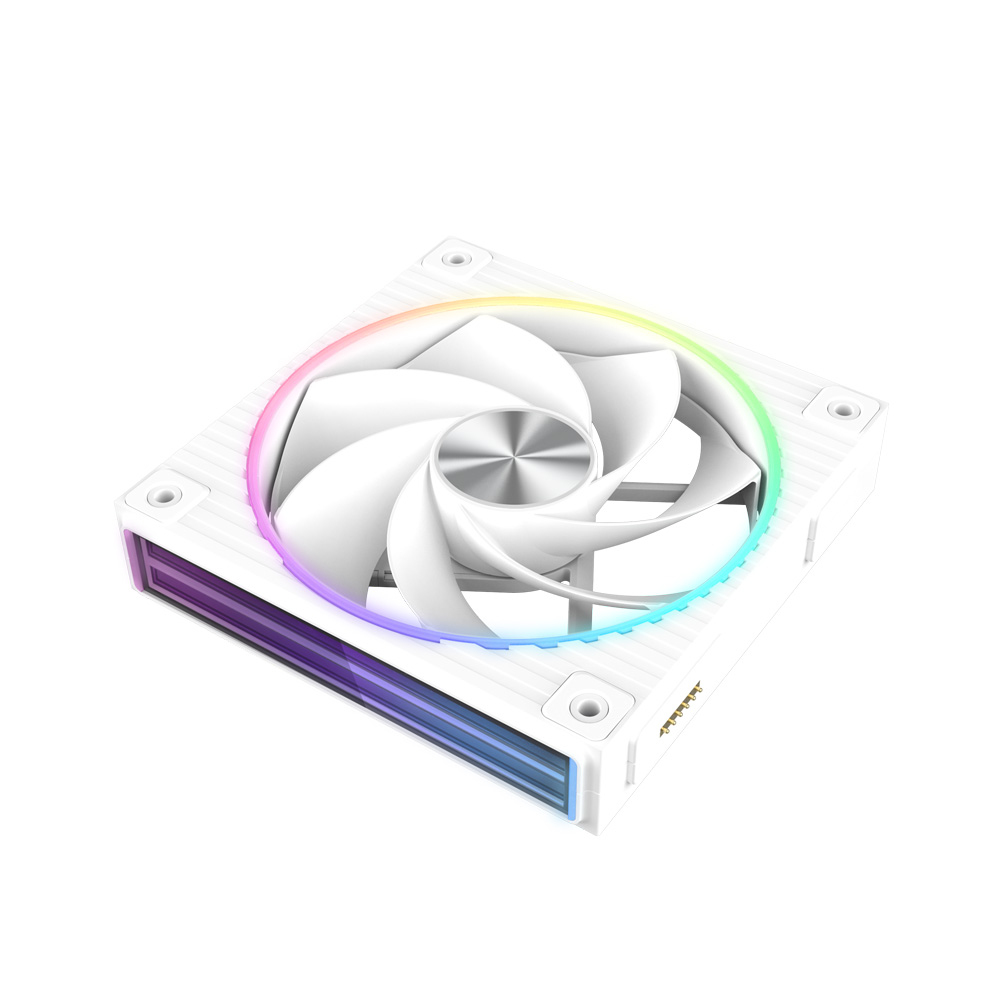

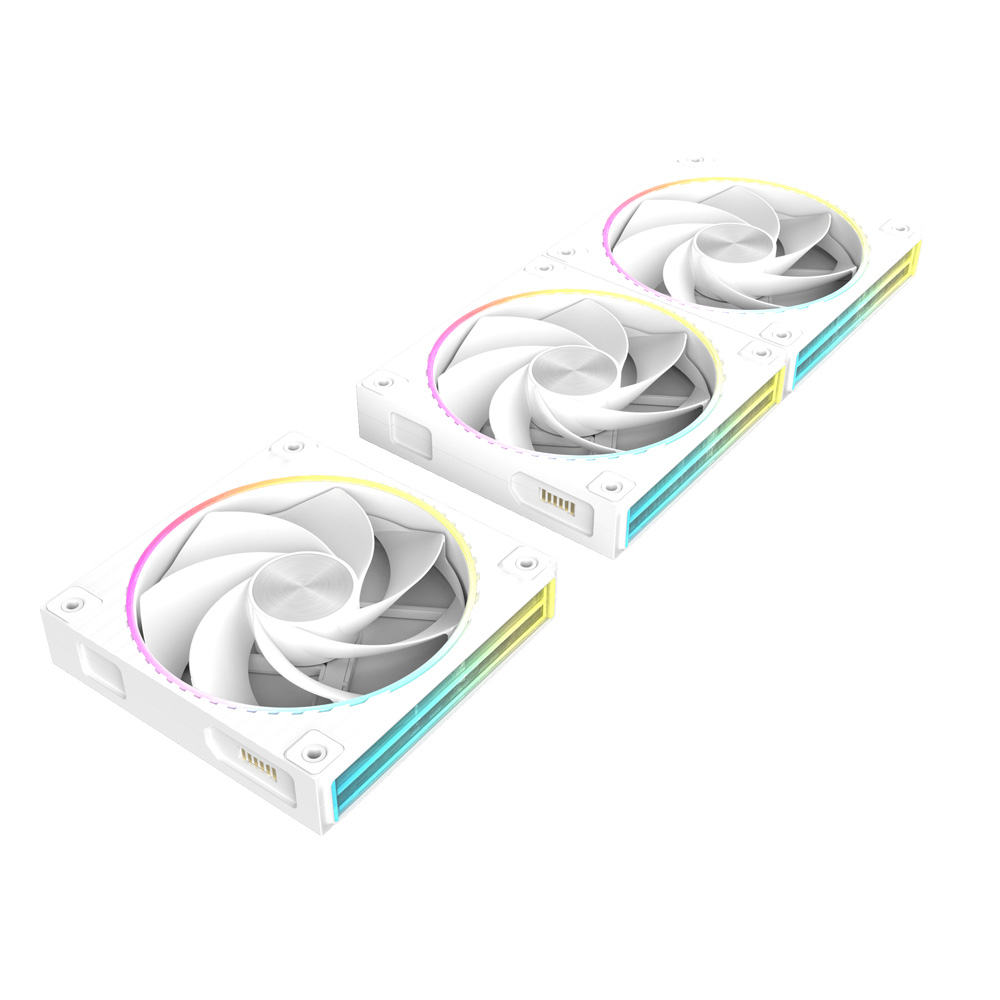

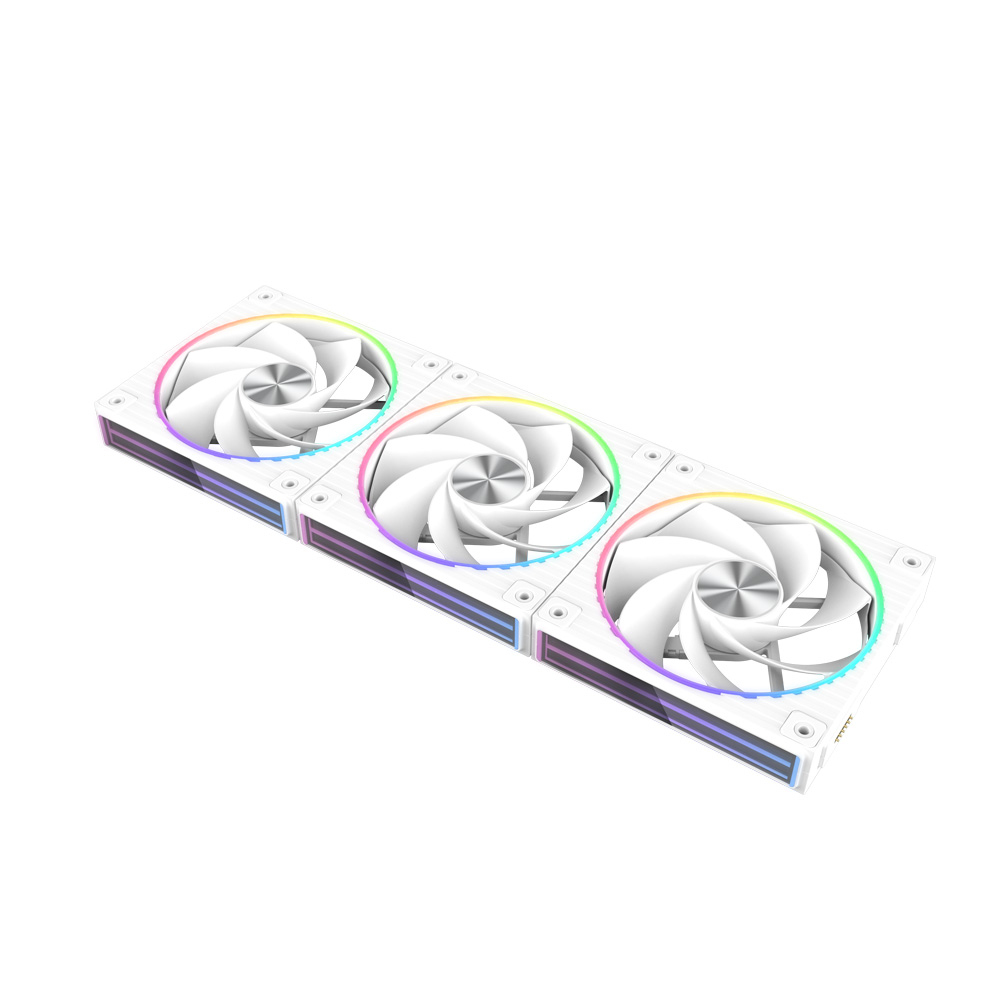

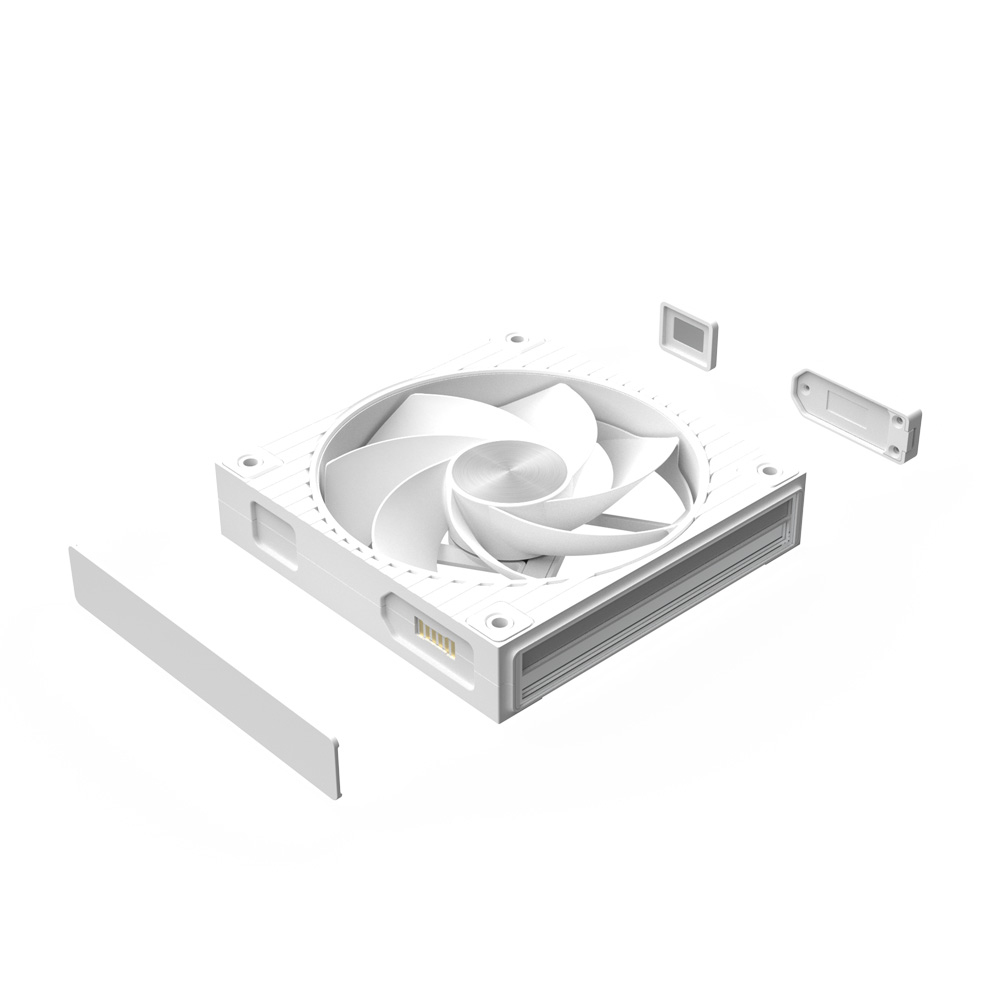

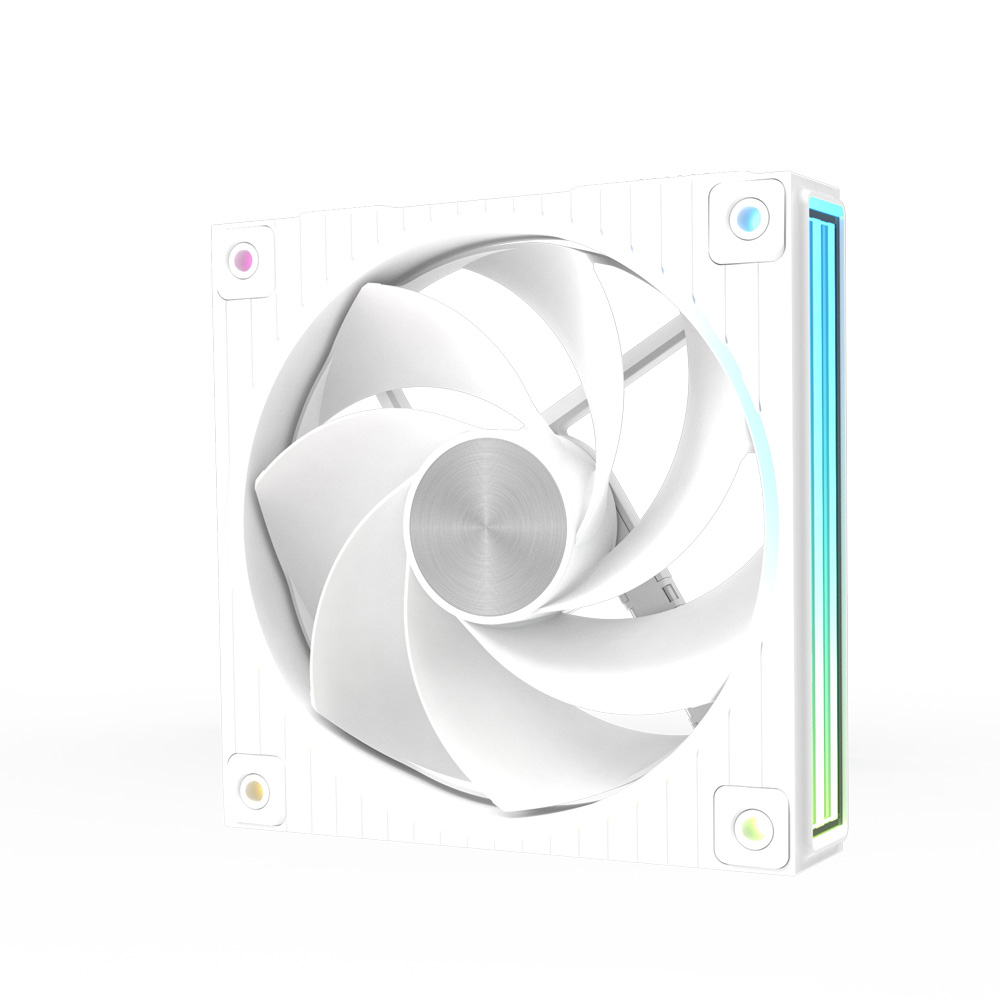

ZM-DF120R Motherboard Fan
12.4 cm White 1 pc(s)
Model ZM-DF120RPart no. ZM-DF120R WHITEEAN 8800263651047
19 specifications
- Noise35.1 dB
- TypeFan
- ColourWhite
- Suitable locationMotherboard
- Power consumption (typical)3.36 W
- Width124 mm
Overview
- Noise
- 35.1 dB
- Type
- Fan
- Colour
- White
- Suitable location
- Motherboard
- Power consumption (typical)
- 3.36 W
- Width
- 124 mm
- Brand
- Zalman
- Category
- Computer Cooling System
- Model
- ZM-DF120R
- Part numbers
- ZM-DF120R WHITE, ZM-DF120R BLACK
- EAN / UPC
- 8800263651047, 8800263651023
- Also known as
- Zalman ZM-DF120R Motherboard Fan 12.4 cm White 1 pc(s)
Specifications
19 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Motherboard |
| Type | Fan |
| Fan diameter | 12.4 cm |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 2300 RPM |
| Noise level (high speed) | 35.1 dB |
| Maximum air pressure | 1.87 mmH2O |
| Bearing type | Ball bearing |
| Pump connector | 4-pin |
| Quantity per pack | 1 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.36 W |
| Rated voltage | 12 V |
| Rated current | 0.28 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 120 mm |
| Height | 25 mm |
