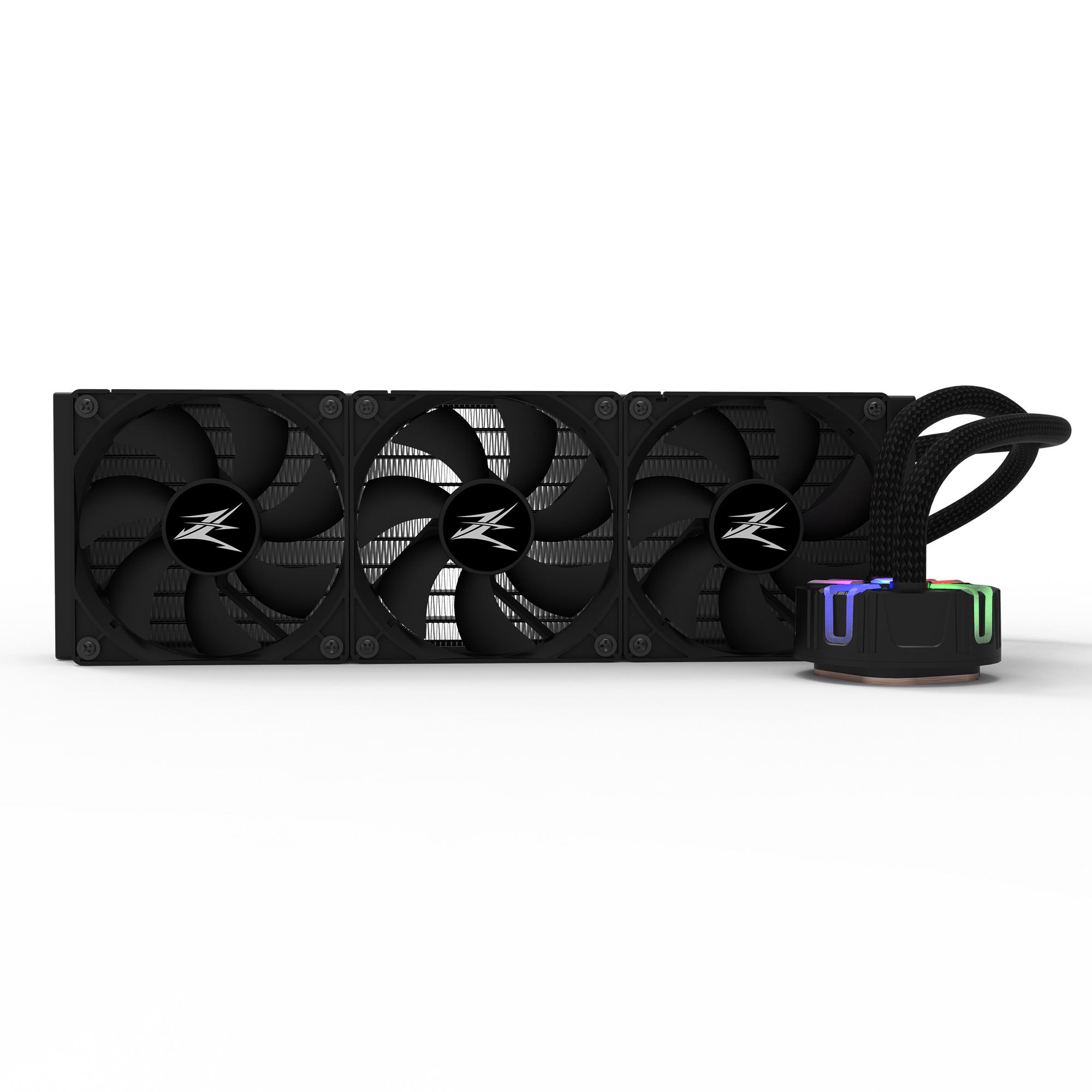

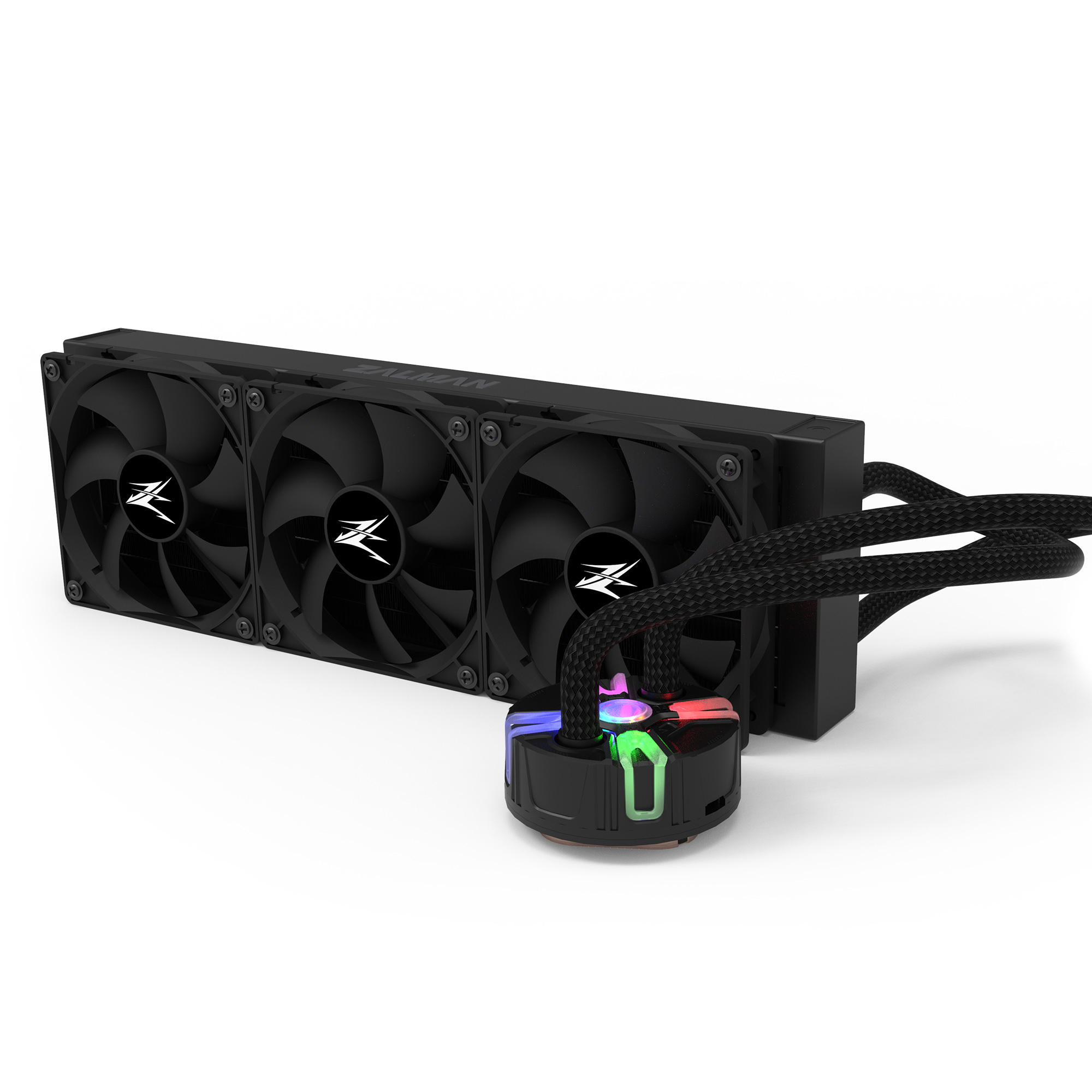

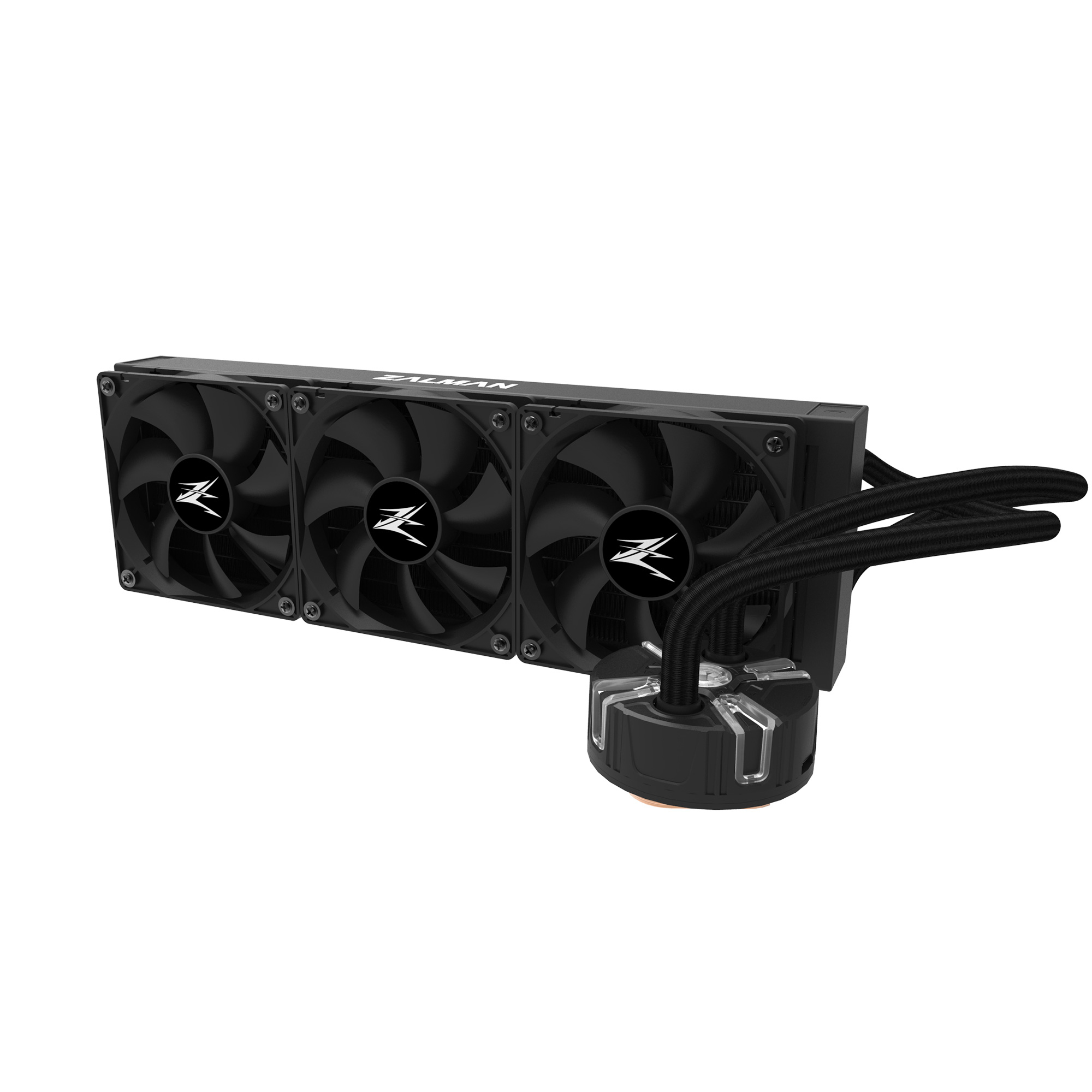

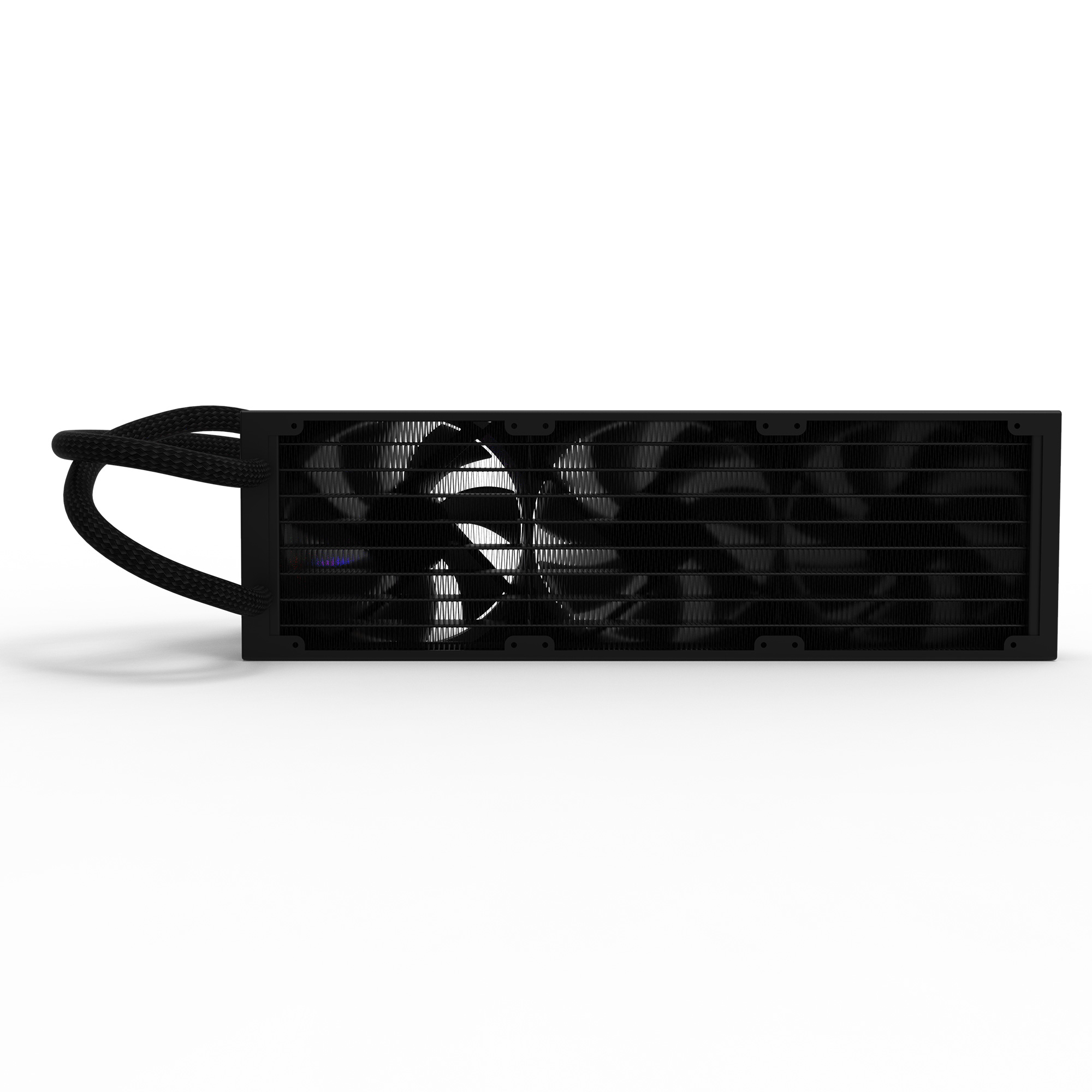

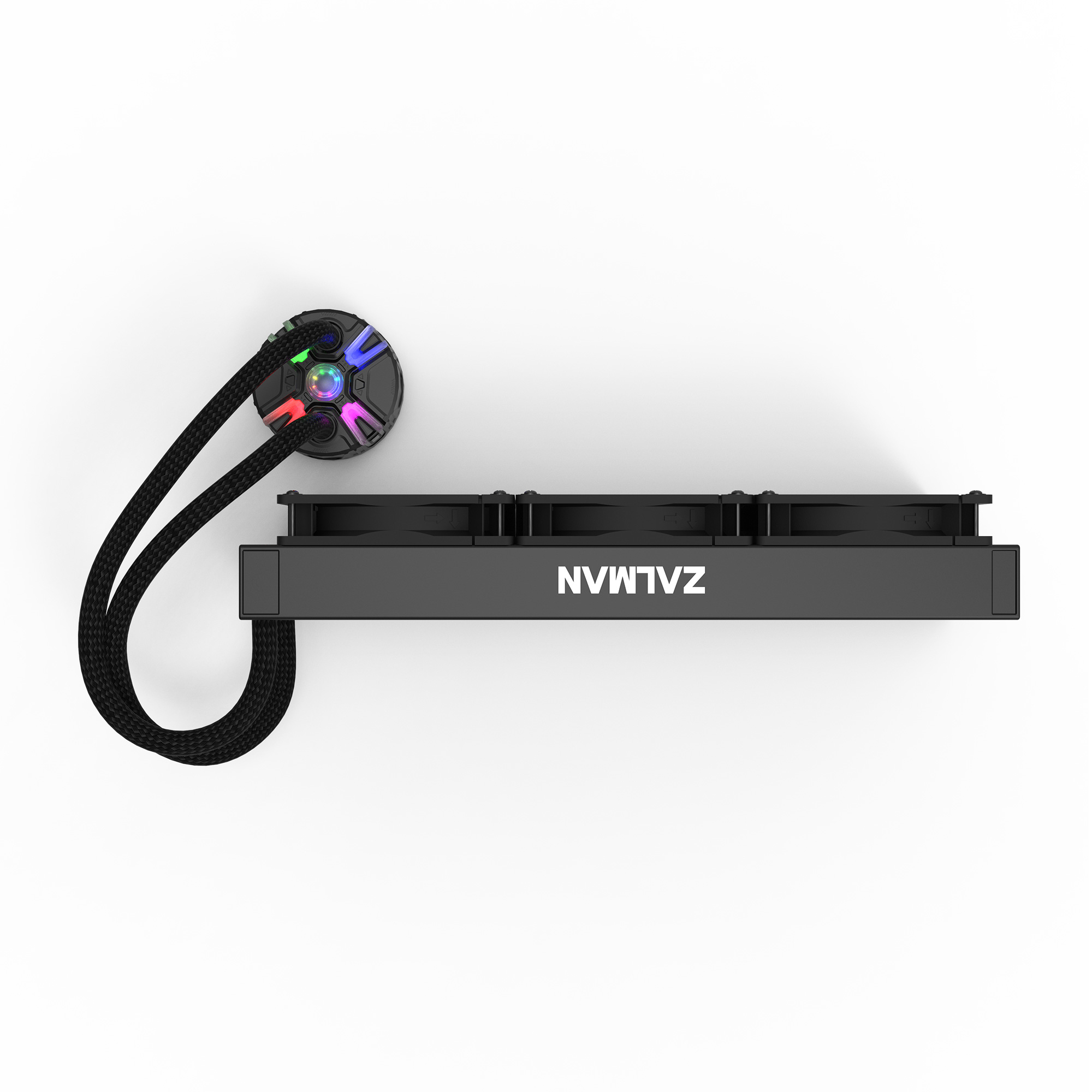

Reserator5 Z36 Black
Model Reserator5 Z36 BlackPart no. RESERATOR5 Z36 BLACKEAN 8809213769740
35 specifications
- Noise37 dB
- ColourBlack
- Suitable locationChipset
- Fan power consumption4.2 W
- Width397 mm
Overview
- Noise
- 37 dB
- Colour
- Black
- Suitable location
- Chipset
- Fan power consumption
- 4.2 W
- Width
- 397 mm
- Brand
- Zalman
- Category
- Computer Cooling System
- Model
- Reserator5 Z36 Black
- Part number
- RESERATOR5 Z36 BLACK
- EAN / UPC
- 8809213769740
- Also known as
- Zalman Reserator5 Z36 Black Chipset 12 cm
Specifications
35 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Chipset |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), Socket AM3, Socket AM3+, Socket AM4, Socket FM2, Socket FM2+ |
| Maximum air pressure | 2.92 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (max) | 37 dB |
| Pump bearing technology | Ceramic bearing |
| Coolant capacity | 0.85 L |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 800 RPM |
| Pump motor speed | 2100 RPM |
| Pump motor speed (max) | 2100 RPM |
| Pump motor speed (min) | 1000 RPM |
| Fan's mean time to failure (MTTF) | 50000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Aluminium, Copper |
| Number of fans | 3 fan(s) |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 4.2 W |
| Pump power consumption | 4.2 W |
| Fan current | 0.35 A |
| Fan voltage | 12 V |
| Pump current | 0.35 mA |
| Pump voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 397 mm |
| Depth | 120 mm |
| Height | 27 mm |
| Radiator width | 39.7 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Pump width | 8.2 cm |
| Pump depth | 8.2 cm |
| Pump height | 4 cm |
Other features
| Specification | Value |
|---|---|
| Tube material | Nylon |
| Noise level | 37 dB |
