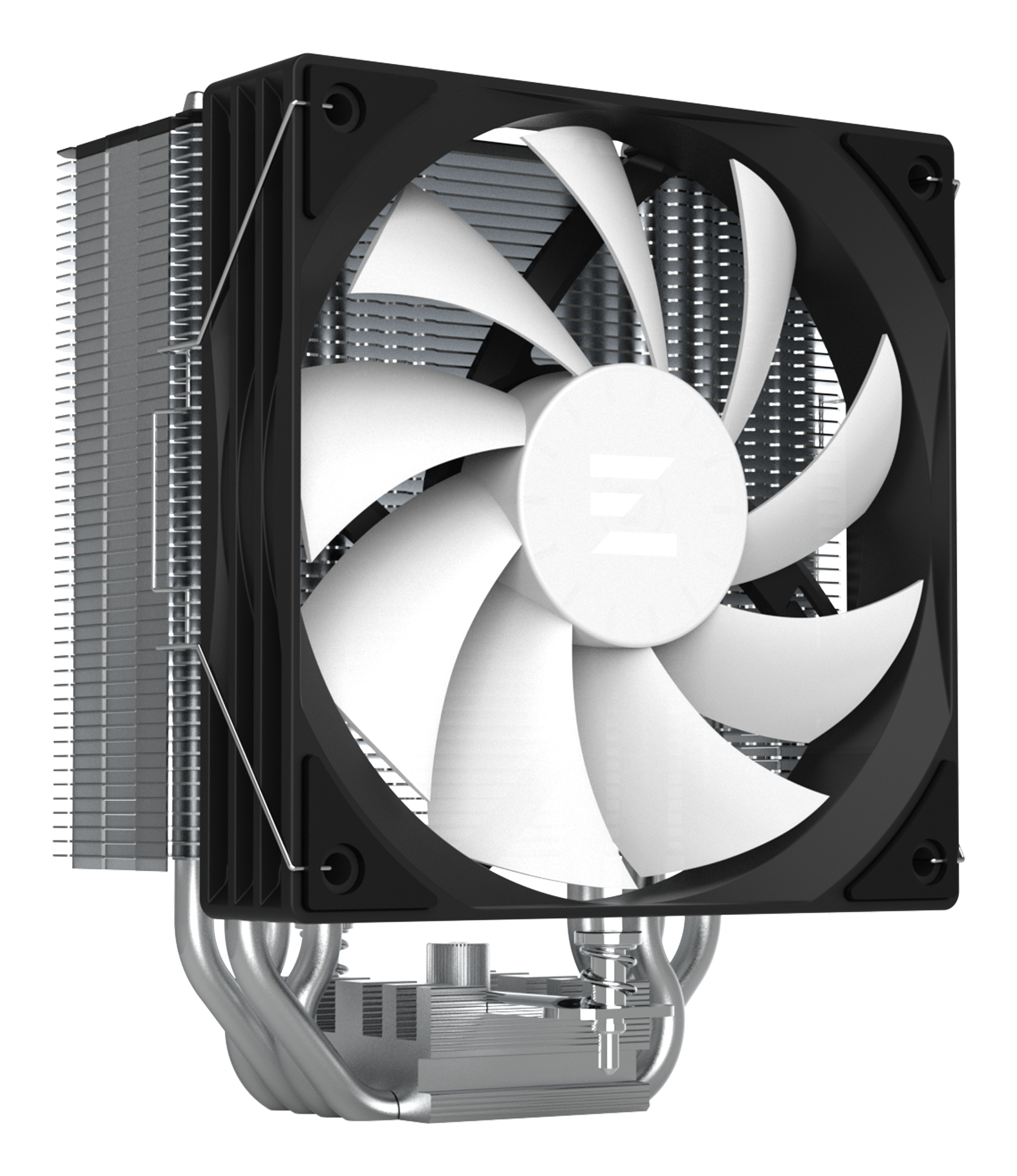

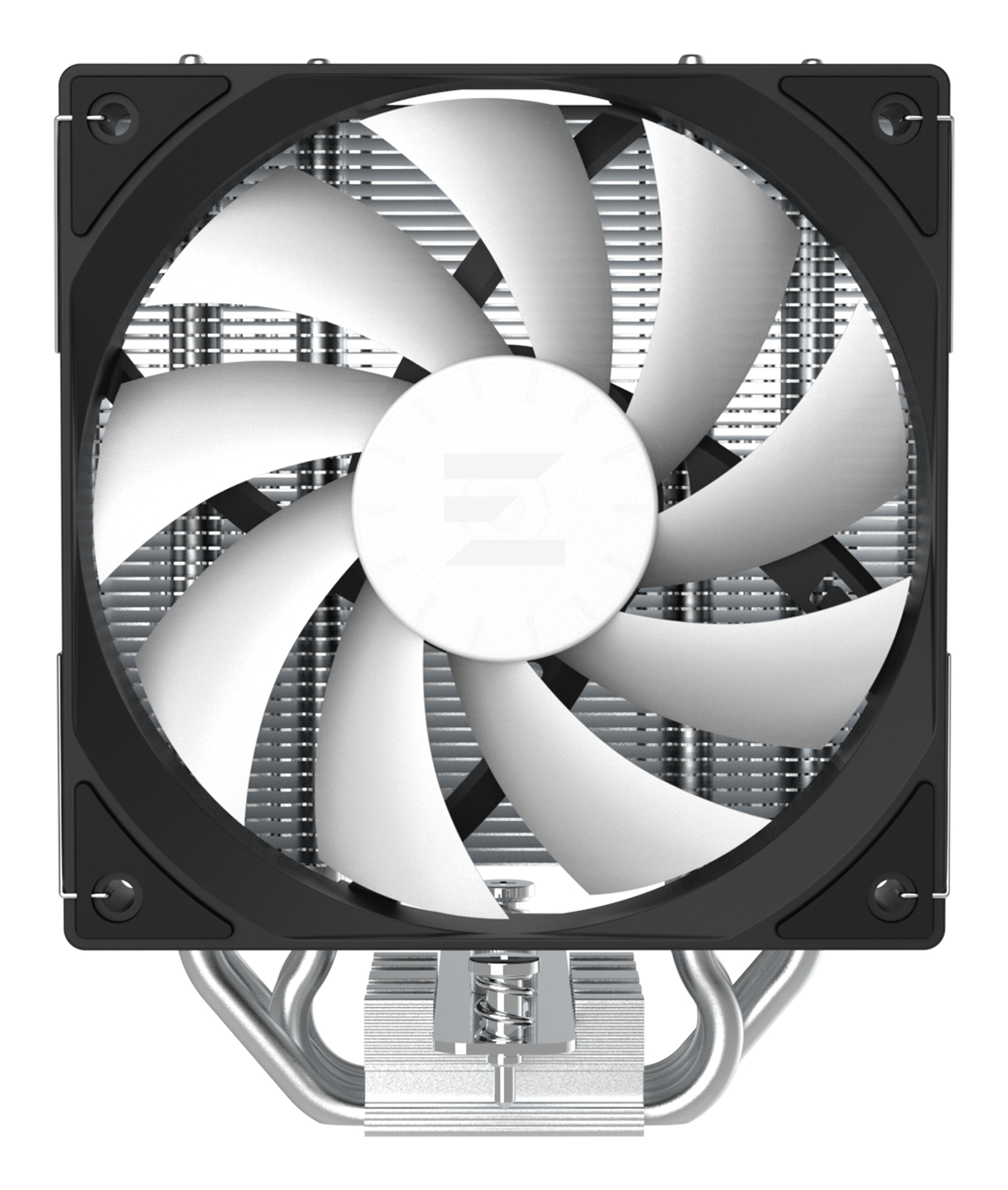

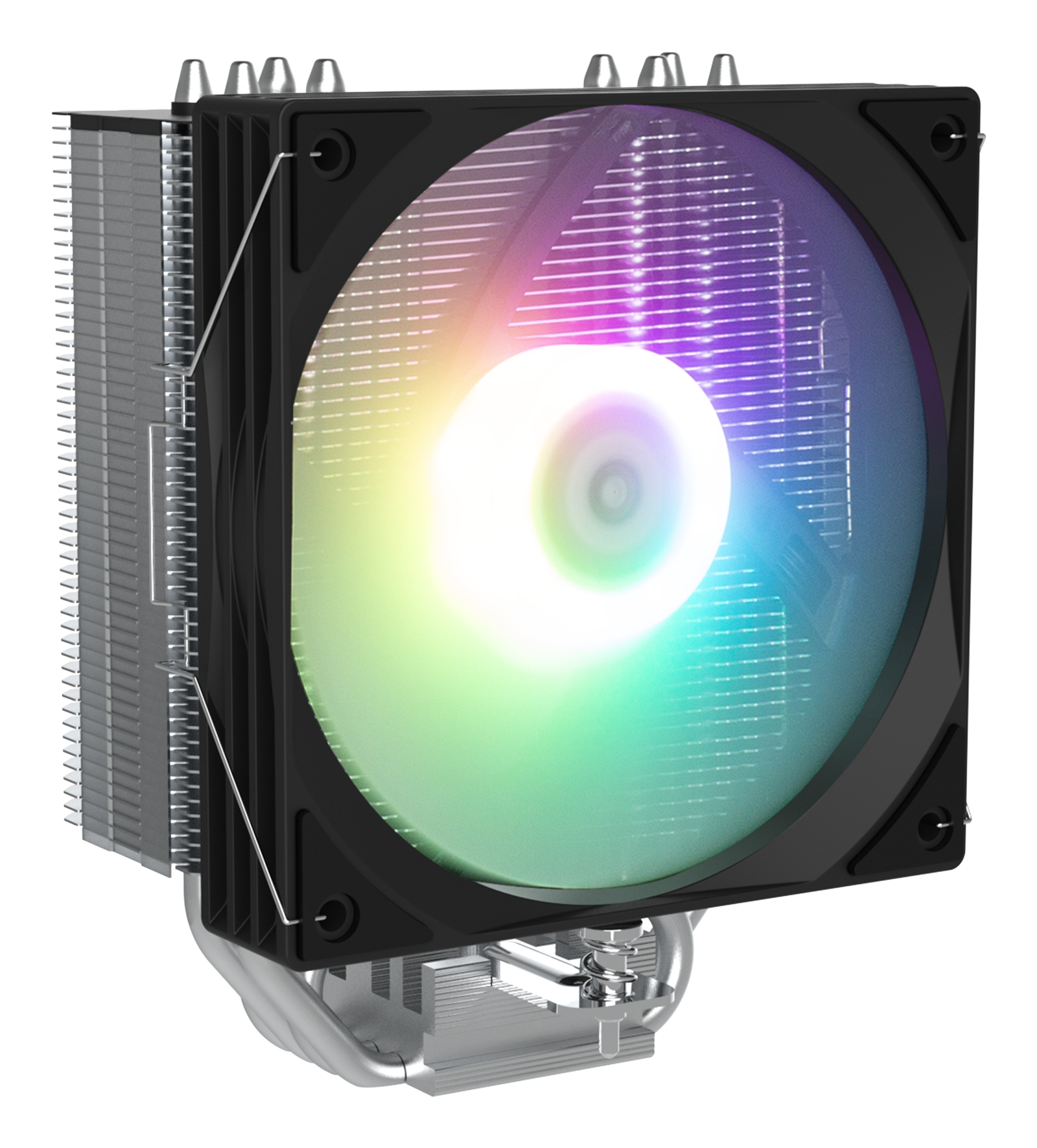

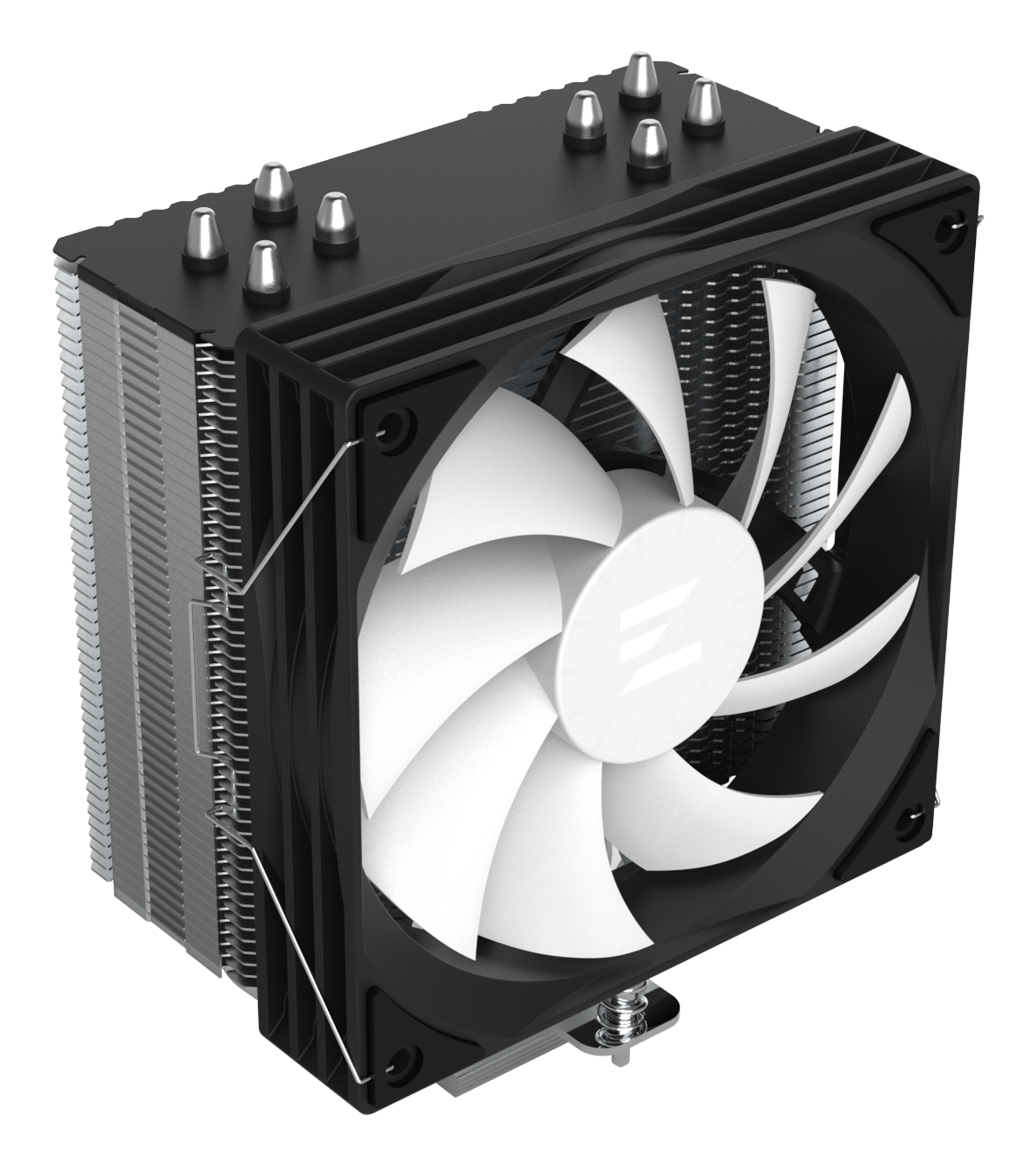

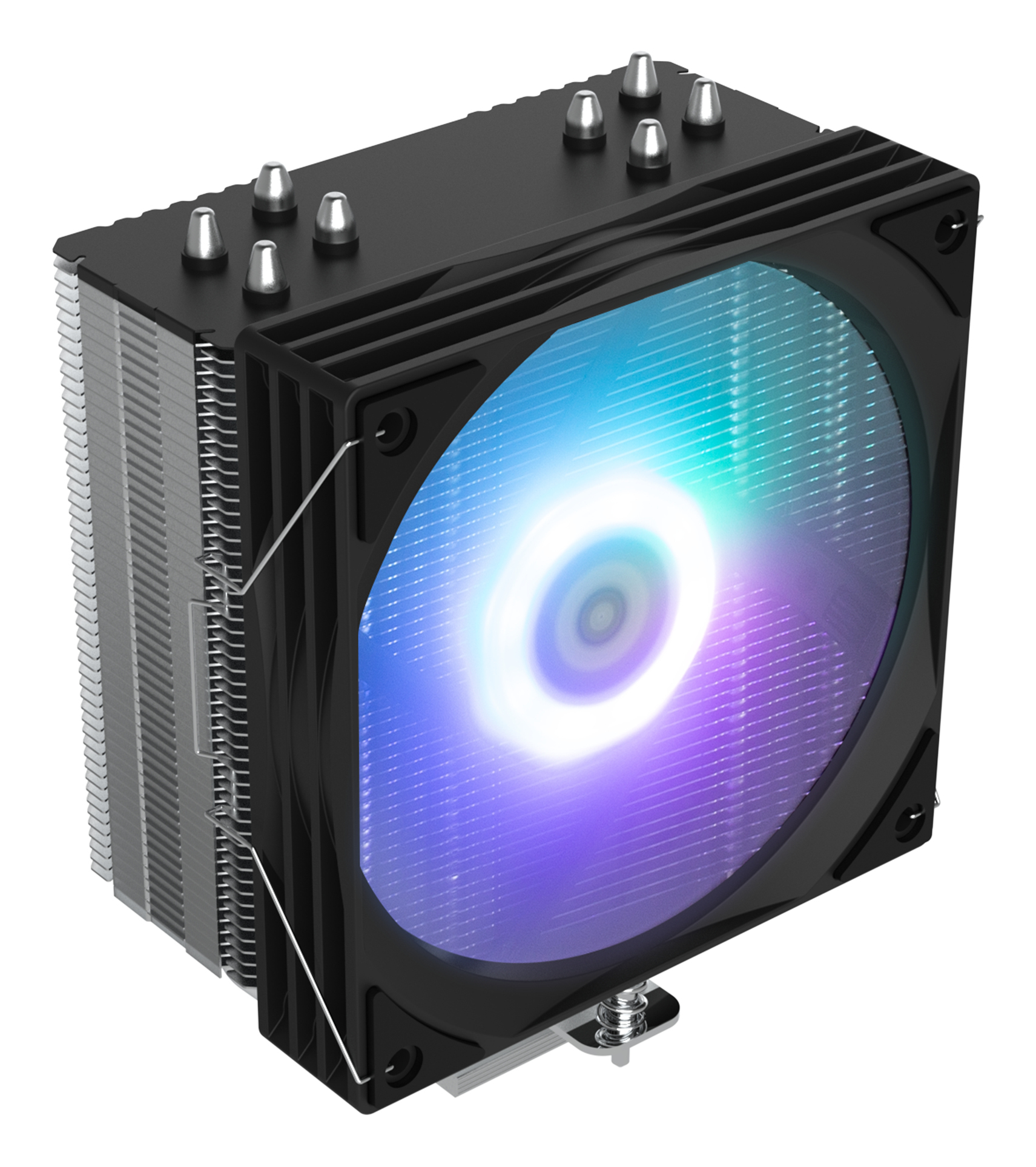

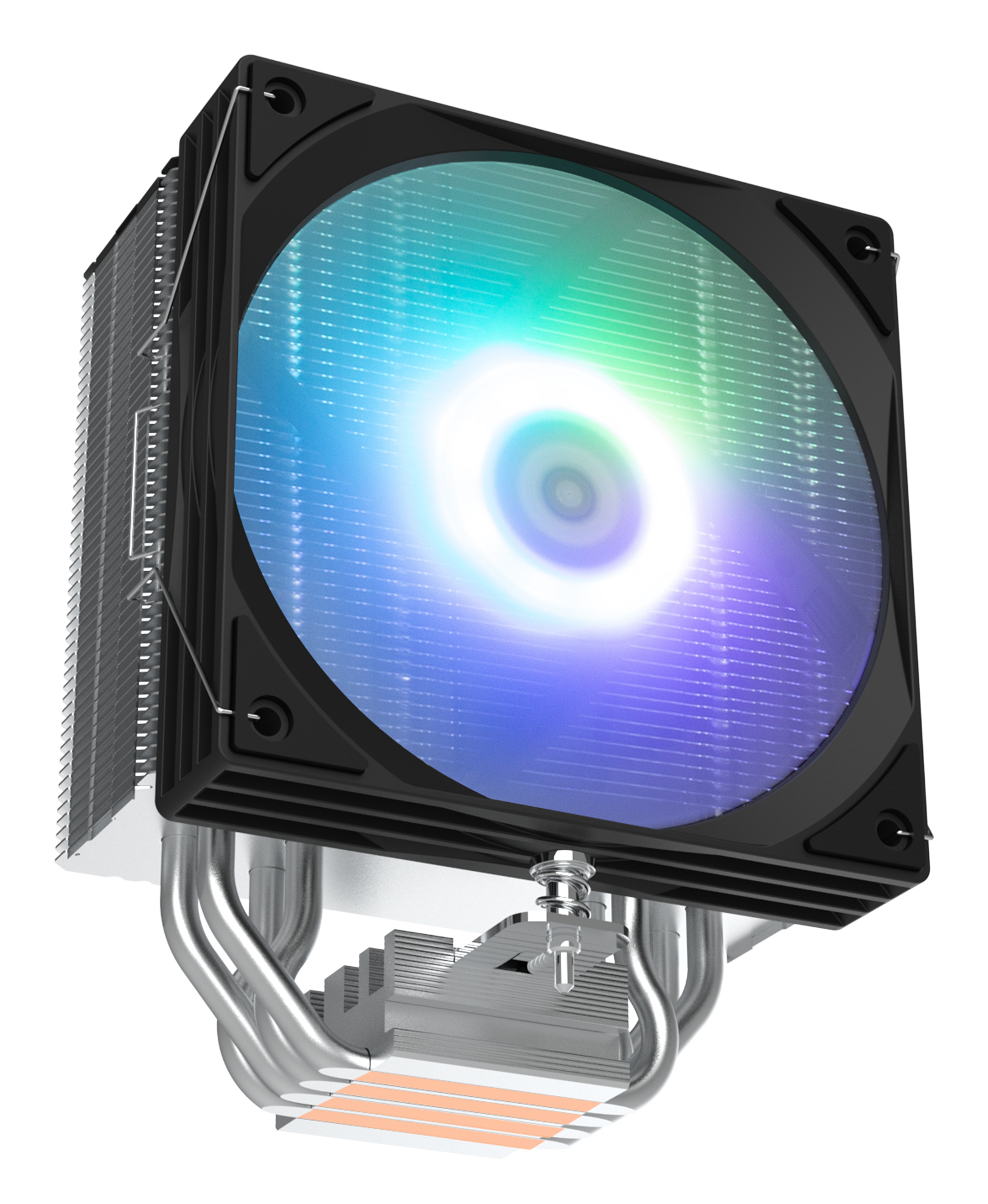

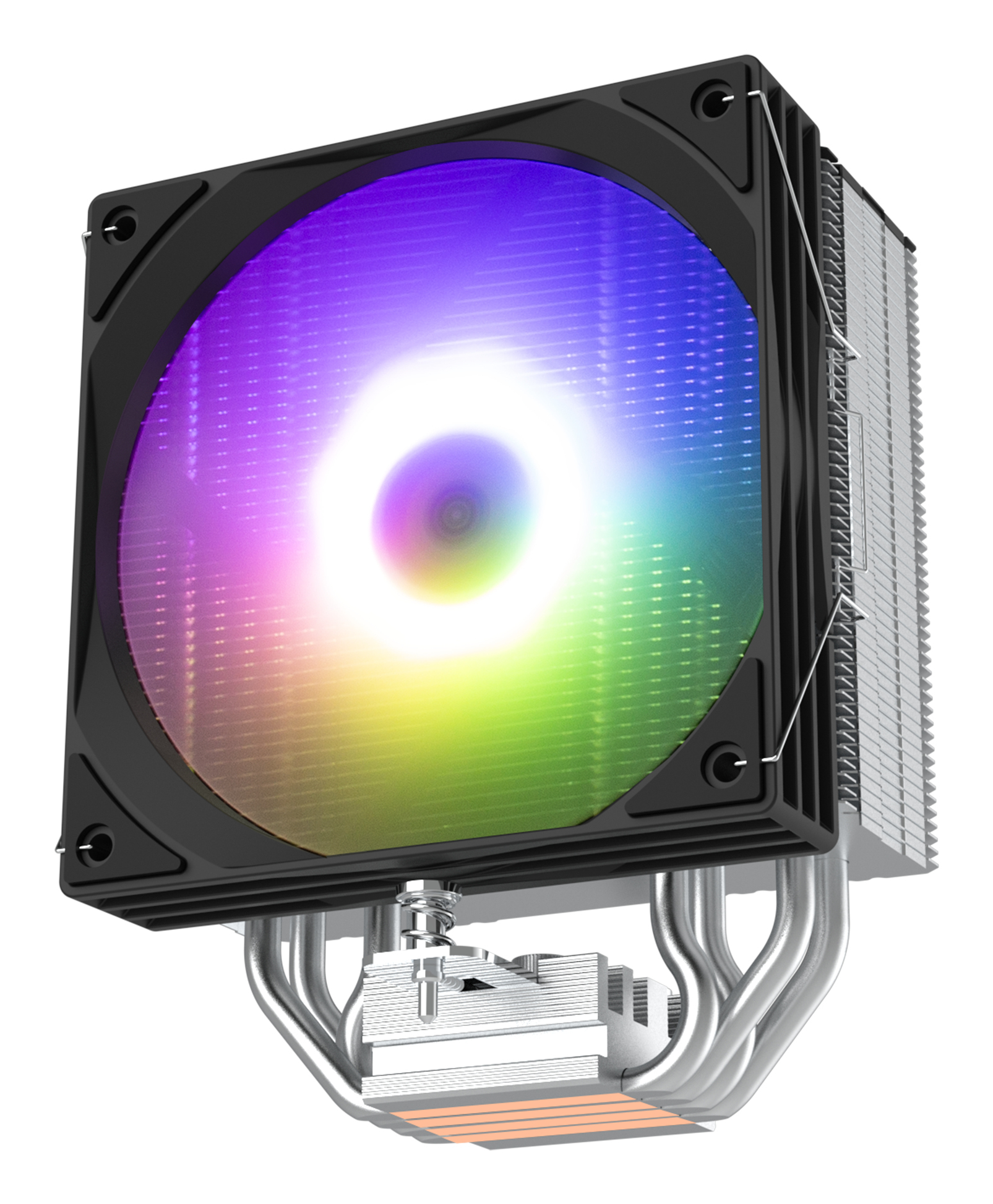

CNPS9X OPTIMA2
Model CNPS9X OPTIMA2EAN 8800263650361
32 specifications
- Noise29.5 dB
- TypeFan
- Weight635 g
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)3.72 W
Overview
- Noise
- 29.5 dB
- Type
- Fan
- Weight
- 635 g
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 3.72 W
- Brand
- Zalman
- Category
- Computer Cooling System
- Model
- CNPS9X OPTIMA2
- Part number
- CNPS9X OPTIMA2
- EAN / UPC
- 8800263650361
- Also known as
- Zalman CNPS9X OPTIMA2 computer cooling system Processor Fan 12 cm Black 1 pc(s)
Specifications
32 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5 |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 1500 RPM |
| Noise level (high speed) | 29.5 dB |
| Maximum airflow | 47.12 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Fan static pressure | 1.06 mmH2O |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Aluminium, Copper |
| Number of fans | 1 fan(s) |
| Number of fan blades | 9 |

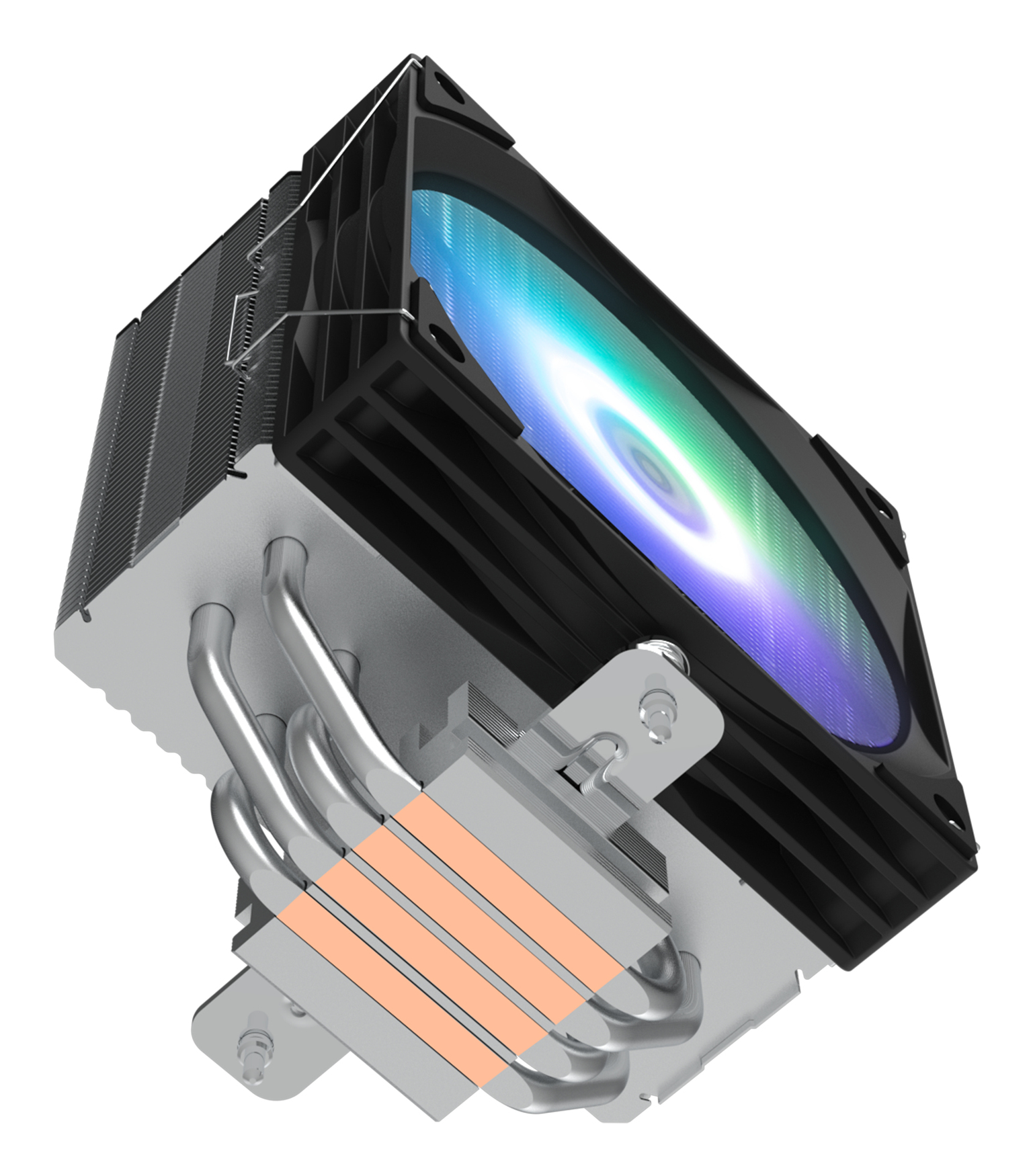

| Number of heat pipes | 4 |

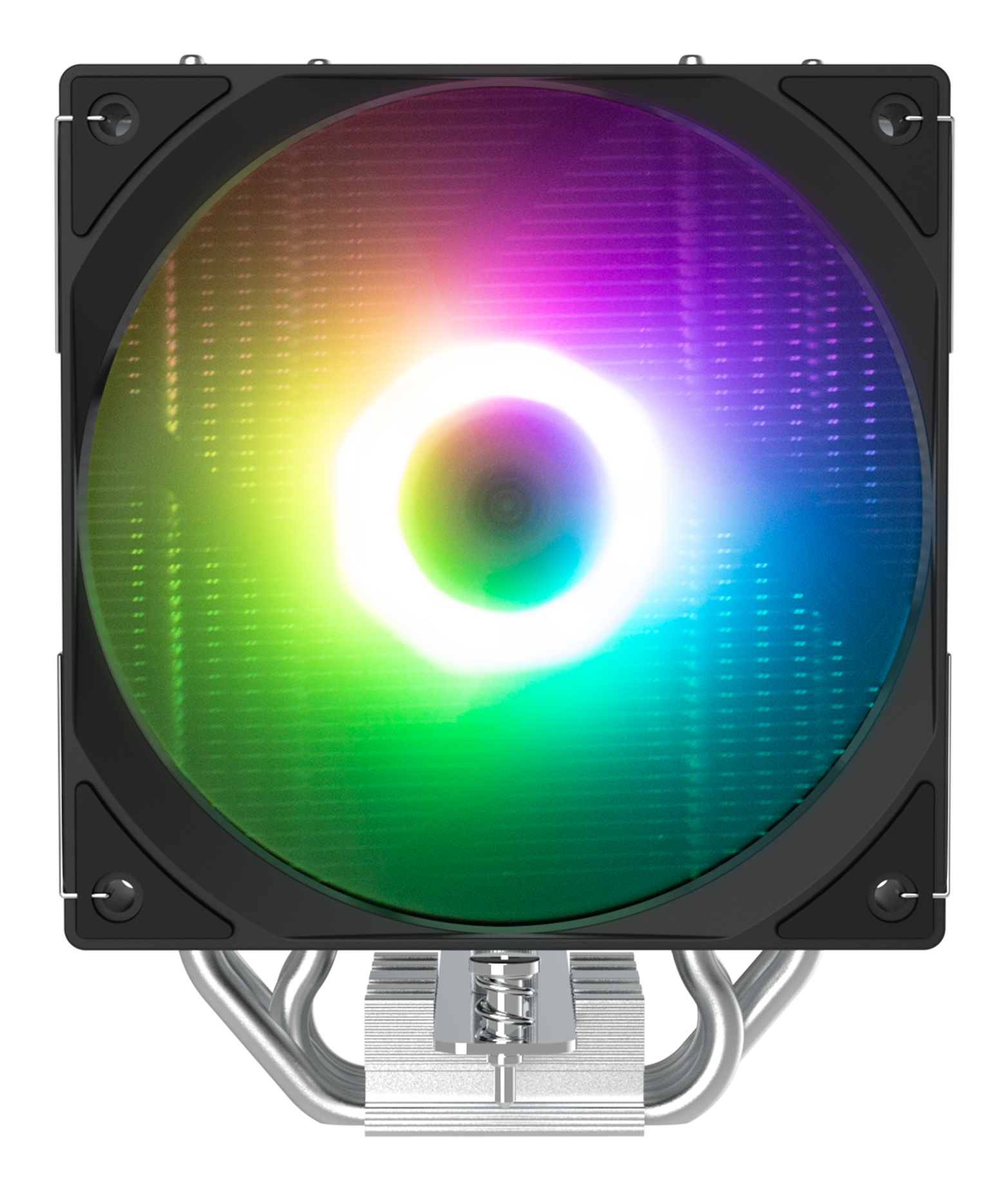

| Illumination LED | Yes |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.72 W |
| Rated voltage | 12 V |
| LED voltage | 5 V |
| Rated current | 0.31 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 75 mm |
| Height | 155 mm |
| Weight | 635 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Screws included | Yes |
| Number of clips | 2 |
Other features
| Specification | Value |
|---|---|
| Thermal grease | Yes |
