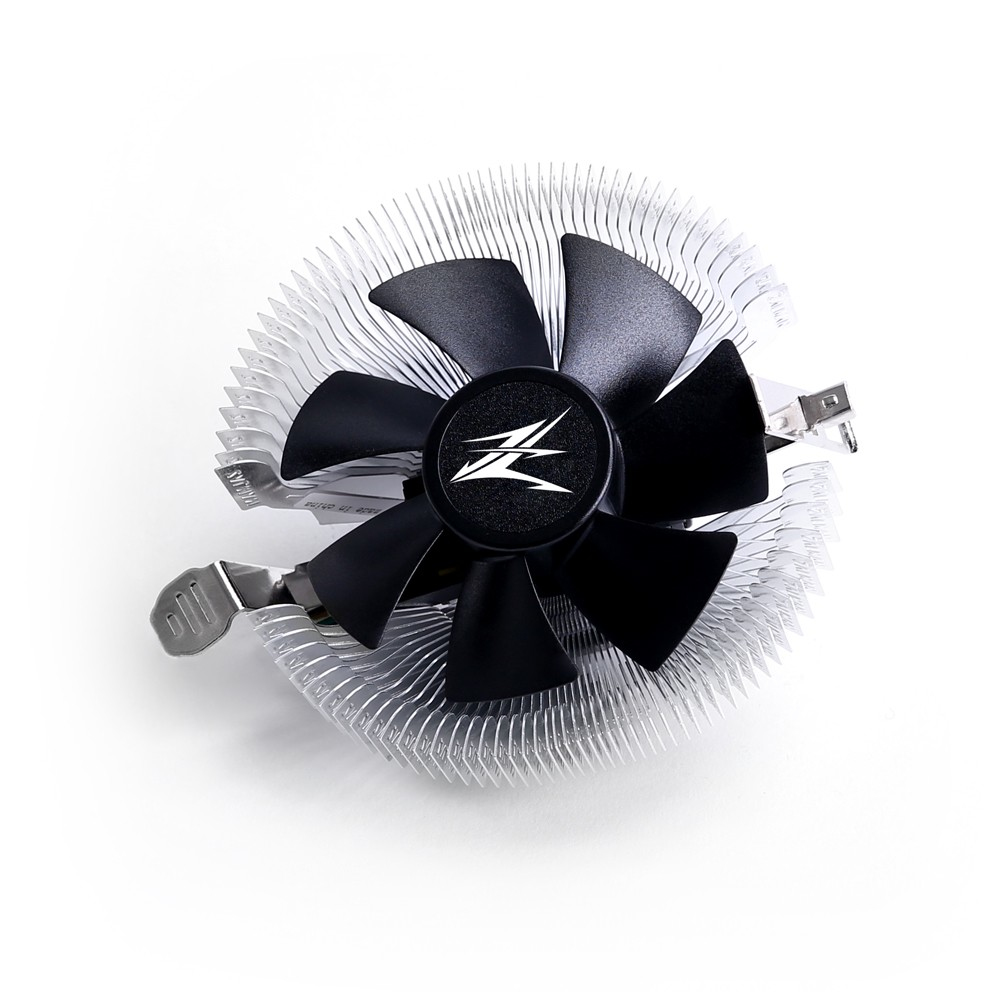

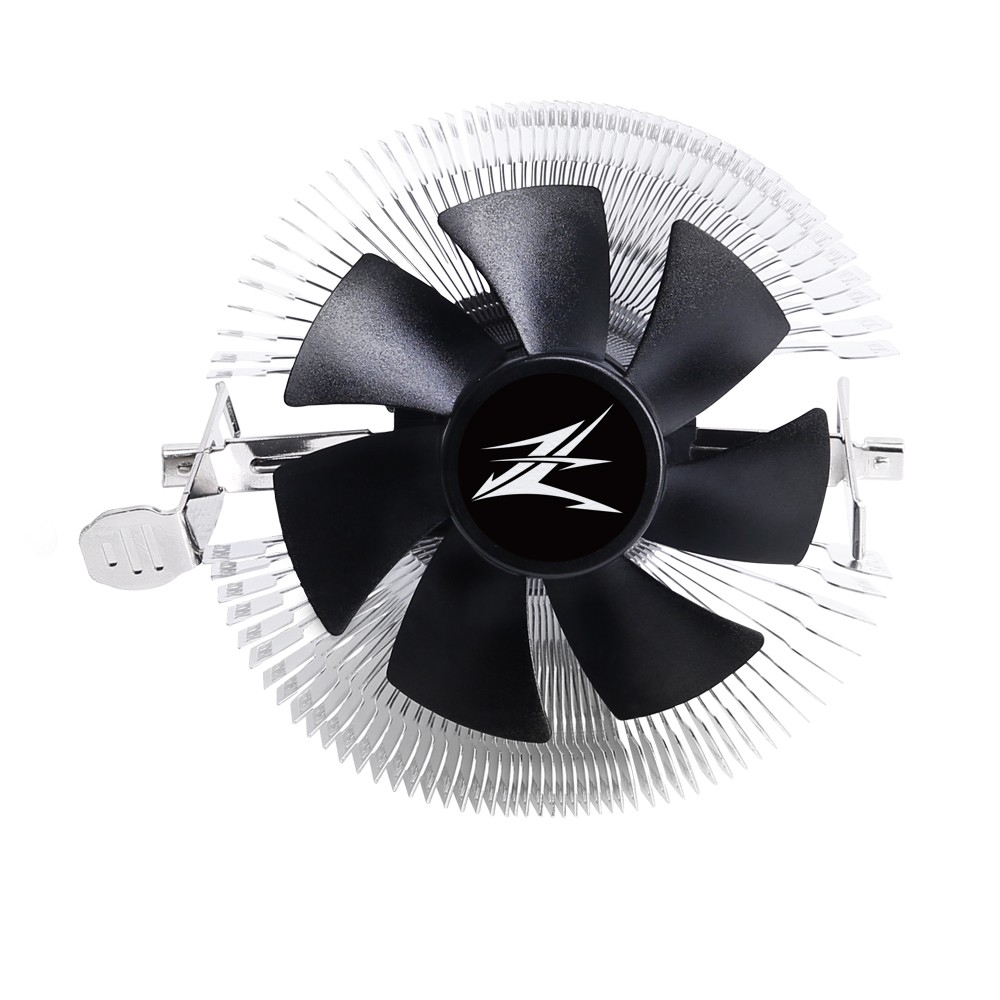

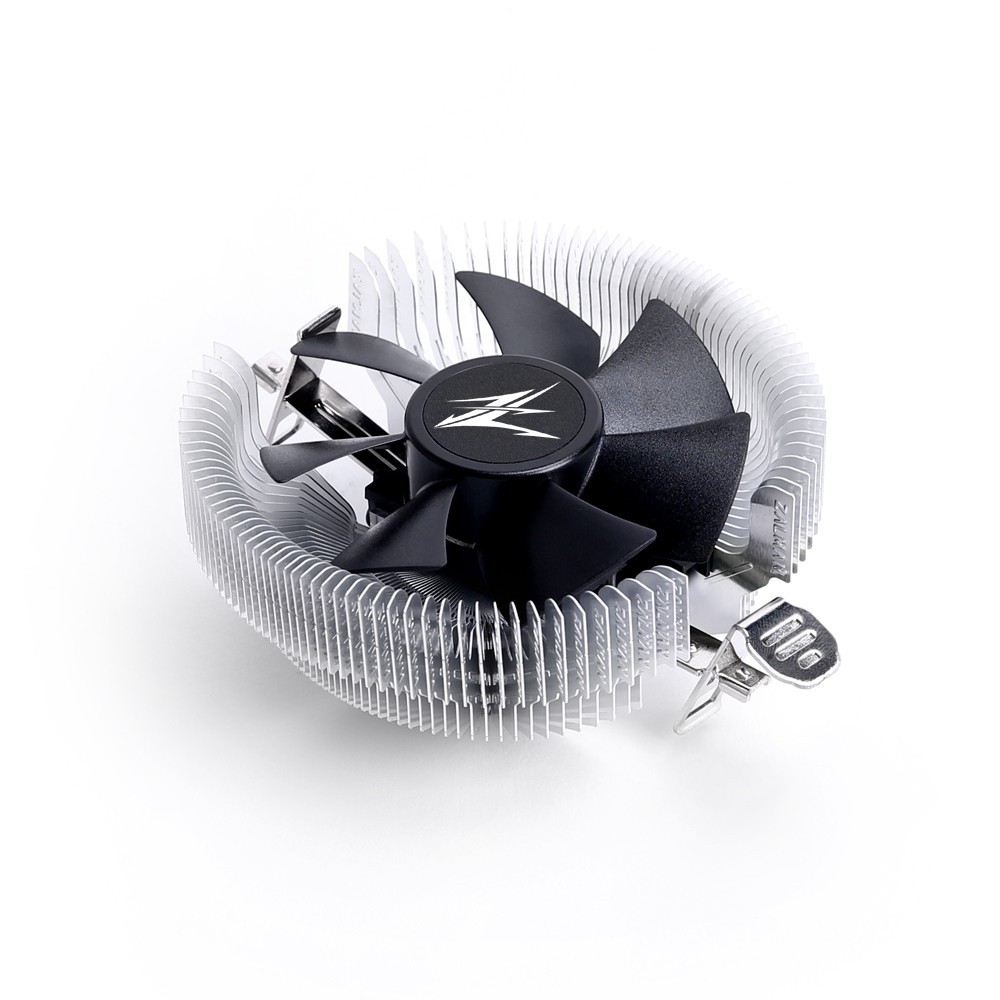

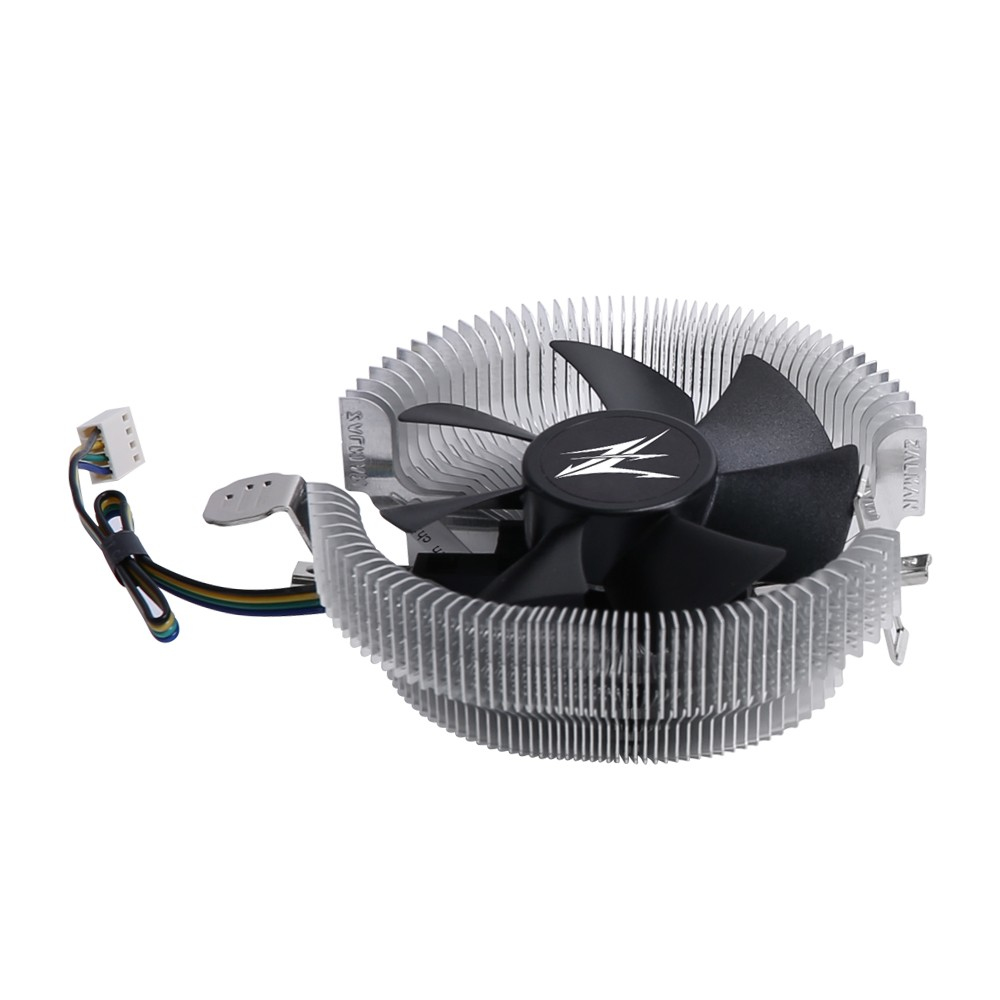

CNPS80G Rev.1
Model CNPS80G Rev.1Part no. CNPS80G REV.1EAN 8809213766701
28 specifications
- Noise25.3 dB
- TypeCooler
- Weight180 g
- ColourBlack, Silver
- Suitable locationProcessor
- Power consumption (typical)1.2 W
Overview
- Noise
- 25.3 dB
- Type
- Cooler
- Weight
- 180 g
- Colour
- Black, Silver
- Suitable location
- Processor
- Power consumption (typical)
- 1.2 W
- Brand
- Zalman
- Category
- Computer Cooling System
- Model
- CNPS80G Rev.1
- Part number
- CNPS80G REV.1
- EAN / UPC
- 8809213766701
- Also known as
- Zalman CNPS80G Rev.1 Processor Cooler 8.5 cm Black, Silver 1 pc(s)
Specifications
28 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 8.5 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 775 (Socket T), Socket AM3, Socket AM3+, Socket AM4 |
| Rotational speed (min) | 1000 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (high speed) | 25.3 dB |
| Maximum airflow | 27.18 cfm |
| Maximum air pressure | 1.51 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 50000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Material | Aluminium |
| Number of fans | 1 fan(s) |
| Number of fan blades | 7 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.2 W |
| Rated voltage | 12 V |
| Rated current | 0.1 A |
| Thermal Design Power (TDP) | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 102 mm |
| Depth | 123.7 mm |
| Height | 61.4 mm |
| Weight | 180 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Thermal pad included | Yes |
