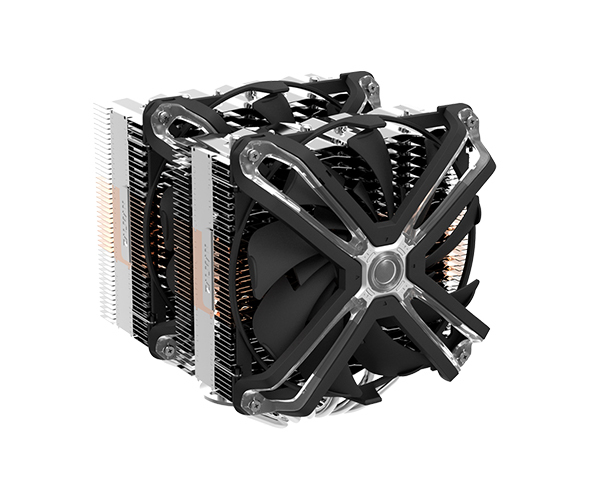

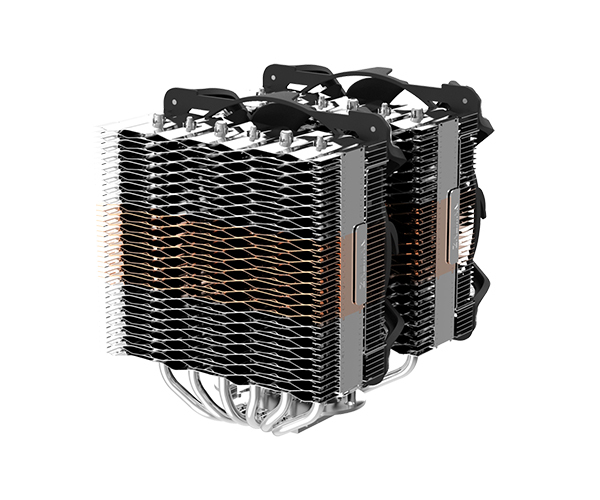

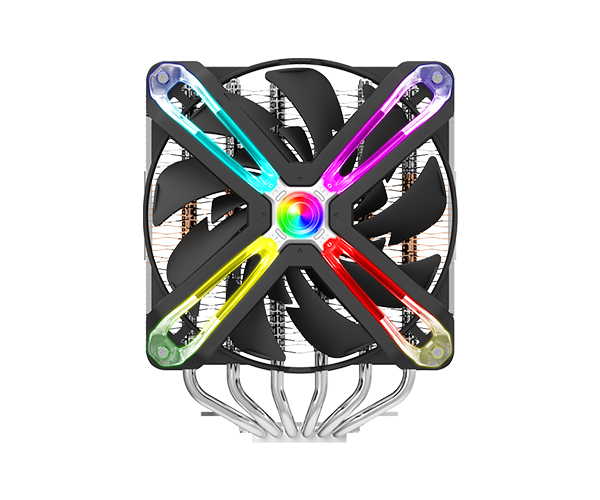

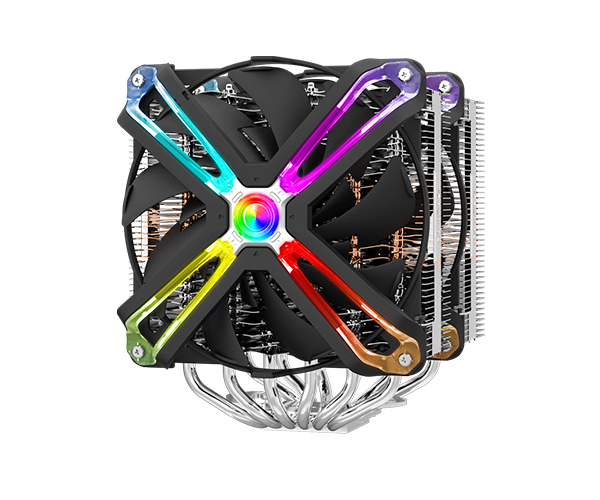

CNPS20X computer cooling system Processor Cooler
14 cm Aluminium, Black
Model CNPS20XEAN 8809213769641
34 specifications
- Noise29 dB
- TypeCooler
- Weight1.3 kg
- ColourAluminium, Black
- Suitable locationProcessor
- Rated voltage12 V
Overview
- Noise
- 29 dB
- Type
- Cooler
- Weight
- 1.3 kg
- Colour
- Aluminium, Black
- Suitable location
- Processor
- Rated voltage
- 12 V
- Brand
- Zalman
- Category
- Computer Cooling System
- Model
- CNPS20X
- Part number
- CNPS20X
- EAN / UPC
- 8809213769641
- Also known as
- Zalman CNPS20X computer cooling system Processor Cooler 14 cm Aluminium, Black
Specifications
34 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, Socket AM4 |
| Compatible processor series | AMD A, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i7 Extreme Edition, Intel® Core™ i9, Intel Core i9 Extreme Edition, Intel® Pentium® |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 1500 RPM |
| Noise level (high speed) | 29 dB |
| Maximum airflow | 61 cfm |
| Maximum air pressure | 1.1 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Operating temperature (T-T) | -40 - 105 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium, Black |
| Material | Aluminium, Copper |
| Number of fans | 2 fan(s) |
| Number of heat pipes | 6 |
| Illumination LED | Yes |
| Fan connector | 3-pin + 4-pin |
| Certification | CE |
Power
| Specification | Value |
|---|---|
| Rated voltage | 12 V |
| Rated current | 0.28 A |
| Thermal Design Power (TDP) | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 140 mm |
| Height | 165 mm |
| Weight | 1.3 kg |
| Fan dimensions (W x D x H) | 140 x 140 x 26 mm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Screws included | Yes |
| Number of screws | 8 |
Other features
| Specification | Value |
|---|---|
| Fan rated voltage | 5 - 12 V |
| Thermal grease | Yes |
