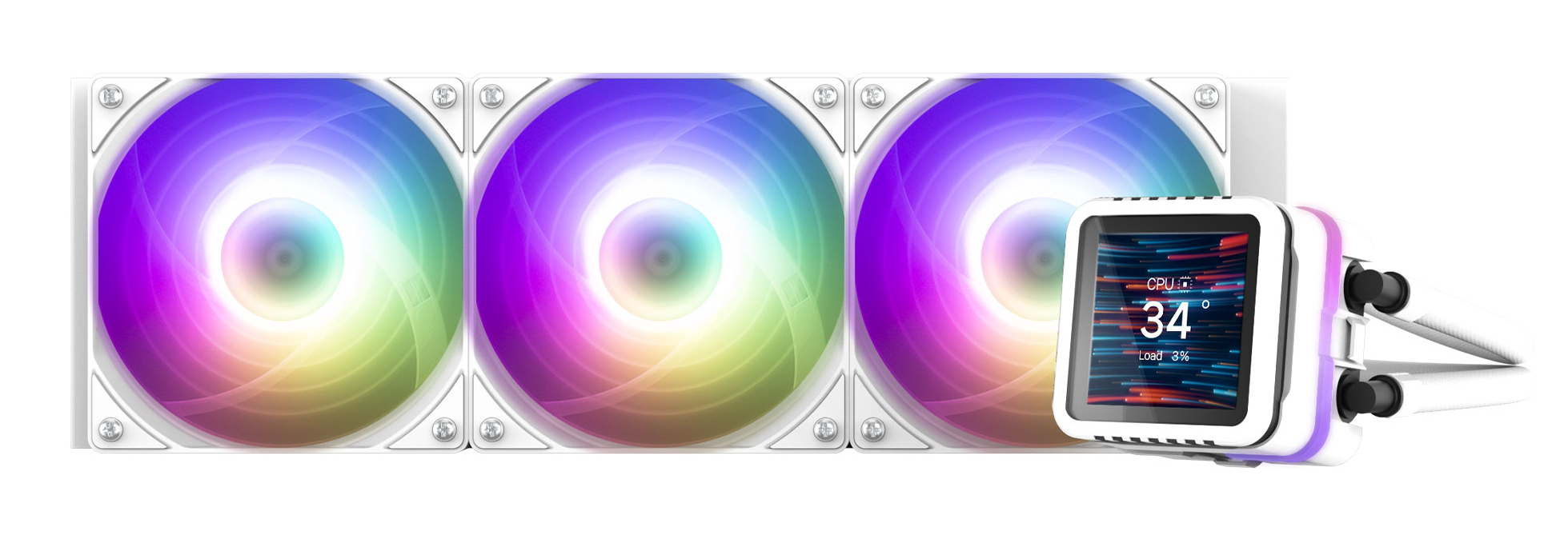

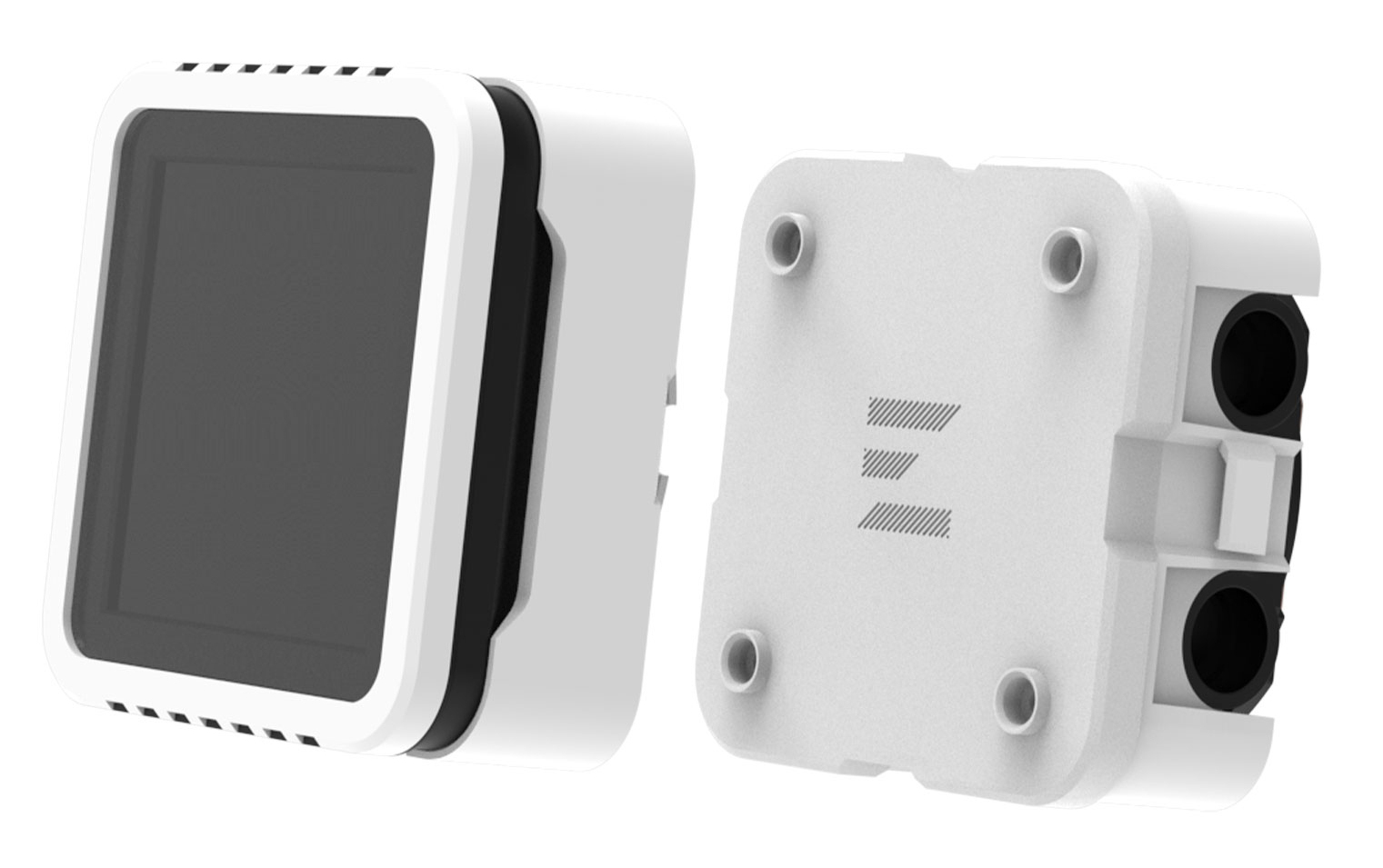

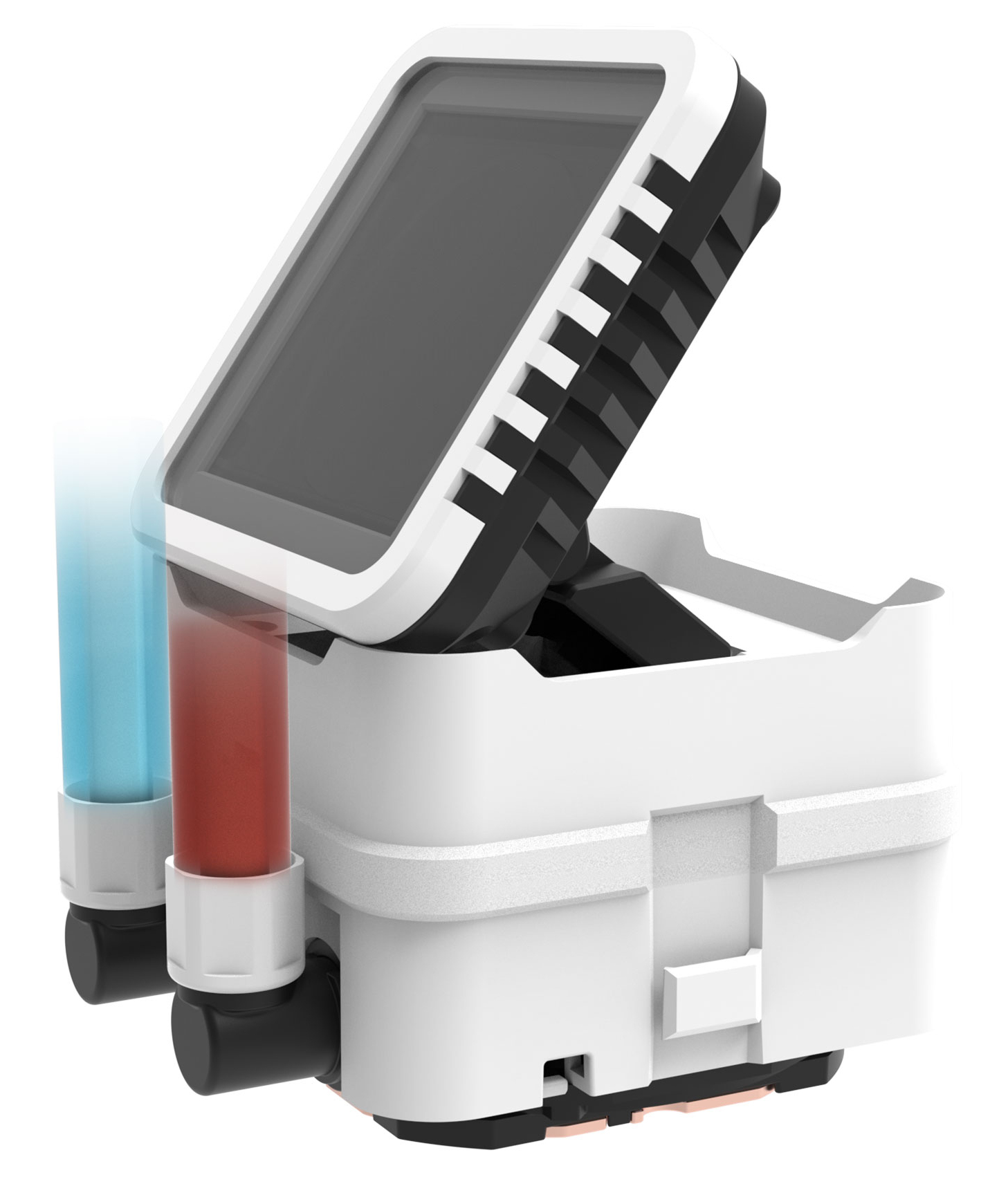

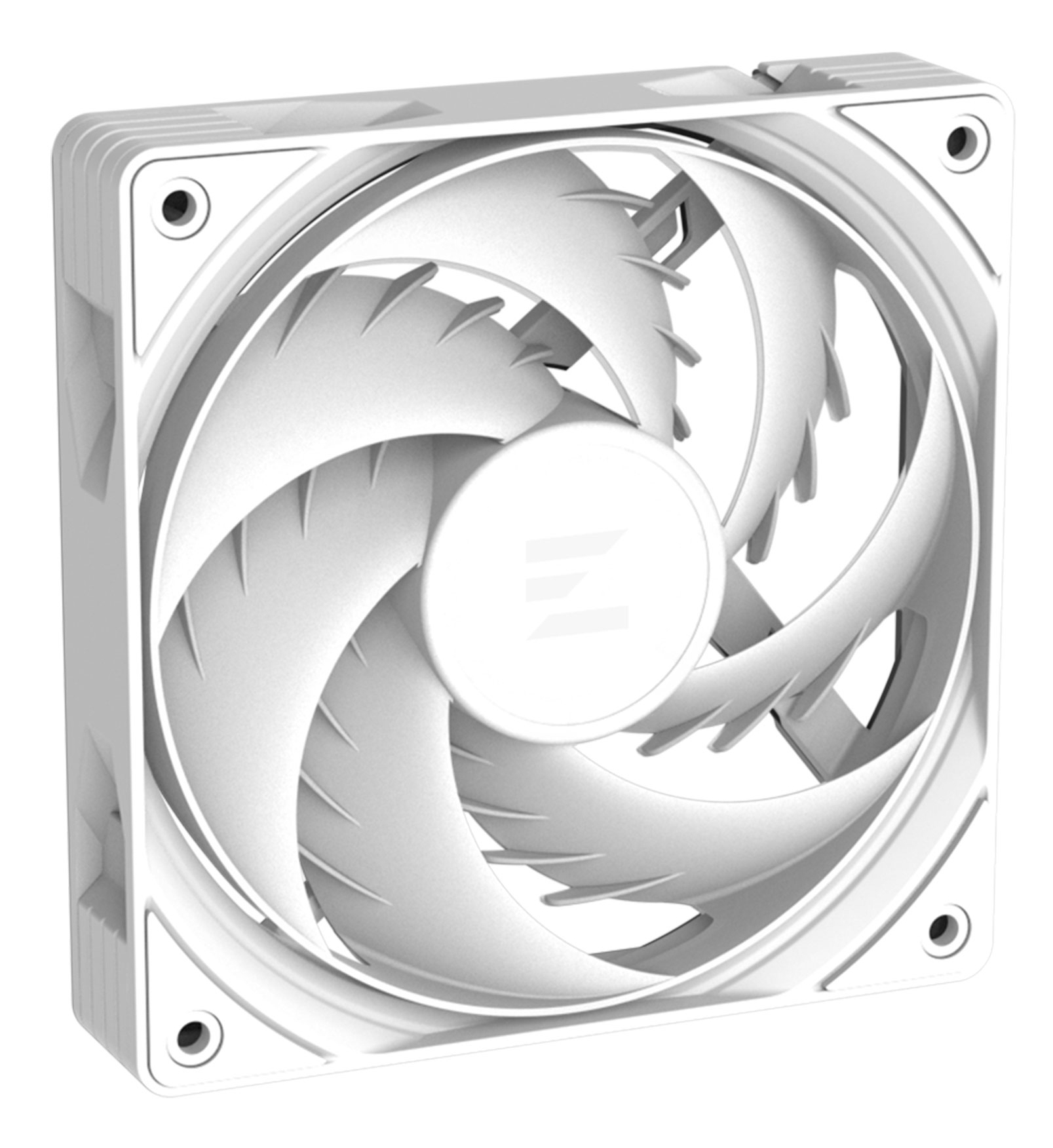

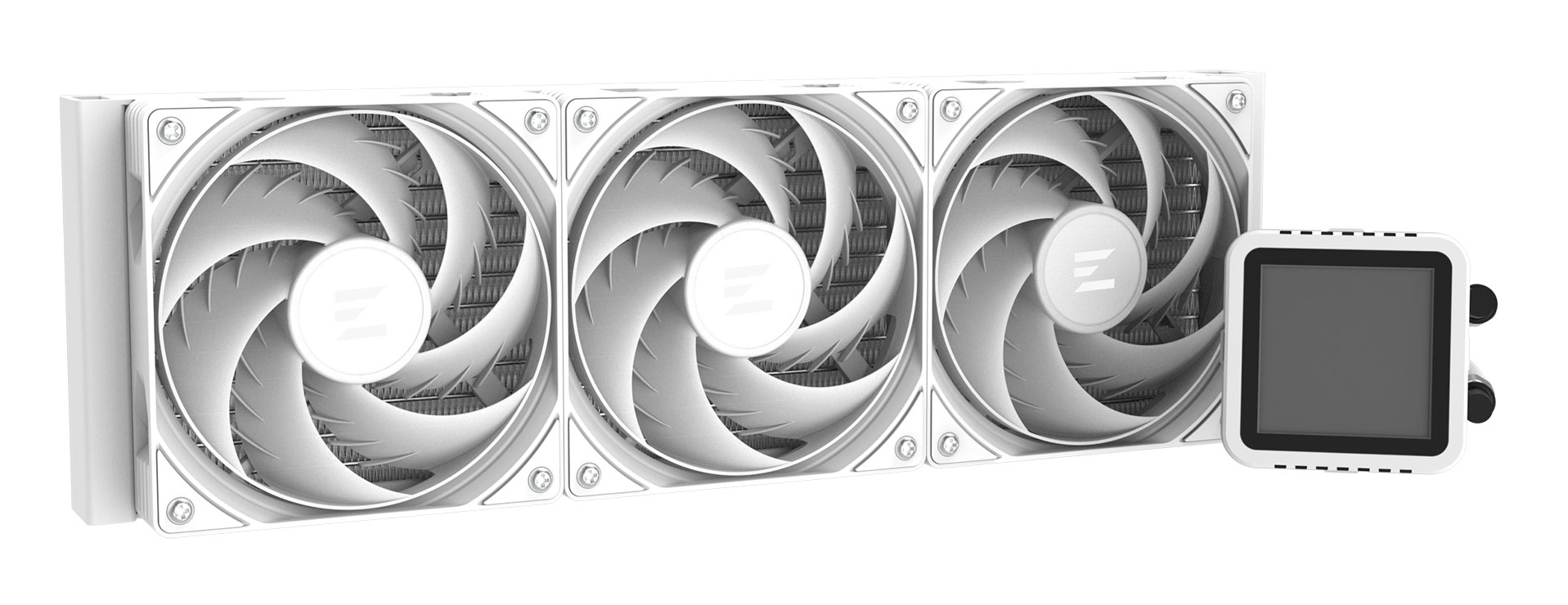

ALPHA2 DS A36 White
Model ALPHA2 DS A36 WhitePart no. ALPHA2 DS A36 WHITEEAN 8800263650255
43 specifications
- TypeAll-in-one liquid cooler
- ColourWhite
- Suitable locationProcessor
- Rated voltage12 V
- Radiator width27.7 cm
Overview
- Type
- All-in-one liquid cooler
- Colour
- White
- Suitable location
- Processor
- Rated voltage
- 12 V
- Radiator width
- 27.7 cm
- Brand
- Zalman
- Category
- Computer Cooling System
- Model
- ALPHA2 DS A36 White
- Part number
- ALPHA2 DS A36 WHITE
- EAN / UPC
- 8800263650255
- Also known as
- Zalman ALPHA2 DS A36 White Processor All-in-one liquid cooler 12 cm 1 pc(s)
Specifications
43 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum air pressure | 2.01 mmH2O |
| Bearing type | Ceramic bearing |
| Fan noise level (max) | 29.7 dB |
| Quantity per pack | 1 pc(s) |
| Coolant capacity | 1.25 L |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 600 RPM |
| Pump motor speed | 3300 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Material | Acrylonitrile butadiene styrene (ABS), Copper, Polycarbonate (PC) |
| Radiator material | Aluminum |
| Number of fans | 2 fan(s) |
| Number of fan blades | 7 |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Display type | IPS |
| Display size (HxV) | 320 x 320 mm |
Power
| Specification | Value |
|---|---|
| Rated voltage | 12 V |
| Fan power consumption | 3.36 W |
| Pump power consumption | 5.4 W |
| Fan current | 0.28 A |
| LED voltage | 5 V |
| Pump voltage | 12 V |
| Rated current | 0.45 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 27.7 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Pump width | 7.2 cm |
| Pump depth | 7.2 cm |
| Pump height | 6.5 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Cables included | 3-pin |
| Mounting kit | Yes |
| Screws included | Yes |
| Number of nuts | 4 |
| Number of clips | 4 |
| RGB controller included | Yes |
