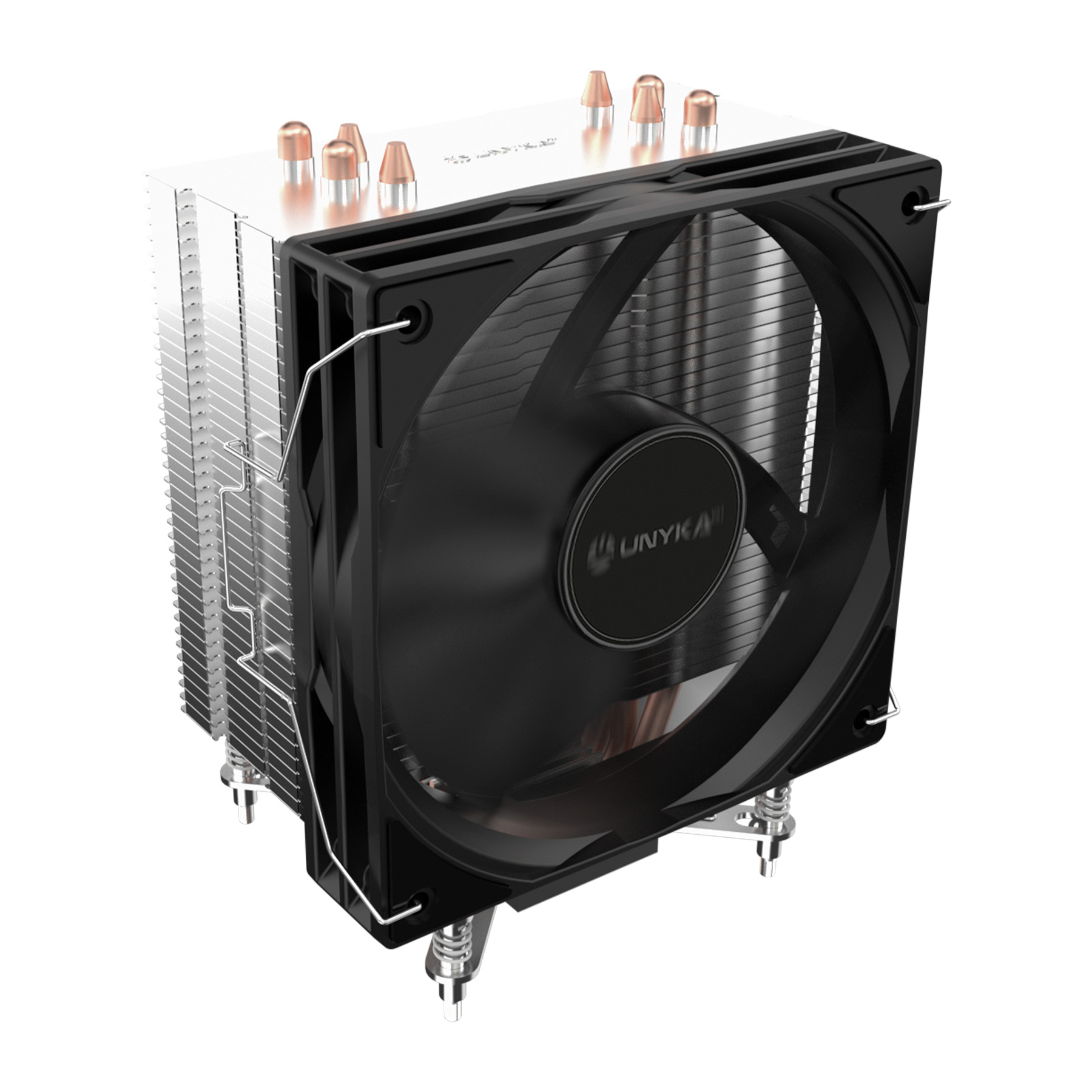

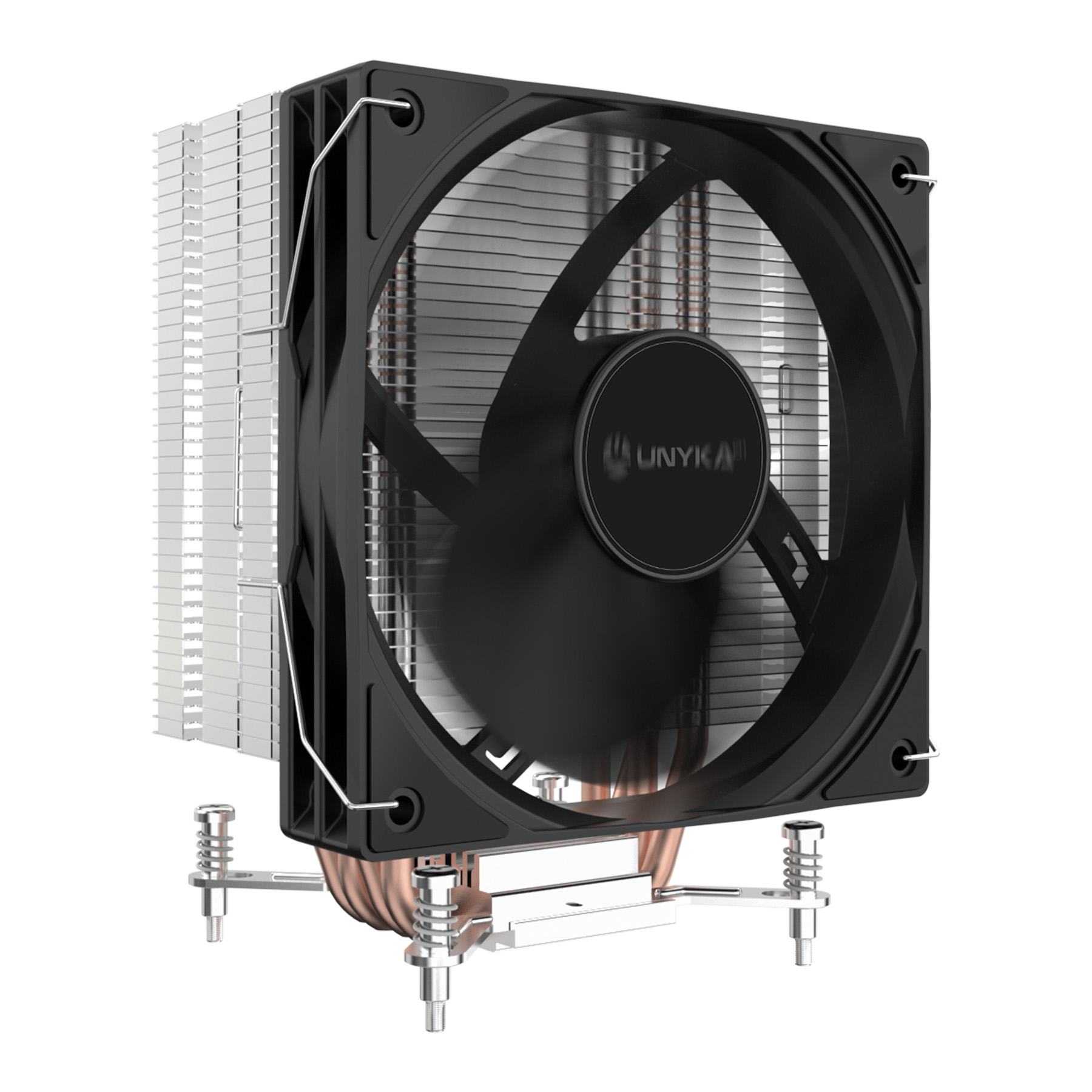

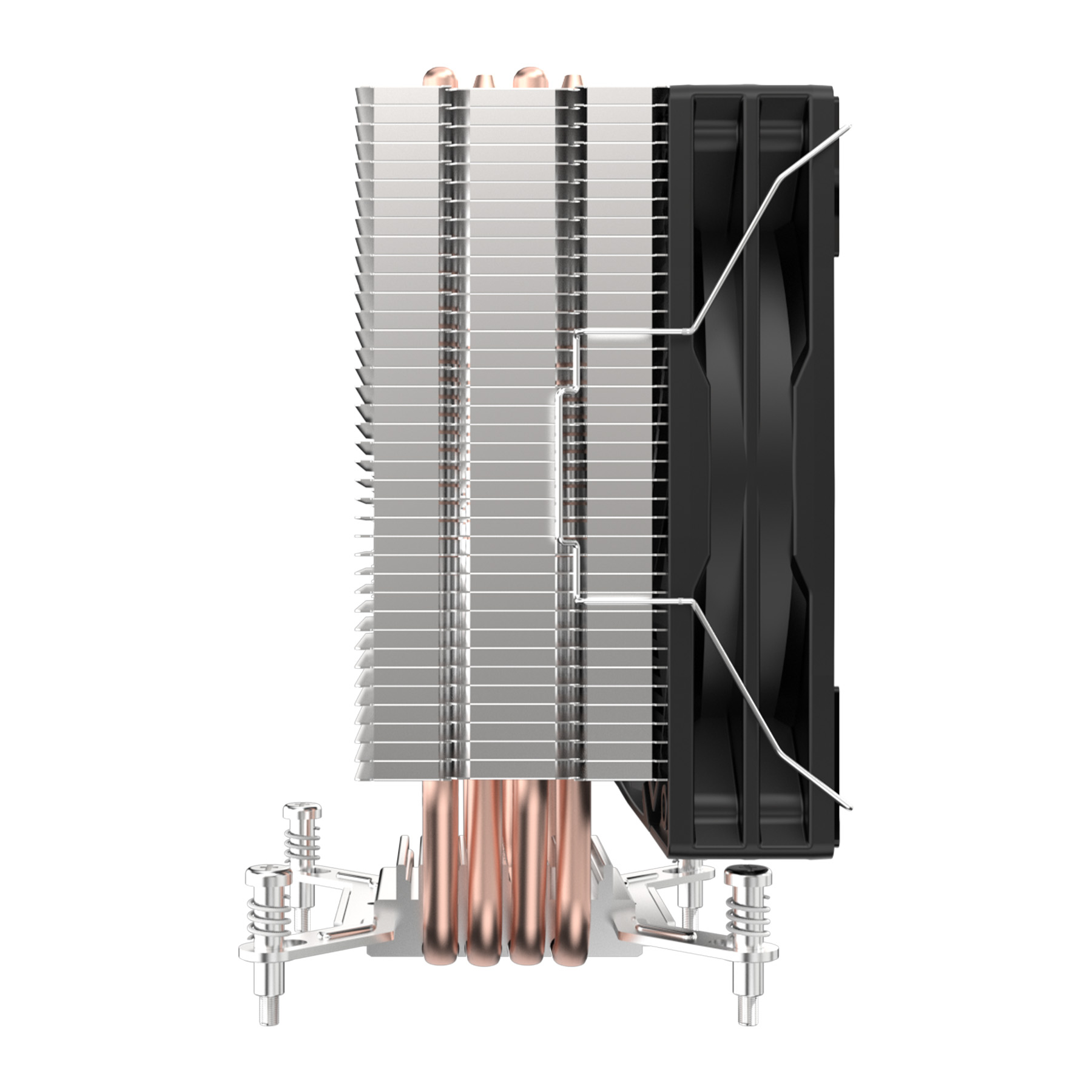

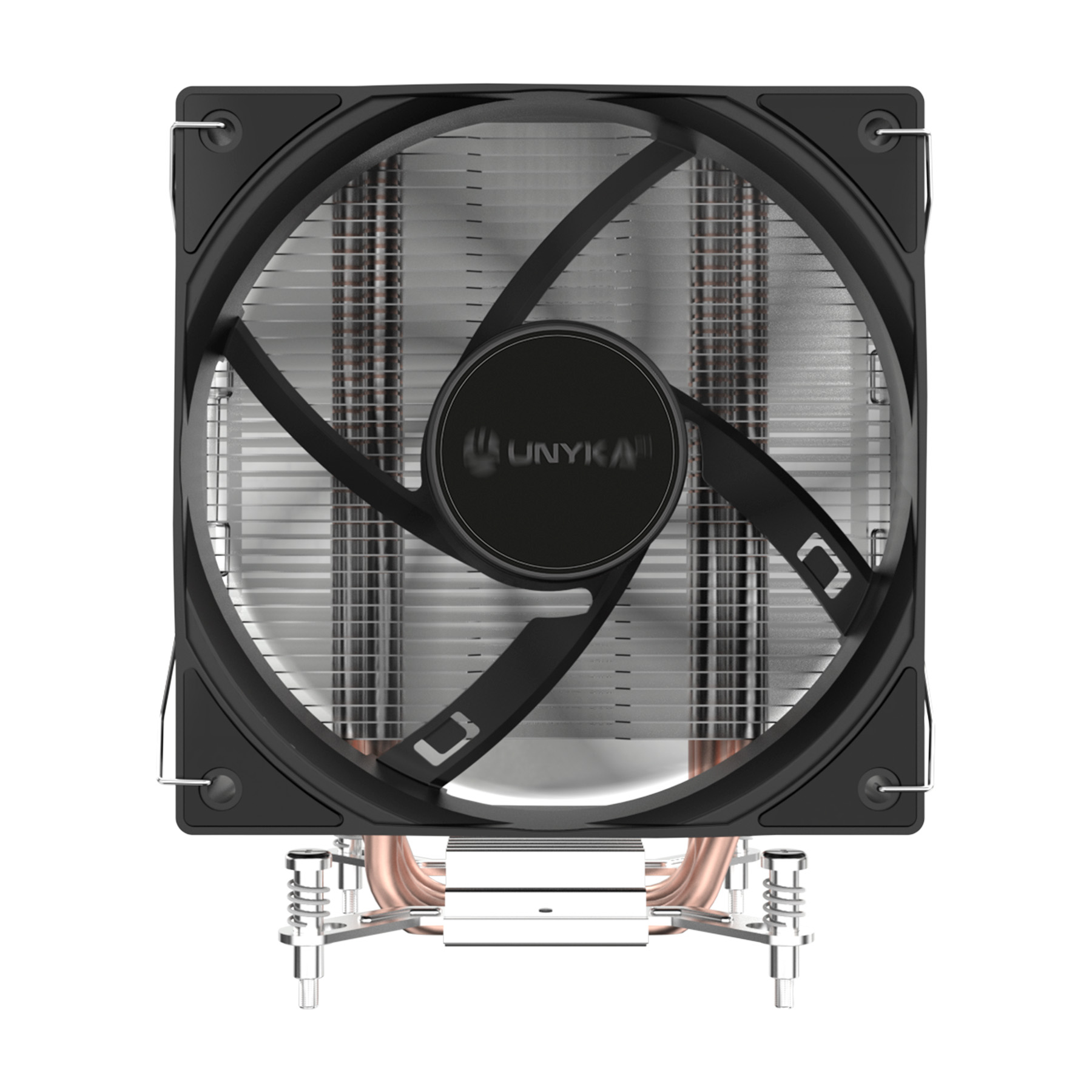

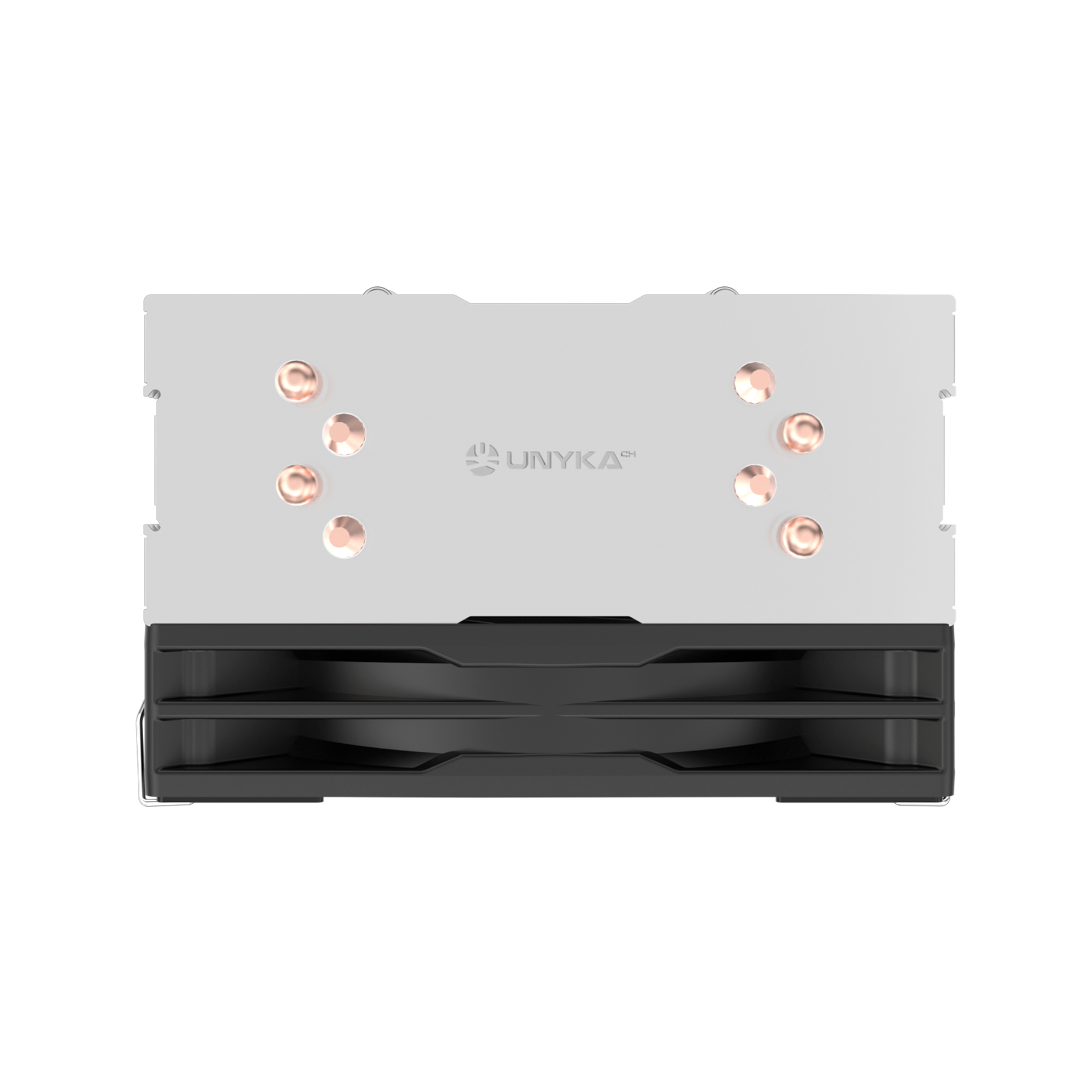

UNYCOOL H41
Model UNYCOOL H41Part no. UK324012EAN 18436617921671
39 specifications
- Noise25.6 dB
- TypeAir cooler
- Weight523 g
- ColourBlack
- Suitable locationProcessor
- Starting voltage12 V
Overview
- Noise
- 25.6 dB
- Type
- Air cooler
- Weight
- 523 g
- Colour
- Black
- Suitable location
- Processor
- Starting voltage
- 12 V
- Brand
- UNYKAch
- Category
- Computer Cooling System
- Model
- UNYCOOL H41
- Part number
- UK324012
- EAN / UPC
- 18436617921671, 8436617921674
- Also known as
- UNYKAch UNYCOOL H41 Processor Air cooler 12 cm Black 1 pc(s)
Specifications
39 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1851, LGA 1700, LGA 1200 (Socket H5), LGA 1151 (Socket H4), LGA 1150 (Socket H3), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM5, Socket AM4 |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 1600 RPM |
| Noise level (high speed) | 25.6 dB |
| Maximum airflow | 59.98 cfm |
| Maximum air pressure | 2.53 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 40000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fan blades | 9 |
| Number of fins | 38 |
| Number of heat pipes | 4 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Starting voltage | 12 V |
| Thermal Design Power (TDP) | 160 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 74 mm |
| Depth | 120 mm |
| Height | 151 mm |
| Weight | 523 g |
| Heat pipes diameter | 6 mm |
| Package width | 115 mm |
| Package depth | 135 mm |
| Package height | 172 mm |
| Package volume | 2600 cm³ |
| Package weight | 601 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Screws included | Yes |
| Thermal pad included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 428 mm |
| Master (outer) case length | 590 mm |
| Master (outer) case height | 370 mm |
| Master (outer) case gross weight | 18.7 kg |
| Products per master (outer) case | 30 pc(s) |
