UNYCOOL H40 ARGB
Model UNYCOOL H40 ARGBPart no. UK324101EAN 18436617921206
43 specifications
- TypeAir cooler
- Weight477 g
- ColourGrey
- Suitable locationProcessor
- Starting voltage12 V
- Width75 mm
Overview
- Type
- Air cooler
- Weight
- 477 g
- Colour
- Grey
- Suitable location
- Processor
- Starting voltage
- 12 V
- Width
- 75 mm
- Brand
- UNYKAch
- Category
- Computer Cooling System
- Model
- UNYCOOL H40 ARGB
- Part number
- UK324101
- EAN / UPC
- 18436617921206, 8436617921209
- Also known as
- UNYKAch CPU Cooler UNYCOOL H40 ARGB
Specifications
43 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |

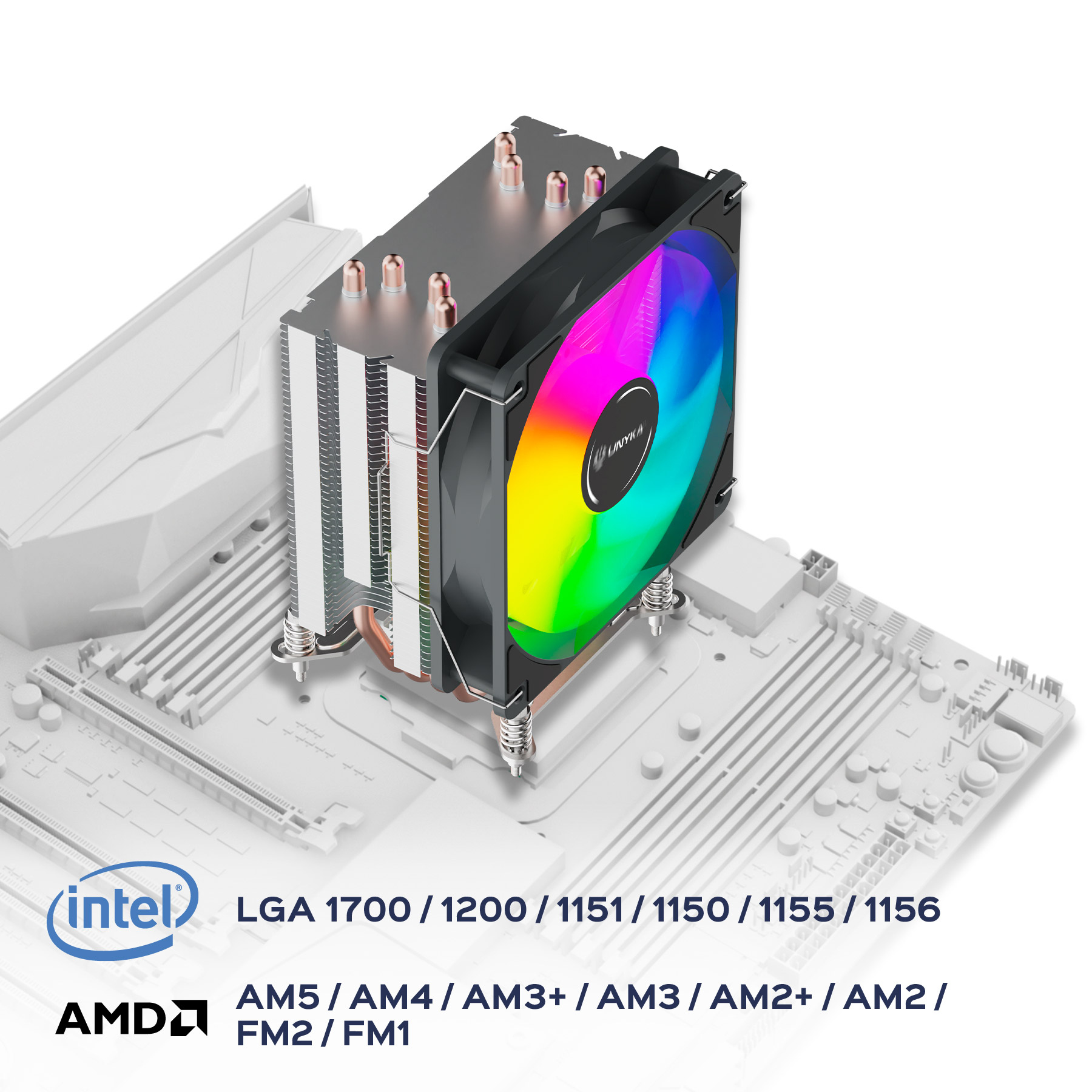

| Supported processor sockets | LGA 1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM5, Socket FM1, Socket FM2 |
| Maximum airflow | 59.98 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Fan noise level (max) | 25.6 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1600 RPM |
| Fan speed (min) | 800 RPM |
| Mean time between failures (MTBF) | 40000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Radiator material | Copper |
| Number of fans | 1 fan(s) |
| Number of fan blades | 9 |
| Fins material | Aluminium |
| Number of heat pipes | 4 |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Starting voltage | 12 V |

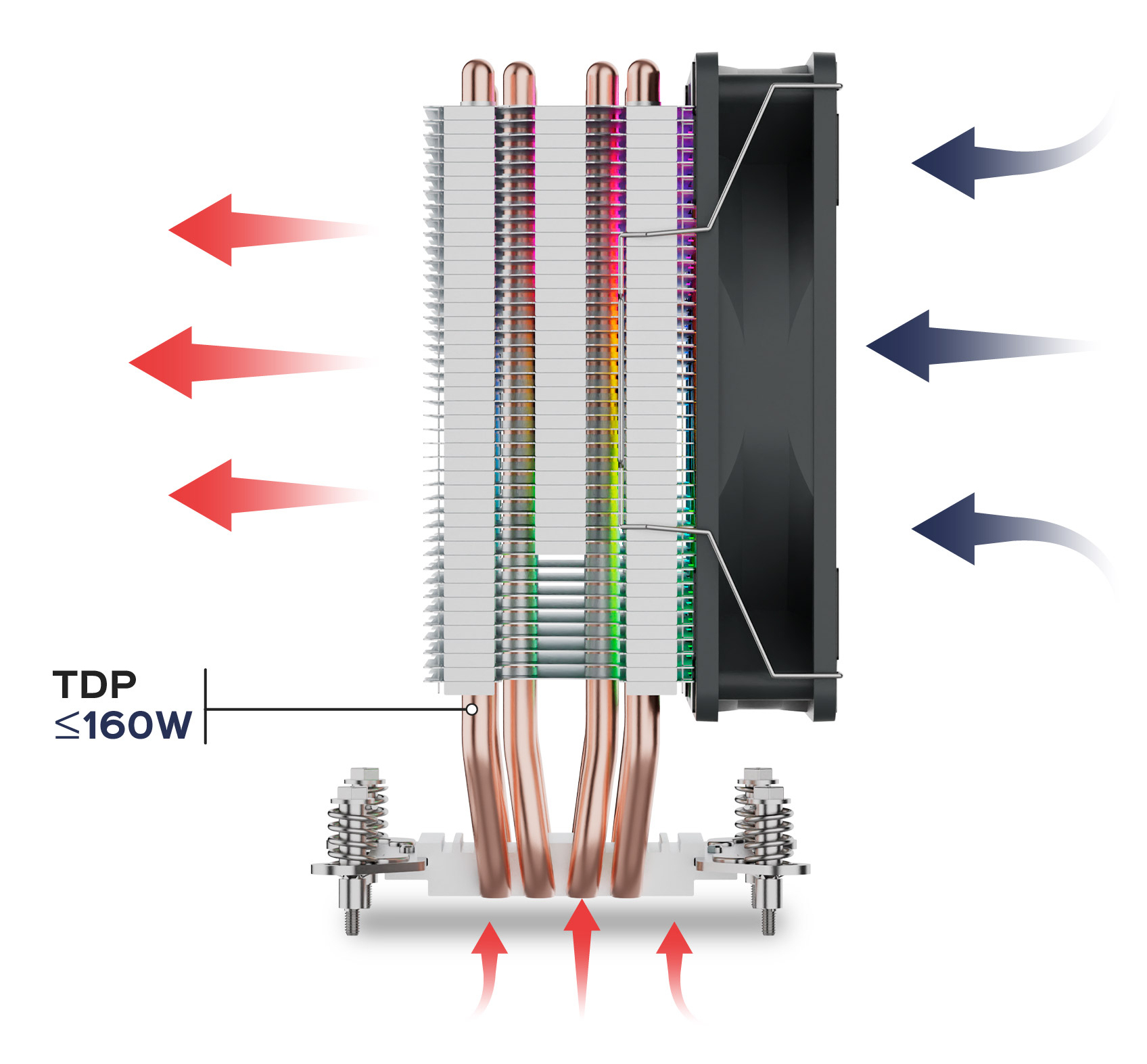

| Thermal Design Power (TDP) | 160 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 120 mm |
| Height | 148 mm |
| Radiator width | 4.9 cm |
| Radiator depth | 12 cm |
| Radiator height | 14.8 cm |
| Weight | 477 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package width | 115 mm |
| Package depth | 135 mm |
| Package height | 170 mm |
| Package weight | 571 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Screws included | Yes |
| Thermal pad included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 428 mm |
| Master (outer) case length | 590 mm |
| Master (outer) case height | 370 mm |
| Master (outer) case gross weight | 16.3 kg |
| Products per master (outer) case | 30 pc(s) |
