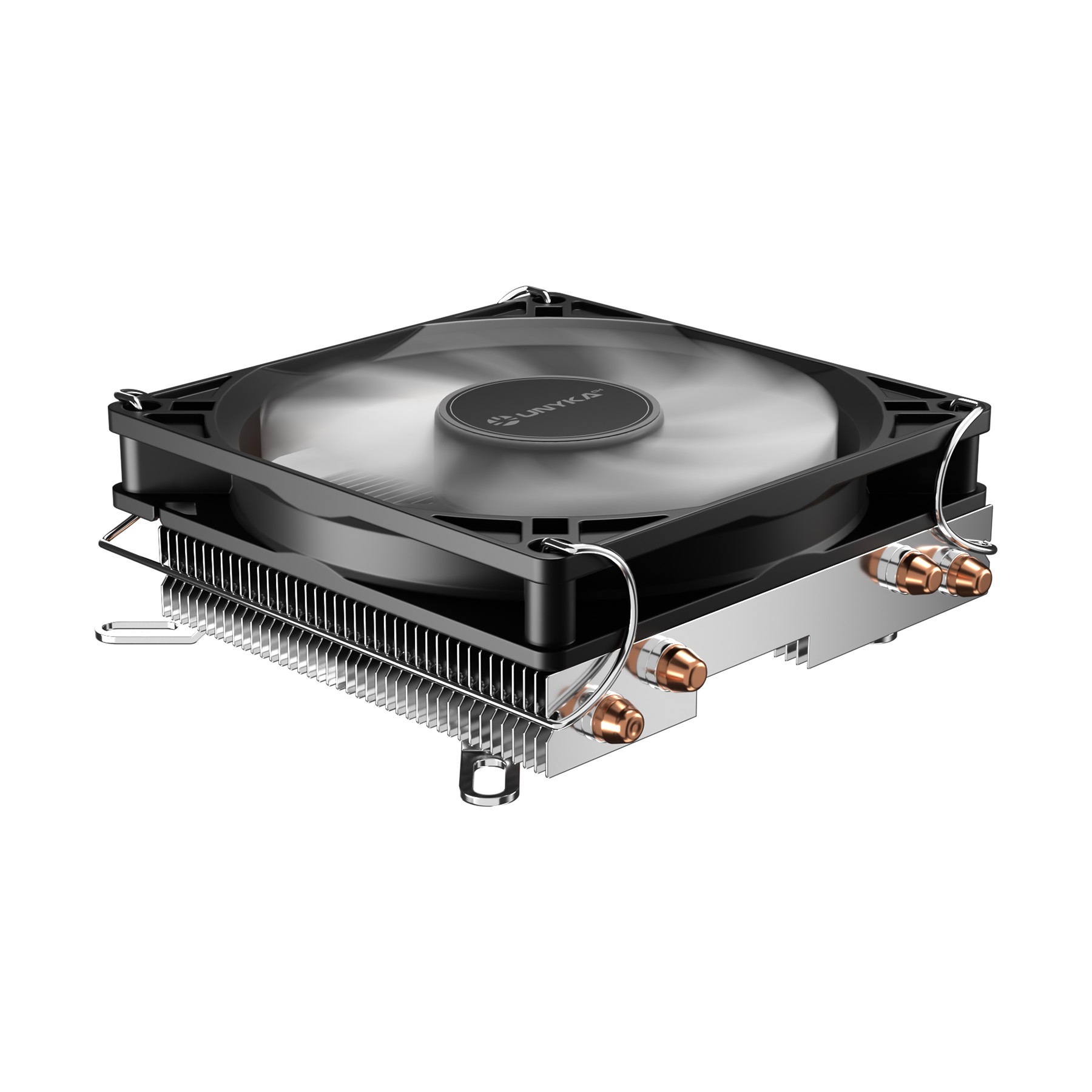

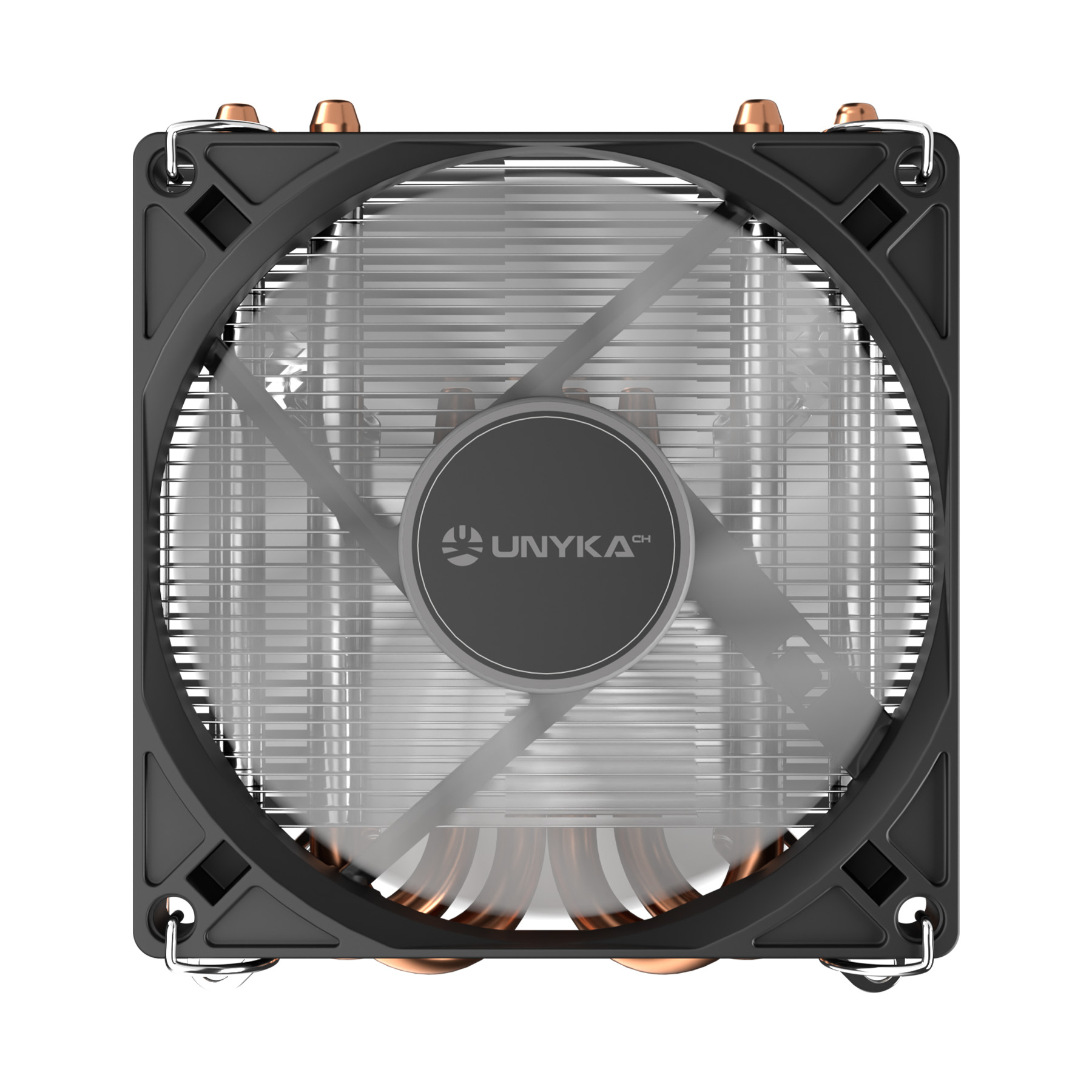

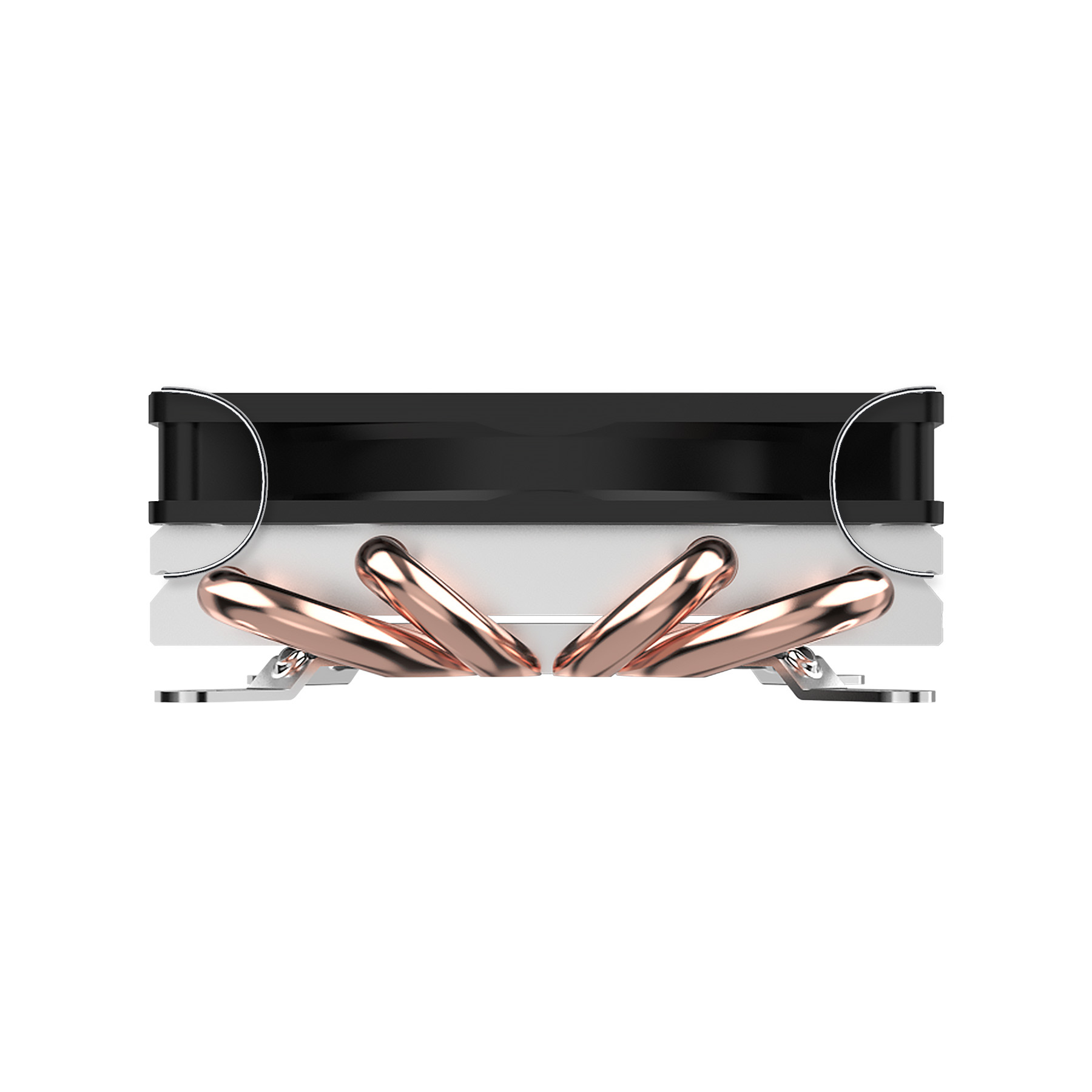

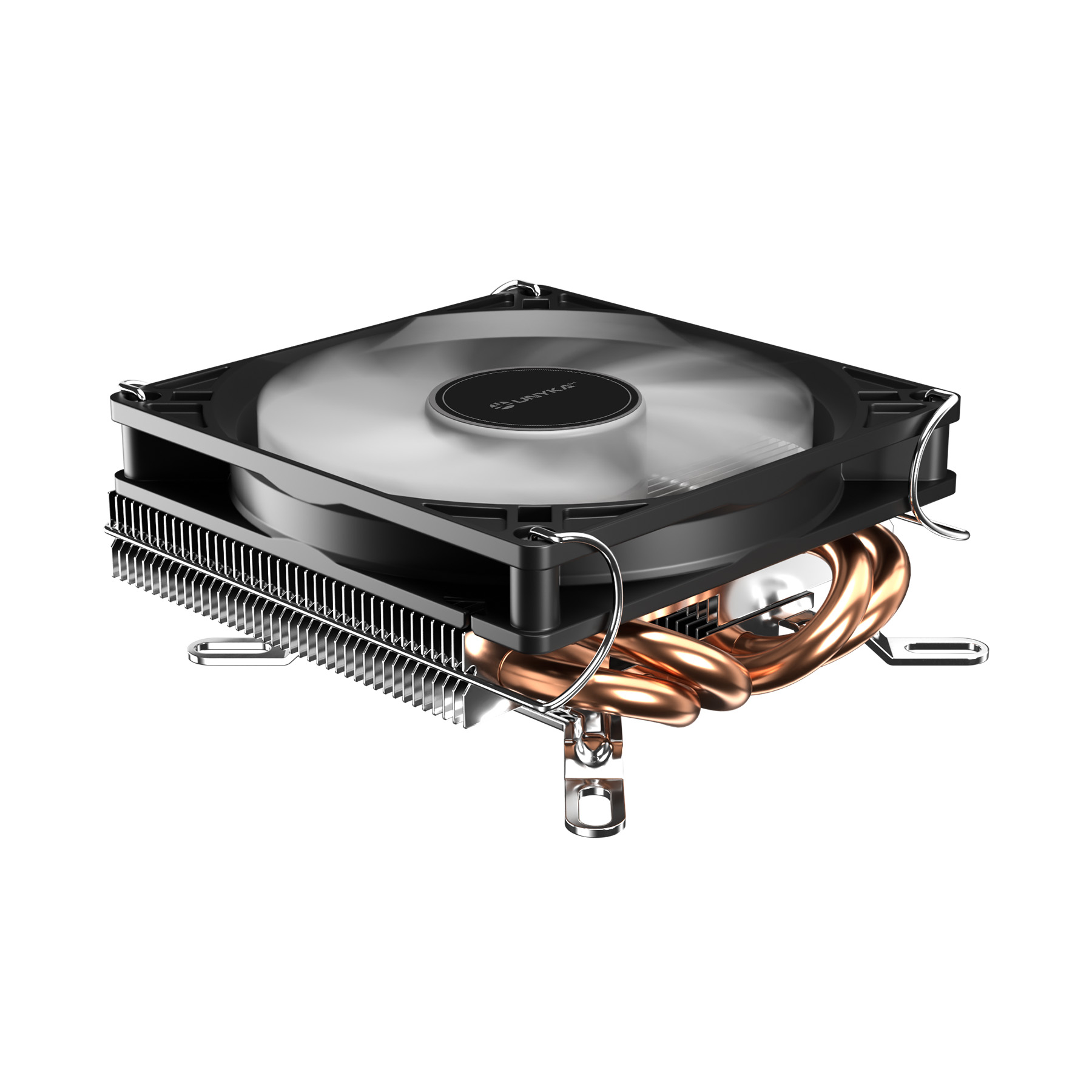

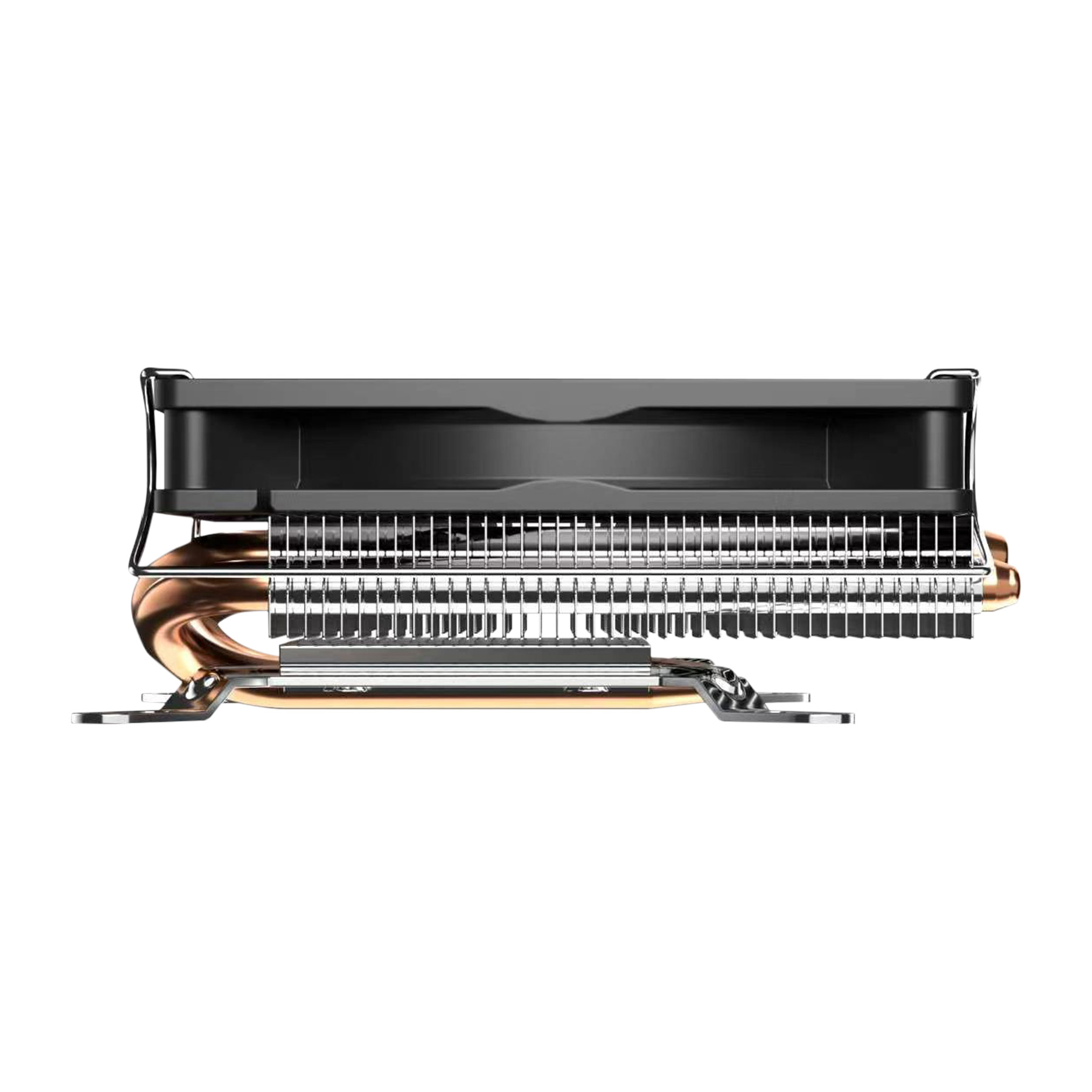

UNYCOOL H37
Model UNYCOOL H37Part no. UK321015EAN 18436617922104
37 specifications
- Noise33.6 dB
- TypeAir cooler
- Weight237 g
- ColourBlack, White
- Suitable locationProcessor
- Starting voltage7 V
Overview
- Noise
- 33.6 dB
- Type
- Air cooler
- Weight
- 237 g
- Colour
- Black, White
- Suitable location
- Processor
- Starting voltage
- 7 V
- Brand
- UNYKAch
- Category
- Computer Cooling System
- Model
- UNYCOOL H37
- Part number
- UK321015
- EAN / UPC
- 18436617922104, 8436617922107
- Also known as
- UNYKAch UNYCOOL H37 Processor Air cooler 9 cm Black, White 1 pc(s)
Specifications
37 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 9 cm |
| Supported processor sockets | LGA 1851, LGA 1700, LGA 1200 (Socket H5), LGA 1151 (Socket H4), LGA 1150 (Socket H3), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM5, Socket AM4 |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 3000 RPM |
| Noise level (high speed) | 33.6 dB |
| Maximum airflow | 48.3 cfm |
| Maximum air pressure | 3.24 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 40000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Number of fan blades | 11 |
| Number of fins | 40 |
| Number of heat pipes | 4 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Starting voltage | 7 V |
| Thermal Design Power (TDP) | 130 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92 mm |
| Depth | 103 mm |
| Height | 37 mm |
| Weight | 237 g |
| Fan dimensions (W x D x H) | 90 x 90 x 15 mm |
| Cable length | 0.27 m |
| Package width | 137 mm |
| Package depth | 180 mm |
| Package height | 75 mm |
| Package volume | 1800 cm³ |
| Package weight | 342 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Packaging content
| Specification | Value |
|---|---|
| Thermal pad included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 380 mm |
| Master (outer) case length | 700 mm |
| Master (outer) case height | 325 mm |
| Products per master (outer) case | 30 pc(s) |
