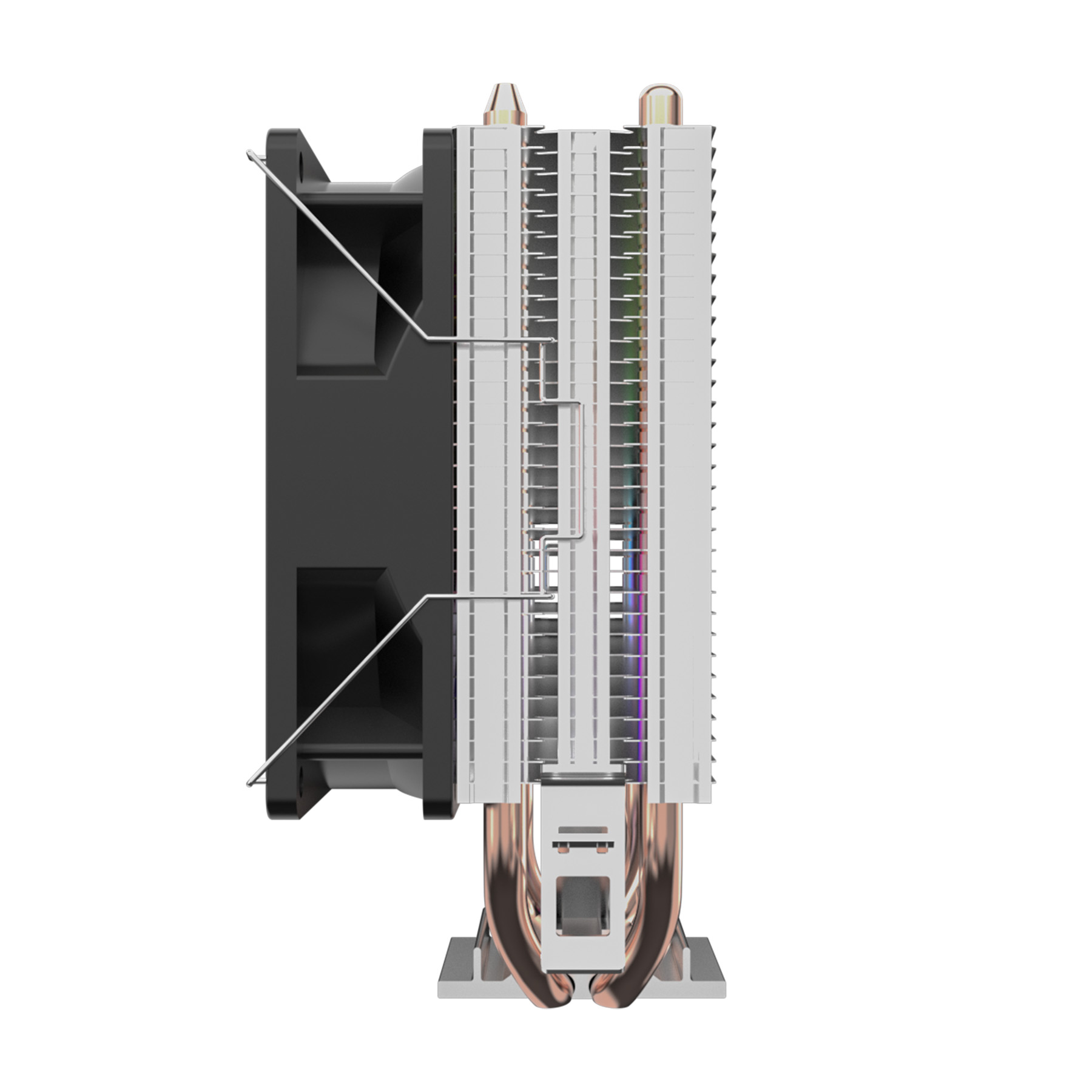

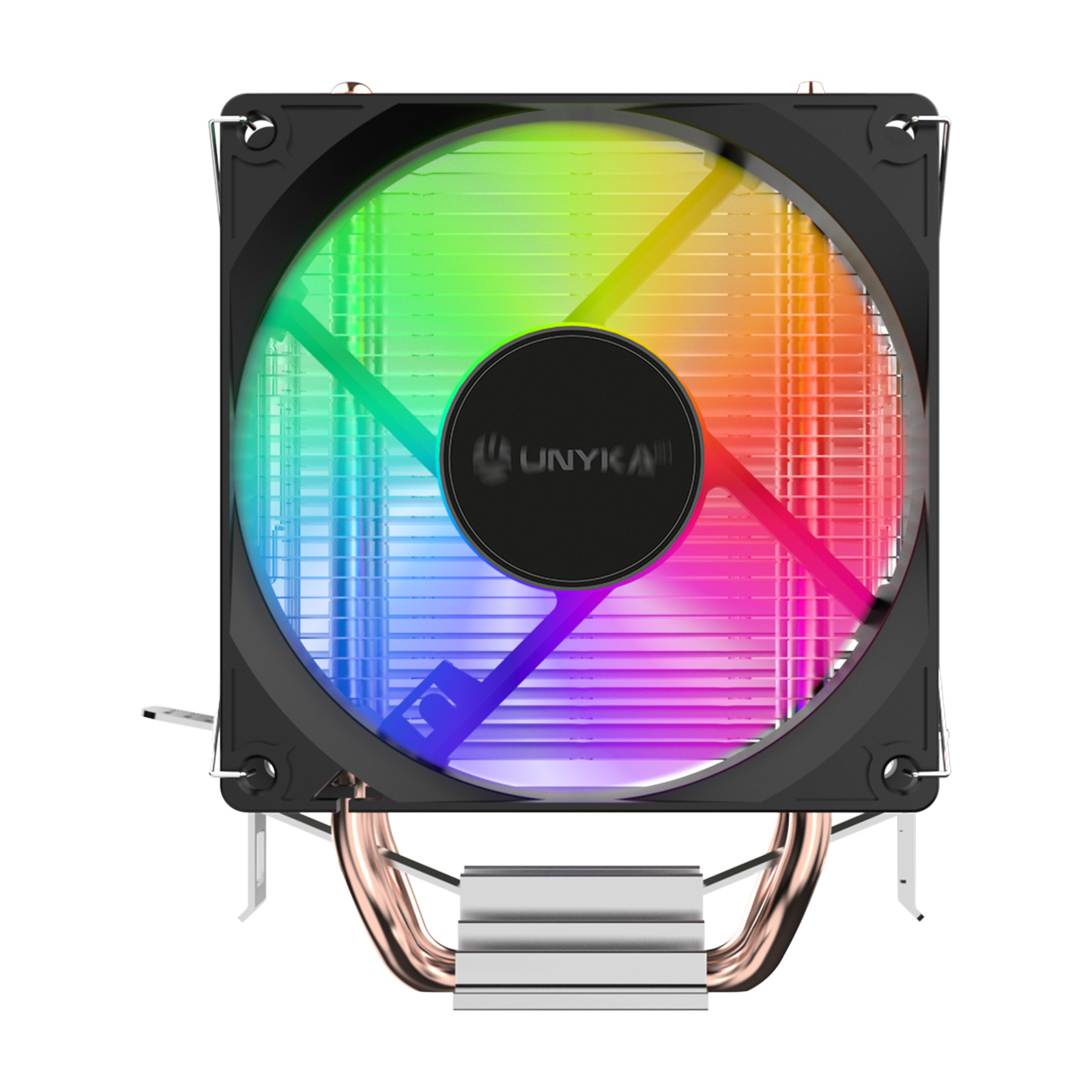

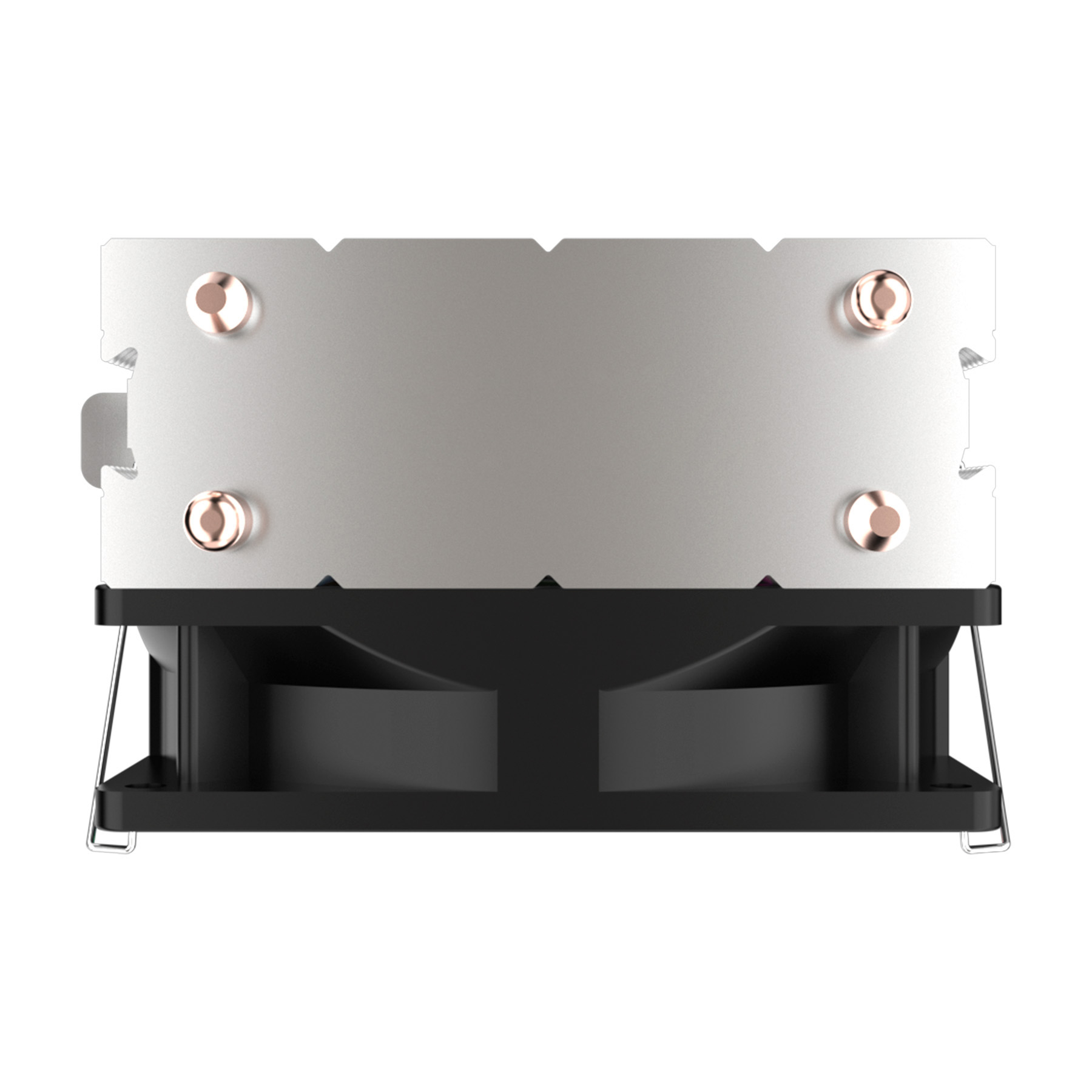

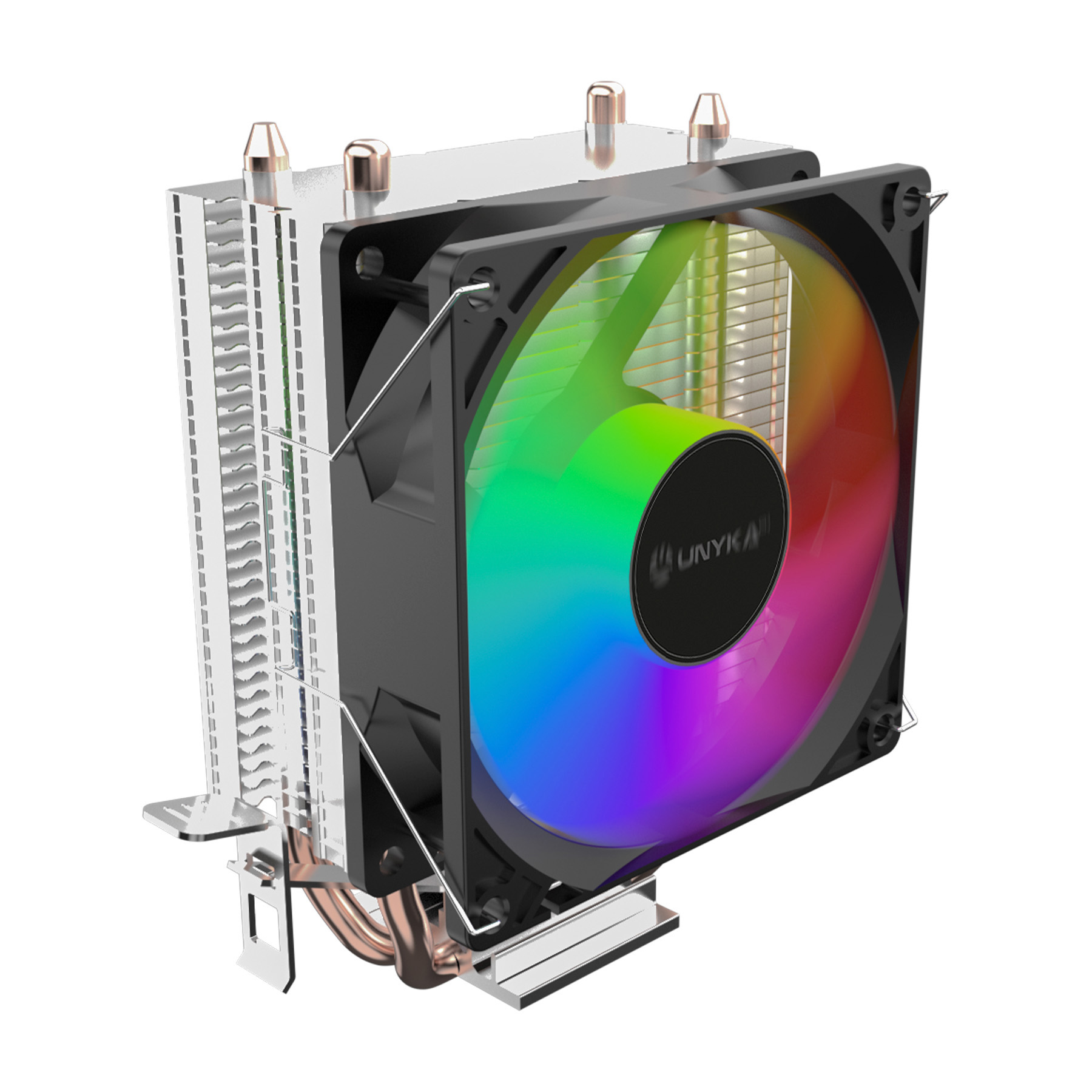

UNYCOOL H21 ARGB
Model UNYCOOL H21 ARGBPart no. UK322121AEAN 18436617921633
38 specifications
- Noise21.5 dB
- TypeAir cooler
- Weight210 g
- ColourBlack, Grey
- Suitable locationProcessor
- Starting voltage12 V
Overview
- Noise
- 21.5 dB
- Type
- Air cooler
- Weight
- 210 g
- Colour
- Black, Grey
- Suitable location
- Processor
- Starting voltage
- 12 V
- Brand
- UNYKAch
- Category
- Computer Cooling System
- Model
- UNYCOOL H21 ARGB
- Part number
- UK322121A
- EAN / UPC
- 18436617921633, 8436617921636
- Also known as
- UNYKAch UNYCOOL H21 ARGB Processor Air cooler 9 cm Black, Grey
Specifications
38 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 9 cm |
| Supported processor sockets | LGA 1851, LGA 1700, LGA 1200 (Socket H5), LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 775 (Socket T), Socket AM5, Socket AM4, Socket AM3+, Socket FM2, Socket FM1, Socket AM3, Socket AM2, Socket AM2+ |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (high speed) | 21.5 dB |
| Maximum airflow | 36.11 cfm |
| Maximum air pressure | 1.2 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Mean time between failures (MTBF) | 30000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Number of fan blades | 7 |
| Number of fins | 30 |
| Number of heat pipes | 2 |
| Illumination LED | Yes |
| Illumination colour | Red, Green, Blue |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Starting voltage | 12 V |
| Thermal Design Power (TDP) | 90 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 60 mm |
| Height | 125 mm |
| Weight | 210 g |
| Fan dimensions (W x D x H) | 90 x 90 x 25 mm |
| Cable length | 0.23 m |
| Package width | 85 mm |
| Package depth | 115 mm |
| Package height | 145 mm |
| Package volume | 1400 cm³ |
| Package weight | 290 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
Packaging content
| Specification | Value |
|---|---|
| Thermal pad included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 360 mm |
| Master (outer) case length | 595 mm |
| Master (outer) case height | 310 mm |
| Products per master (outer) case | 60 pc(s) |
