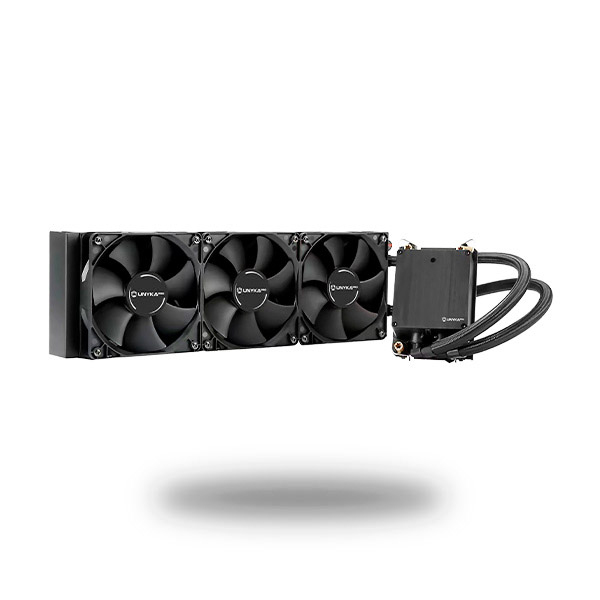

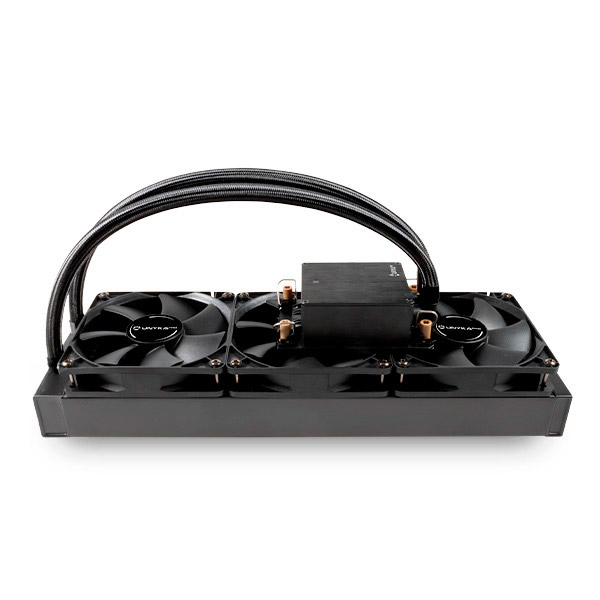

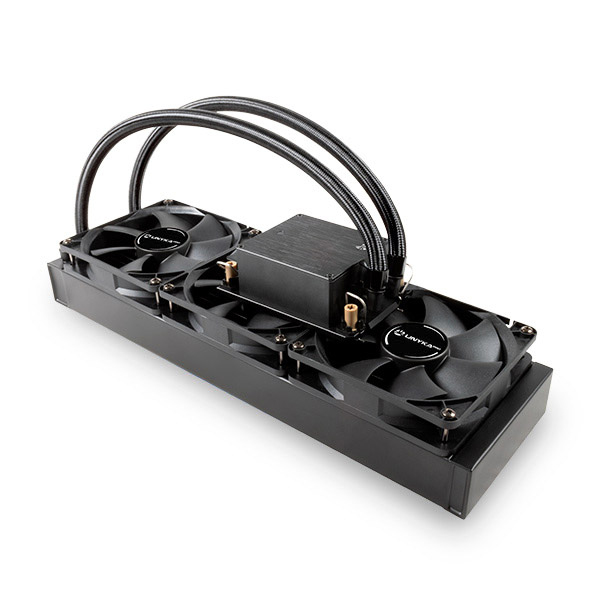

AquaSphere Pro 360
Model AquaSphere Pro 360Part no. UK80.360.300EAN 6974560221141
43 specifications
- Noise32.6 dB
- TypeLiquid cooling kit
- Weight1.8 kg
- ColourBlack
- Suitable locationProcessor
- Thermal Design Power (TDP)450 W
Overview
- Noise
- 32.6 dB
- Type
- Liquid cooling kit
- Weight
- 1.8 kg
- Colour
- Black
- Suitable location
- Processor
- Thermal Design Power (TDP)
- 450 W
- Brand
- UNYKAch
- Category
- Computer Cooling System
- Model
- AquaSphere Pro 360
- Part number
- UK80.360.300
- EAN / UPC
- 6974560221141
- Also known as
- UNYKAch Liquid Cooler CPU INTEL XEON 4677 AquaSphere Pro 360
Specifications
43 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |

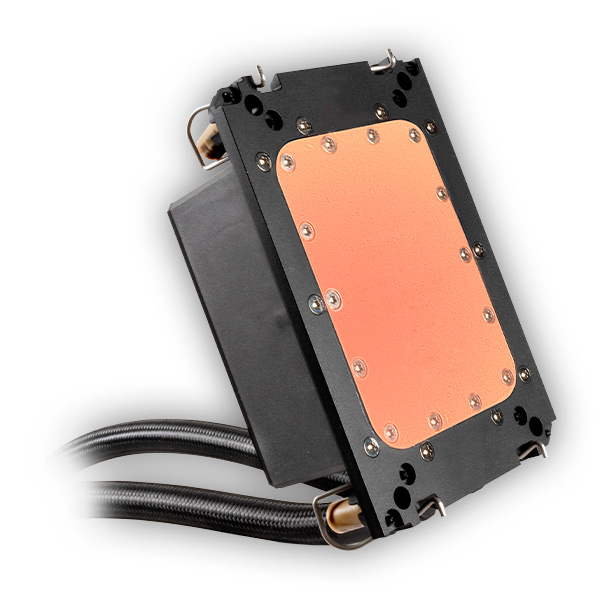

| Supported processor sockets | LGA 4677 (Socket E), LGA 4189, Socket SP3, Socket SP5 |
| Compatible processor series | Intel® Xeon® |
| Rotational speed (max) | 2500 RPM |
| Noise level (low speed) | 32.6 dB |
| Noise level (high speed) | 35.6 dB |
| Maximum airflow | 62.99 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |

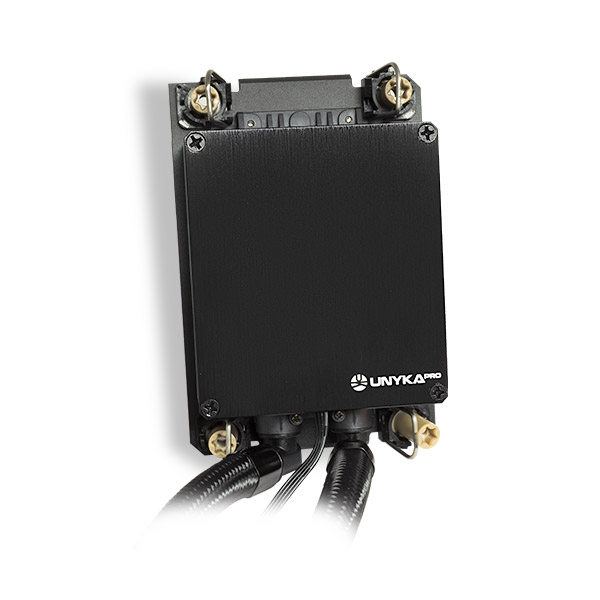

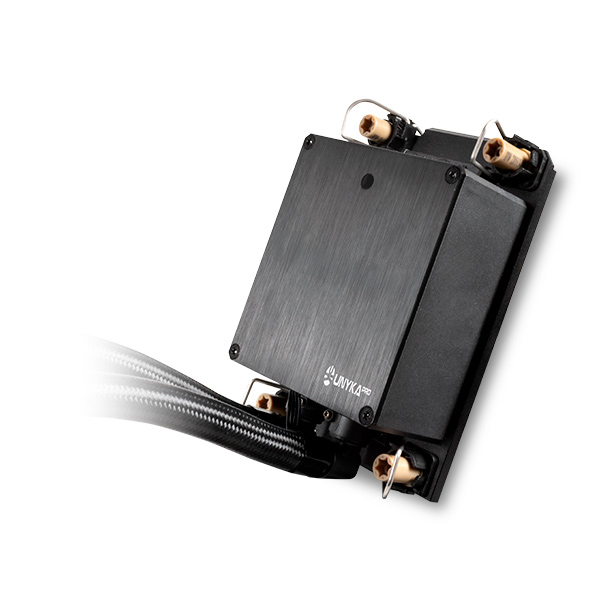

| Pump connector | 4-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed (max) | 3100 RPM |
| Pump motor speed (min) | 2500 RPM |
| Pump's mean time to failure (MTTF) | 50000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Number of fans | 3 fan(s) |
| Number of fan blades | 7 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Thermal Design Power (TDP) | 450 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 397 mm |
| Height | 55 mm |

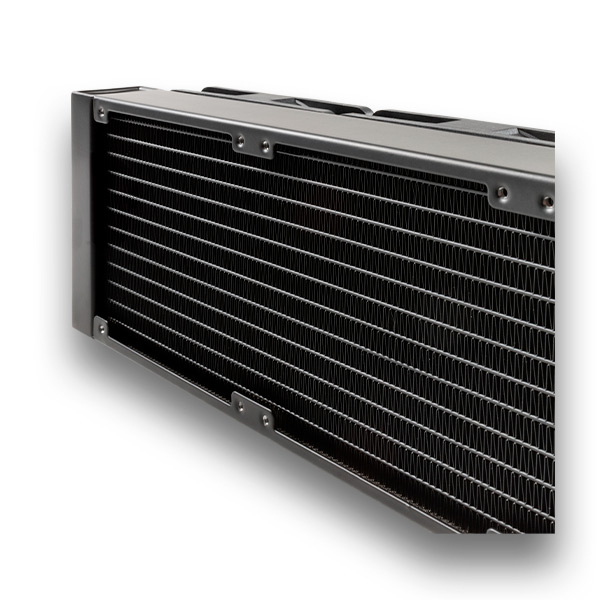

| Radiator width | 12 cm |
| Radiator depth | 39.7 cm |
| Radiator height | 2.7 cm |

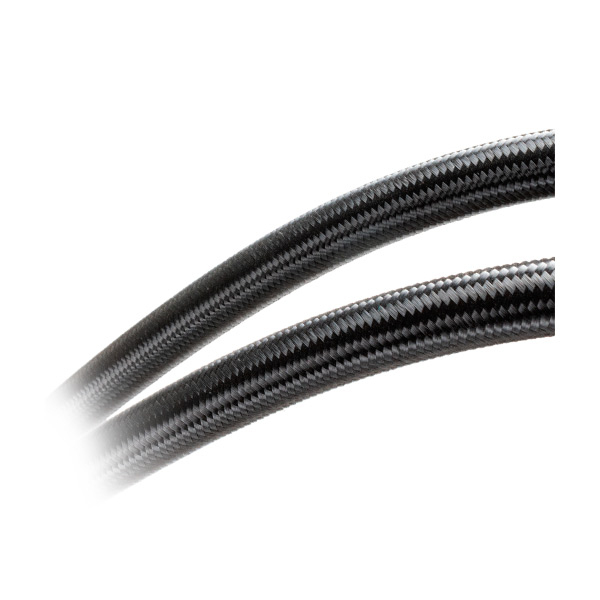

| Tube length | 45 cm |
| Weight | 1.8 kg |

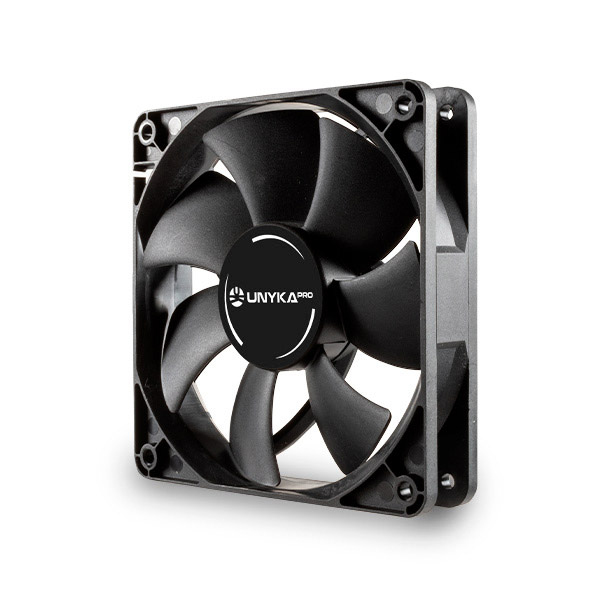

| Fan dimensions (W x D x H) | 120 x 120 x 28 mm |
| Package width | 212 mm |
| Package depth | 465 mm |
| Package height | 133 mm |
| Package volume | 13110 cm³ |
| Package weight | 2.12 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 295 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case height | 445 mm |
| Master (outer) case gross weight | 9.39 kg |
| Products per master (outer) case | 4 pc(s) |
