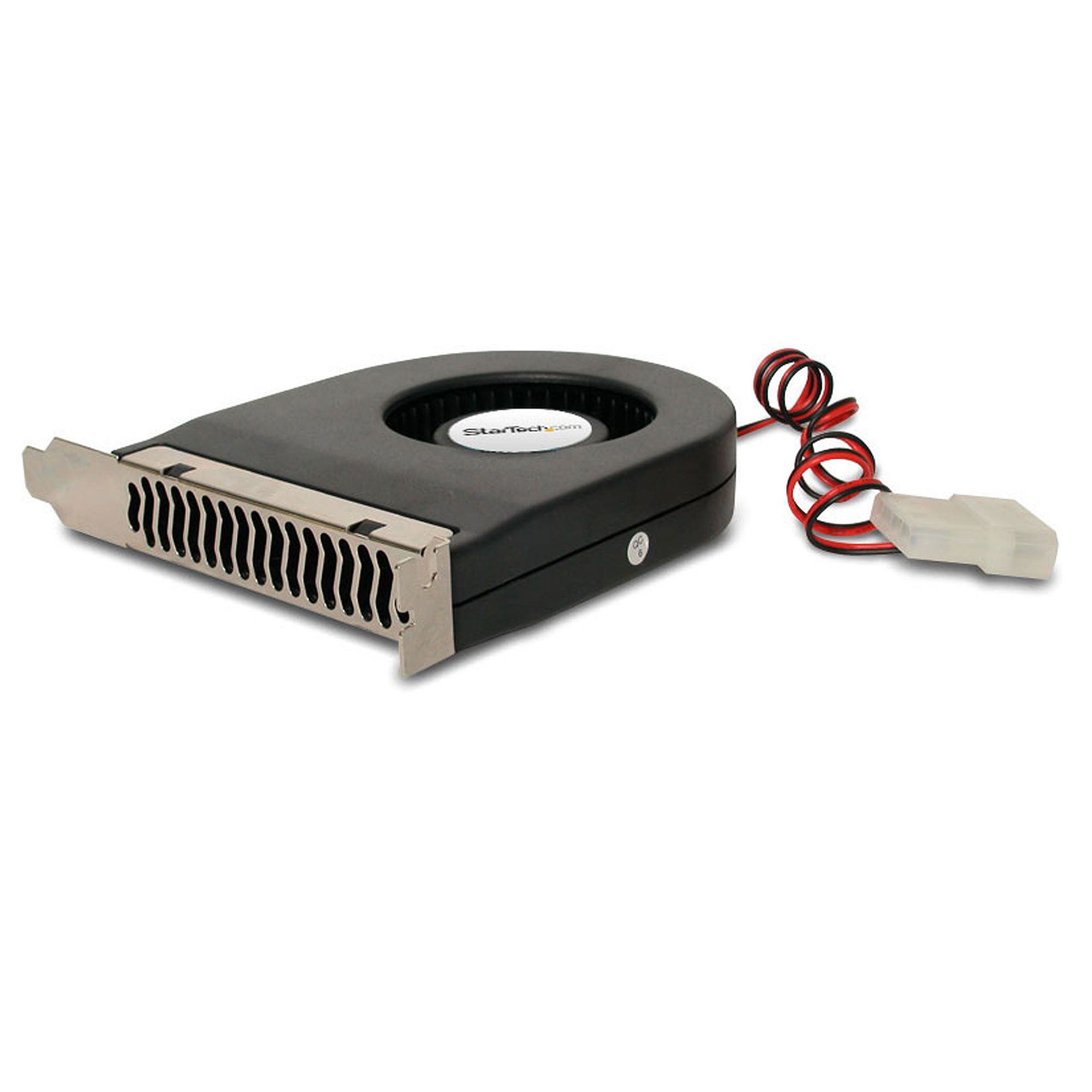

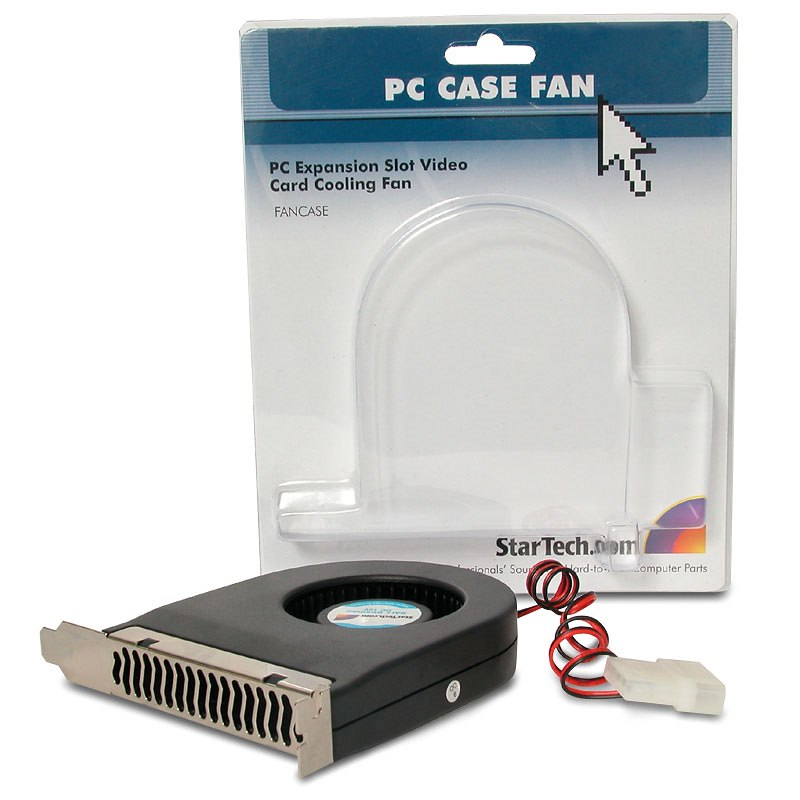

Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector
Model FANCASEEAN 7038557102512
32 specifications
- Noise32 dB
- TypeCooler
- Weight100 g
- ColourBlack
- Suitable locationGraphics card
- Voltage12 V
Overview
- Noise
- 32 dB
- Type
- Cooler
- Weight
- 100 g
- Colour
- Black
- Suitable location
- Graphics card
- Voltage
- 12 V
- Brand
- StarTech.com
- Category
- Computer Cooling System
- Model
- FANCASE
- Part number
- FANCASE
- EAN / UPC
- 7038557102512, 065030782739, 151903681213, 650307827390 +11 more
- Also known as
- StarTech.com Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Graphics card |
| Type | Cooler |
| Rotational speed (max) | 2200 RPM |
| Noise level (high speed) | 32 dB |
| Maximum airflow | 6.9 cfm |
| Bearing type | Ball bearing |
| Operating temperature (T-T) | -10 - 80 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Illumination LED | No |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 110 mm |
| Height | 20 mm |
| Weight | 100 g |
| Package width | 127 mm |
| Package depth | 157 mm |
| Package height | 32 mm |
| Package weight | 130 g |
Technical details
| Specification | Value |
|---|---|
| Bearing technology | Ball bearing |
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Connector(s) | 1 - LP4 Male |
| Dimensions (WxDxH) | 90 x 110 x 20 mm |
| Rotational speed | 2200 RPM |
| Airflow | 6.9 CFM |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 541 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 289 mm |
| Products per master (outer) case | 80 pc(s) |
