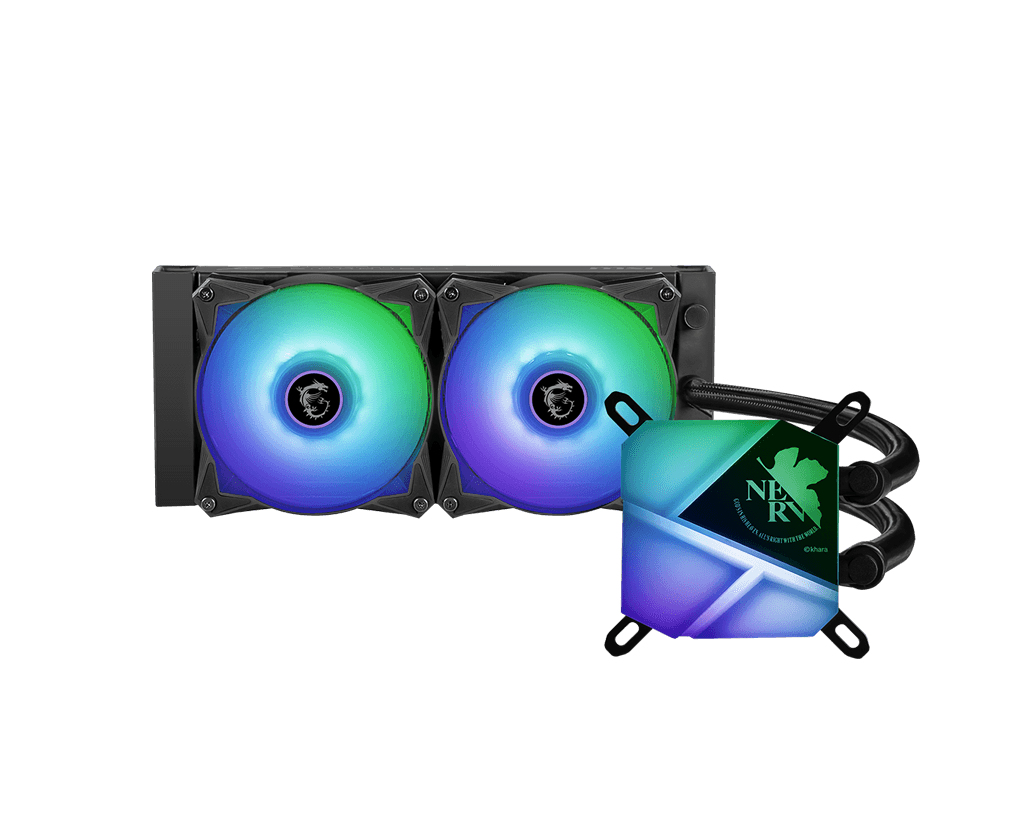

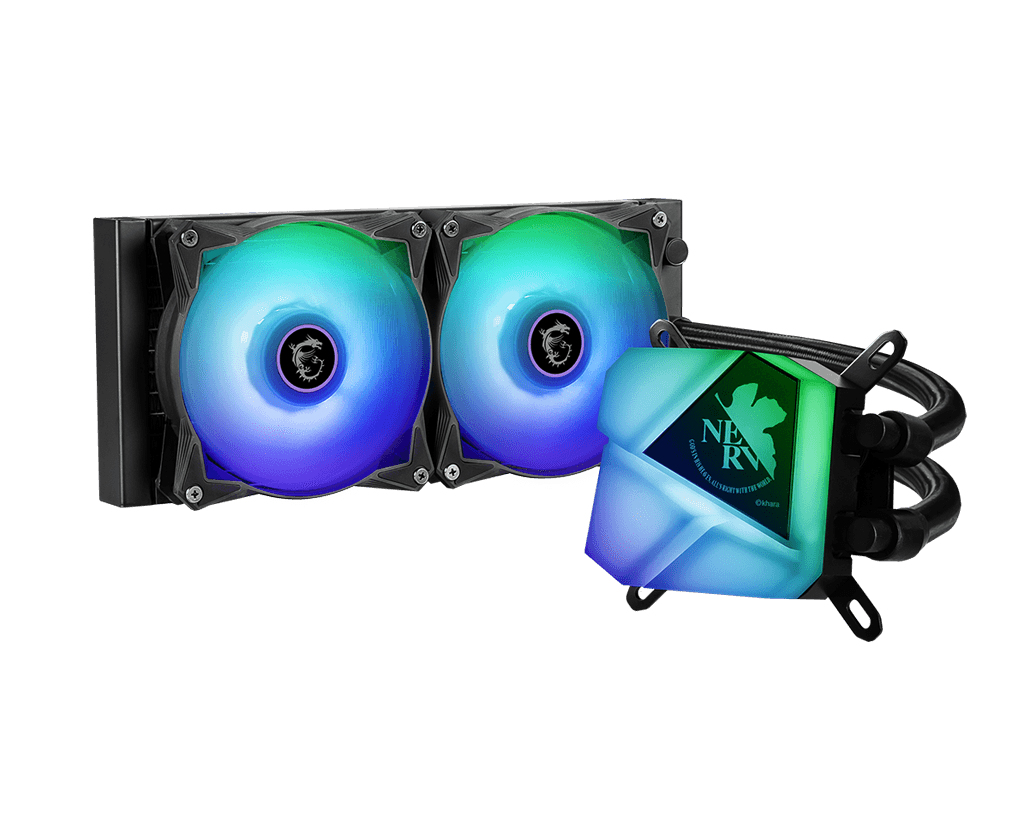

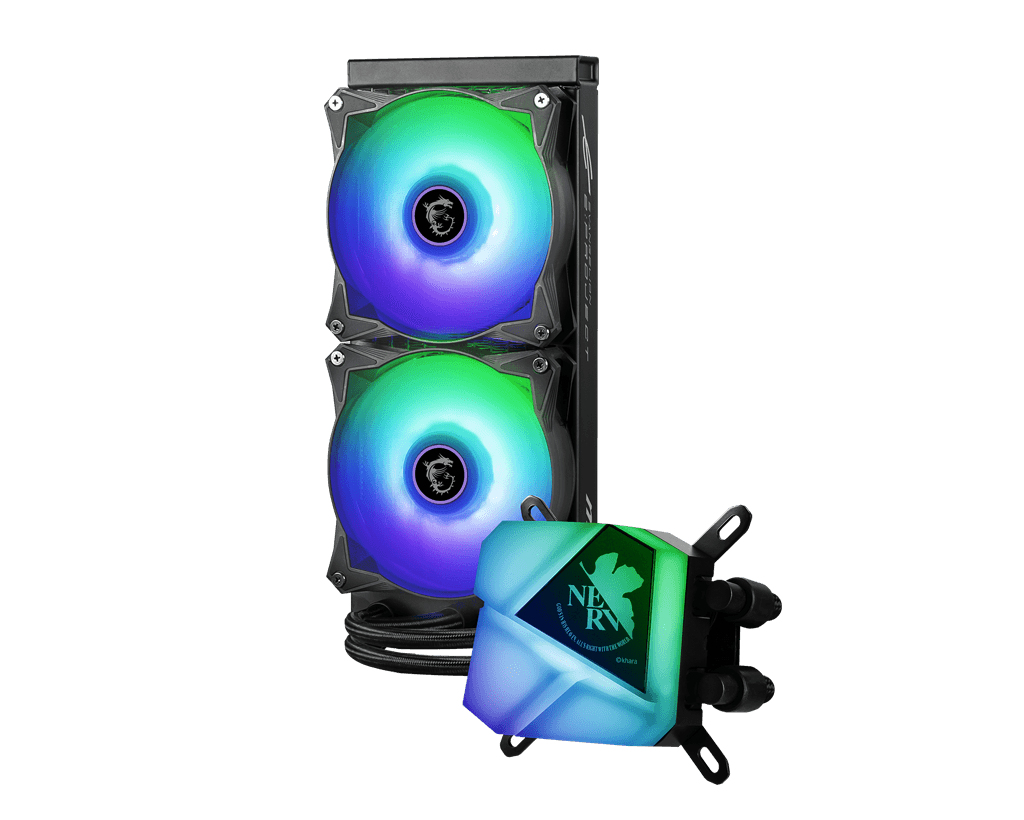

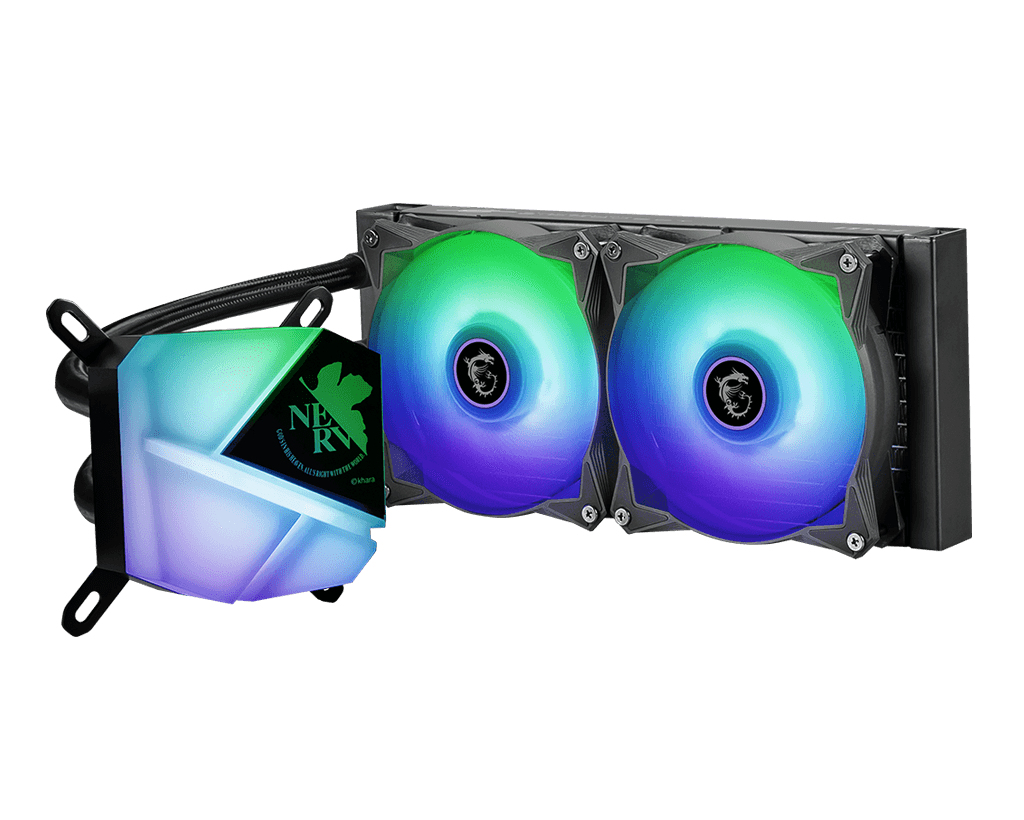

MAG CORELIQUID C240 EVA E-PROJECT
Model MAG CORELIQUID C240 EVA E-PROJECT
34 specifications
- TypeAll-in-one liquid cooler
- ColourBlack
- Suitable locationProcessor
- Rated voltage0.34 V
- Radiator width27.6 cm
Overview
- Type
- All-in-one liquid cooler
- Colour
- Black
- Suitable location
- Processor
- Rated voltage
- 0.34 V
- Radiator width
- 27.6 cm
- Brand
- MSI
- Category
- Computer Cooling System
- Model
- MAG CORELIQUID C240 EVA E-PROJECT
- Part number
- MAG CORELIQUID C240 EVA E-PROJECT
- Also known as
- MSI MAG CORELIQUID C240 EVA E-PROJECT computer cooling system Processor All-in-one liquid cooler Black
Specifications
34 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Maximum airflow | 78.73 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (min) | 14.3 dB |
| Fan noise level (max) | 34.3 dB |
| Pump noise level | 18 dB |
| Fan bearing technology | Double ball bearing |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 500 RPM |
| Fan static pressure | 2.39 mmH2O |
| Pump motor speed | 4200 RPM |
| Pump's mean time to failure (MTTF) | 100000 h |
| Fan's mean time to failure (MTTF) | 70000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Aluminium |
| Number of fans | 2 fan(s) |
Power
| Specification | Value |
|---|---|
| Rated voltage | 0.34 V |
| Fan power consumption | 1.8 W |
| Pump power consumption | 4.08 W |
| Fan current | 0.15 A |
| Fan voltage | 12 V |
| Pump current | 0.34 mA |
| Pump voltage | 12 V |
| Rated current | 0.15 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 27.6 cm |
| Radiator depth | 2.7 cm |
| Radiator height | 12 cm |
| Tube length | 40 cm |
| Waterblock width | 7.05 cm |
| Waterblock depth | 5.2 cm |
| Waterblock height | 7.05 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
