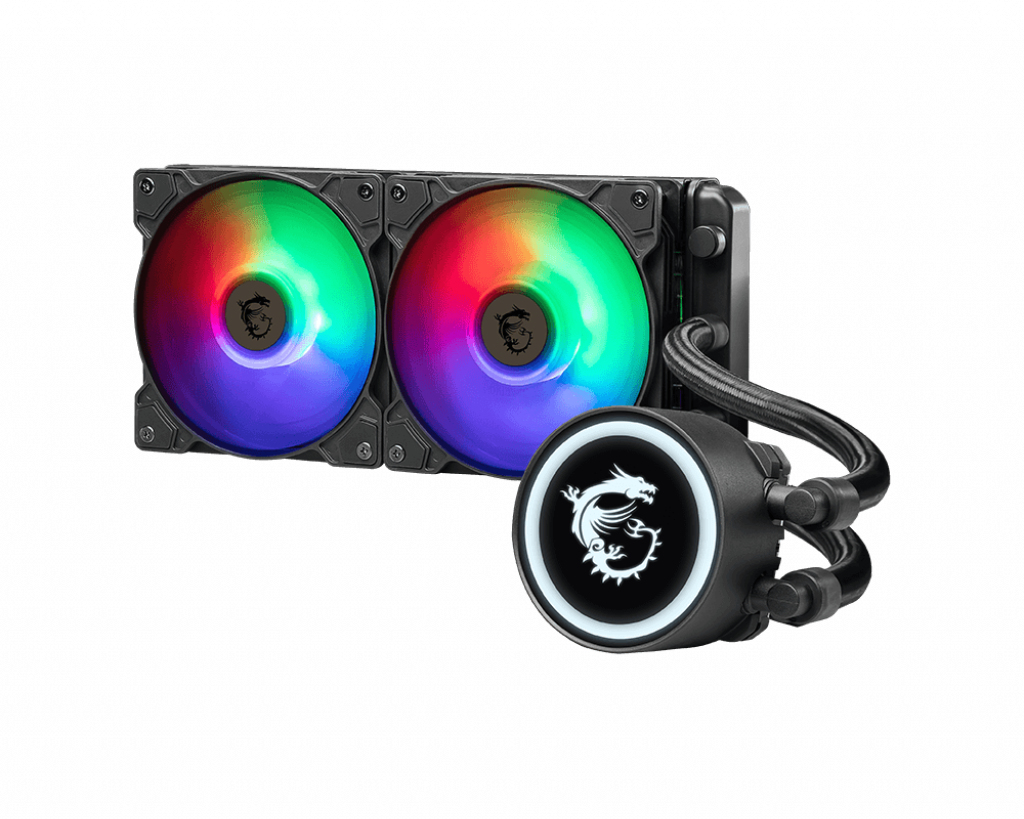

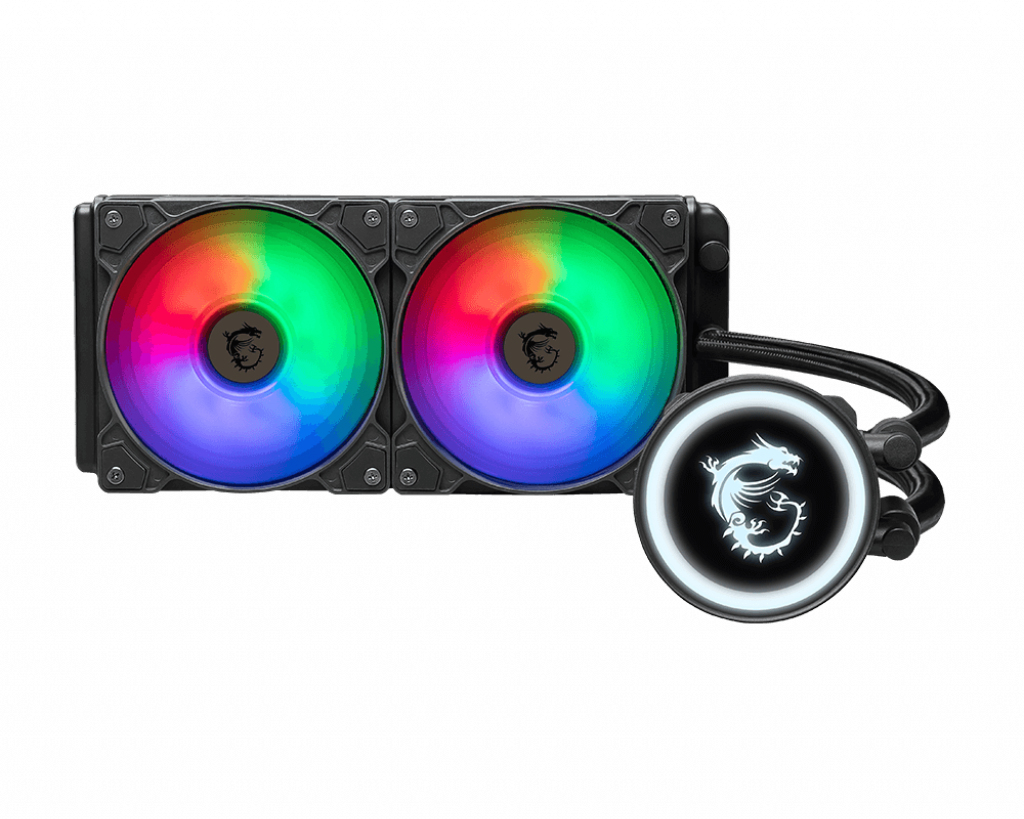

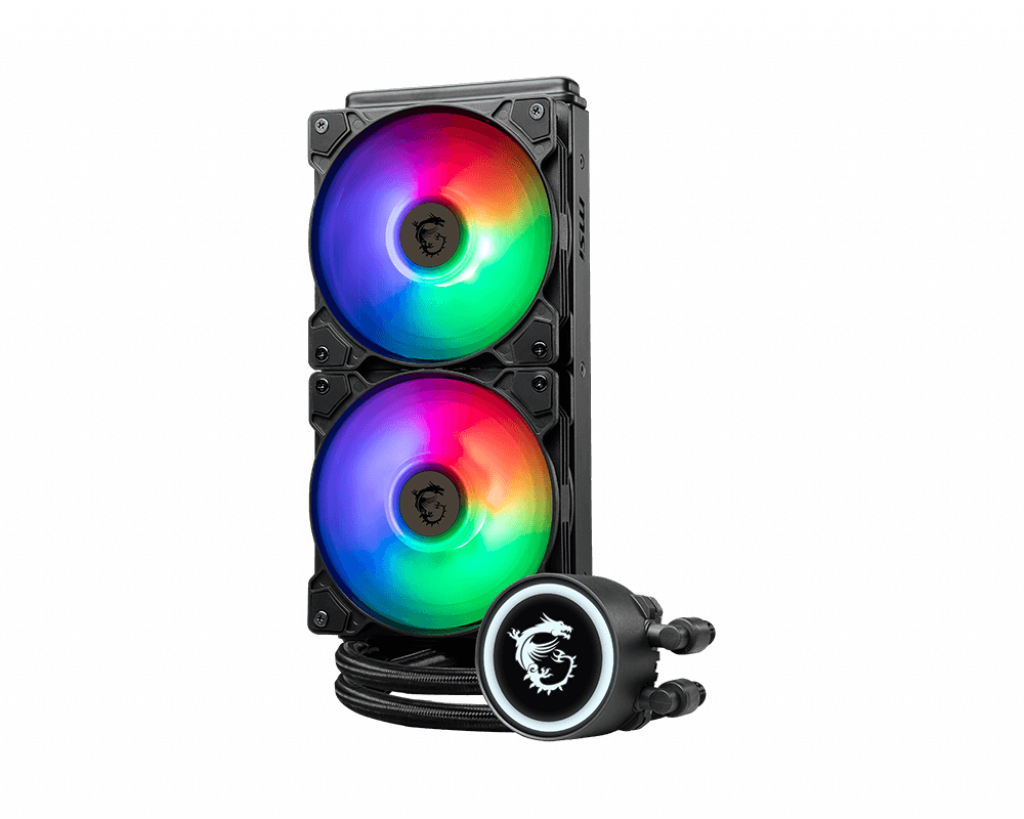

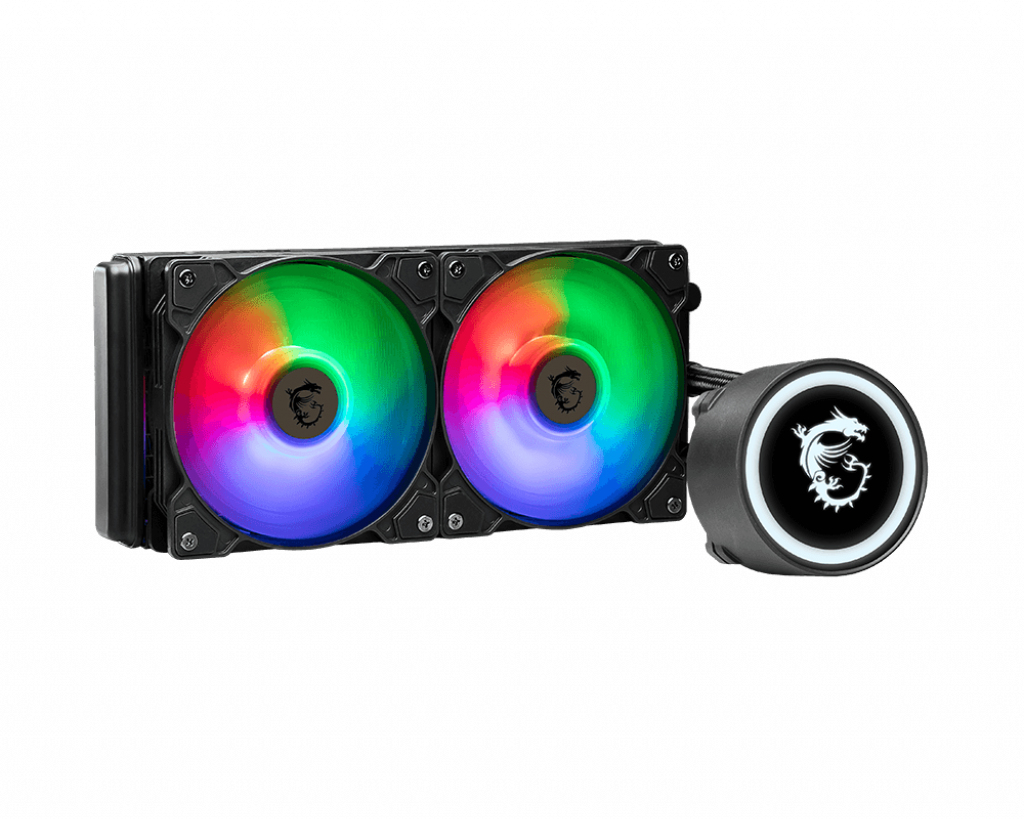

MAG CORELIQUID B240
Model MAG CORELIQUID B240EAN 4719072949716
27 specifications
- TypeAll-in-one liquid cooler
- ColourBlack
- Suitable locationProcessor
- Fan power consumption3 W
- Radiator width27.4 cm
Overview
- Type
- All-in-one liquid cooler
- Colour
- Black
- Suitable location
- Processor
- Fan power consumption
- 3 W
- Radiator width
- 27.4 cm
- Brand
- MSI
- Category
- Computer Cooling System
- Model
- MAG CORELIQUID B240
- Part number
- MAG CORELIQUID B240
- EAN / UPC
- 4719072949716
- Also known as
- MSI MAG CORELIQUID B240 computer cooling system Processor All-in-one liquid cooler 24 cm Black 1 pc(s)
Specifications
27 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 24 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2000 RPM |
| Minimum airflow (imperial) | 21.63 cfm |
| Maximum airflow | 78.73 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan noise level (min) | 14.3 dB |
| Fan noise level (max) | 34.3 dB |
| Pump noise level | 18 dB |
| Quantity per pack | 1 pc(s) |
| Pump motor speed | 4200 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Aluminium, Copper |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Illumination LED | Yes |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 3 W |
| Pump power consumption | 4.08 W |
| Rated current | 0.25 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 27.4 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
