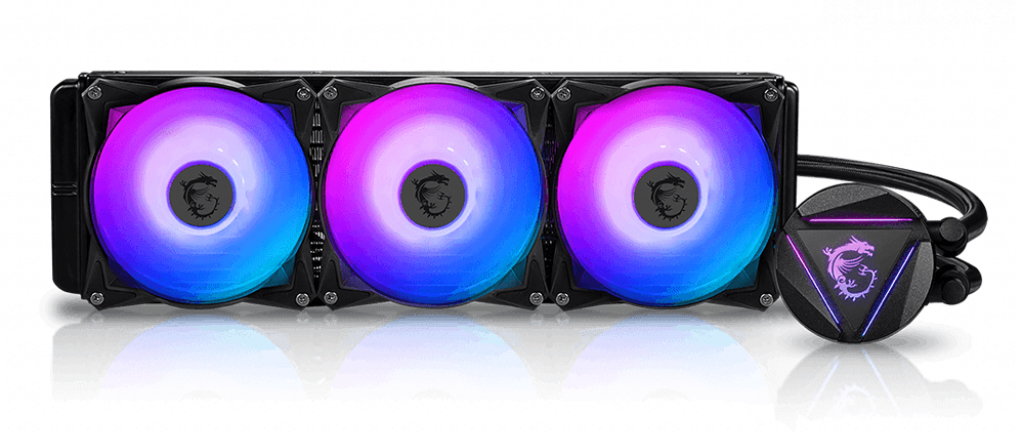

CORELIQUID 360R V2
Model CORELIQUID 360R V2
39 specifications
- TypeLiquid cooling kit
- ColourBlack
- Suitable locationMotherboard, Processor
- Fan power consumption1.8 W
- Radiator width39.4 cm
Overview
- Type
- Liquid cooling kit
- Colour
- Black
- Suitable location
- Motherboard, Processor
- Fan power consumption
- 1.8 W
- Radiator width
- 39.4 cm
- Brand
- MSI
- Category
- Computer Cooling System
- Model
- CORELIQUID 360R V2
- Part number
- CORELIQUID 360R V2
- Also known as
- MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, L
Specifications
39 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Motherboard, Processor |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket |
| Compatible processor series | AMD Ryzen 7 5th Gen, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, 3rd Gen AMD Ryzen™ Threadripper™, Intel® Core™ i7, Intel® Core™ i9 |
| Minimum airflow (imperial) | 21.63 cfm |
| Maximum airflow | 78.73 cfm |
| Minimum air pressure | 0.23 mmH2O |
| Maximum air pressure | 2.39 mmH2O |
| Fan diameter 2 | 12 cm |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (min) | 14.3 dB |
| Fan noise level (max) | 34.3 dB |
| Pump noise level | 18 dB |
| Fan bearing technology | Ball bearing |
| Pump bearing technology | Ceramic bearing |
| Pump connector | 3-pin |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 500 RPM |
| Pump motor speed | 4200 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 1.8 W |
| Pump power consumption | 4.08 W |
| Fan current | 0.15 A |
| Fan voltage | 12 V |
| Pump current | 340 mA |
| Pump voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 39.4 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 40 cm |
| Waterblock width | 8.06 cm |
| Waterblock depth | 6.68 cm |
| Waterblock height | 4.86 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
