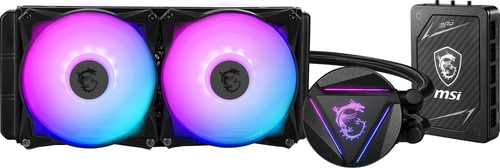

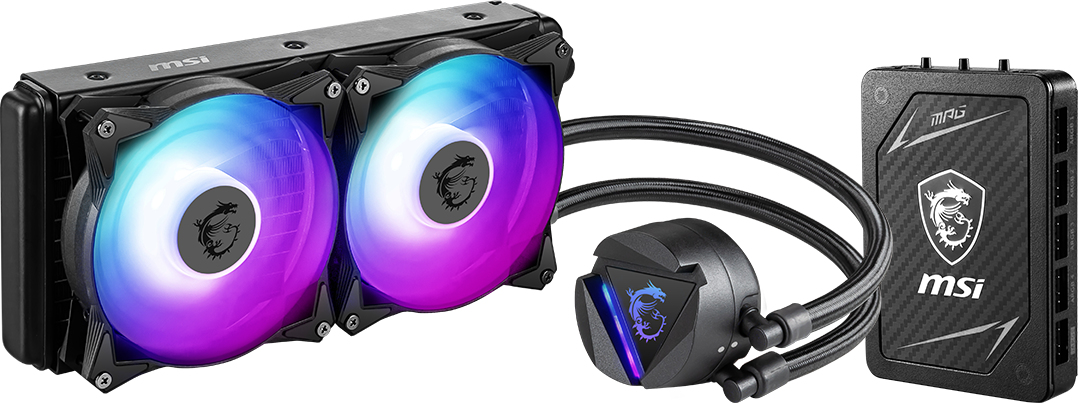

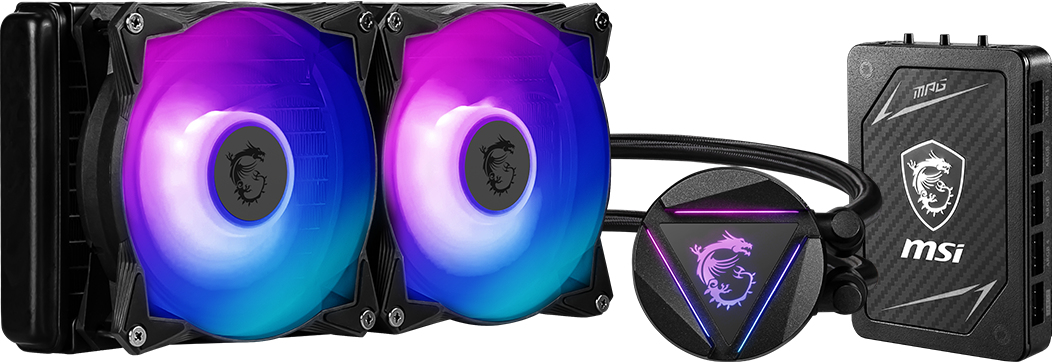

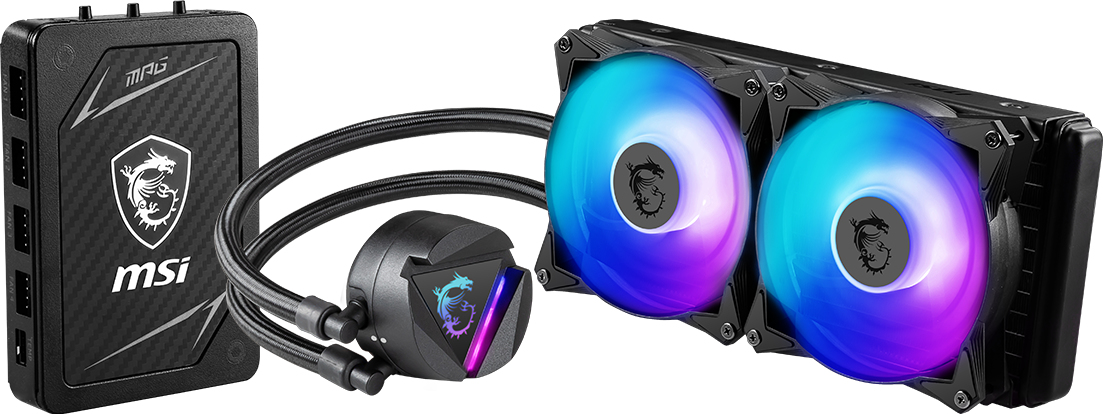

MAG CORELIQUID 240RH CPU AIO Cooler + Hub '240mm Radiator, ARGB Hub
2x 120mm ARGB PWM Fan, Adjustable ARGB Dragon CPU Mount, Compatible with Intel and AMD
Model 306-7ZW1B21-813EAN 4719072697549
36 specifications
- TypeCooler
- ColourBlack
- Suitable locationComputer case
- Number of fan ports4
- Fan power consumption1.8 W
- Width205 mm
Overview
- Type
- Cooler
- Colour
- Black
- Suitable location
- Computer case
- Number of fan ports
- 4
- Fan power consumption
- 1.8 W
- Width
- 205 mm
- Brand
- MSI
- Category
- Computer Cooling System
- Model
- 306-7ZW1B21-813
- Part number
- 306-7ZW1B21-813
- EAN / UPC
- 4719072697549
- Also known as
- MSI MAG CORELIQUID 240RH CPU AIO Cooler + Hub '240mm Radiator, ARGB Hub, 2x 120mm ARGB PWM Fan, Adjustable ARGB Dragon CPU Mount, Compatible with Intel and AMD
Specifications
36 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Cooler |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Minimum airflow (imperial) | 21.63 cfm |
| Maximum airflow | 78.73 cfm |
| Minimum air pressure | 0.23 mmH2O |
| Maximum air pressure | 2.39 mmH2O |
| Bearing type | Ball bearing |
| Fan noise level (min) | 14.3 dB |
| Fan noise level (max) | 34.3 dB |
| Fan bearing technology | Ball bearing |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 500 RPM |
| Pump motor speed | 4200 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Multi |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of fan ports | 4 |
| RGB ports quantity | 4 |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 1.8 W |
| Pump power consumption | 4.08 W |
| Pump current | 0.34 mA |
| Pump voltage | 12 V |
| Hub current | 0.15 A |
| Hub voltage | 5V/12V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 317 mm |
| Height | 137 mm |
| Radiator width | 12 cm |
| Radiator depth | 27.4 cm |
| Radiator height | 2.7 cm |

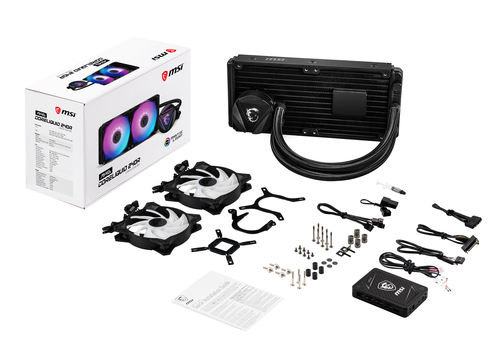

Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Cables included | 4-pin |
| Mounting kit | Yes |
| Screws included | Yes |
