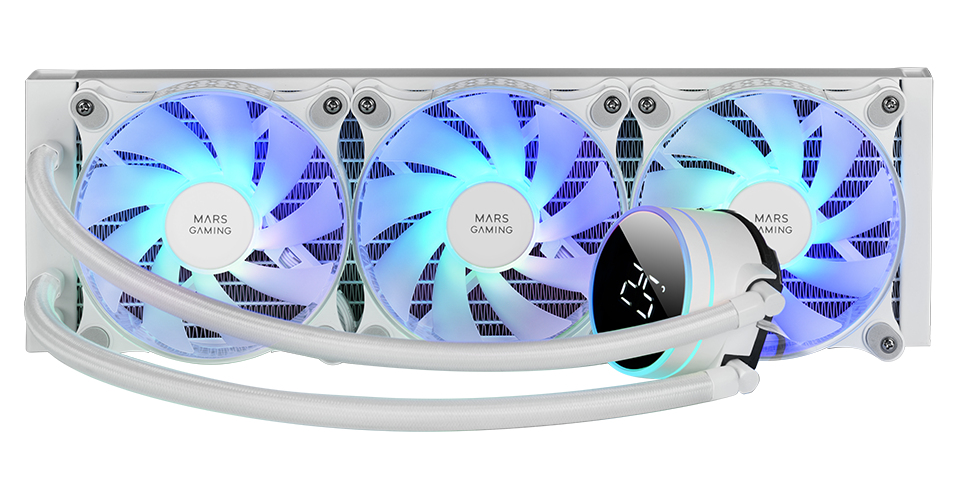

ML-LCD360W Processor Liquid cooling kit
12 cm White 1 pc(s)
Model ML-LCD360WPart no. MLLCD360WEAN 8435693106616
46 specifications
- TypeLiquid cooling kit
- Weight1.32 kg
- ColourWhite
- Suitable locationProcessor
- Fan current0.15 A
- Radiator width39.7 cm
Overview
- Type
- Liquid cooling kit
- Weight
- 1.32 kg
- Colour
- White
- Suitable location
- Processor
- Fan current
- 0.15 A
- Radiator width
- 39.7 cm
- Brand
- Mars Gaming
- Category
- Computer Cooling System
- Model
- ML-LCD360W
- Part number
- MLLCD360W
- EAN / UPC
- 8435693106616
- Also known as
- Mars Gaming ML-LCD360W Processor Liquid cooling kit 12 cm White 1 pc(s)
Specifications
46 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2 |
| Maximum airflow | 69.2 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Fan noise level (min) | 9 dB |
| Fan noise level (max) | 26 dB |
| Pump noise level | 15 dB |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 800 RPM |
| Pump motor speed | 3000 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Radiator material | Aluminum |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Water block material | Copper |
| Display type | LCD |
Power
| Specification | Value |
|---|---|
| Fan current | 0.15 A |
| Fan voltage | 12 V |
| LED voltage | 5 V |
| Pump current | 250 mA |
| Pump voltage | 12 V |
| Thermal Design Power (TDP) | 600 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 39.7 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 36 cm |
| Pump width | 6.95 cm |
| Pump depth | 6.95 cm |
| Pump height | 5.5 cm |
| Weight | 1.32 kg |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Package width | 130 mm |
| Package depth | 439 mm |
| Package height | 185 mm |
| Package weight | 1.99 kg |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
| Installation instruction | Yes |
Other features
| Specification | Value |
|---|---|
| Tube material | Teflon |
