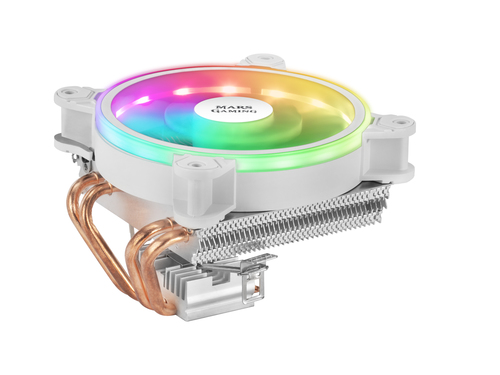

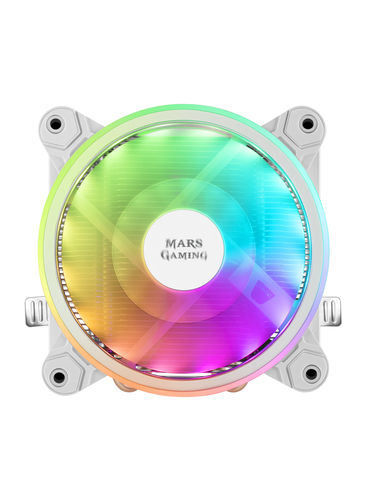

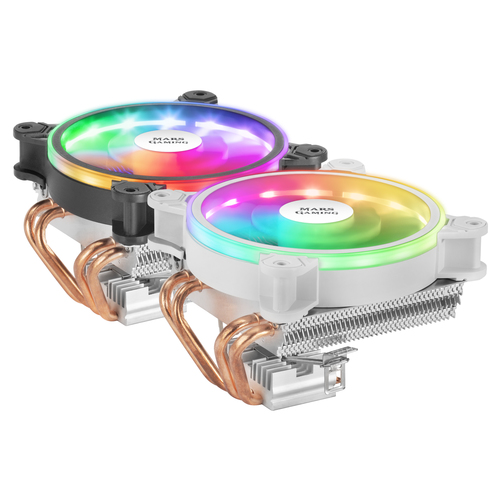

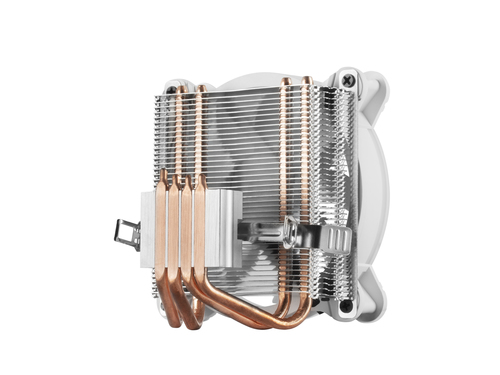

MCPU220 CPU Heatsink TDP
140W Dual ARGB PWM Silent White
Model MCPU220WEAN 4710562758825
31 specifications
- Noise9 dB
- TypeCooler
- Weight427 g
- ColourWhite
- Suitable locationProcessor
- Power supply3.96 W
Overview
- Noise
- 9 dB
- Type
- Cooler
- Weight
- 427 g
- Colour
- White
- Suitable location
- Processor
- Power supply
- 3.96 W
- Brand
- Mars Gaming
- Category
- Computer Cooling System
- Model
- MCPU220W
- Part number
- MCPU220W
- EAN / UPC
- 4710562758825
- Also known as
- Mars Gaming MCPU220 CPU Heatsink TDP 140W Dual ARGB PWM Silent White
Specifications
31 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2 |
| Rotational speed (min) | 900 RPM |
| Rotational speed (max) | 2200 RPM |
| Noise level (low speed) | 9 dB |
| Noise level (high speed) | 26 dB |
| Minimum airflow (imperial) | 27.2 cfm |
| Maximum airflow | 69.2 cfm |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Base plate material | Copper |
| Number of fans | 1 fan(s) |
| Fins material | Aluminium |
| Number of heat pipes | 4 |
| Illumination LED | Yes |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power supply | 3.96 W |
| Voltage | 12 V |
| Rated current | 0.33 A |
| Thermal Design Power (TDP) | 140 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 123 mm |
| Depth | 84 mm |
| Height | 120 mm |
| Weight | 427 g |
| Package width | 134 mm |
| Package depth | 134 mm |
| Package height | 136 mm |
| Package weight | 519 g |
