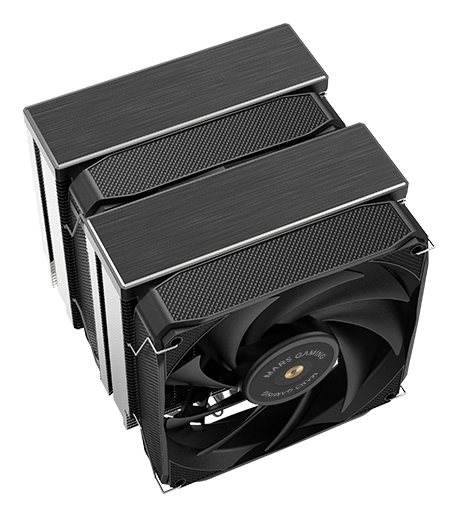

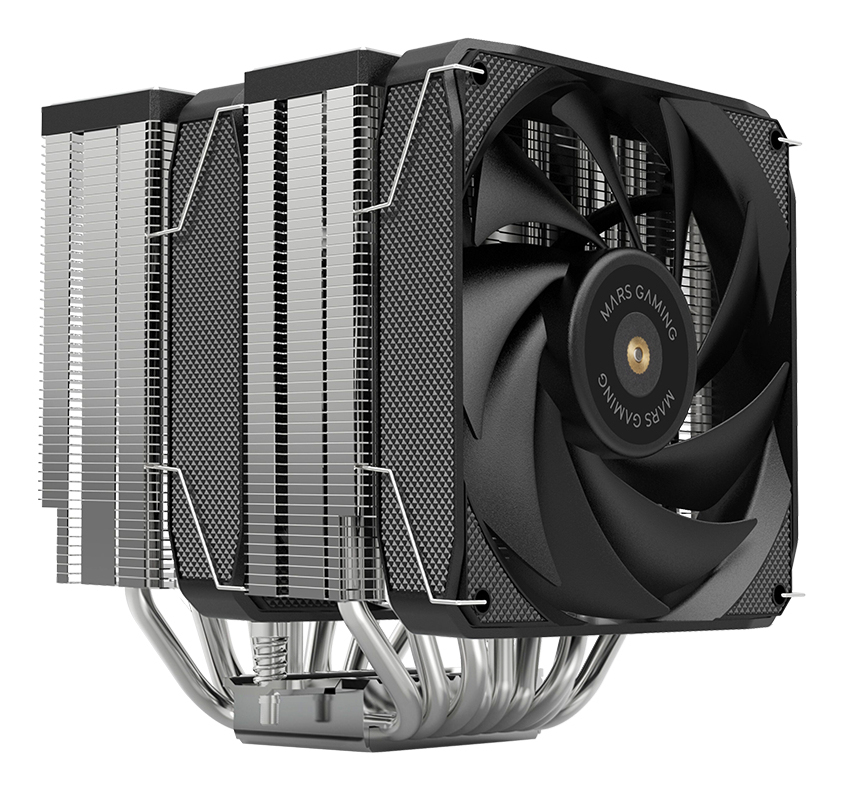

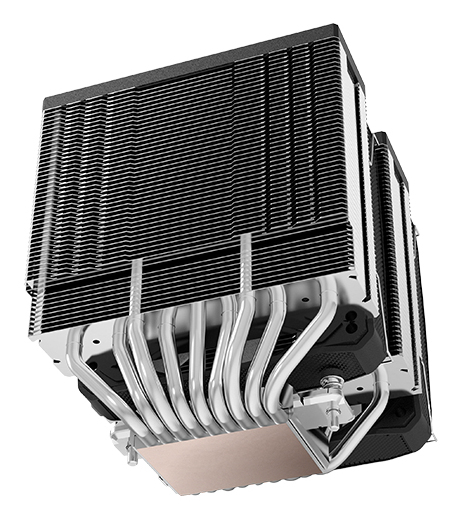

MCPU-XU9 Processor Air cooler
12 cm Black 1 pc(s)
Model MCPU-XU9Part no. MCPUXU9EAN 8435693106654
40 specifications
- TypeAir cooler
- Weight1.35 kg
- ColourBlack
- Suitable locationProcessor
- Voltage12 V
- Width138 mm
Overview
- Type
- Air cooler
- Weight
- 1.35 kg
- Colour
- Black
- Suitable location
- Processor
- Voltage
- 12 V
- Width
- 138 mm
- Brand
- Mars Gaming
- Category
- Computer Cooling System
- Model
- MCPU-XU9
- Part number
- MCPUXU9
- EAN / UPC
- 8435693106654
- Also known as
- Mars Gaming MCPU-XU9 Processor Air cooler 12 cm Black 1 pc(s)
Specifications
40 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2 |
| Maximum airflow | 74 cfm |
| Minimum air pressure | 0.81 mmH2O |
| Maximum air pressure | 1.39 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Fan noise level (min) | 9 dB |
| Fan noise level (max) | 23 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 800 RPM |
| Fan's mean time to failure (MTTF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Number of fan blades | 9 |
| Fins material | Aluminium |
| Number of heat pipes | 9 |
| Illumination LED | No |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Fan power consumption | 1.8 W |
| Rated current | 0.15 A |
| Thermal Design Power (TDP) | 400 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138 mm |
| Depth | 126 mm |
| Height | 155 mm |
| Weight | 1.35 kg |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Package width | 200 mm |
| Package depth | 230 mm |
| Package height | 150 mm |
| Package weight | 1.56 kg |
Packaging content
| Specification | Value |
|---|---|
| Package type | Hanging box |
| Mounting kit | Yes |
| Installation instruction | Yes |
