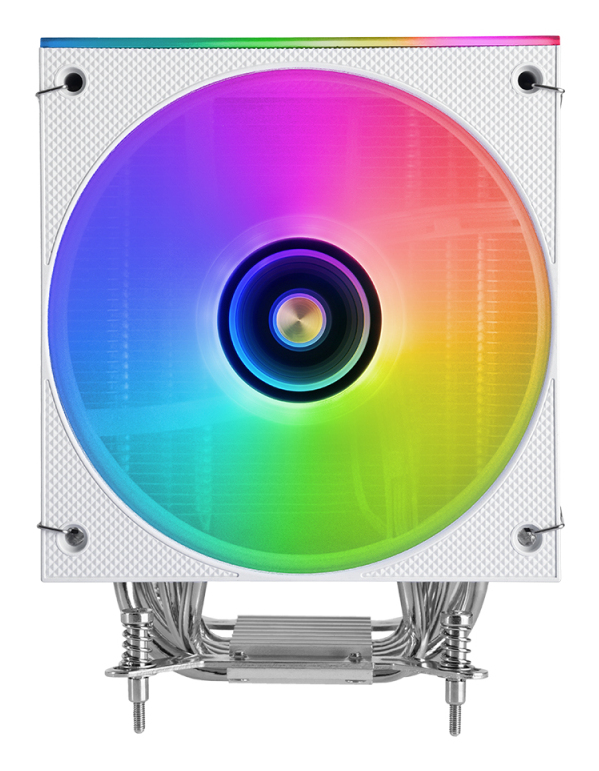

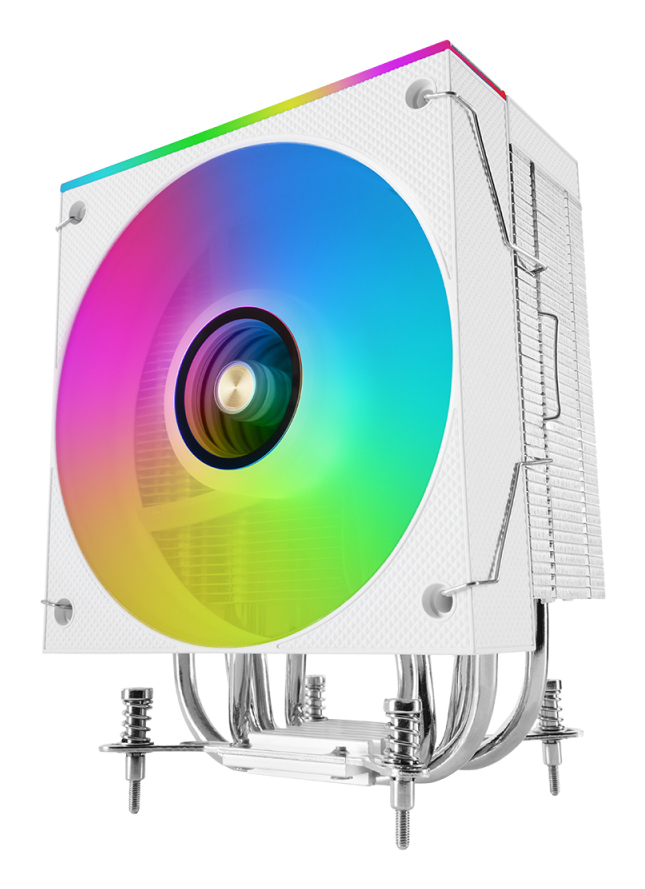

MCPU-LCDW Processor Air cooler
12 cm White 1 pc(s)
Model MCPU-LCDWPart no. MCPULCDWEAN 8435693112921
44 specifications
- TypeAir cooler
- Weight542 g
- ColourWhite
- Suitable locationProcessor
- Fan power consumption6 W
- Width122 mm
Overview
- Type
- Air cooler
- Weight
- 542 g
- Colour
- White
- Suitable location
- Processor
- Fan power consumption
- 6 W
- Width
- 122 mm
- Brand
- Mars Gaming
- Category
- Computer Cooling System
- Model
- MCPU-LCDW
- Part number
- MCPULCDW
- EAN / UPC
- 8435693112921
- Also known as
- Mars Gaming MCPU-LCDW Processor Air cooler 12 cm White 1 pc(s)
Specifications
44 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Minimum airflow (imperial) | 30 cfm |
| Maximum airflow | 74 cfm |
| Minimum air pressure | 0.85 mmH2O |
| Maximum air pressure | 1.42 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Fan noise level (min) | 9 dB |
| Fan noise level (max) | 28 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 2600 RPM |
| Fan speed (min) | 800 RPM |
| Fan's mean time to failure (MTTF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Radiator material | Aluminum |

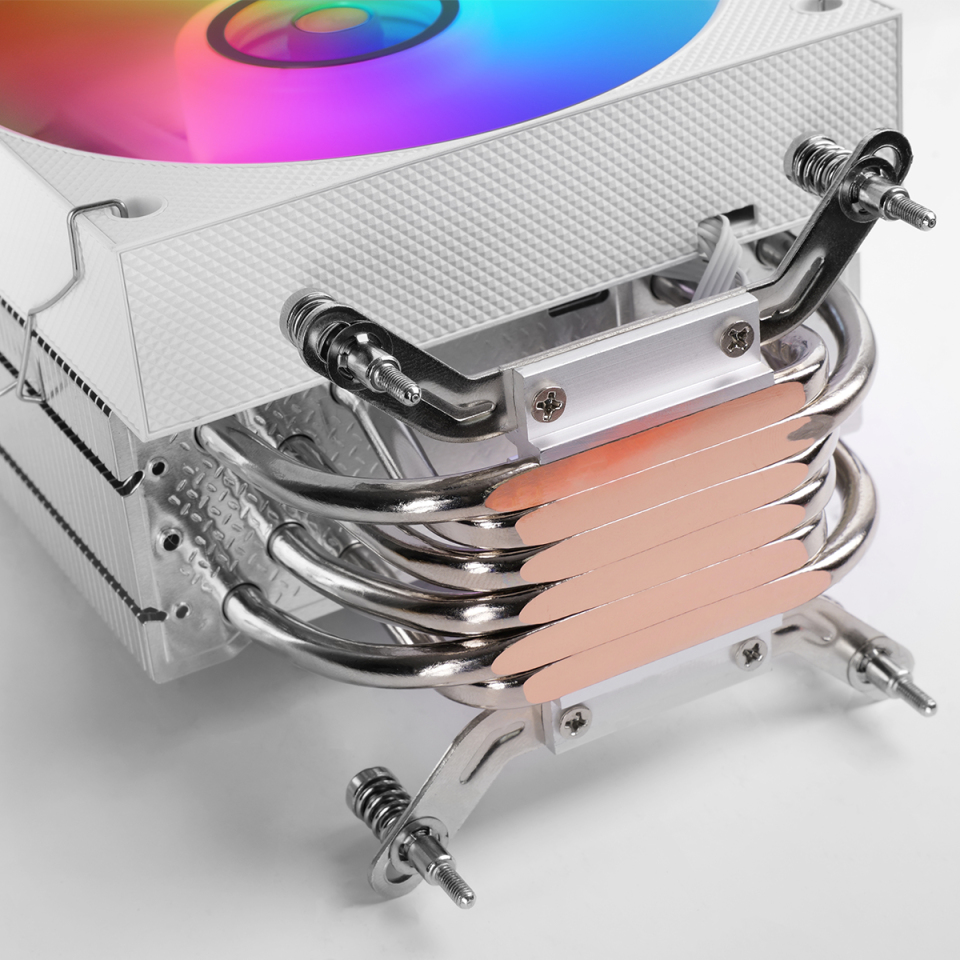

| Base plate material | Copper |
| Number of fans | 1 fan(s) |
| Fins material | Aluminium |

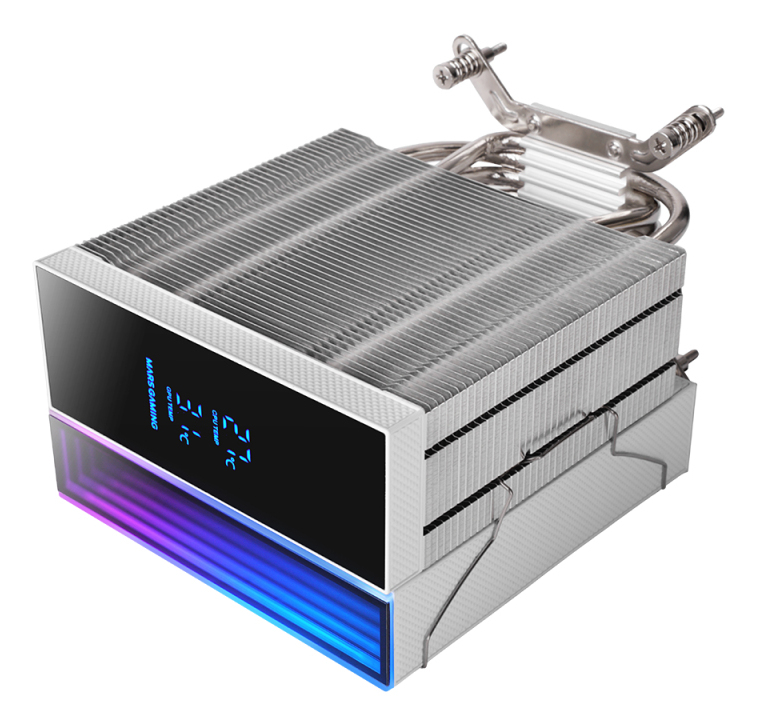

| Number of heat pipes | 6 |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |

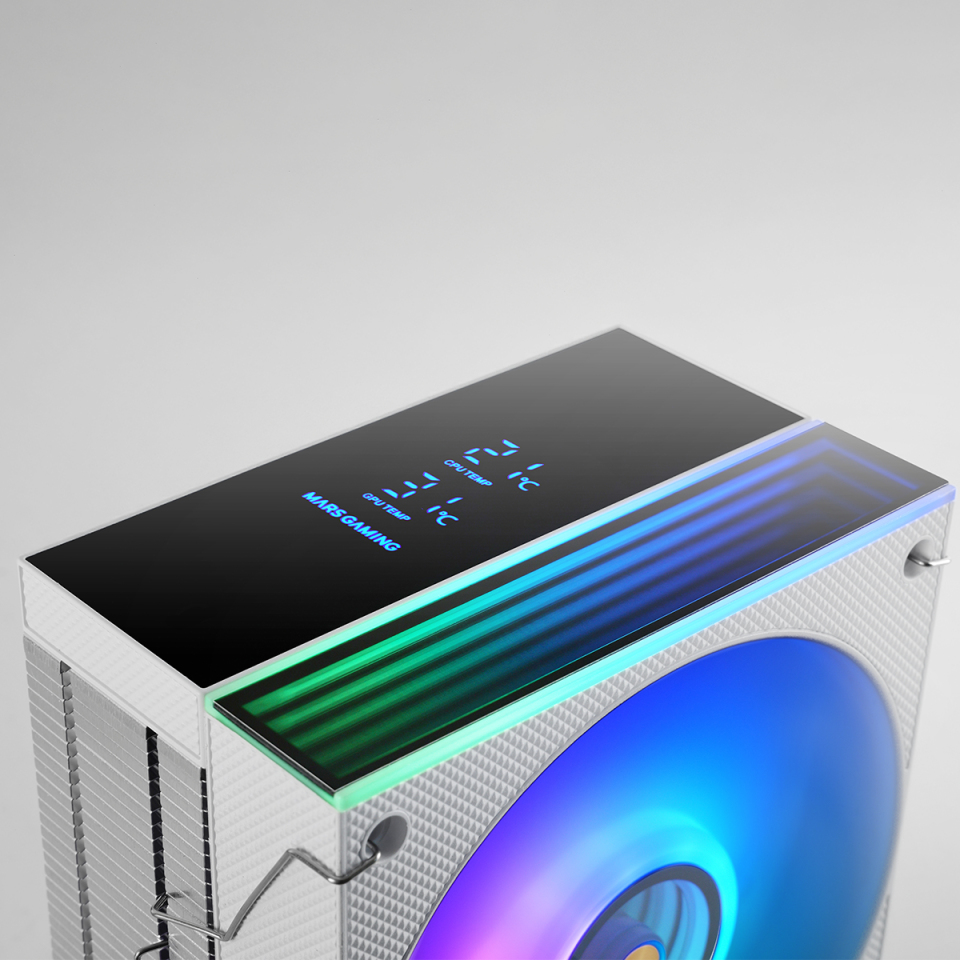

| Display type | LCD |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 6 W |
| Fan current | 0.5 A |
| Fan voltage | 12 V |
| LED voltage | 5 V |
| Thermal Design Power (TDP) | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 122 mm |
| Depth | 72 mm |
| Height | 156 mm |
| Weight | 542 g |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Package width | 143 mm |
| Package depth | 98 mm |
| Package height | 194 mm |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Anti-vibration system | Yes |
| Thermal grease | Yes |
| Built-in display | Yes |
