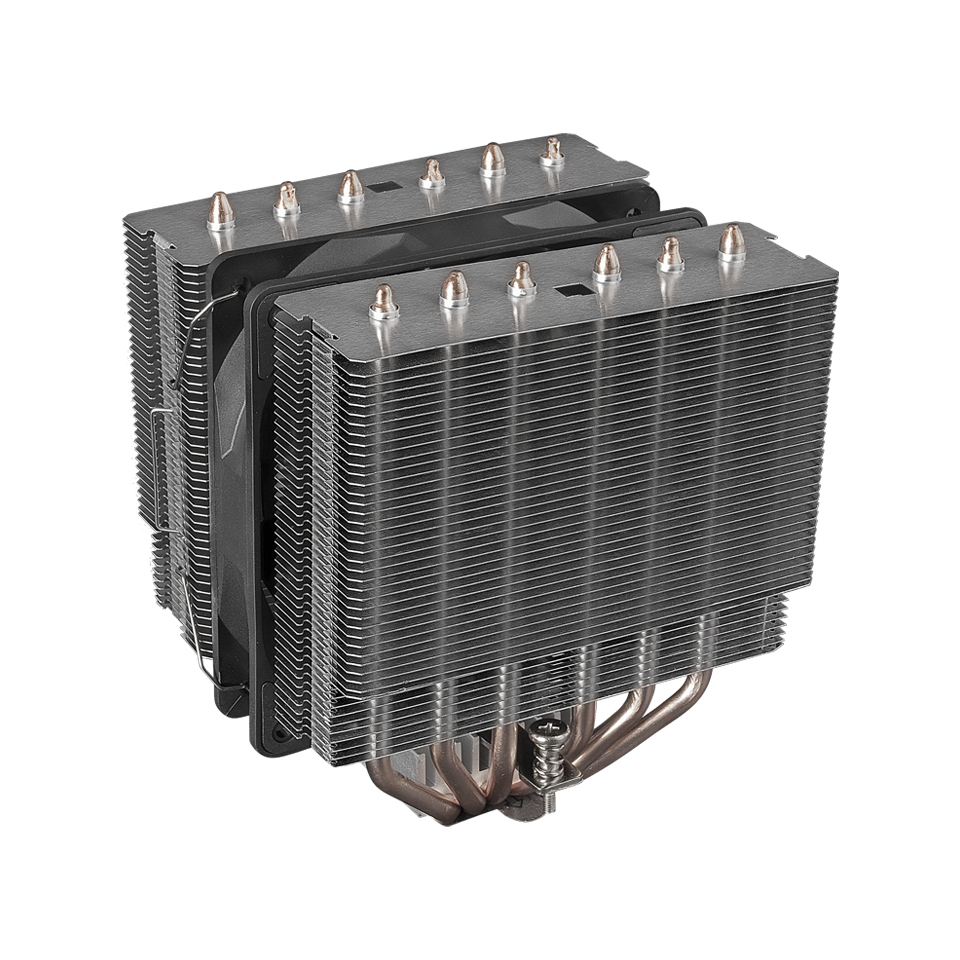

Dual Tower Heatsink MCPU-2T
Model MCPU-2TPart no. MCPU2TEAN 8435693103745
40 specifications
- TypeAir cooler
- Weight849 g
- ColourAluminium, Black
- Suitable locationProcessor
- Fan current0.22 A
- Width132 mm
Overview
- Type
- Air cooler
- Weight
- 849 g
- Colour
- Aluminium, Black
- Suitable location
- Processor
- Fan current
- 0.22 A
- Width
- 132 mm
- Brand
- Mars Gaming
- Category
- Computer Cooling System
- Model
- MCPU-2T
- Part number
- MCPU2T
- EAN / UPC
- 8435693103745
- Also known as
- Mars Gaming Dual Tower Heatsink MCPU-2T
Specifications
40 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2 |
| Maximum airflow | 68 cfm |
| Minimum air pressure | 0.79 mmH2O |
| Maximum air pressure | 1.28 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (min) | 9 dB |
| Fan noise level (max) | 26 dB |
| Fan bearing technology | Hydraulic bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1650 RPM |
| Fan speed (min) | 800 RPM |
| Fan's mean time to failure (MTTF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium, Black |
| Material | Aluminium, Cooper |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 1 fan(s) |
| Number of fan blades | 1 |
| Number of heat pipes | 6 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Fan current | 0.22 A |
| Fan voltage | 12 V |
| LED power consumption (fan) | 2.6 W |
| Thermal Design Power (TDP) | 280 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 132 mm |
| Depth | 134 mm |
| Height | 145 mm |
| Weight | 849 g |
| Package width | 156 mm |
| Package depth | 203 mm |
| Package height | 125 mm |
| Package weight | 1.01 kg |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| CPU socket spacer(s) | Yes |
| Installation instruction | Yes |
