THERMORA 50B
Model THERMORA 50BPart no. ITLCTHM50360BEAN 8056157884439
36 specifications
- TypeAll-in-one liquid cooler
- Weight9.3 kg
- ColourBlack
- Suitable locationProcessor
- Voltage6 - 13.2 V
- Width397 mm
Overview
- Type
- All-in-one liquid cooler
- Weight
- 9.3 kg
- Colour
- Black
- Suitable location
- Processor
- Voltage
- 6 - 13.2 V
- Width
- 397 mm
- Brand
- itek
- Category
- Computer Cooling System
- Model
- THERMORA 50B
- Part number
- ITLCTHM50360B
- EAN / UPC
- 8056157884439
- Also known as
- itek THERMORA 50B Processor All-in-one liquid cooler 12 cm Black
Specifications
36 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), Socket AM4, Socket AM5 |
| Rotational speed (min) | 900 RPM |
| Rotational speed (max) | 2000 RPM |
| Maximum airflow | 62.72 cfm |
| Maximum air pressure | 2.31 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Fan noise level (max) | 30.3 dB |
| Pump motor speed | 2500 RPM |
| Fan's mean time to failure (MTTF) | 30000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Number of fans | 3 fan(s) |
| Number of fan blades | 9 |
| Illumination LED | Yes |
| Illumination colour | Amber, Blue, Green, Red |
| Fan connector | 4-pin |

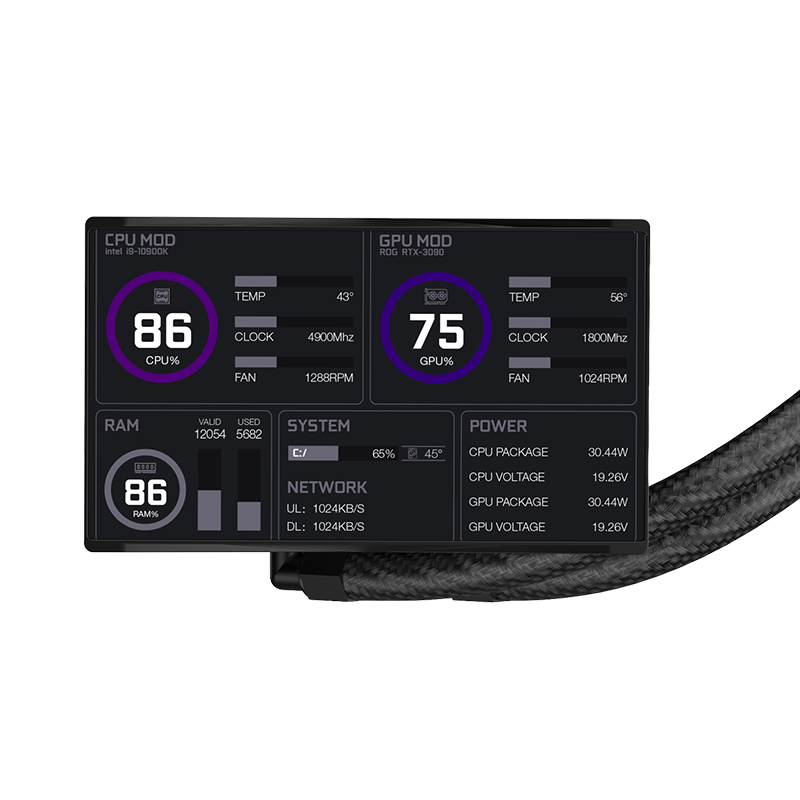

| Display type | LCD |
| Display size (HxV) | 110.4 x 62.1 mm |
Power
| Specification | Value |
|---|---|
| Voltage | 6 - 13.2 V |
| Rated current | 0.2 A |
| Thermal Design Power (TDP) | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 397 mm |
| Depth | 52 mm |
| Height | 120 mm |
| Radiator width | 39.7 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 38 cm |
| Pump width | 9 cm |
| Pump depth | 12.4 cm |
| Pump height | 9.3 cm |
| Weight | 9.3 kg |
