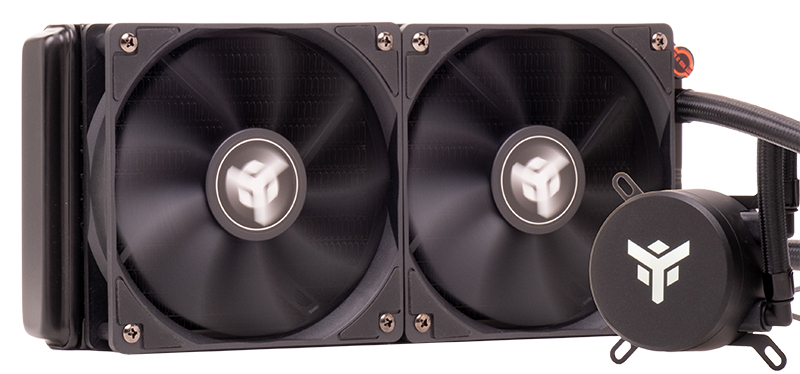

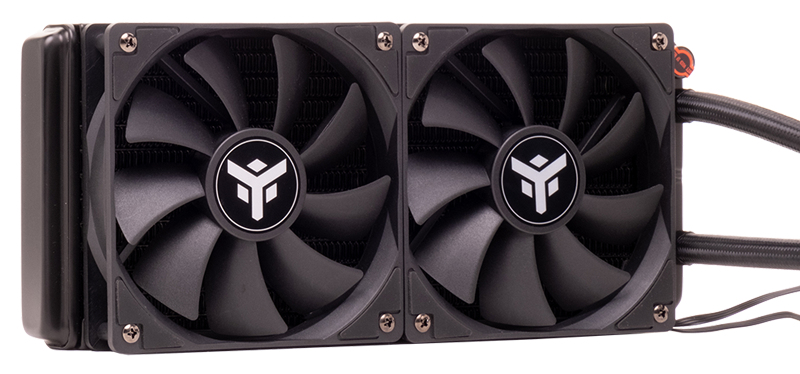

ICECORE 240
Model ICECORE 240Part no. ITLCICB240EAN 8056157883623
34 specifications
- TypeLiquid cooling kit
- ColourBlack
- Suitable locationProcessor
- Voltage6 - 13.2 V
- Radiator width27.5 cm
Overview
- Type
- Liquid cooling kit
- Colour
- Black
- Suitable location
- Processor
- Voltage
- 6 - 13.2 V
- Radiator width
- 27.5 cm
- Brand
- itek
- Category
- Computer Cooling System
- Model
- ICECORE 240
- Part number
- ITLCICB240
- EAN / UPC
- 8056157883623
- Also known as
- itek ICECORE 240 Processor Liquid cooling kit 12 cm Black 1 pc(s)
Specifications
34 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 1851, LGA 775 (Socket T), Socket AM4, Socket AM5 |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 1800 RPM |
| Minimum airflow (imperial) | 64.05 cfm |
| Minimum air pressure | 1.85 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed | 2500 RPM |
| Fan's mean time to failure (MTTF) | 30000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Aluminium |
| Number of fans | 2 fan(s) |
| Number of fan blades | 9 |
| Fan connector | 4-pin |
| Water block material | Polyphenylene sulfide (PPS)/Aluminium |
Power
| Specification | Value |
|---|---|
| Voltage | 6 - 13.2 V |
| Rated voltage | 12 V |
| Rated current | 0.3 A |
| Thermal Design Power (TDP) | 250 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 27.5 cm |
| Radiator depth | 2.7 cm |
| Radiator height | 12 cm |
| Tube length | 35 cm |
| Pump width | 8.65 cm |
| Pump depth | 5.1 cm |
| Pump height | 7.3 cm |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
