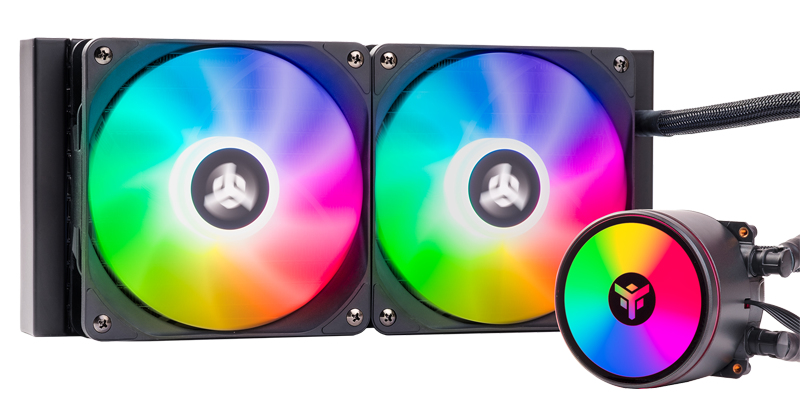

EVOLIQ 240 V2 ARGB
Model EVOLIQ 240 V2 ARGBPart no. ITLCEVOA240V2EAN 8056157883241
33 specifications
- TypeLiquid cooling kit
- ColourBlack
- Suitable locationProcessor
- Voltage8 - 13.2 V
- Radiator width27.4 cm
Overview
- Type
- Liquid cooling kit
- Colour
- Black
- Suitable location
- Processor
- Voltage
- 8 - 13.2 V
- Radiator width
- 27.4 cm
- Brand
- itek
- Category
- Computer Cooling System
- Model
- EVOLIQ 240 V2 ARGB
- Part number
- ITLCEVOA240V2
- EAN / UPC
- 8056157883241
- Also known as
- itek EVOLIQ 240 V2 ARGB Processor Liquid cooling kit 12 cm Black
Specifications
33 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2+, Socket TR4 |
| Maximum airflow | 73.6 cfm |
| Maximum air pressure | 2.12 mmH2O |
| Fan noise level (min) | 8 dB |
| Fan noise level (max) | 29.1 dB |
| Pump noise level | 16 dB |
| Fan bearing technology | Hydraulic bearing |
| Pump bearing technology | Ceramic bearing |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 400 RPM |
| Pump motor speed | 2600 RPM |
| Pump's mean time to failure (MTTF) | 50000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Number of fans | 2 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Blue, Green, Red |
| LED connector type | 3-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 8 - 13.2 V |
| Rated voltage | 12 V |
| Starting voltage | 7.5 V |
| Thermal Design Power (TDP) | 250 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 27.4 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 40 cm |
| Waterblock width | 7 cm |
| Waterblock depth | 8 cm |
| Waterblock height | 5.43 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
