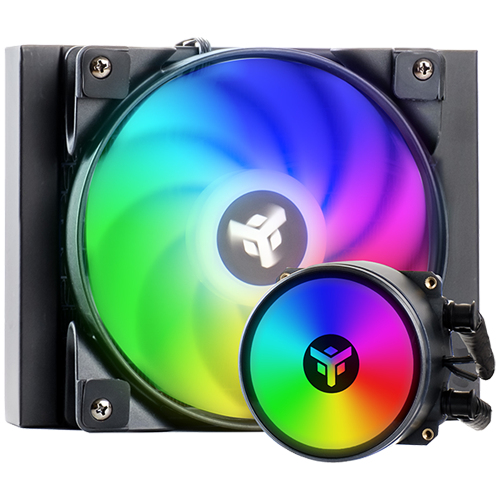

EVOLIQ 120 ARGB
Model EVOLIQ 120 ARGBPart no. ITLCEVOA120EAN 8056157880998
27 specifications
- TypeAll-in-one liquid cooler
- Suitable locationProcessor
- Radiator materialAluminium
- Pump current0.46 mA
- Radiator width15.3 cm
Overview
- Type
- All-in-one liquid cooler
- Suitable location
- Processor
- Radiator material
- Aluminium
- Pump current
- 0.46 mA
- Radiator width
- 15.3 cm
- Brand
- itek
- Category
- Computer Cooling System
- Model
- EVOLIQ 120 ARGB
- Part number
- ITLCEVOA120
- EAN / UPC
- 8056157880998
- Also known as
- itek EVOLIQ 120 ARGB Processor All-in-one liquid cooler 12 cm
Specifications
27 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+ |
| Maximum airflow | 72 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (min) | 8 dB |
| Fan noise level (max) | 29.1 dB |
| Pump noise level | 16 dB |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 1000 RPM |
| Fan static pressure | 2.36 mmH2O |
| Pump motor speed | 2600 RPM |
| Pump's mean time to failure (MTTF) | 50000 h |
Design
| Specification | Value |
|---|---|
| Radiator material | Aluminium |
| Number of fans | 1 fan(s) |
| Illumination LED | Yes |
Power
| Specification | Value |
|---|---|
| Pump current | 0.46 mA |
| Thermal Design Power (TDP) | 180 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 15.3 cm |
| Radiator depth | 2.7 cm |
| Radiator height | 12 cm |
| Waterblock width | 7 cm |
| Waterblock depth | 8 cm |
| Waterblock height | 5.43 cm |
| Fan thickness | 2.5 cm |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
