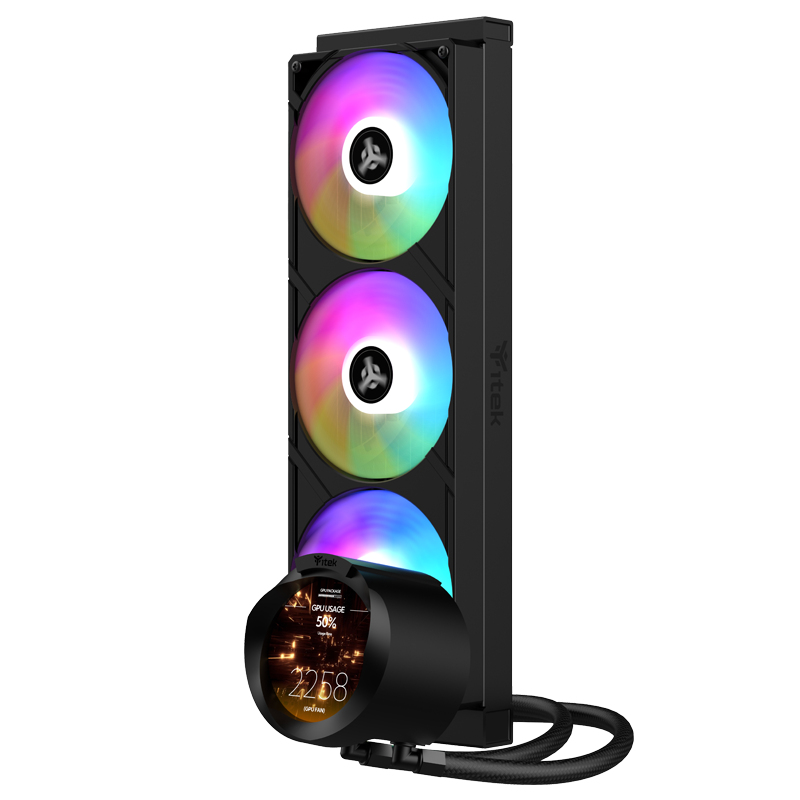

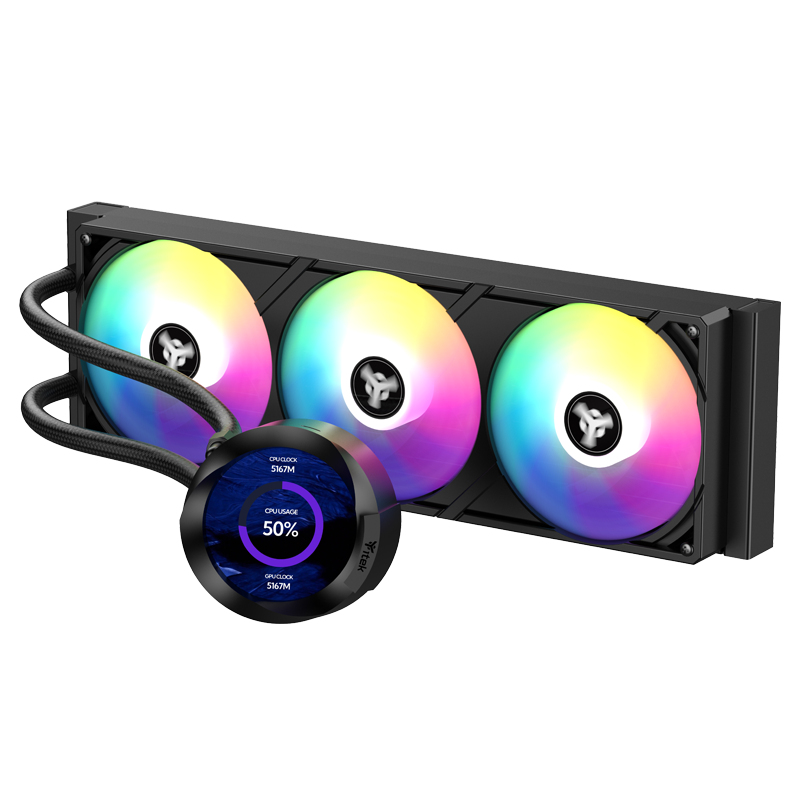

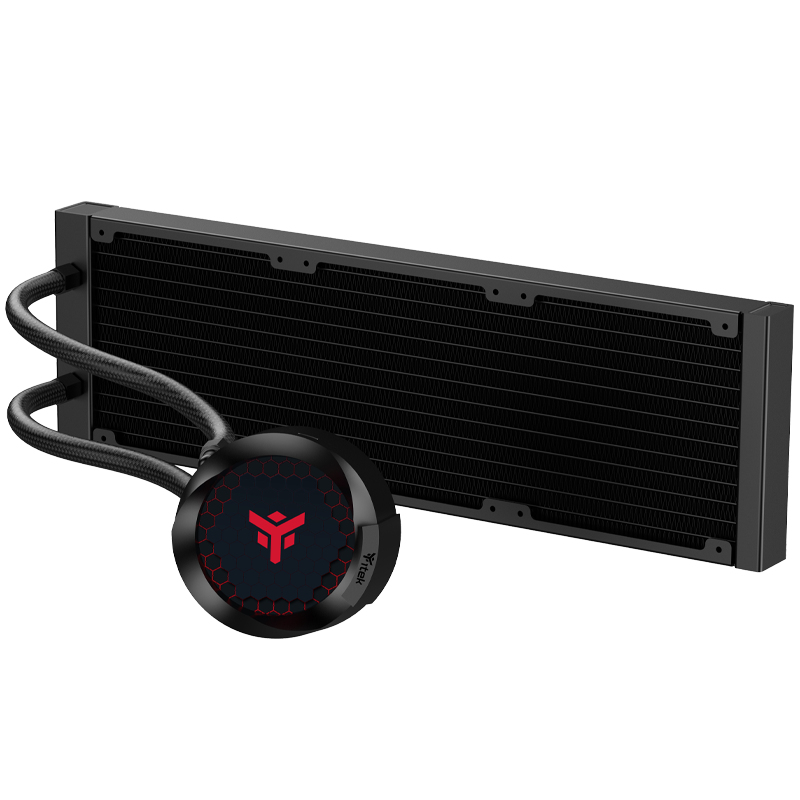

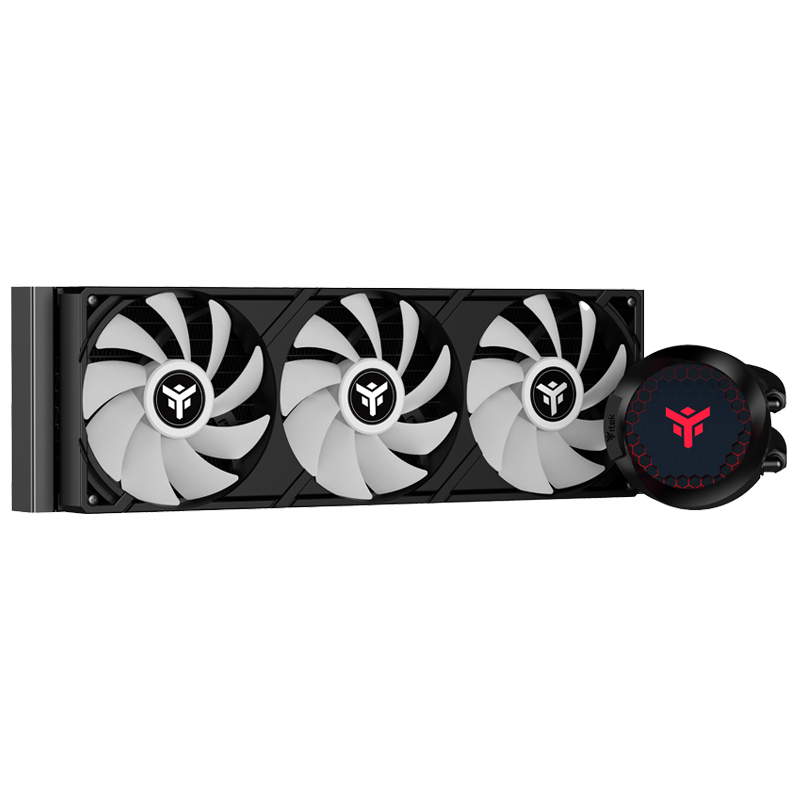

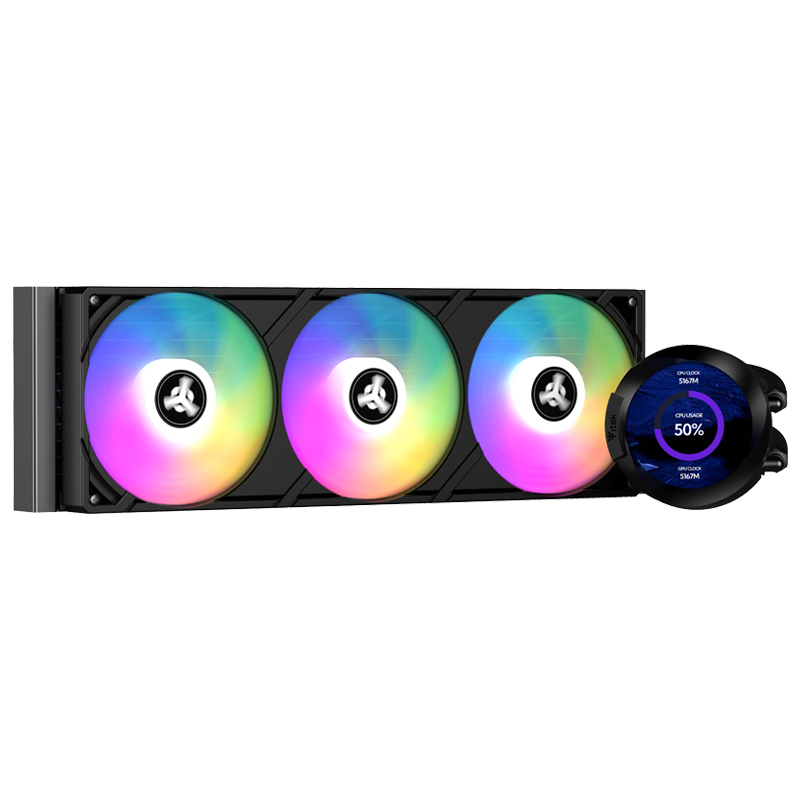

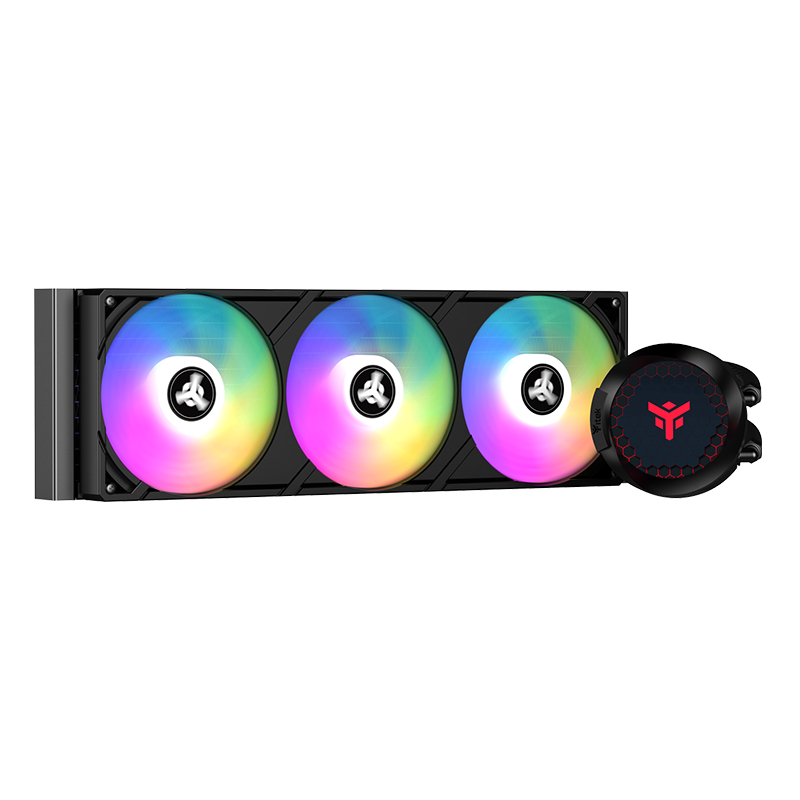

ARCTIC SPHERE V2
Model ARCTIC SPHERE V2Part no. ITLCASLV2360EAN 8056157884453
35 specifications
- TypeAll-in-one liquid cooler
- Weight8.2 kg
- ColourBlack
- Suitable locationProcessor
- Voltage6 - 13.2 V
- Width397 mm
Overview
- Type
- All-in-one liquid cooler
- Weight
- 8.2 kg
- Colour
- Black
- Suitable location
- Processor
- Voltage
- 6 - 13.2 V
- Width
- 397 mm
- Brand
- itek
- Category
- Computer Cooling System
- Model
- ARCTIC SPHERE V2
- Part number
- ITLCASLV2360
- EAN / UPC
- 8056157884453
- Also known as
- itek ARCTIC SPHERE V2 Processor All-in-one liquid cooler 12 cm Black
Specifications
35 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1851, LGA 2011 (Socket R), Socket AM4, LGA 1150 (Socket H3), Socket AM5, LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700 |
| Rotational speed (max) | 1800 RPM |
| Maximum airflow | 76.01 cfm |
| Maximum air pressure | 1.85 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Fan noise level (max) | 33.1 dB |
| Pump motor speed | 2500 RPM |
| Fan's mean time to failure (MTTF) | 30000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

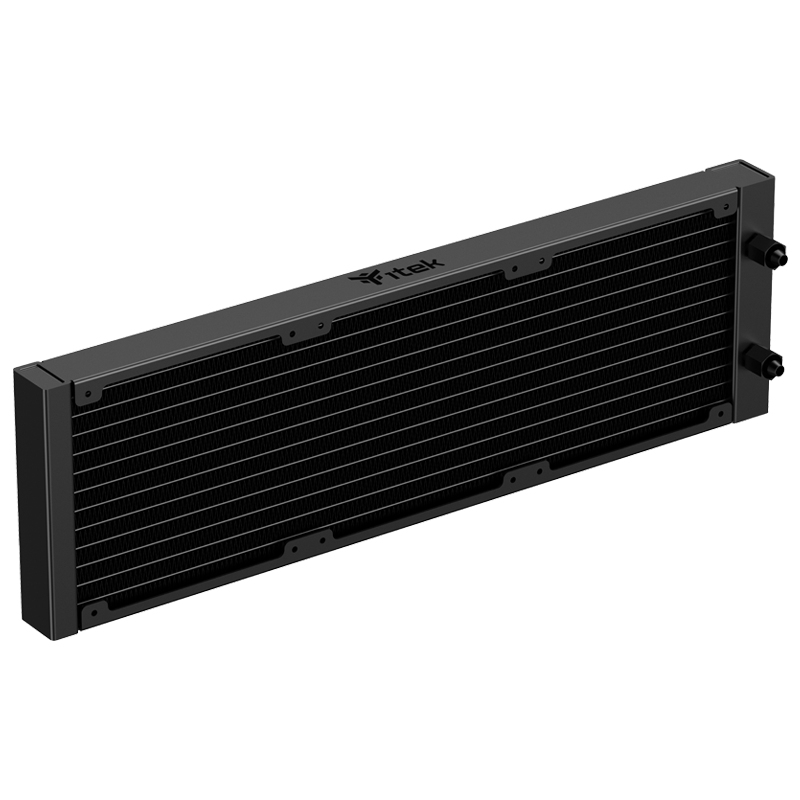

| Radiator material | Aluminum |
| Number of fans | 3 fan(s) |
| Number of fan blades | 9 |
| Illumination LED | Yes |
| Illumination colour | Amber, Blue, Green, Red |
| Fan connector | 4-pin |

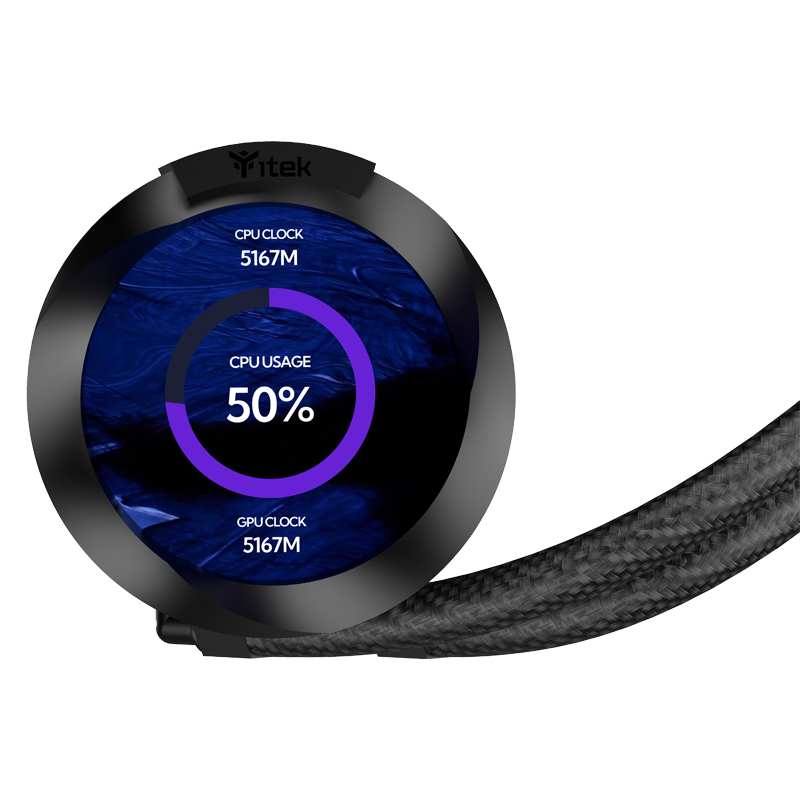

| Display type | LCD |
| Display size (HxV) | 70.13 x 70.13 mm |
Power
| Specification | Value |
|---|---|
| Voltage | 6 - 13.2 V |
| Thermal Design Power (TDP) | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 397 mm |
| Depth | 52 mm |
| Height | 120 mm |
| Radiator width | 39.7 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 38 cm |

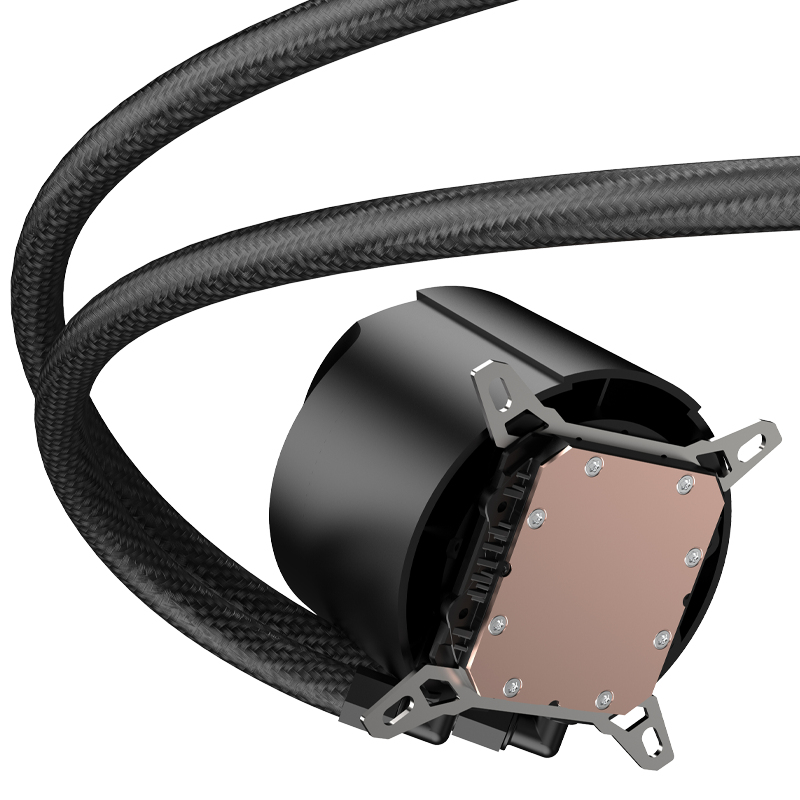

| Pump width | 10 cm |
| Pump depth | 9.25 cm |
| Pump height | 8.05 cm |
| Weight | 8.2 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
