IB-M2HSF-705 Solid-state drive Heatsink/Radiator
3 cm Silver 1 pc(s)
Model IB-M2HSF-705Part no. 60878EAN 4250078172123
40 specifications
- TypeHeatsink/Radiator
- Weight86 g
- ColourSilver
- Suitable locationSolid-state drive
- Voltage12 V
- Width30 mm
Overview
- Type
- Heatsink/Radiator
- Weight
- 86 g
- Colour
- Silver
- Suitable location
- Solid-state drive
- Voltage
- 12 V
- Width
- 30 mm
- Brand
- ICY BOX
- Category
- Computer Cooling System
- Model
- IB-M2HSF-705
- Part number
- 60878
- EAN / UPC
- 4250078172123
- Also known as
- ICY BOX IB-M2HSF-705 Solid-state drive Heatsink/Radiator 3 cm Silver 1 pc(s)
Specifications
40 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Solid-state drive |
| Type | Heatsink/Radiator |

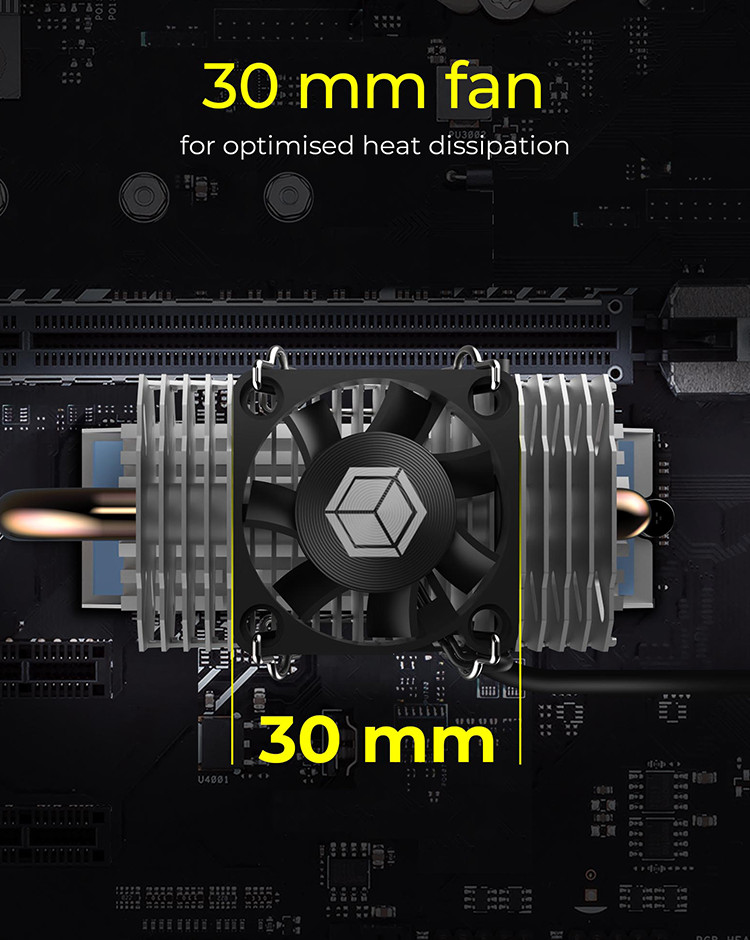

| Fan diameter | 3 cm |
| Number of speeds | 1 |
| Rotational speed (max) | 8500 RPM |
| Maximum airflow | 2.87 cfm |
| Airflow | 4.87 m³/h |
| Quantity per pack | 1 pc(s) |
| Thermal conductivity | 1.5 W/m·K |
| Operating temperature (T-T) | -20 - 180 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Material | Aluminium, Copper |
| Number of fans | 1 fan(s) |
| Number of fins | 22 |
| Number of heat pipes | 1 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Rated current | 0.09 A |
| Thermal Design Power (TDP) | 23 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30 mm |
| Depth | 75 mm |
| Height | 50 mm |
| Weight | 86 g |
| Fan dimensions (W x D x H) | 30 x 30 x 7 mm |
| Heat pipes diameter | 6 mm |
| Fins thickness | 0.5 mm |
| Cable length | 0.5 m |
| Package width | 100 mm |
| Package depth | 200 mm |
| Package height | 40 mm |
| Package weight | 190 g |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Thermal pad included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84145915 |
| Master (outer) case width | 225 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 425 mm |
| Master (outer) case gross weight | 7.6 kg |
| Products per master (outer) case | 40 pc(s) |
