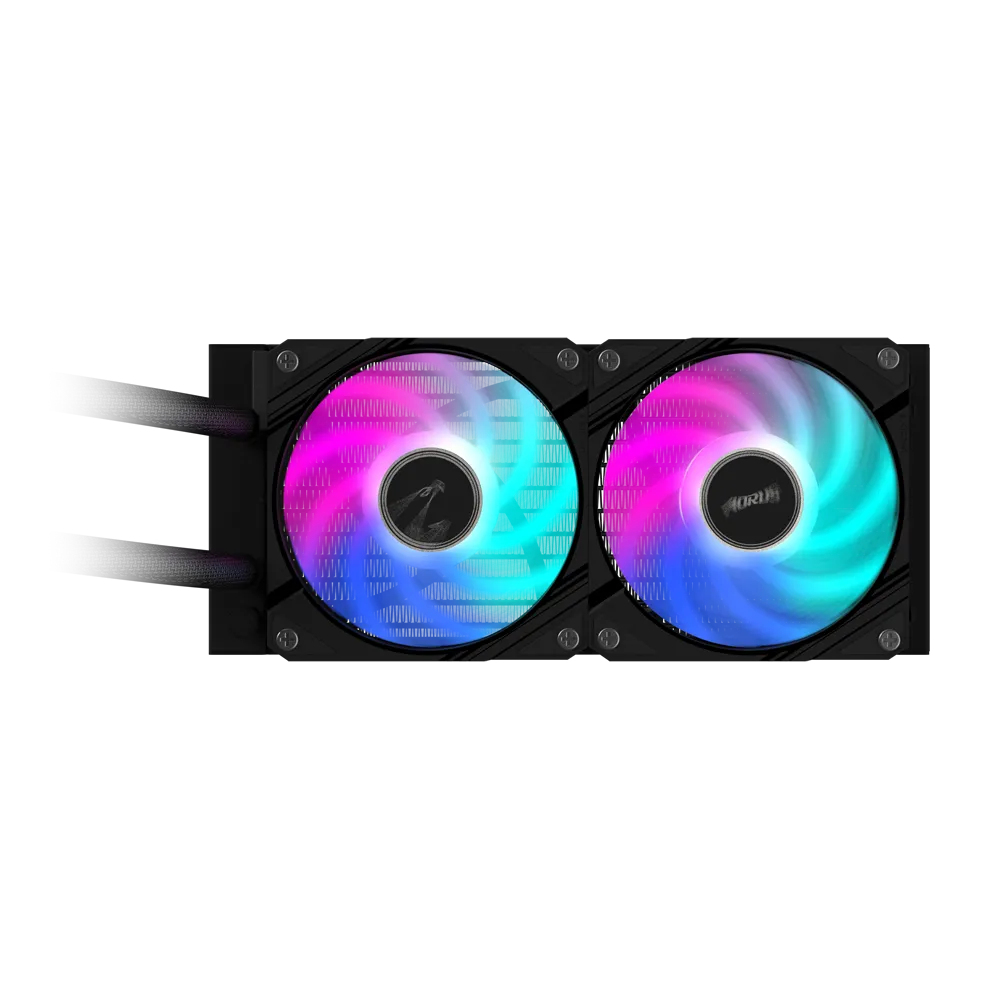

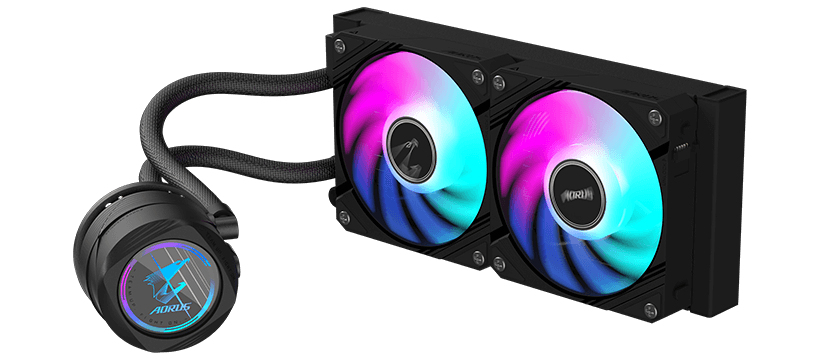

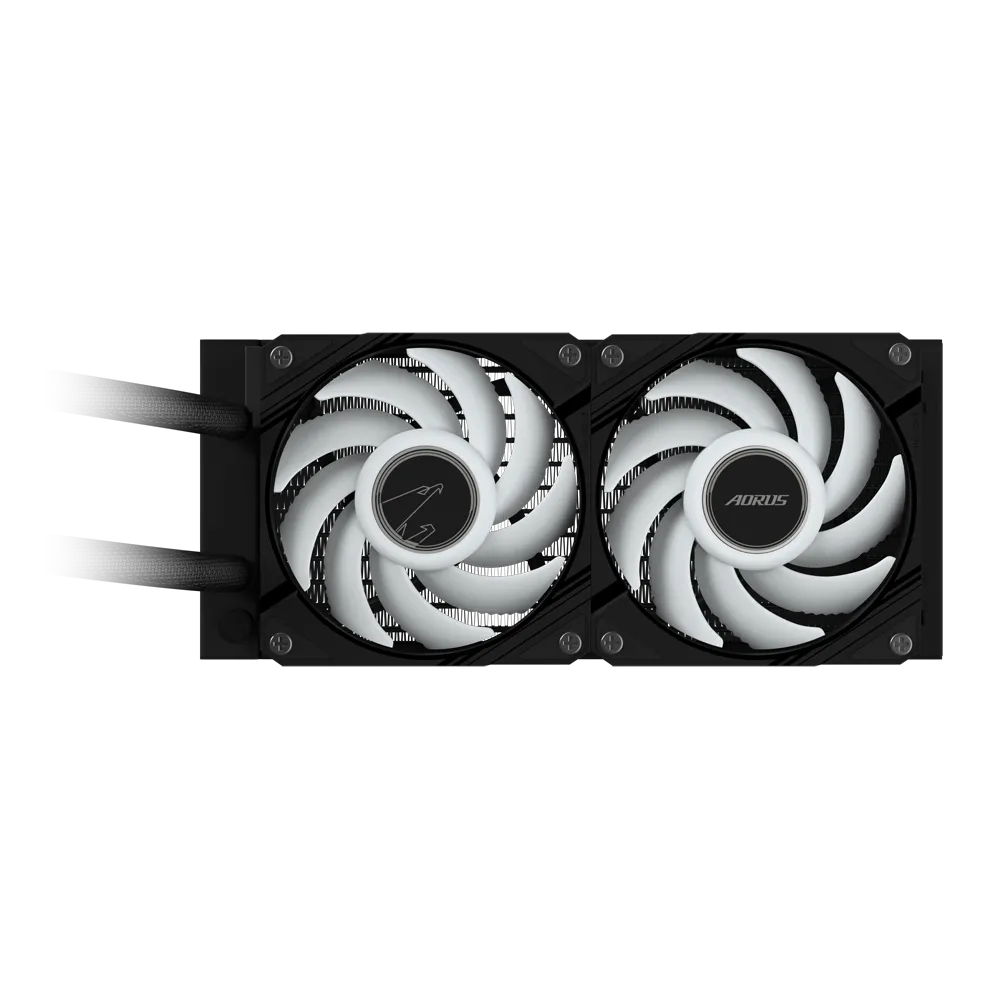

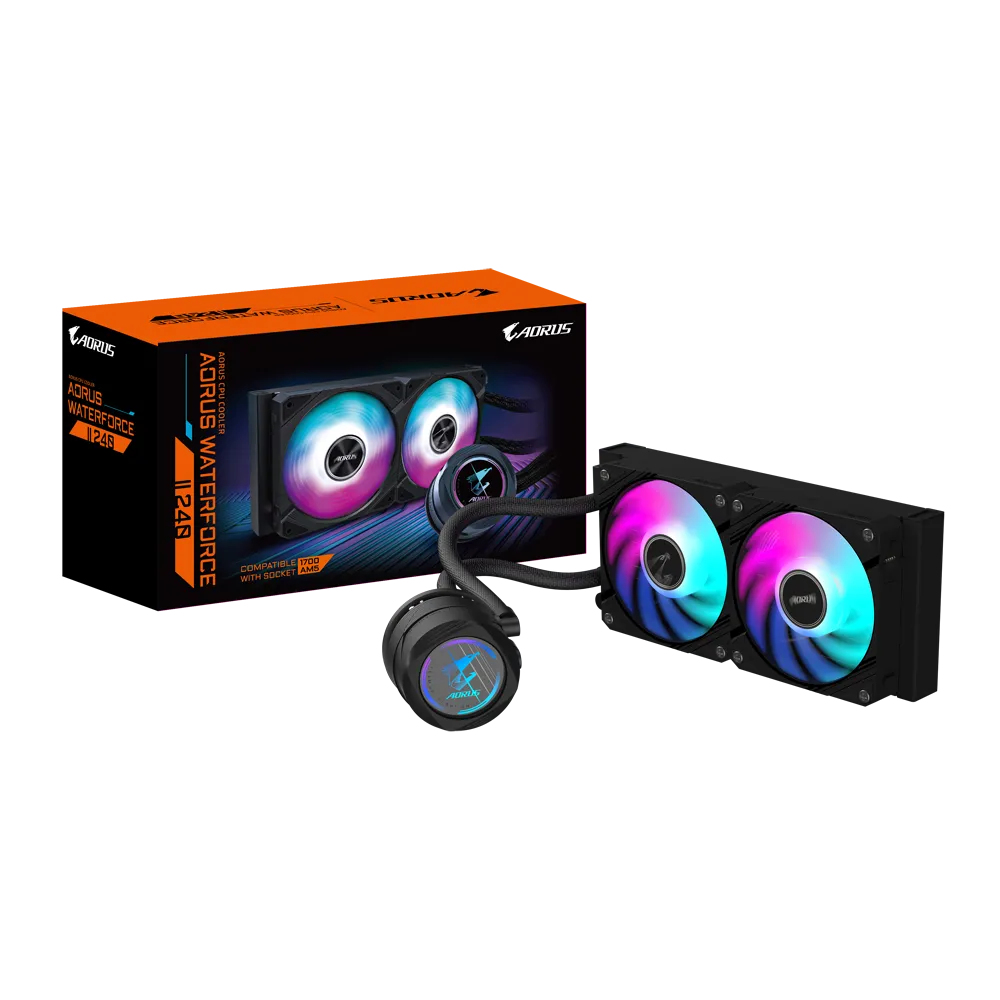

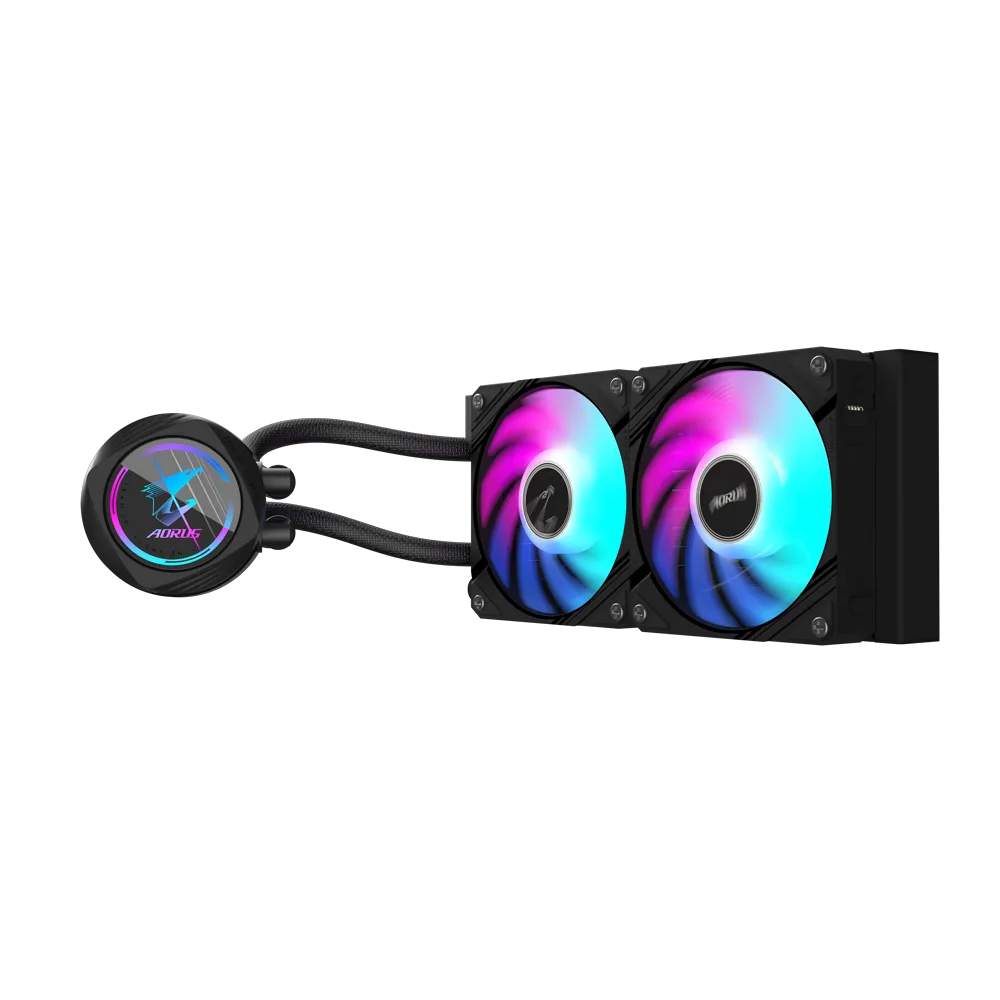

WATERFORCE II 240
Model WATERFORCE II 240Part no. AWF2-240
31 specifications
- Noise36.9 dB
- TypeAll-in-one liquid cooler
- ColourBlack
- Suitable locationMotherboard
- Width299 mm
- Warranty period5 year(s)
Overview
- Noise
- 36.9 dB
- Type
- All-in-one liquid cooler
- Colour
- Black
- Suitable location
- Motherboard
- Width
- 299 mm
- Warranty period
- 5 year(s)
- Brand
- GIGABYTE
- Category
- Computer Cooling System
- Model
- WATERFORCE II 240
- Part number
- AWF2-240
- Also known as
- GIGABYTE WATERFORCE II 240 Motherboard All-in-one liquid cooler 12 cm Black 1 pc(s)
Specifications
31 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Motherboard |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Noise level (high speed) | 36.9 dB |
| Maximum airflow | 64.95 cfm |
| Maximum air pressure | 2.93 mmH2O |
| Fan noise level (max) | 36.9 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 2300 RPM |
| Fan speed (min) | 800 RPM |
| Pump motor speed | 3400 RPM |
| Pump motor speed (max) | 3400 RPM |
| Pump motor speed (min) | 1600 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Aluminium, Copper |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Blue, Green, Red |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 299 mm |
| Depth | 27 mm |
| Height | 119 mm |
| Pump width | 7.28 cm |
| Pump depth | 7.28 cm |
| Pump height | 6.51 cm |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Screws included | Yes |
| CPU bracket(s) | Yes |
