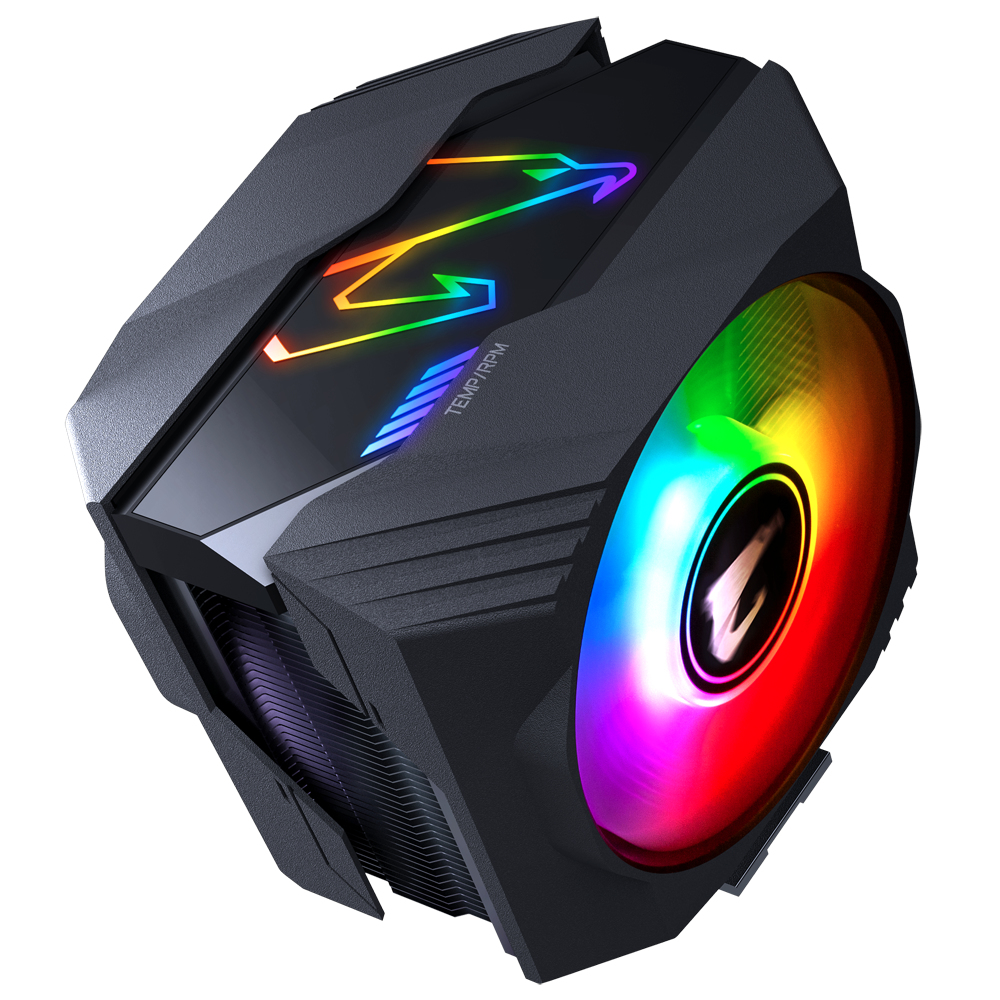

ATC800 Processor Air cooler
12 cm Black
Model ATC800Part no. GP-ATC800EAN 813567026969
33 specifications
- Noise18 dB
- TypeAir cooler
- Weight1.01 kg
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)1.44 W
Overview
- Noise
- 18 dB
- Type
- Air cooler
- Weight
- 1.01 kg
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 1.44 W
- Brand
- GIGABYTE
- Category
- Computer Cooling System
- Model
- ATC800
- Part number
- GP-ATC800
- EAN / UPC
- 813567026969, 4719331551278
- Also known as
- GIGABYTE ATC800 Processor Air cooler 12 cm Black
Specifications
33 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (low speed) | 18 dB |
| Noise level (high speed) | 31 dB |
| Minimum airflow (imperial) | 14.05 cfm |
| Maximum airflow | 51.7 cfm |
| Minimum air pressure | 0.18 mmH2O |
| Maximum air pressure | 2 mmH2O |
| Bearing type | Ball bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Number of heat pipes | 6 |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.44 W |
| Rated voltage | 12 V |
| Rated current | 0.12 A |
| Thermal Design Power (TDP) | 200 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 139 mm |
| Depth | 107 mm |
| Height | 163.3 mm |
| Weight | 1.01 kg |
Other features
| Specification | Value |
|---|---|
| Number of fans supported | 2 |
| Speed detection | Yes |
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
