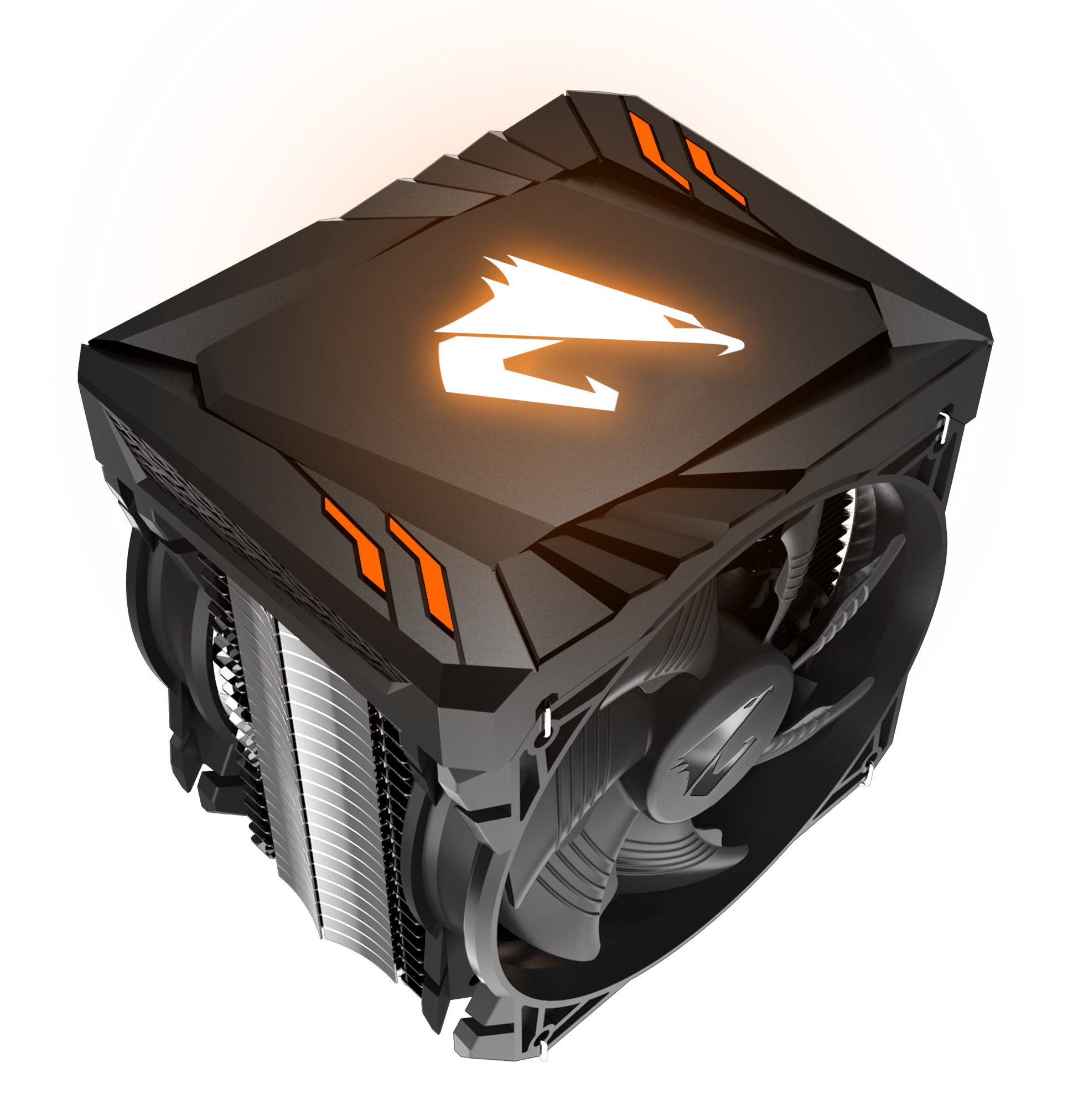

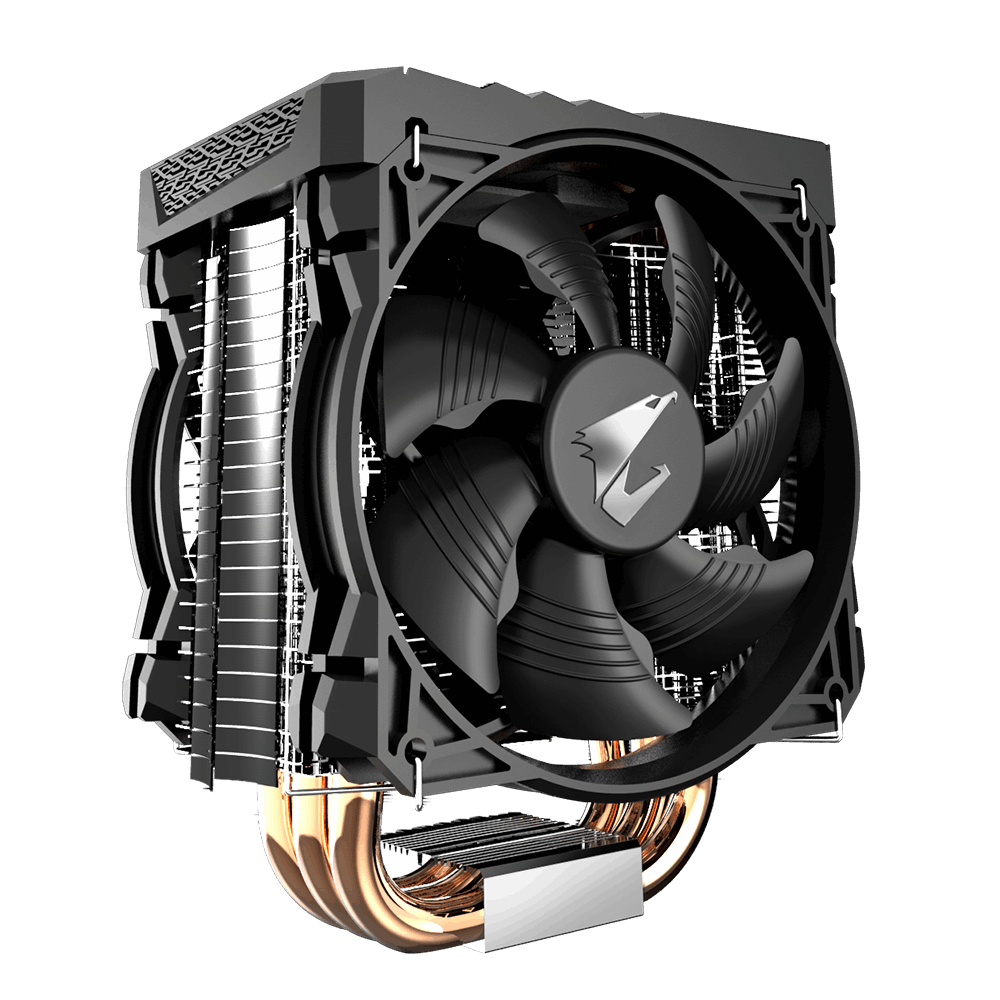

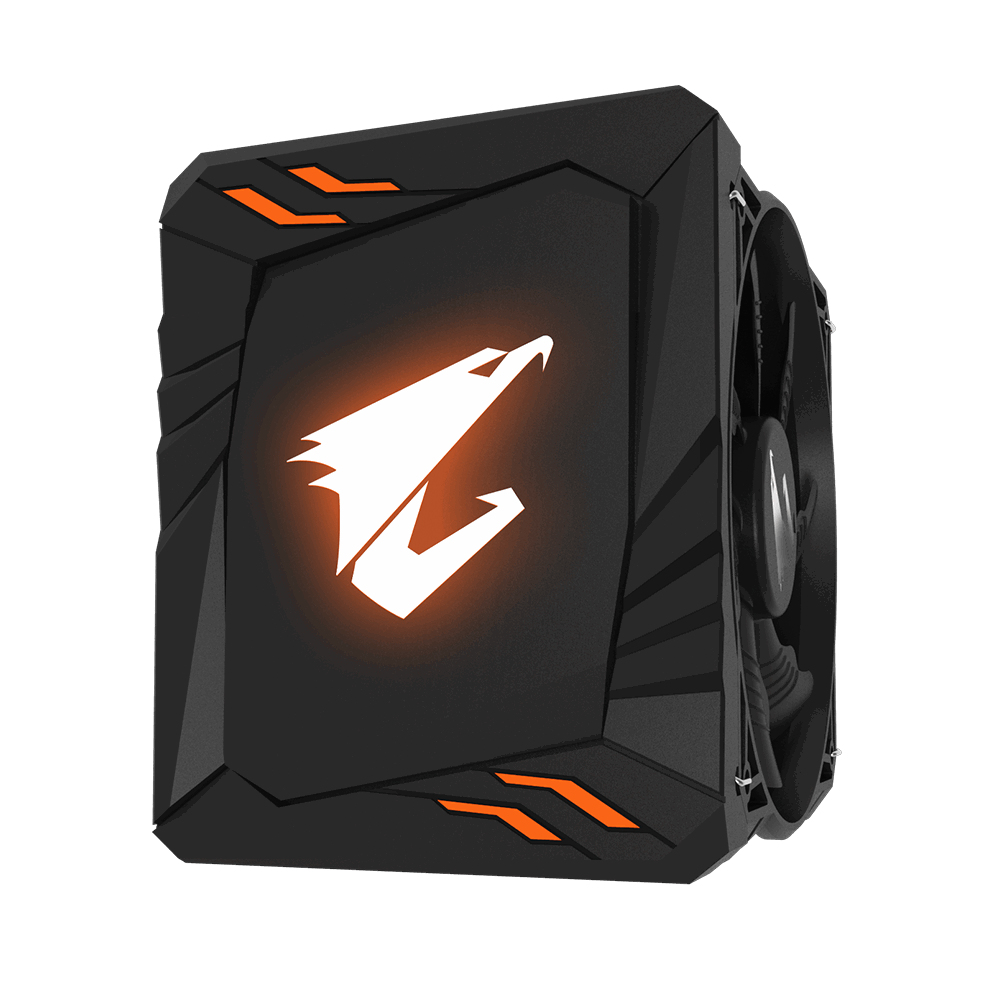

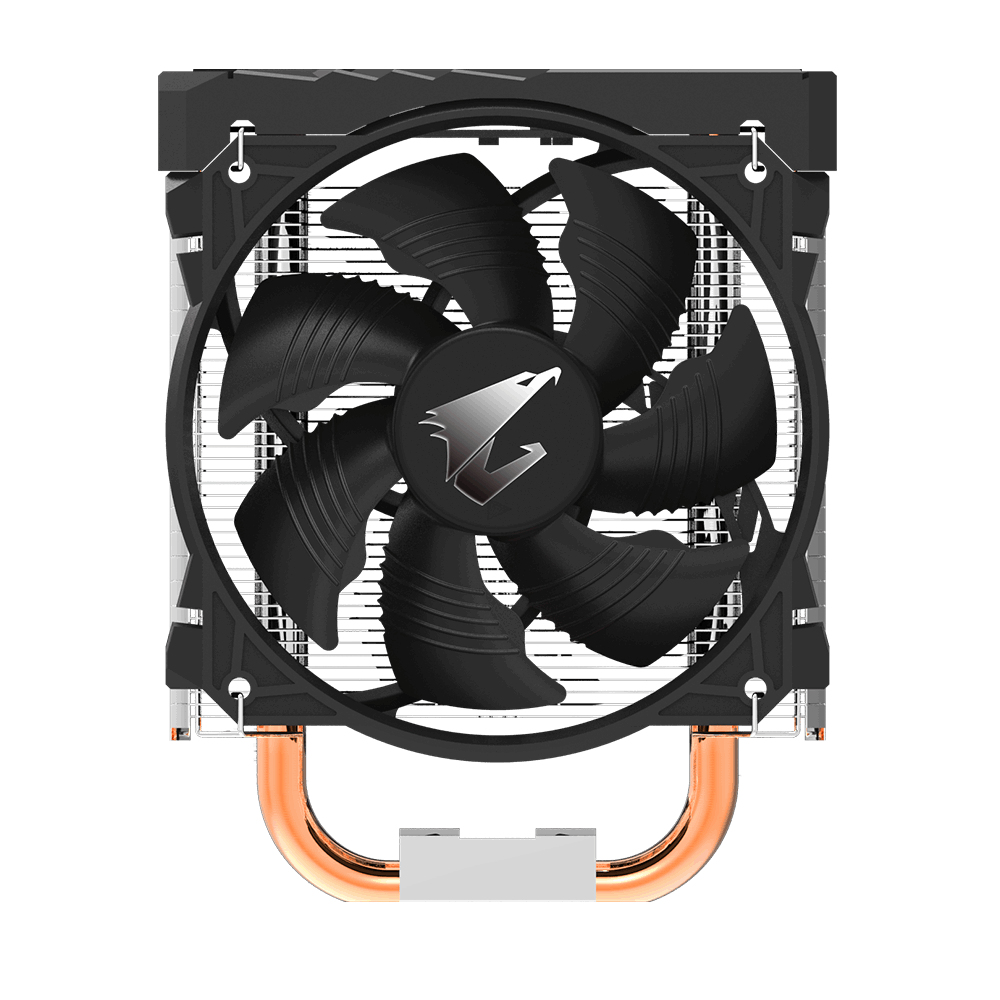

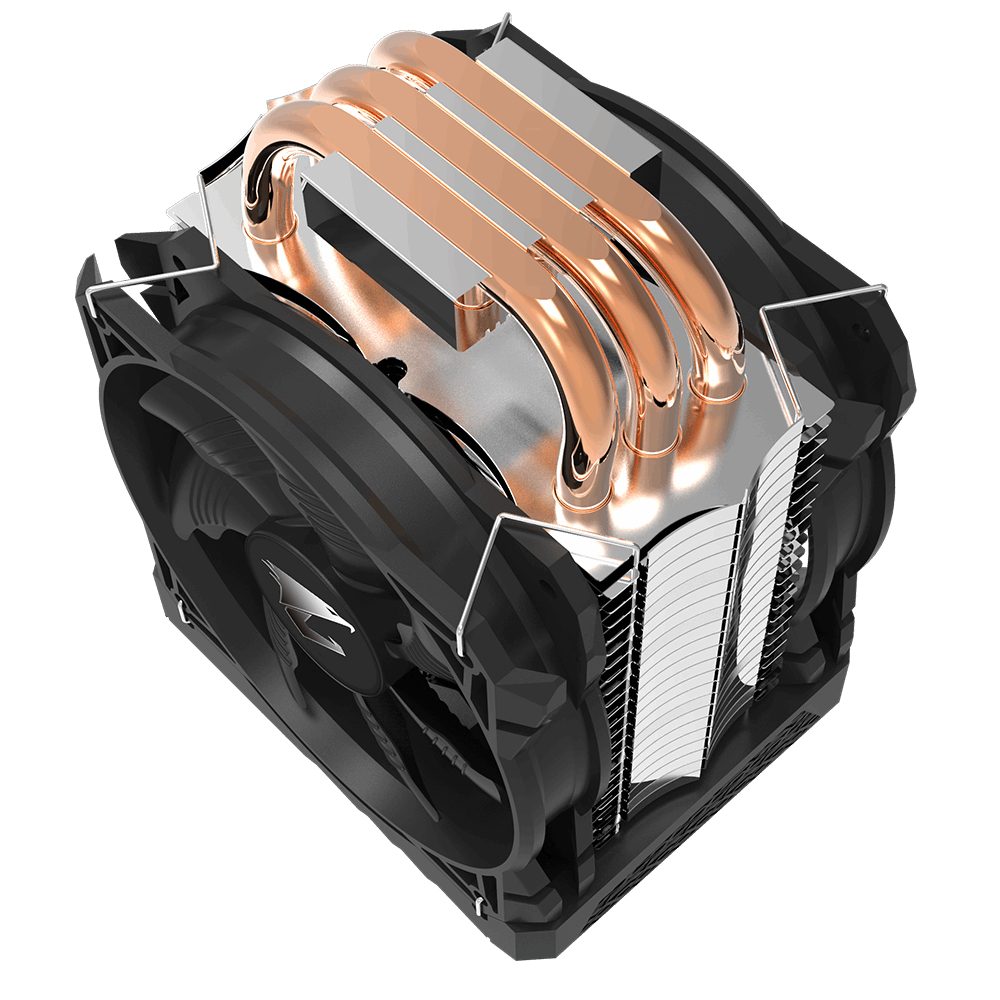

GIGABYTE ATC700 Processor Cooler
12 cm
Model ATC700Part no. 9JATC700-00-10EAN 813567025245
28 specifications
- Noise12 dB
- TypeCooler
- Weight955 g
- Suitable locationProcessor
- Fins materialAluminium
- Power consumption (typical)2.52 W
Overview
- Noise
- 12 dB
- Type
- Cooler
- Weight
- 955 g
- Suitable location
- Processor
- Fins material
- Aluminium
- Power consumption (typical)
- 2.52 W
- Brand
- GIGABYTE
- Category
- Computer Cooling System
- Model
- ATC700
- Part number
- 9JATC700-00-10
- EAN / UPC
- 813567025245, 4719331550127
- Also known as
- GIGABYTE ATC700 Processor Cooler 12 cm
Specifications
28 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket 754, Socket 939, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1700 RPM |
| Noise level (low speed) | 12 dB |
| Noise level (high speed) | 31 dB |
| Minimum airflow (imperial) | 14 cfm |
| Maximum airflow | 53 cfm |
| Minimum air pressure | 0.2 mmH2O |
| Maximum air pressure | 1.93 mmH2O |
| Bearing type | Ball bearing |
Design
| Specification | Value |
|---|---|
| Fins material | Aluminium |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.52 W |
| Rated voltage | 12 V |
| Thermal Design Power (TDP) | 200 W |

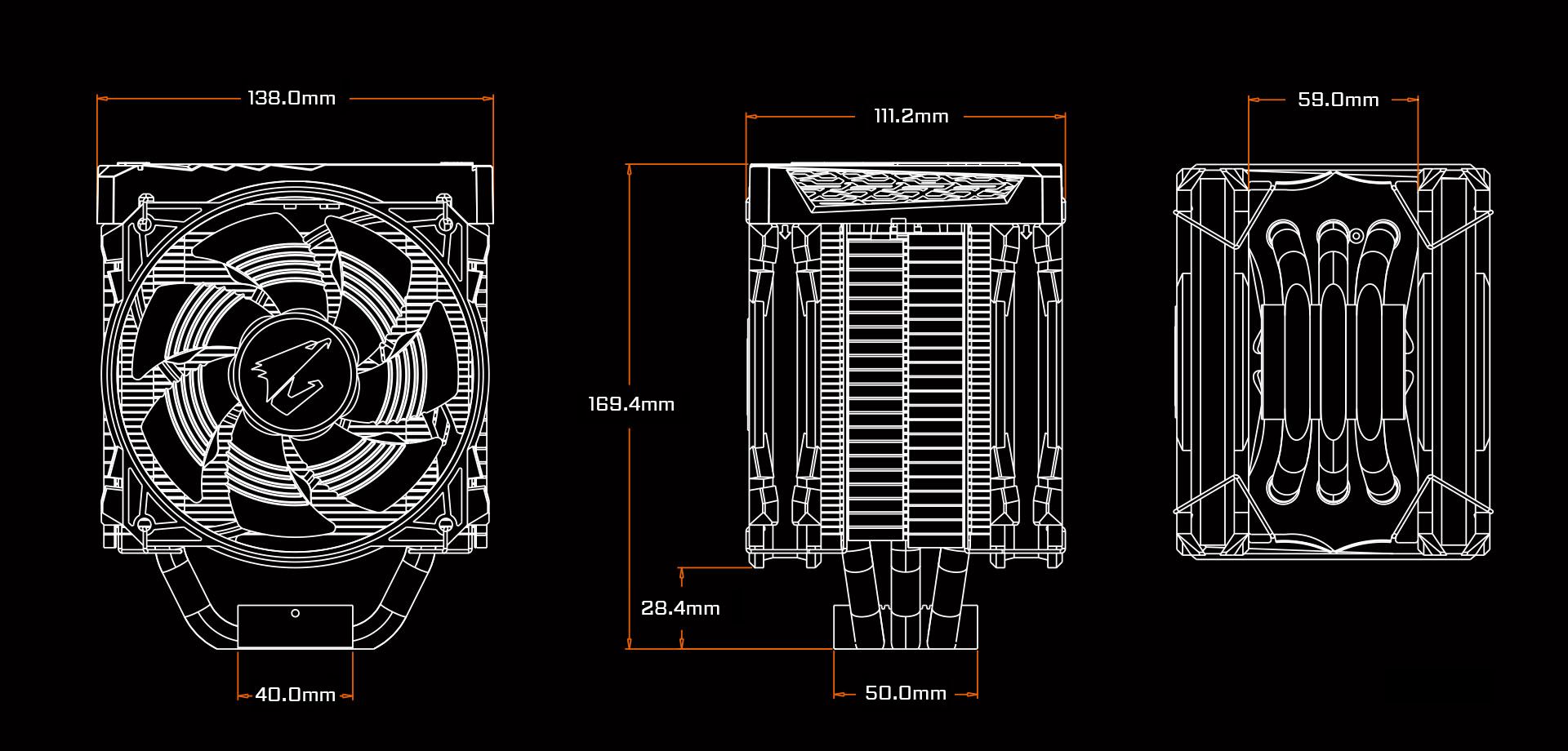

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 109 mm |
| Depth | 139 mm |
| Height | 169 mm |
| Weight | 955 g |
| Fan weight | 142 g |
| Heatsink weight | 670 g |
| Heat pipes diameter | 1 cm |
Other features
| Specification | Value |
|---|---|
| Heatsink dimensions (W x D x H) | 59 x 133 x 158 mm |
| Current | 0.21 A |
| Mean time to failure (MTTF) | 70000 h |
What people say
Reviews & ratings
GIGABYTE ATC700 Processor Cooler
No reviews yet
Be the first to tell others how GIGABYTE ATC700 Processor Cooler works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE ATC700 Processor Cooler
All computer cooling system comparisons- GIGABYTE ATC700 Processor Cooler vsGIGABYTE ATC800 Processor Air coolerCompare specs

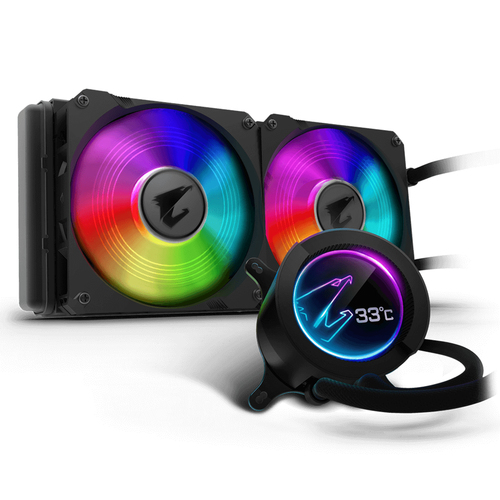

- GIGABYTE ATC700 Processor Cooler vsGIGABYTE Liquid Cooler 280Compare specs
- GIGABYTE ATC700 Processor Cooler vsGIGABYTE XTC700 computer cooling system Processor CoolerCompare specs

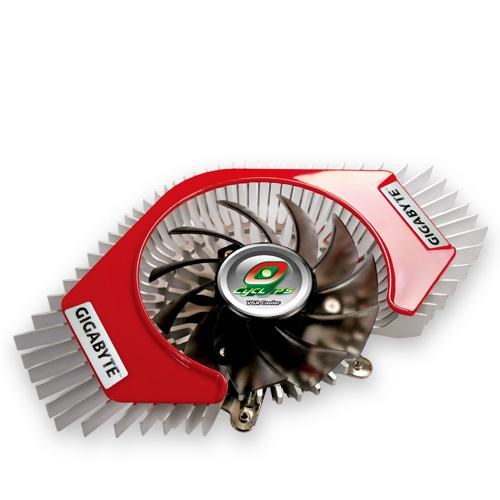

- GIGABYTE ATC700 Processor Cooler vsGIGABYTE Cyclops Graphics card Air coolerCompare specs
