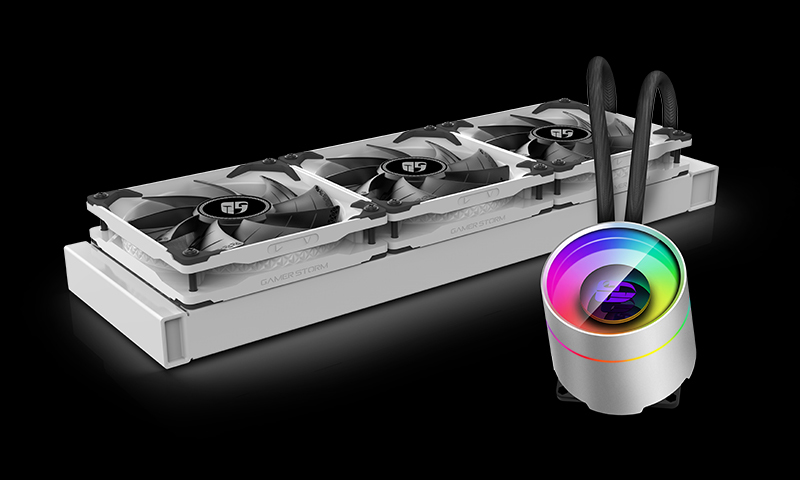

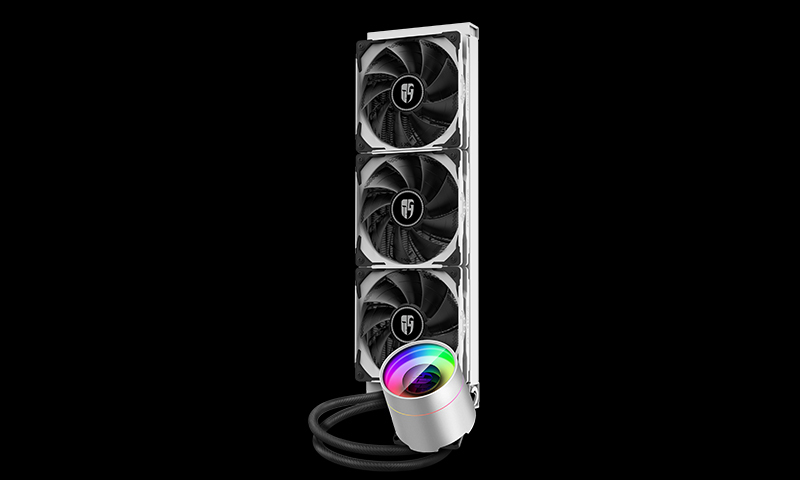

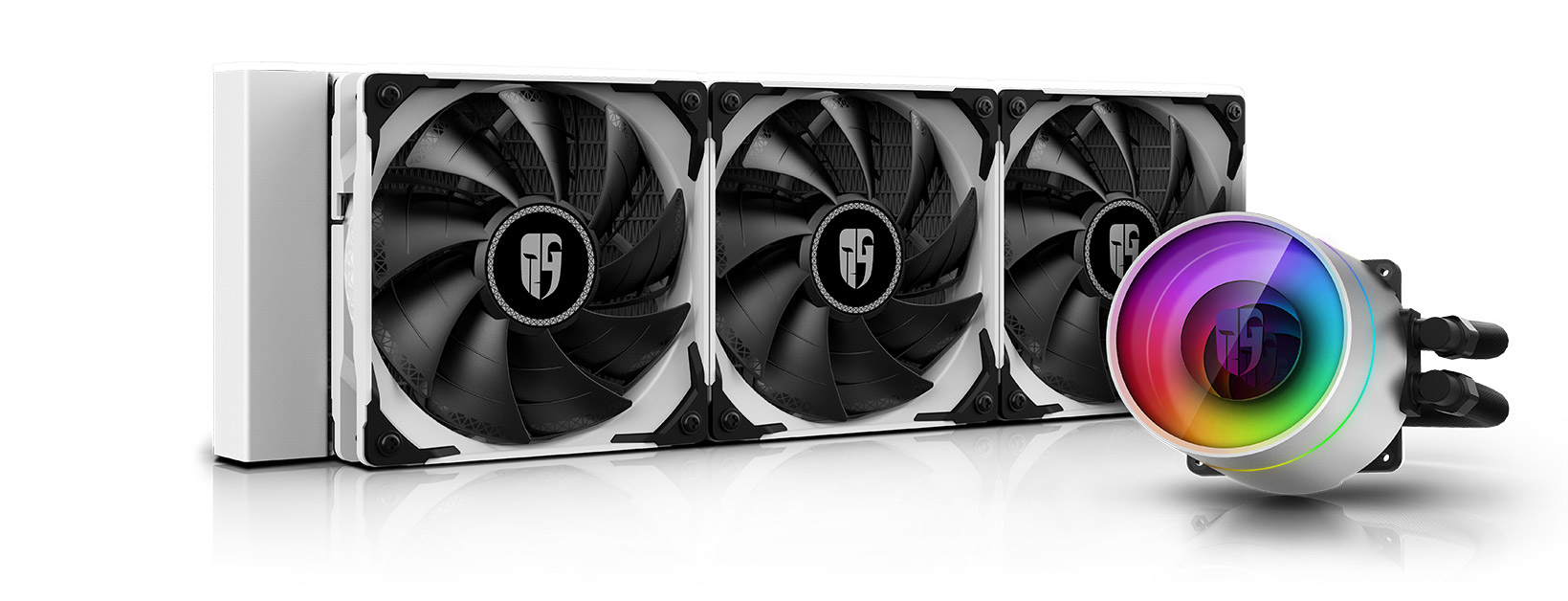

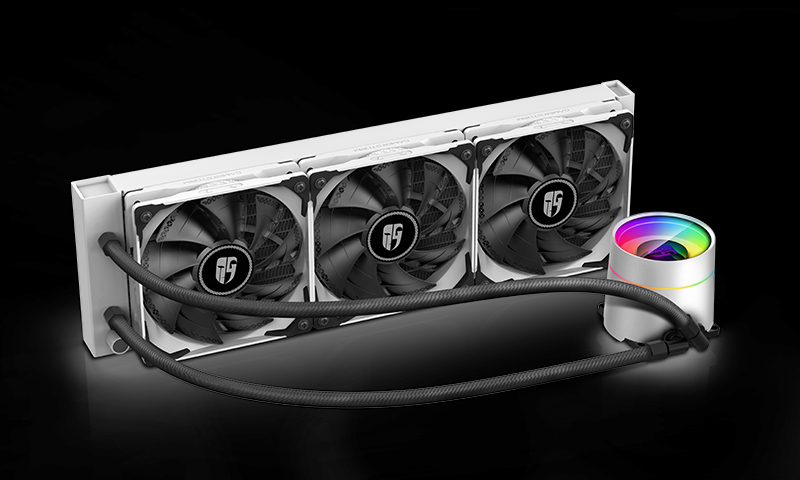

Castle 360EX White
Model Castle 360EX WhitePart no. DP-GS-H12W-CSL360EXW
30 specifications
- TypeAll-in-one liquid cooler
- Weight1.71 kg
- ColourBlack, Grey
- Suitable locationProcessor
- Fan power consumption1.8 W
- Tube length46.5 cm
Overview
- Type
- All-in-one liquid cooler
- Weight
- 1.71 kg
- Colour
- Black, Grey
- Suitable location
- Processor
- Fan power consumption
- 1.8 W
- Tube length
- 46.5 cm
- Brand
- Gamer Storm
- Category
- Computer Cooling System
- Model
- Castle 360EX White
- Part number
- DP-GS-H12W-CSL360EXW
- Also known as
- Gamer Storm Castle 360EX White Processor All-in-one liquid cooler Black, Grey
Specifications
30 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket TR4 |
| Maximum airflow | 64.4 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (min) | 32.1 dB |
| Pump noise level | 17.8 dB |
| Fan bearing technology | Hydro bearing |
| Pump connector | 3-pin |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 500 RPM |
| Pump motor speed | 2550 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Radiator material | Aluminium |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Blue, Green, Red |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 1.8 W |
| Pump power consumption | 2.4 W |
| Fan current | 0.15 A |
| Fan voltage | 12 V |
| Pump current | 200 mA |
| Pump voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Tube length | 46.5 cm |
| Pump width | 8.6 cm |
| Pump depth | 7.5 cm |
| Pump height | 7.1 cm |
| Weight | 1.71 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
