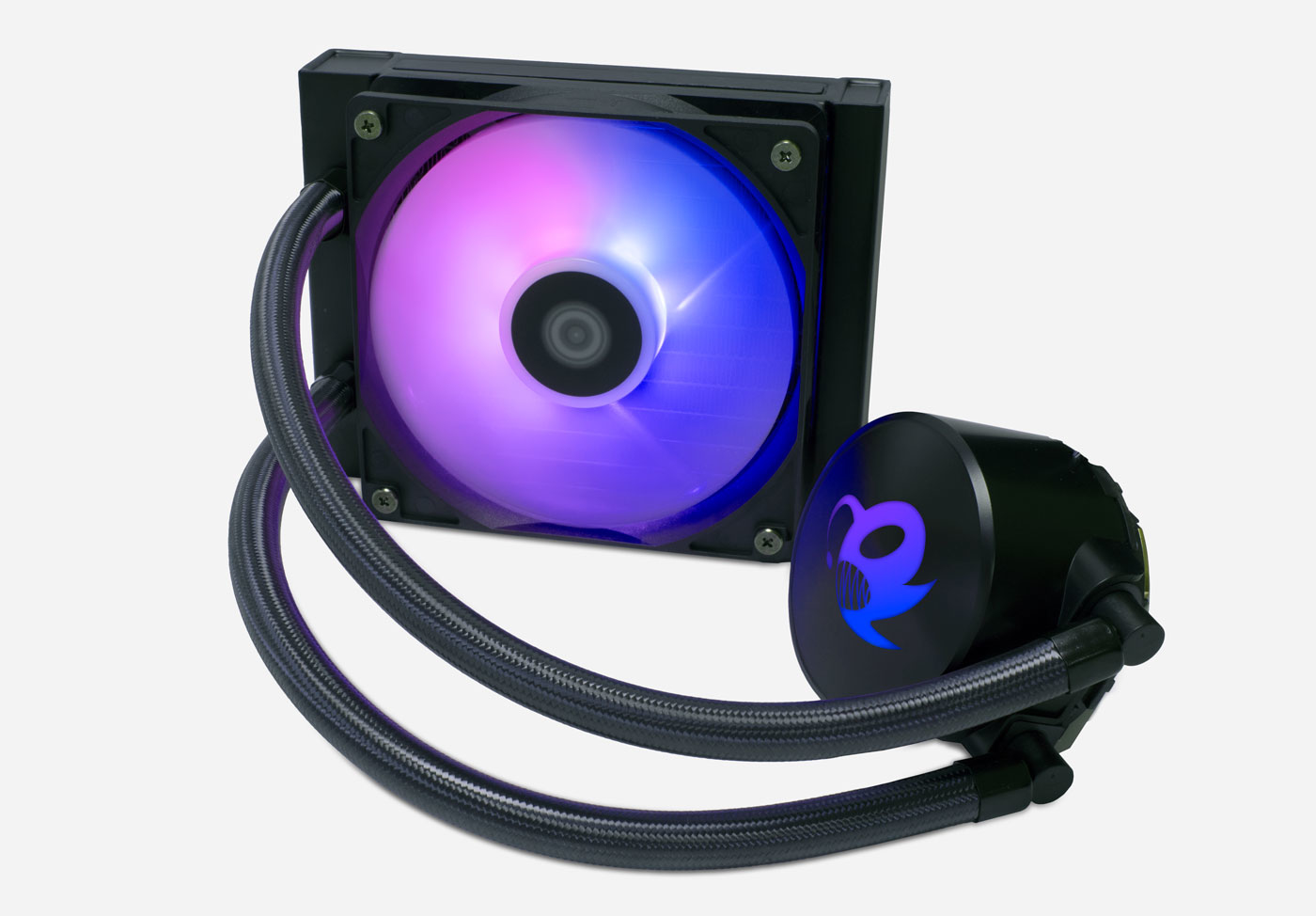

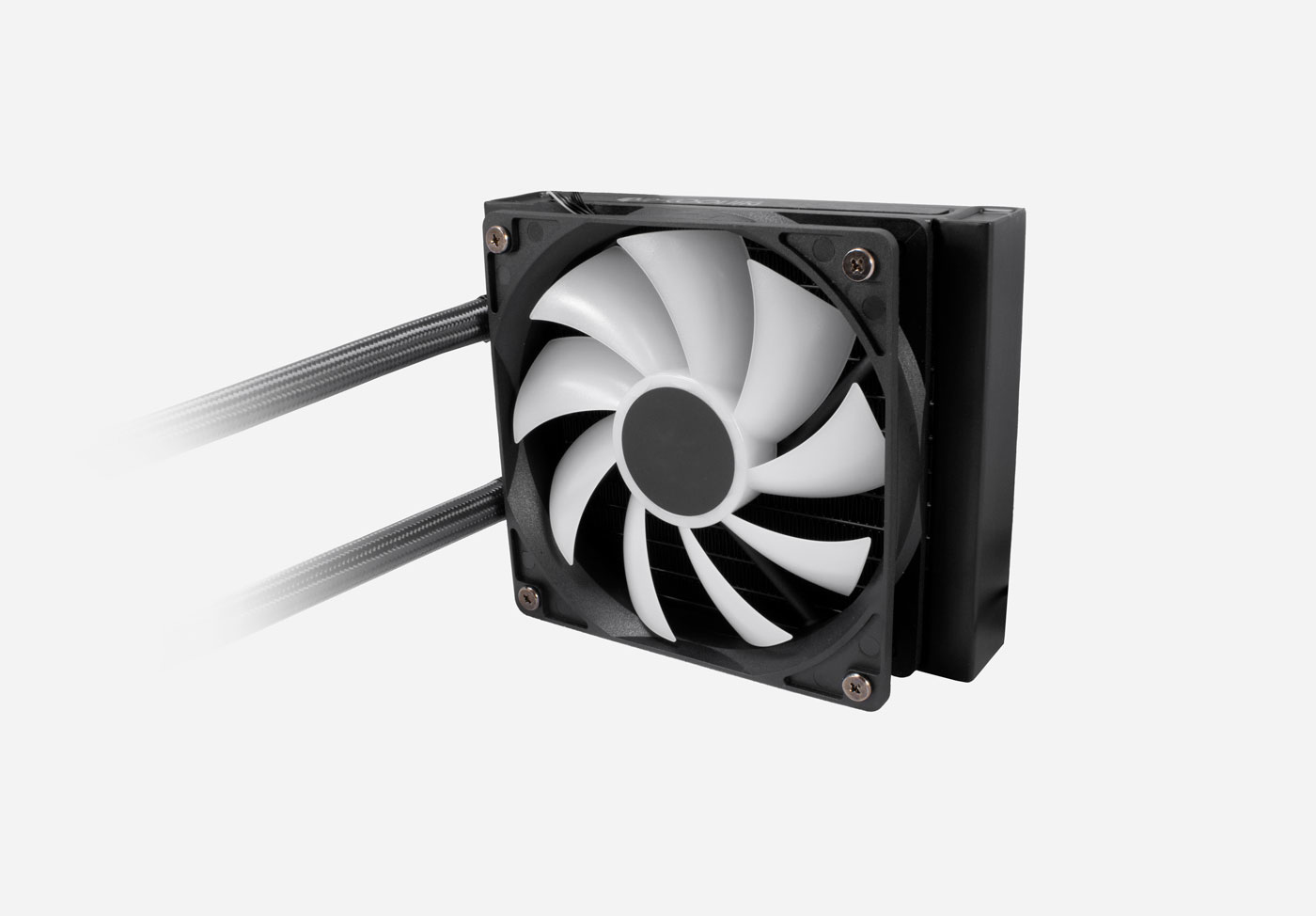

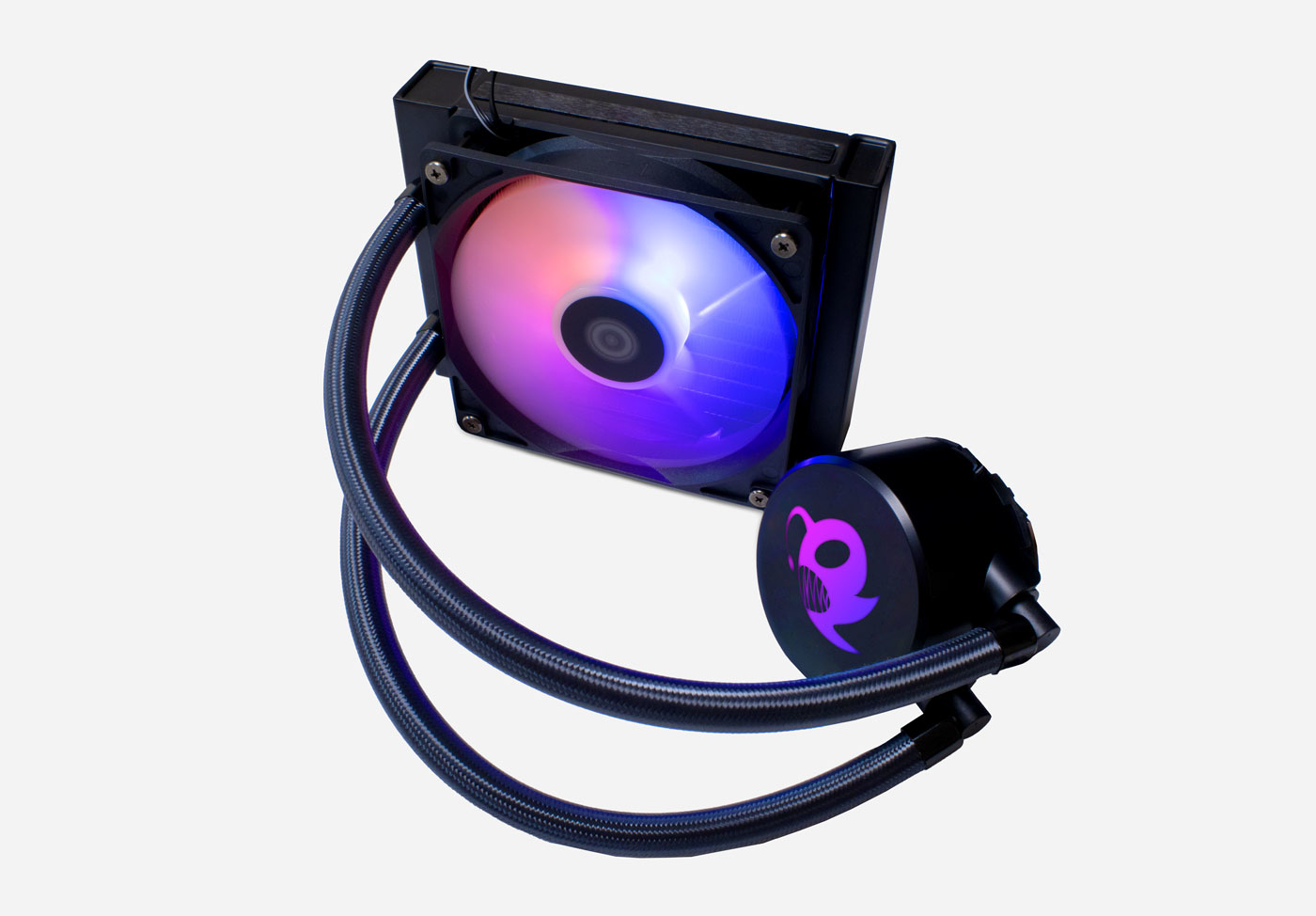

DG-KRL120-3-AR computer cooling system Processor Liquid cooling kit
12 cm Black 1 pc(s)
Model DG-KRL120-3-AREAN 8436556144110
37 specifications
- TypeLiquid cooling kit
- ColourBlack
- Suitable locationProcessor
- Fan current0.25 A
- Height47.3 mm
Overview
- Type
- Liquid cooling kit
- Colour
- Black
- Suitable location
- Processor
- Fan current
- 0.25 A
- Height
- 47.3 mm
- Brand
- Deep Gaming
- Category
- Computer Cooling System
- Model
- DG-KRL120-3-AR
- Part number
- DG-KRL120-3-AR
- EAN / UPC
- 8436556144110
- Also known as
- Deep Gaming DG-KRL120-3-AR computer cooling system Processor Liquid cooling kit 12 cm Black 1 pc(s)
Specifications
37 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Maximum airflow | 74.5 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (max) | 35.2 dB |
| Pump noise level | 25 dB |
| Fan bearing technology | Hydraulic bearing |
| Pump bearing technology | Ceramic bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 500 RPM |
| Fan static pressure | 2.15 mmH2O |
| Pump motor speed | 2100 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 1 fan(s) |
| Number of fan blades | 9 |
| Illumination LED | Yes |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Fan current | 0.25 A |
| Fan voltage | 12 V |
| LED voltage | 5 V |
| Pump current | 250 mA |
| Pump voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 47.3 mm |
| Radiator width | 15.4 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 33 cm |
| Pump width | 7.2 cm |
| Pump depth | 7.2 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
