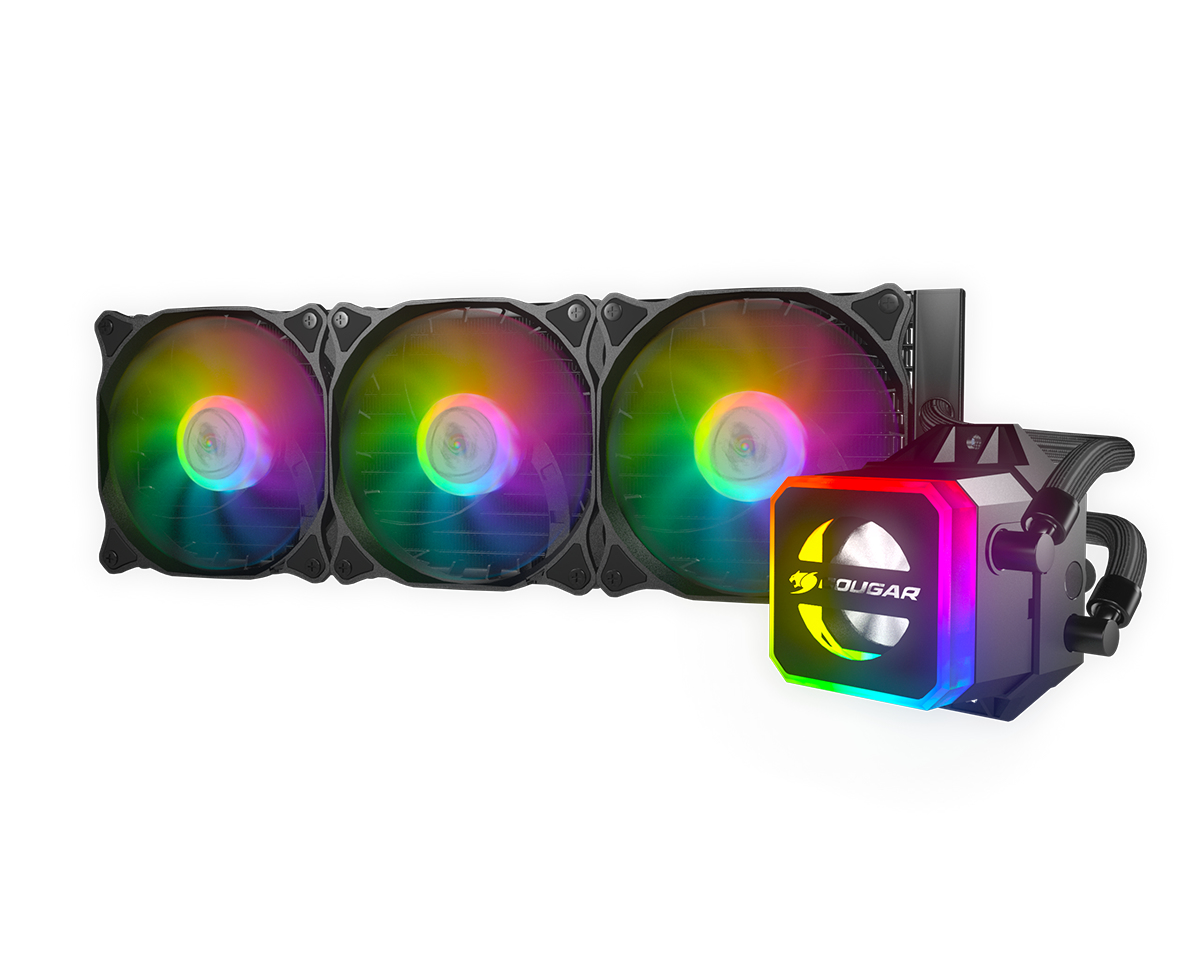

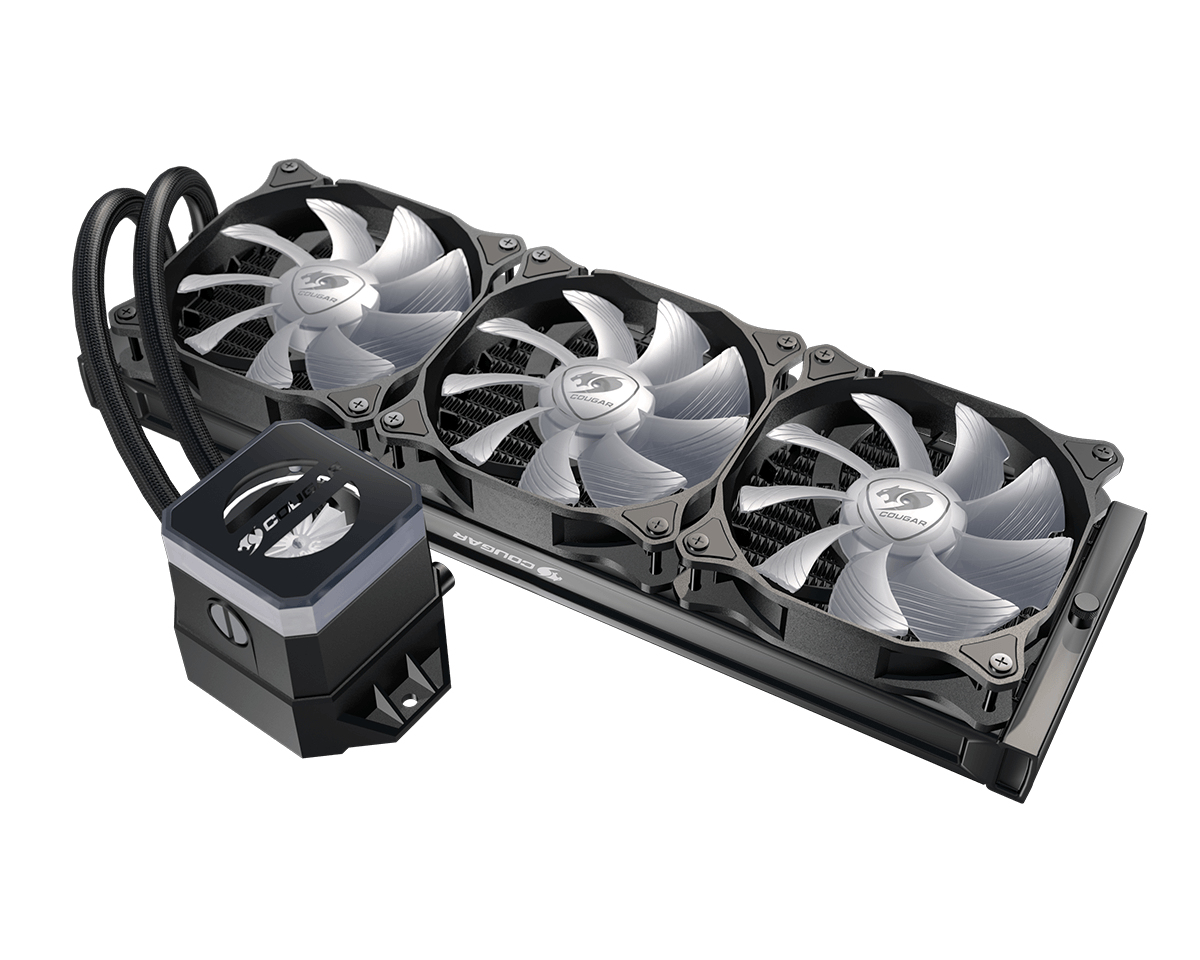

RL-HLR360-V1 computer cooling system Processor All-in-one liquid cooler
12 cm Black
Model RL-HLR360-V1
41 specifications
- TypeAll-in-one liquid cooler
- ColourBlack
- Suitable locationProcessor
- Fan power consumption3.84 W
- Radiator width39.4 cm
Overview
- Type
- All-in-one liquid cooler
- Colour
- Black
- Suitable location
- Processor
- Fan power consumption
- 3.84 W
- Radiator width
- 39.4 cm
- Brand
- COUGAR
- Category
- Computer Cooling System
- Model
- RL-HLR360-V1
- Part number
- RL-HLR360-V1
- Also known as
- COUGAR RL-HLR360-V1 computer cooling system Processor All-in-one liquid cooler 12 cm Black
Specifications
41 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Maximum airflow | 78.4 cfm |
| Maximum air pressure | 2.4 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (max) | 37.1 dB |
| Fan bearing technology | Hydro Dynamic Bearing (HDB) |
| Pump connector | 3-pin |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 600 RPM |
| Pump motor speed | 2700 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminium |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Blue, Green, Red |
| Fan connector | 4-pin |
| Fan controller | Yes |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 3.84 W |
| Pump power consumption | 3.36 W |
| Fan current | 0.32 A |
| Fan voltage | 12 V |
| Pump current | 0.28 mA |
| Pump voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 39.4 cm |
| Radiator depth | 2.7 cm |
| Radiator height | 12 cm |
| Tube length | 40 cm |
| Pump width | 8.18 cm |
| Pump depth | 9.48 cm |
| Pump height | 7.83 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan thickness | 2.5 cm |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Tube material | Rubber |
| Number of fans supported | 3 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
