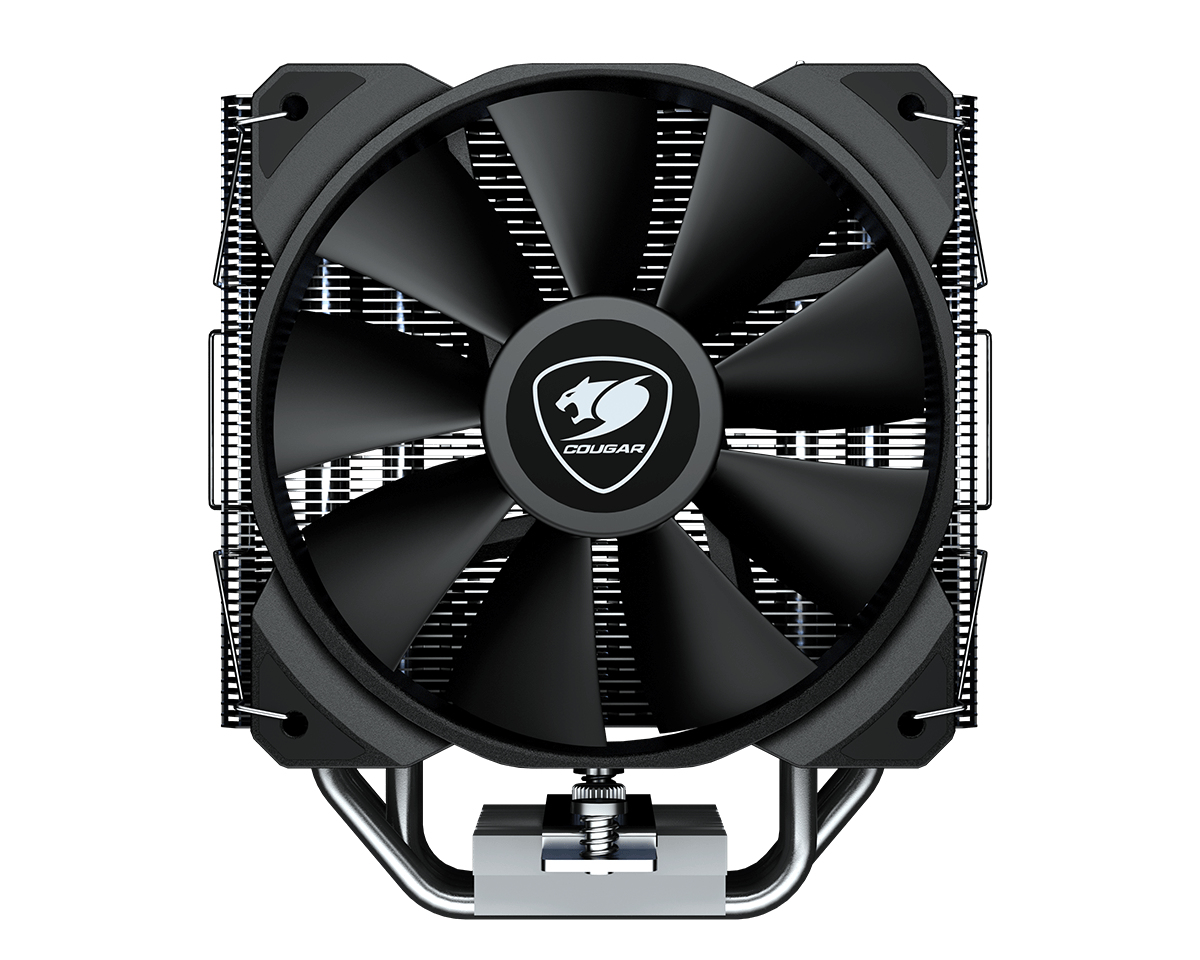

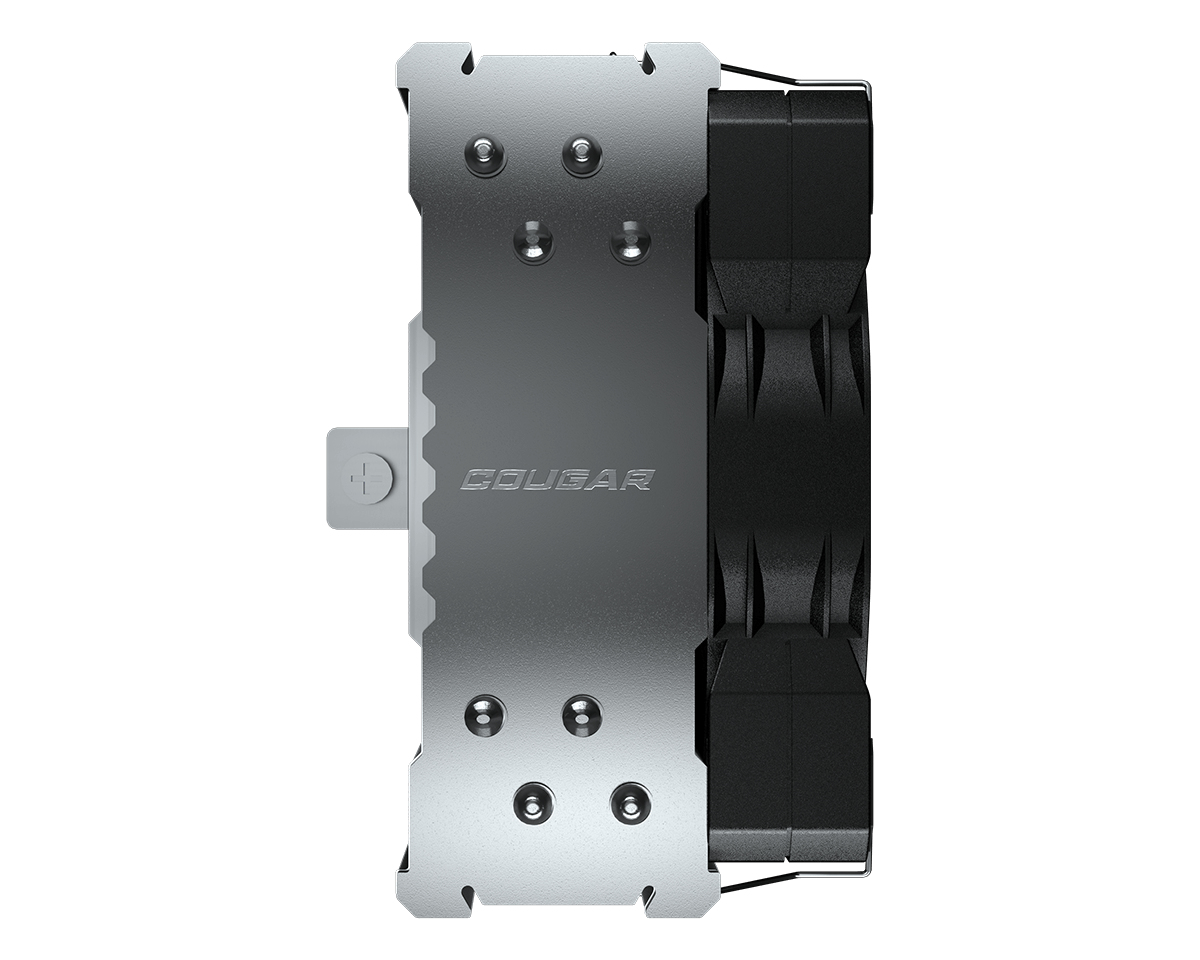

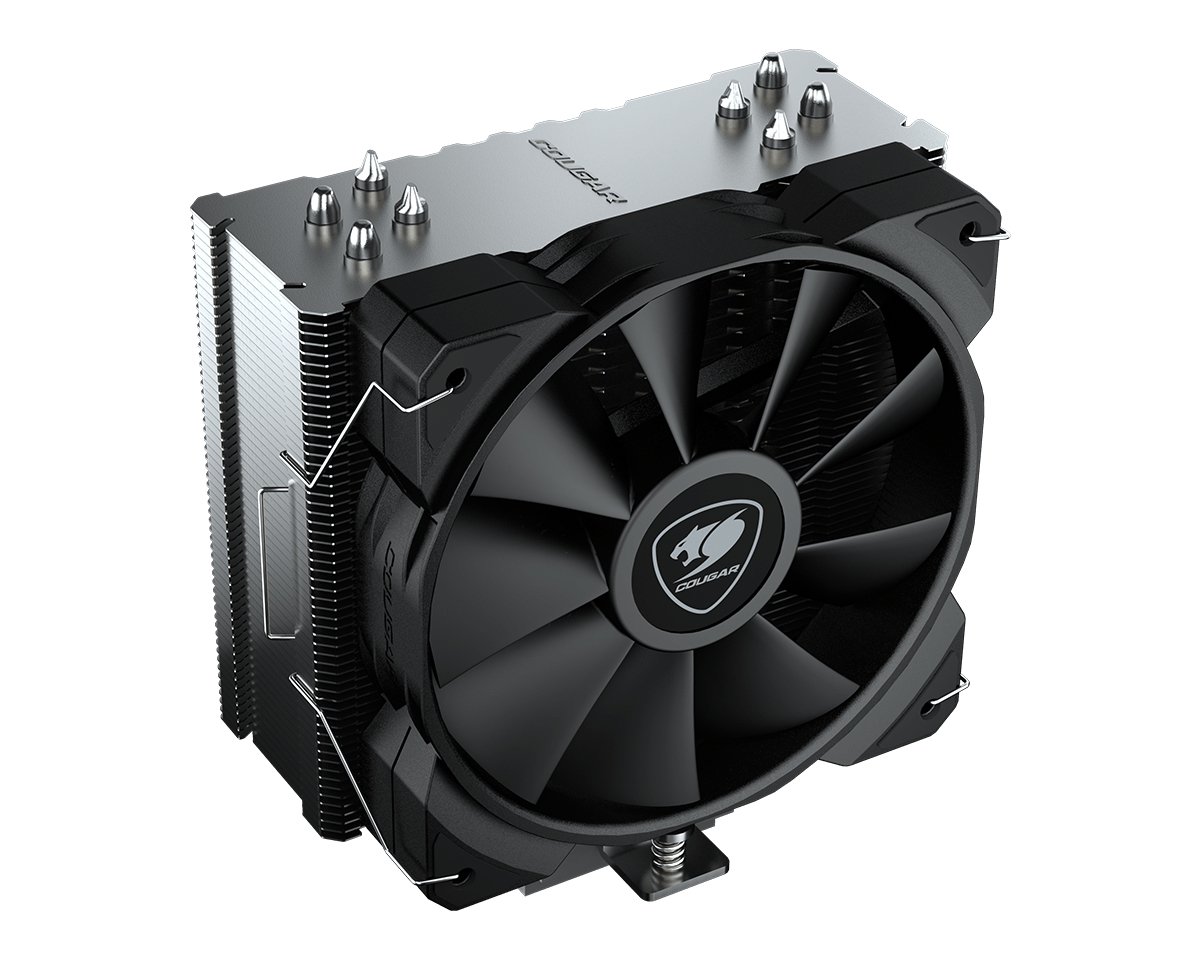

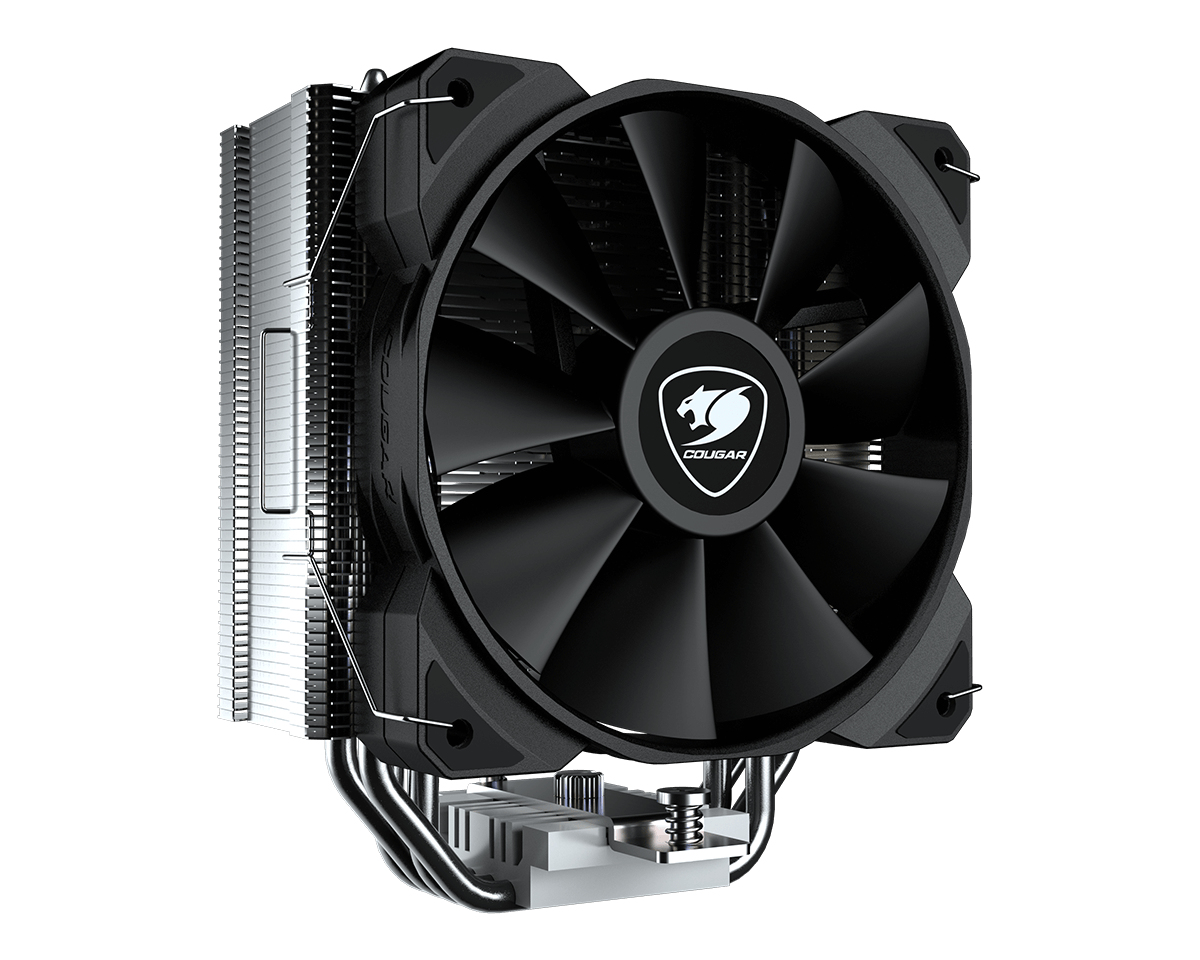

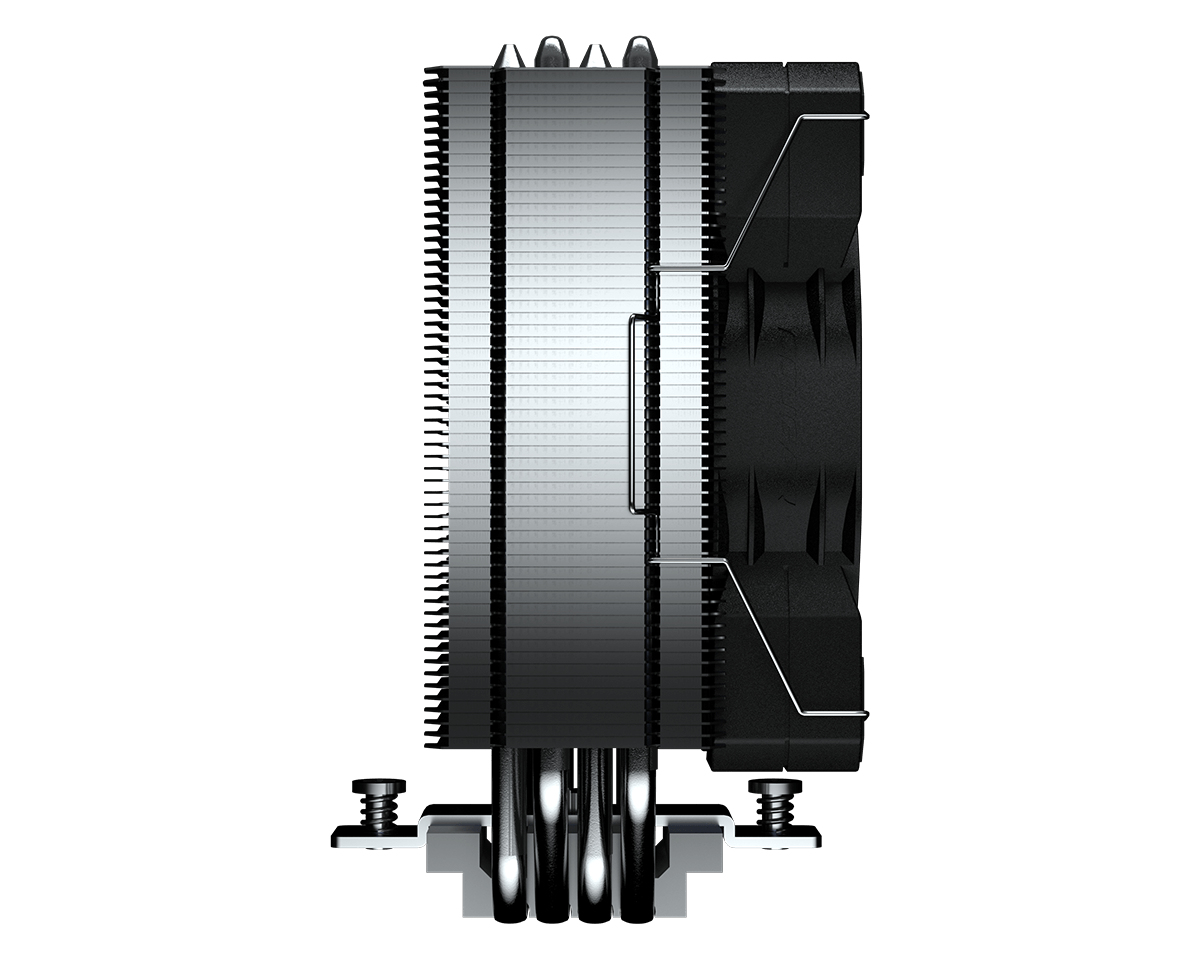

CGR-FZAE50 Processor Heatsink/Radiator
12 cm Black 1 pc(s)
Model CGR-FZAE50Part no. 3MFZE50.0001EAN 4710483775031
37 specifications
- TypeHeatsink/Radiator
- Weight774 g
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)3.36 W
- Width75 mm
Overview
- Type
- Heatsink/Radiator
- Weight
- 774 g
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 3.36 W
- Width
- 75 mm
- Brand
- COUGAR
- Category
- Computer Cooling System
- Model
- CGR-FZAE50
- Part number
- 3MFZE50.0001
- EAN / UPC
- 4710483775031
- Also known as
- COUGAR CGR-FZAE50 Processor Heatsink/Radiator 12 cm Black 1 pc(s)
Specifications
37 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Heatsink/Radiator |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum airflow | 82.48 cfm |
| Airflow | 143.53 m³/h |
| Maximum air pressure | 4.24 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (max) | 34.5 dB |
| Fan bearing technology | Hydraulic bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 600 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of fan blades | 9 |
| Number of heat pipes | 4 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.36 W |
| Rated voltage | 12 V |
| Rated current | 0.28 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 135 mm |
| Height | 155 mm |
| Radiator width | 5 cm |
| Radiator depth | 13.5 cm |
| Radiator height | 15.5 cm |
| Weight | 774 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
| Cable length | 0.2 m |
| Package width | 160 mm |
| Package depth | 128 mm |
| Package height | 180 mm |
| Package weight | 1.07 kg |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
